Drive kit for a sliding gate up to 600 kg/8 m NICE Robus RB600 (F)
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€1,024.08 including VAT
| Weight |
|---|
| 19 kg |
Description of Drive kit for a sliding gate up to 600 kg/8 m NICE Robus RB600 (F)
The NICE RB400 drive has been replaced by a newer model NICE RBS600. See the benefits of the newer NICE RBS400 and RBS600 models.
The NICE RB600 (F) kit will be replaced by the NICE RBS600 (F) kit.
NICE Robus RB600 gate opener is designed for sliding gates weighing up to 600 kg and a passage width of up to 8 m. It has an electromechanical stop switch. The opener is non-reversible. Detailed technical specifications ». Download the manual ».

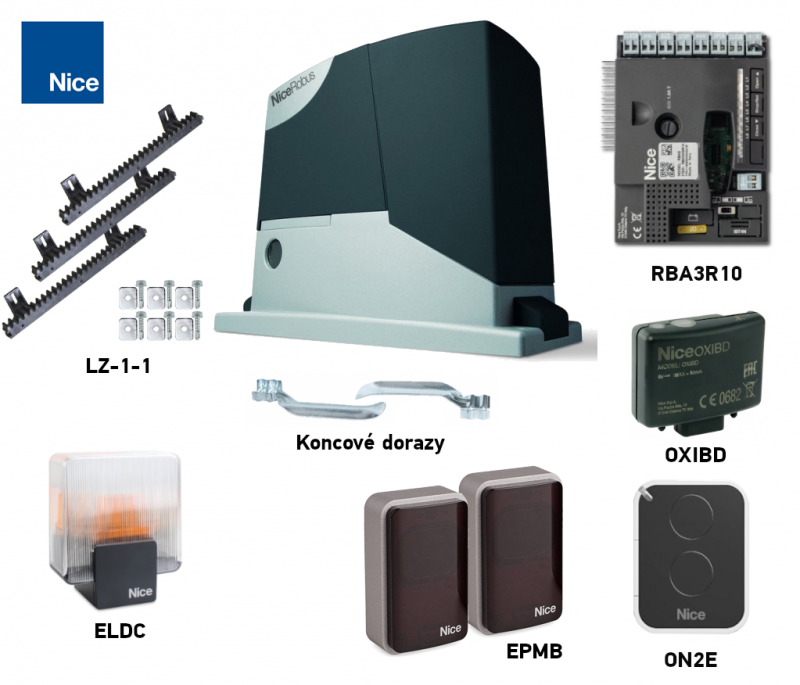

| The set includes: | NICE-RB600-F | |||
|---|---|---|---|---|
 |
1 × | NICE Robus RB600 gate opener | NICE-RB600 | |
|
Electromechanical NICE Robus RB600 gate opener with RBA3R10 control unit, for gates weighing up to 600 kg and with a leaf length of up to 8 m. |
Details  |
|||
 |
1 × | NICE Era One ON2E remote control | NICE-ON2E | |
|
Two-channel remote control from the NICE Opera family, compatible with all NICE gate openers using O-Code rolling code. This remote lets you operate two NICE devices, or, with a NICE FloX2R receiver, a device from another brand as well. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passage opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the opener to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE LED flashing ELDC warning light made from impact-resistant polycarbonate, with a built-in antenna for increased remote-control range (up to 150 m). |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Radio receiver for remote-control signals. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it disengages the opener's gear so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robus RB600 installation manual | ||
|
Installation manual for successful setup, with wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
 |
2 × | Limit stop (left + right) | ||
|
The opener's limit-switch stops are fitted to the rack and set the gate's travel distance. |
||||
| 1 × | Installation accessories | |||
|
Opener installation components, height-adjustment screws, mounting plate, anchor caps, and stops for the opener sensor. |
||||
 |
4 m | Rack with metal reinforcement | LZ-1-4 | |
|
A sliding gate fitted with a fixed rack is moved by the opener's pinion through the rack-and-pinion mechanism. |
Details |
|||
(Is this gate opener right for me?)
Compare with other gate-opener kits:
| « Lower-powered kit | Alternative kit | Higher-powered kit » |
|---|---|---|
|
|
|
|
Gate operator features NICE ROBUS RB600
The gate operator is compact, safe and practical, and ideal for both residential and commercial use. Impact-resistant cover, aluminium-alloy housing with an epoxy coating.
The gate operator is suitable for automating sliding gates weighing up to 600 kg, with a leaf length of up to 8 m. These figures apply under conditions specified by the manufacturer, including weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Robus RB600 gate operator ideally with gates rated at 80% of these values. See the Choosing a gate operator chapter for more information.
A very user- friendly BlueBUS allows to power and control up to 7 pairs of photocells using a two-core cable.
The temperature sensor adjusts the gate operator's pulling force according to the climatic conditions. The gate operator also includes a thermal fuse.
Adjustable speed,, force and automatic closing pause time for the gate operator and much more; see Programming.
Diagnostics using a warning light.
The gear module 4 is compatible with the rack in our range.
Robus 600 gate operator functions "The slave unit" ensures automatic synchronisation of two motors. This means that two sliding gates moving towards each other can be automated.
The NICE Robus RB600 is an electromechanical gate operator suitable for the climatic conditions in Slovakia and compliant with all European safety standards.
The ROBUS RB600 in pictures
| manual release | control unit | wiring diagram |
|---|---|---|
 |
 |
 |
| Instructions for manual release > |
Programming the gate operator > |
Detailed wiring diagram > |
You can find the detailed wiring diagram and other technical information on the NICE Robus RB600 gate operator's own page, or in the manual.
Gate operator specifications NICE ROBUS RB600
| Speed | 0,15 - 0,31 m/s |
|---|---|
| Power supply | 230V, 50/60Hz |
| Power consumption | 515W |
| Torque | 9Nm |
| Max. torque | 18Nm |
| Max. gate weight | 600kg |
| Protection rating | IP 44 |
| Operating temperature | -20°C to +50°C |
| Insulation class | 1 |
| Gear module | 4 |
Complete technical specifications on the NICE Robus RB600 gate operator's own page.
Accessories compatible with the NICE Robus RB600 gate operator
We also recommend purchasing compatible optional accessories for the gate operator, or choosing one of the pre-assembled discounted kits:
| What | Why | Type |
|---|---|---|
| Beacon | The beacon signals gate movement by flashing—ideal for exits with limited visibility. It also has a built-in antenna for greater remote-control range. | - LED beacon with antenna ELDC - multifunction light WLT - wireless solar LED beacon LLW |
| Photocells | They detect obstacles and stop the gate while it is closing, preventing it from hitting cars or people. | - Era Photocell Medium EPMB - Era Photocell Large EPLB - Era Photocell Slim EPSB - wireless FT210B - wireless EPMOW - solar-powered PHW |
| Transmitter | For remote gate operation. | - Era One ON2E, ON3EBD, ON3ELR, ON4E, ON9E - Era Flor Flo2RE, Flo4RE - FloR Flo2R-s, Flo4R-s - Inti INTI2, INTI2Y, INTI2L, INTI2B, INTI2R, INTI2G |
| Receiver | Required for remote gate operation. | - OXI - OXIBD - OXILR - Wi-Fi receiver IT4WIFI - GSM receiver GSM LITE3+, GSM SMART3, GSM PROFI3 |
| Antenna | For greater remote-control range. | - integrated into the beacon ELDC - antenna only ABFKIT |
| Keypad | Useful if you forget your remote, if many vehicles or people visit, or if you prefer not to give everyone a remote or open the gate manually. | - wireless EDSWG - wired EDSB |
| Key switch | Operate the gate with a key using a switch wired to the drive from any convenient location. | - surface-mounted, with a standard cylinder EKS - surface-mounted, with a European cylinder EKSEU - flush-mounted, with a standard cylinder EKSI - flush-mounted, with a European cylinder EKSIEU |
| Card readers | Operate the drives by presenting a card or key fob to the card reader. | - ERA Transponder Reader ETPB |
| Teeth | Essential for automating the drive itself — without a rack, the drive has nothing to move the gate with. | - nylon, with steel reinforcement, 33cm LZ-1 - nylon, with steel reinforcement, 1m LZ-10 - nylon, with steel reinforcement, reverse, 1m LZ-15 - steel, 30x8mm, 1m LZ-3 - steel, 30x12mm, 1m LZ-5 - stainless steel, 30x10mm, 1m LZ-7 |
| Backup power supply | Keeps the gate operating in the event of a power failure. | - backup battery PS124 - solar power supply SYKCE |
Manuals and documents for download
