WPC fence boards
PILWOOD® Fence Boards Made from WPC (wood-plastic composite), combining 60% wood with 40% high-quality, non-toxic HDPE polymer. Pilwood WPC fence boards are a great choice thanks to their high durability and long service life with no need for protective coatings.
This is one of the most durable and long-lasting, maintenance-free materials for your fence.

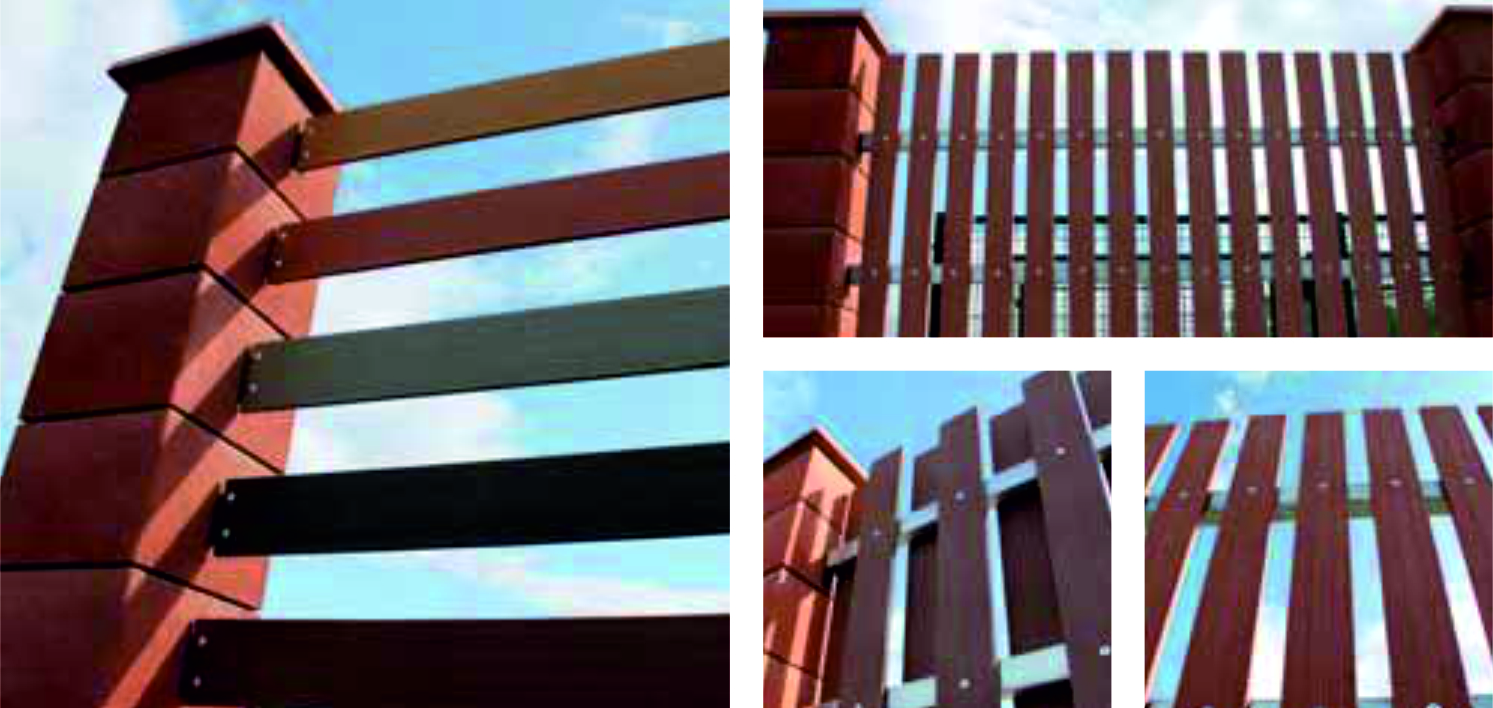

The boards can be installed vertically or horizontally. For vertical installation, the board is riveted to a support profile, which is secured with a small L-bracket. For horizontal installation, the board is attached directly to the post using a large L-bracket.
PILWOOD SAND Wood-Plastic Fence Board 98x12mm, Brown
Size: 98×12mm
Color: Brown
Length: 1,5m; 2m
In stock Details
Wood-plastic composite fence board PILWOOD SAND 98x12mm, sand
Size: 98×12mm
Color: Sand
Length: 1,5m; 2m
In stock Details
Wood-plastic composite fence board PILWOOD SAND 98x12mm, anthracite
Size: 98×12mm
Colour: Anthracite
Length: 1.5m; 2m
In stock Details
Fence board, sand colour, 120x12mm
Size: 120×12mm
Colour: Sand
Lengths: 1m; 1,2m; 1,5m; 2m
within 7 days Details
Post/rail, sand color, 60x40mm, Zn+PVC, length 2m
Size: 60×40×1,5mm
Colour: Sand
Length: 2m
within 7 days Details
Fence board, brown, 120x12mm
Dimensions: 120×12mm
Color: Brown
Lengths: 1m; 1,2m; 1,5m; 2m
within 7 days Details
Post/rail, brown, 60x40mm, Zn+PVC, length 2m
Size: 60×40×1,5mm
Colour: Brown
Length: 2m
within 7 days Details
Fence board, reddish-brown, 120x12mm
Size: 120×12mm
Colour: Red-brown
Lengths: 1m; 1,2m; 1,5m; 2m
within 7 days Details
Post/rail, reddish-brown, 60x40mm, Zn+PVC, length 2m
Dimensions: 60×40×1.5mm
Colour: Red-brown
Length: 2m
within 7 days Details
Fence picket, grey, 120x12mm
Size: 120×12mm
Color: Gray
Lengths: 1m; 1,2m; 1,5m; 2m
within 7 days Details
Post/crossbar, gray, 60x40mm, Zn+PVC, length 2m
Dimensions: 60×40×1.5mm
Color: Gray
Length: 2m
within 7 days Details
Fence slat, anthracite, 120x12mm
Size: 120×12mm
Colour: Anthracite
Lengths: 1m; 1,2m; 1,5m; 2m
within 7 days Details
Post/rail, anthracite, 60x40mm, Zn+PVC, length 2m
Size: 60×40×1,5mm
Color: Anthracite
Length: 2m
within 7 days Details
M6x20 carriage bolt with washer and nut, pack of 10
Pack of 10 screw, washer and nut sets.
€ excluding VAT 1,60 € including VAT 1,97In stock Details
Self-drilling screw TEX 6.3x32 mm with hexagonal head, pack of 20
Pack of 20 pcs. Thread diameter: 6.3 mm. Screw length: 32 mm. Self-tapping.
€ excluding VAT 1,86 € including VAT 2,29In stock Details
Rivet for fence boards, 4.8x25 mm, head diameter 16 mm, pack of 50
Pack of 50 pcs. For a 5 mm diameter hole; rivet length 25 mm, head diameter 16 mm.
€ excluding VAT 5,92 € including VAT 7,28within 3 days Details
Small L-shaped clamp, unfinished
For attaching the support profile of a fence panel to a low wall or post.
€ excluding VAT 0,73 € including VAT 0,90within 7 days Details
Large L-shaped bracket, unfinished
For directly attaching a fence board to a low wall or post.
€ excluding VAT 1,24 € including VAT 1,52within 7 days Details
Louver-style clamp, left-hand, unfinished
For attaching the support profile of the fence panel to a low wall/post to create a louvered effect.
€ excluding VAT 1,31 € including VAT 1,61within 7 days Details
Shutter-style clip, right-hand, without surface treatment
For attaching the support profile of a fence panel to a low wall/post, to achieve a louvre-style shape.
€ excluding VAT 1,31 € including VAT 1,61within 7 days Details
Pilwood Fence Board Installation Instructions

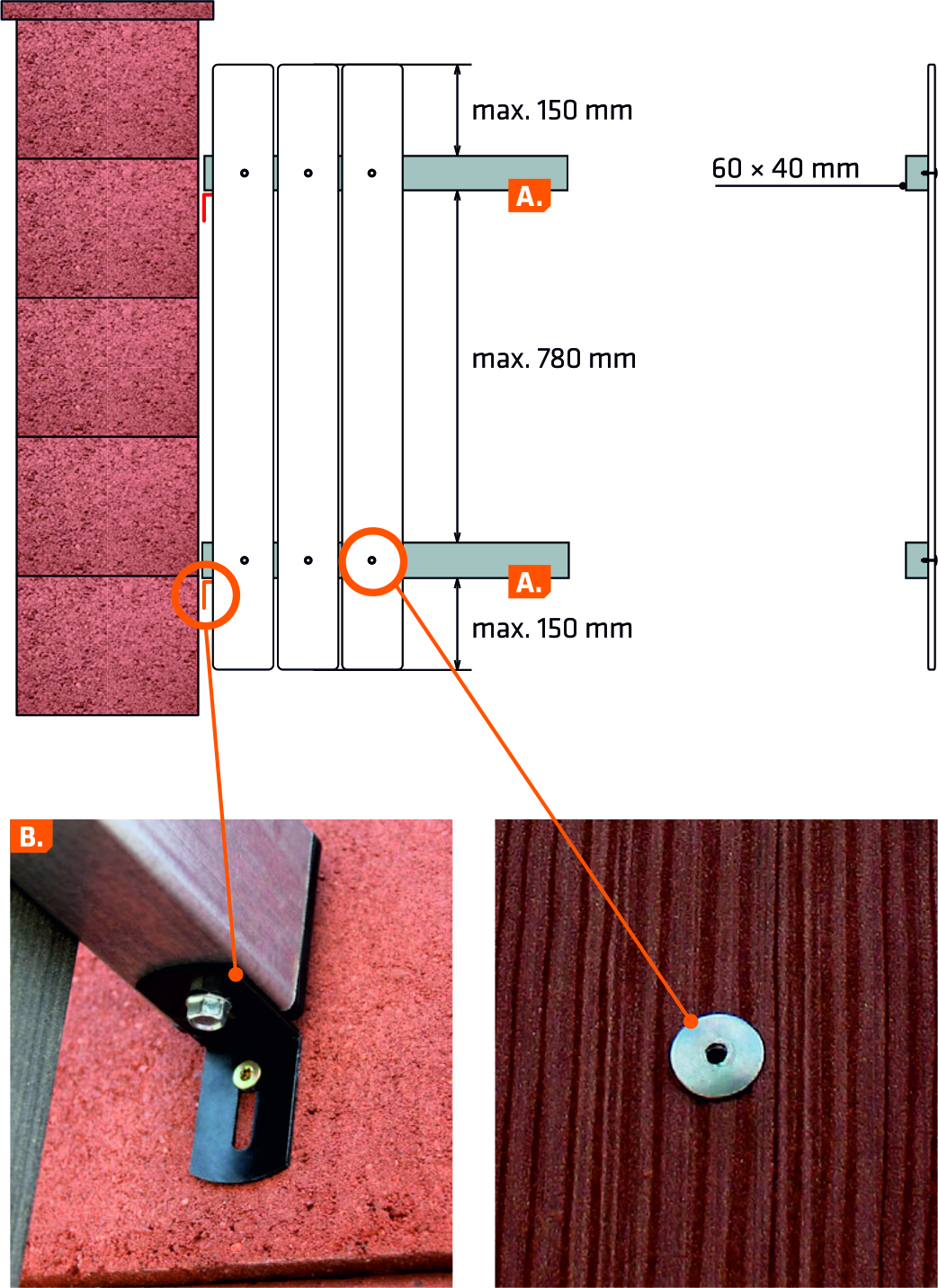

Vertical Installation of Fence Boards
Support Profiles
- You can choose the longitudinal support profiles to suit your needs
- The recommended maximum overhang beyond the support profile at both the top and bottom is 150mm
- The recommended maximum spacing between support profiles is 780mm
- Two support profiles are sufficient for fence boards up to 1.2m long; three support profiles are recommended for longer boards
- The support profiles are easily attached to the post using a small L-shaped clip
Attaching a Fence Board
- Attach the fence board to the support profile using a 4.8x25mm rivet
- Pre-drill the hole in both the fence board and the profile using a 5mm drill bit

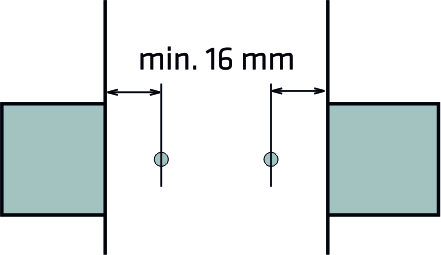

- If using two rivets, keep them at least 16mm from the edge of the fence board.
Fence Board Attachment Options
- Leave a gap of at least 5mm between fence boards to allow for thermal expansion

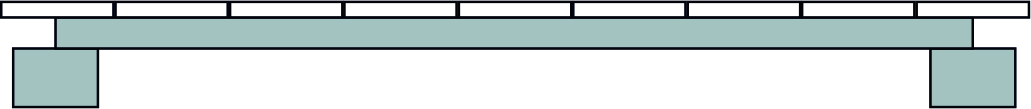

Option A

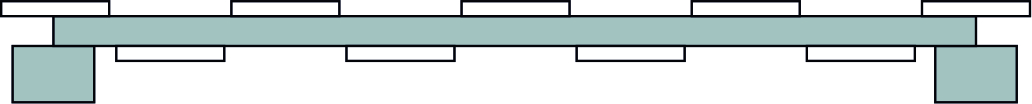

Option B

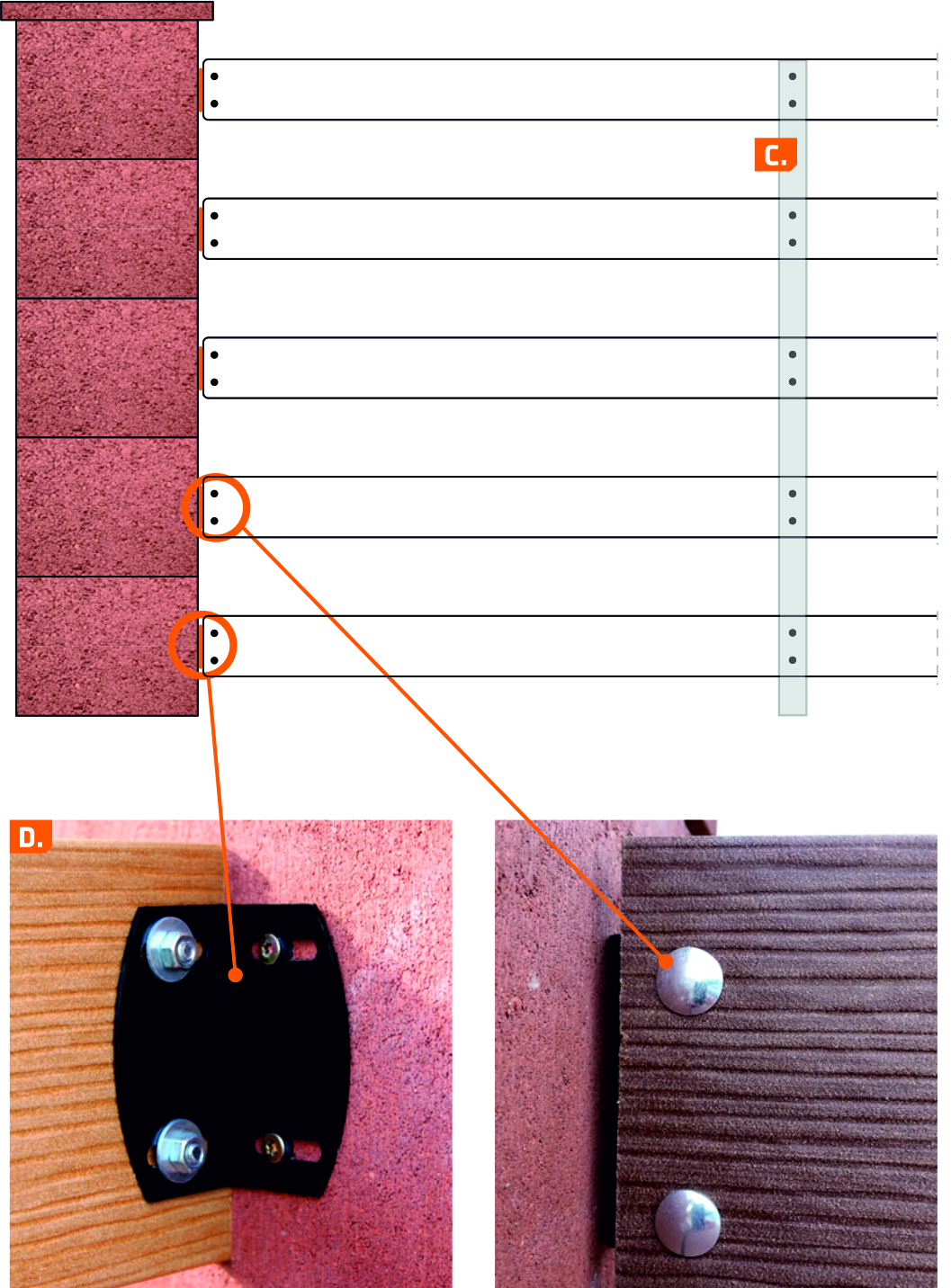

Horizontal Installation of Fence Boards
Support Profiles
- For horizontal installation, fence boards should be no longer than 1.5m.
- When using a 2m fence board, it must be reinforced at its midpoint with a support, such as a profile.
- The fence boards themselves are attached to the post using a large L-shaped clip
Attaching a Fence Board
- Attach the fence board to the L-shaped clip using an M6x20 carriage bolt
- Pre-drill the hole in the fence board using a 6mm drill bit

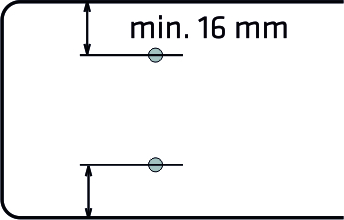

- If using two bolts, keep them at least this far from the edge of the fence board: 16mm
Fence Board Attachment Options
- Leave a gap of at least 5mm between fence boards to allow for thermal expansion
