Wood-plastic composite fence board PILWOOD SAND 98x12mm, anthracite
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€8.49 including VAT
| Dimension [mm] |
Length [m] | Weight |
|---|---|---|
| 98x12 | 1,5 m | 2,25 kg |
in stock
€11.32 including VAT
| Dimension [mm] |
Length [m] | Weight |
|---|---|---|
| 98x12 | 2 m | 3,00 kg |
Description of Wood-plastic composite fence board PILWOOD SAND 98x12mm, anthracite

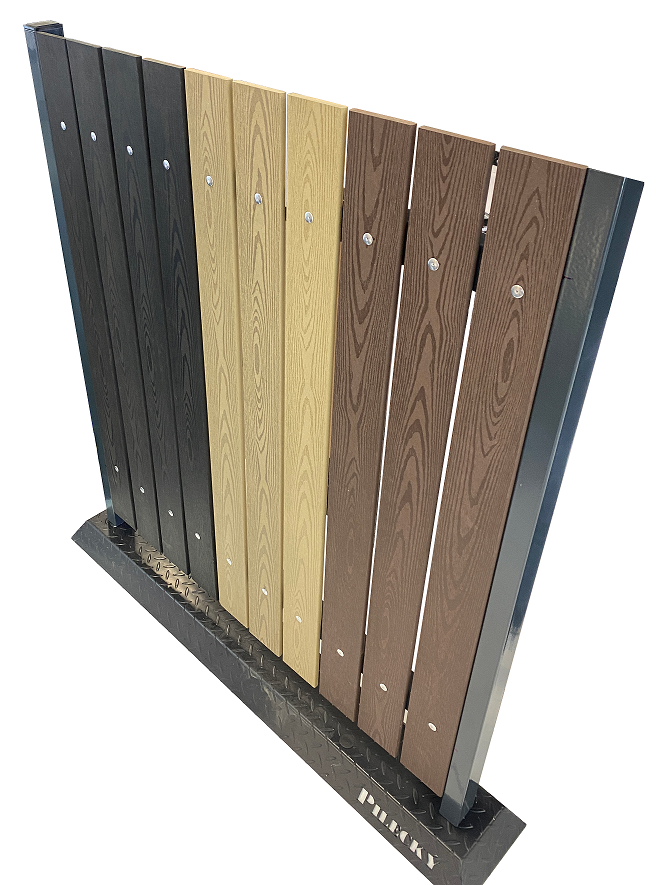

PILWOOD® fence boards Sand with a wood-grain texture are made from WPC (wood-plastic composite), which combines wood, high-quality, non-toxic HDPE polymer, reinforcing filler with pigment, additives, antioxidants and lubricant. This material is one of the most durable, long-lasting, maintenance-free solutions.
Pilwood fence boards are a suitable choice thanks to their high durability and long service life without the need for protective coatings.
It is one of the most durable, long-lasting, maintenance-free materials for your fence.
Fence board composition:
30% HDPE, 50% wood shavings, 15% pigment, 5% antioxidants and lubricant.
The colour shade of fence boards may vary between production batches, as they contain natural ingredients.
Pilwood Fence Board Installation Instructions
Vertical installation of fence boards
Support profiles
- You can choose the longitudinal support profiles to suit your requirements
- the recommended maximum overhang beyond the support profile at both the top and bottom is 150mm
- the recommended maximum distance between support profiles is 780mm
- two support profiles are sufficient for fence boards up to 1.2m long; three support profiles are recommended for longer boards
- the support profiles are easily attached to the post using a small L-shaped bracket
Attaching a fence board
- attach the fence board to the support profile using a 4.8x25mm rivet
- pre-drill the hole in both the fence board and profile using a 5mm drill bit
- if using two rivets, keep them at least this far from the edge of the fence board: 16mm
Fence board fastening options
- Vertical fence board fastening options
leave a gap of at least 5mm between fence boards to allow for thermal expansion
vertical fence board fastening, option A
vertical fence board fastening, option B
horizontal installation of Pilwood fence boards
- Support profiles
- for horizontal installation, fence boards should not be longer than 1.5m.
- the fence boards themselves are attached to the post using a large L-shaped bracket
Attaching a fence board
- attach the fence board to the L-shaped bracket using an M6x20 coach bolt
- pre-drill the hole in the fence board using a 6mm drill bit
- if using two bolts, keep them at least this far from the edge of the fence board: 16mm
Fence board fastening options
- leave a gap of at least 5mm between fence boards to allow for thermal expansion
