Mechanical barriers
Manually operated road barrier is suitable for locations where it is not possible to provide an electrical supply, or where cost is a consideration.
This manually operated barrier can secure an entrance up to 5 m wide.
Installation is quick and easy, and in principle, all you need to do is secure the barrier housing to the foundation.
It is easy to operate thanks to the handle on the boom holder. The barrier boom can also be balanced with a counterweight concealed in the holder.
The design is elegant, yet robust, and is available in either steel with a black-grey finish or stainless steel.
Adjust the closed position using the adjustment screw.

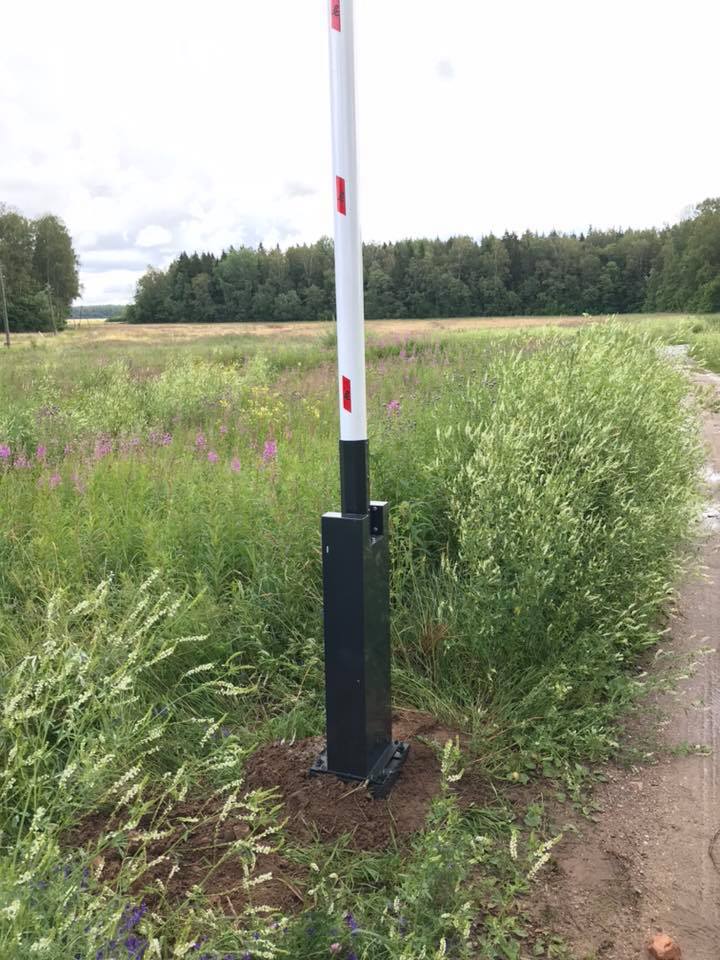

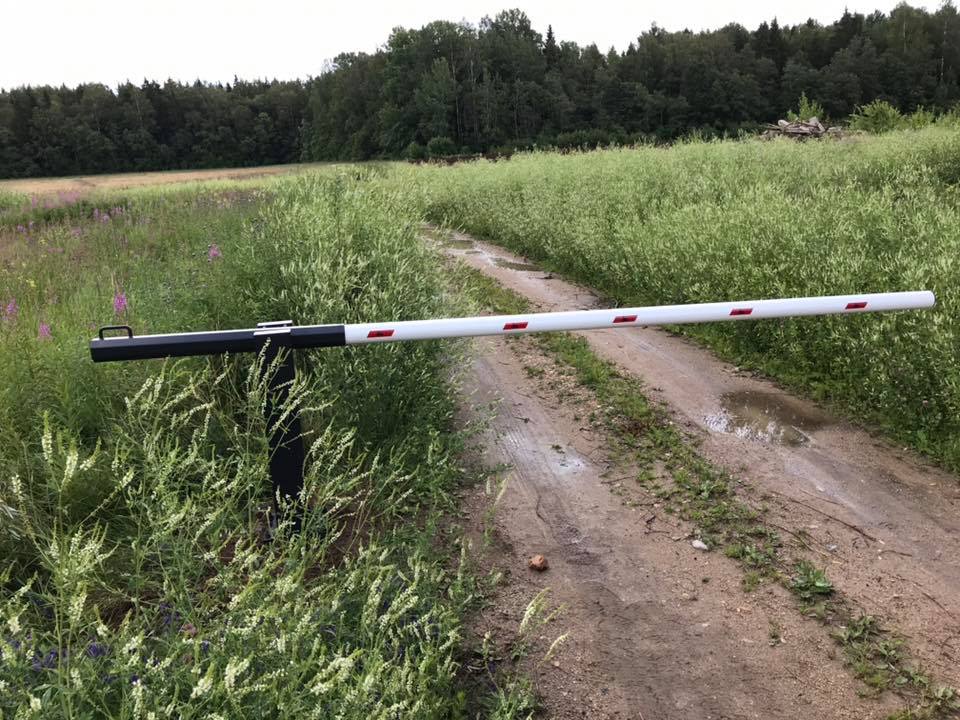

The boom can be locked in the open or closed position, and can then also be secured with a padlock.
Can also be supplied with an opposing post to support the boom when closed. This post can also serve as a locking catch and can be secured with a padlock.
Available boom sizes:
- 70 mm diameter in lengths of 2.5m, 4m and 5m
- 90 mm diameter in lengths of 2.5m, 3.2m, 4m and 5m

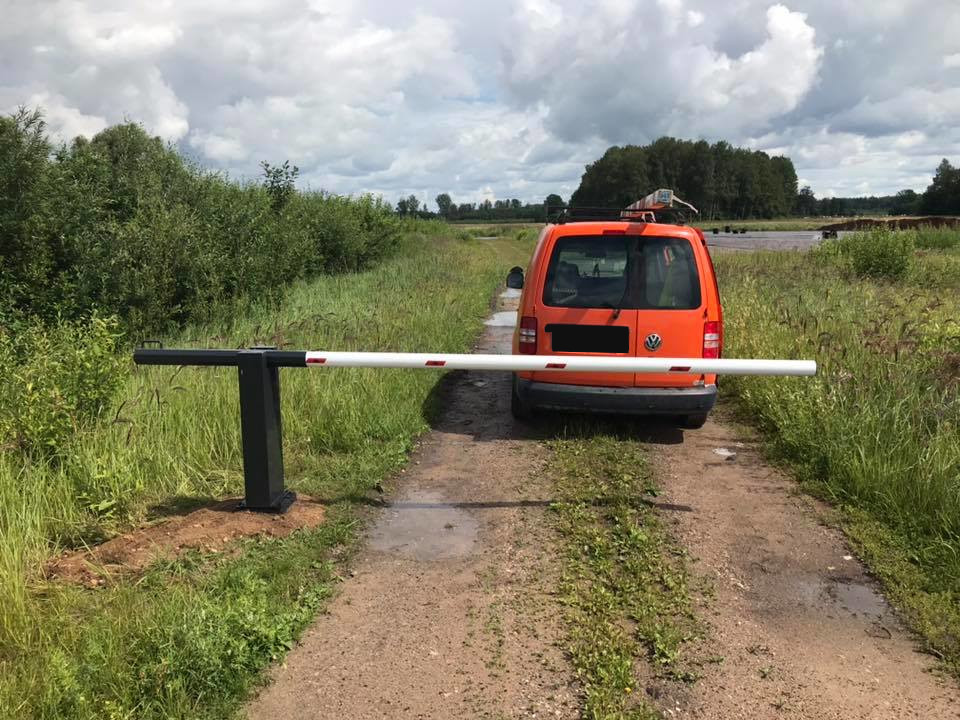

Mechanical barrier kit with arm for passage widths up to 4 m
Mechanical barrier, 4 m arm, arm adapter, 3 kg counterweight rod.
€ excluding VAT 1 131,72 € including VAT 1 392,01Within 3 weeks Details
Painted mechanical barrier body with arm bracket
€ excluding VAT
708,88
€ including VAT
871,92
Within 3 weeks Details
Stainless steel mechanical barrier housing with arm holder
€ excluding VAT
1 598,53
€ including VAT
1 966,19
Within 3 weeks Details
Aluminium arm for a mechanical barrier, round, 70 mm diameter
Arm lengths: 2.5 m, 4 m, 5 m.
€ excluding VAT 152,17 € including VAT 187,16Within 3 weeks Details
Aluminium arm for a mechanical barrier, round, 90 mm diameter
Arm lengths: 2.5 m, 3.5 m, 4 m, 5 m.
€ excluding VAT 167,65 € including VAT 206,21Within 3 weeks Details
Painted mechanical barrier arm support
€ excluding VAT
147,55
€ including VAT
181,49
Within 3 weeks Details
Support for the mechanical barrier arm, lockable, painted
€ excluding VAT
185,09
€ including VAT
227,67
Within 3 weeks Details
Stainless steel mechanical barrier arm support
€ excluding VAT
418,38
€ including VAT
514,61
Within 3 weeks Details
Stainless steel mechanical barrier arm support with locking option
€ excluding VAT
462,88
€ including VAT
569,34
Within 3 weeks Details
70 mm-diameter boom arm adapters for a mechanical barrier with a painted housing
€ excluding VAT
31,92
€ including VAT
39,26
Within 3 weeks Details
Arm adapters for a mechanical barrier arm with a 70 mm diameter and stainless steel housing
€ excluding VAT
32,44
€ including VAT
39,90
Within 3 weeks Details
Coupling for the arms of a mechanical barrier, 70 mm diameter
€ excluding VAT
66,16
€ including VAT
81,37
Within 3 weeks Details
Coupling for the arms of a mechanical barrier, 90 mm diameter
€ excluding VAT
102,01
€ including VAT
125,47
Within 3 weeks Details
Counterweight for the arm of a mechanical barrier, weight 2.4 kg
€ excluding VAT
36,49
€ including VAT
44,88
Within 3 weeks Details
Counterweight bar for the mechanical barrier arm, with weight, 3 kg total
€ excluding VAT
48,83
€ including VAT
60,06
Within 3 weeks Details
Base plate for the mechanical barrier housing
€ excluding VAT
30,34
€ including VAT
37,32
In stock Details
End cap for a mechanical barrier arm, 70 mm diameter
€ excluding VAT
4,46
€ including VAT
5,48
Within 3 weeks Details
End cap for mechanical barrier arm, 90 mm diameter
€ excluding VAT
7,50
€ including VAT
9,23
Within 3 weeks Details
Reflective stickers for a mechanical barrier arm, 20 pcs
€ excluding VAT
40,31
€ including VAT
49,58
Within 3 weeks Details
| How many counterweights are suitable for balancing the barrier arm: | ||
|---|---|---|
| Arm length (m): | Arm diameter (mm): | Suitable counterweights: |
| 2.0 | 70 | 1 x HM-MZ-W30 |
| 2.5 | 70 | 1 x HM-MZ-W30 + 1 x HM-MZ-W24 |
| 3.0 | 70 | 1 x HM-MZ-W30 + 2 x HM-MZ-W24 |
| 3.5 | 70 | 1 x HM-MZ-W30 + 4 x HM-MZ-W24 |
| 4.0 | 70 | 1 x HM-MZ-W30 + 5 x HM-MZ-W24 |
| 4.5 | 70 | 1 x HM-MZ-W30 + 8 x HM-MZ-W24 |
| 5.0 | 70 | 1 x HM-MZ-W30 + 10 x HM-MZ-W24 |
| 2.0 | 90 | 1 x HM-MZ-W30 |
| 2.5 | 90 | 1 x HM-MZ-W30 + 2 x HM-MZ-W24 |
| 3.0 | 90 | 1 x HM-MZ-W30 + 4 x HM-MZ-W24 |
| 3.5 | 90 | 1 x HM-MZ-W30 + 7 x HM-MZ-W24 |
| 4.0 | 90 | 1 x HM-MZ-W30 + 10 x HM-MZ-W24 |
| 4.5 | 90 | 1 x HM-MZ-W30 + 12 x HM-MZ-W24 |
| 5.0 | 90 | 1 x HM-MZ-W30 + 13 x HM-MZ-W24 |
Mechanical barrier installation:
