Telescopic system for a track-mounted gate
Telescopic gates solve situations in places where there isn’t enough space to open a standard sliding gate. When choosing the right solution you need to know two things:: the driveway opening width and the width of the space available for the open gate to slide into.
Telescopic sliding gates can be:
-
Track-mounted telescopic gates
-
Cantilever telescopic gates
In this category, you’ll find components for track-mounted telescopic gates. They can consist of two, three, four, or even more sections. The more sections there are, the higher the initial cost of the gate. Two- and three-section telescopic gates are the most commonly used.
Telescopic system for a 2-panel sliding gate, without wheels
Telescopic system
for a sliding gate
2-piece, with a clear opening of up to 8 m
In stock Details
Kit for making a two-section telescopic sliding gate, for a passage width of up to 4 m, with wheels, KA5100.404
Telescopic system
for a track-mounted gate
with a clear opening of up to 4 m
In stock Details
Kit for making a two-panel telescopic sliding gate, for a passage width of up to 8 m, with wheels, KA5100.408
Telescopic system
for a track-mounted gate
with a passage width of up to 8 m
In stock Details
Kit for making a two-leaf telescopic sliding gate, for a passage width of up to 11 m, with wheels, KA5100.411
Telescopic system
for a track gate
with a passage width of up to 11 m
within 3 days Details
Kit for making a two-leaf telescopic sliding gate, for a passage width of up to 15 m, with wheels, KA5100.415
Telescopic system
for a track gate
with a passage width of up to 15 m
within 3 days Details
Kit for making a three-section telescopic track gate, for a passage width of up to 6 m, with wheels, KA5102.406
Telescopic system
for a track-mounted gate
with a passage width of up to 6 m
within 7 days Details
Kit for making a three-section telescopic track gate, for a passage width of up to 12 m, with wheels, KA5102.412
Telescopic system
for a track gate
with a passage width of up to 12 m
within 7 days Details
Telescopic system for a 2-panel sliding gate with a maximum opening width of 5 m, without wheels
Telescopic system
for a sliding gate
2-section, with a passage width of up to 5 m
In stock Details
Telescopic system for a 2-panel sliding gate with a maximum opening width of 7 m, without wheels
Telescopic system
for a sliding gate
2-piece, with a passage width of up to 7 m
In stock Details
Telescopic system for a 2-panel sliding gate with a maximum passage width of 11 m, without wheels
Telescopic system
for a sliding gate
2-piece, with a passage width of up to 11 m
In stock Details
Protective strip for the guide cable for telescopic systems, 2 m
Protective strip for the telescopic system’s guide cable.
€ excluding VAT 35,98 € including VAT 44,26In stock Details
CAIS SHORTBACK DUE 5.0 - telescopic system for a two-panel sliding gate up to 5 m
Telescopic system
for a track-mounted gate
with a clear opening of up to 5 m
In stock Details
CAIS SHORTBACK DUE 8.0 - telescopic system for a two-panel sliding gate up to 8 m
Telescopic system
for a track gate
with a clear opening of up to 8 m
within 7 days Details
CAIS SHORTBACK TRE 5.0 – telescopic system for a three-panel sliding gate up to 5 m
Telescopic system
for a track-mounted gate
with a passage width of up to 5 m
within 7 days Details
CAIS SHORTBACK TRE 8.0 - telescopic system for a three-panel track-mounted gate up to 8 m
Telescopic system
for a track-mounted gate
with a passage width of up to 8m
within 7 days Details
CAIS SHORTBACK QUATTRO 5.0 - telescopic system for a four-panel track gate up to 5 m
Telescopic system
for a track-mounted gate
with a passage width of up to 5 m
within 7 days Details
CAIS SHORTBACK QUATTRO 8.0 - telescopic system for a four-panel sliding gate up to 8 m
Telescopic system
for a track-mounted gate
with a clear opening of up to 8 m
within 7 days Details
Two-panel track gate saves 40–50% of the space required to slide it open. For example, a standard track gate with a 4 m clear opening requires approximately 4.5 m of space to slide open. If you use a two-panel telescopic gate with the same 4 m clear opening, approximately 2.5 m, including clearance, will be enough to slide it open.
Three-panel track gate saves 55–65% of the space required to slide it open. The same example: a standard track gate with a 4 m clear opening requires approximately 4.5 m of space to slide open. If you use a three-panel telescopic gate with a 4 m clear opening, approximately 1.8 m, including clearance, will be enough to slide it open.

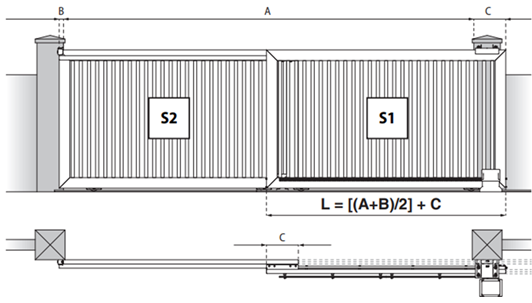

We give the dimensions as “approximate” because the exact length of a gate section can vary depending on the overlap you require between the individual gate panels. You can adjust this to suit your needs. In general, however, we can use the calculation shown in the illustration, for example:
A=400cm, B=6, C=40. Substituting these values into the calculation gives a length (L) of 243cm for each section. The same calculation applies to a three-panel gate; simply substitute the number of panels the telescopic gate consists of instead of the number 2.
Comparison of the space required to slide standard and telescopic gates open

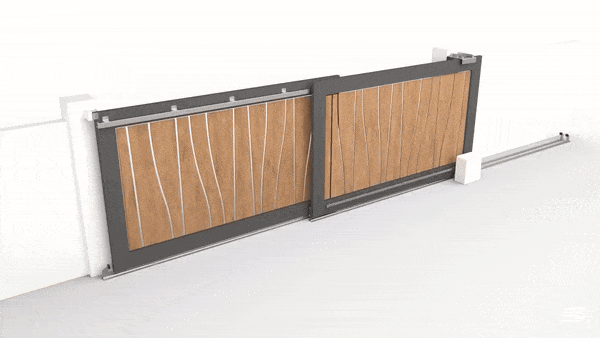

Comparison of the opening/closing speed of standard and telescopic gates.
Standard gate operators are used for telescopic gates, but the individual panels of a telescopic gate open simultaneously. As a result, a two-panel telescopic gate opens twice as fast.
