Fence board, reddish-brown, 120x12mm
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€13.16 including VAT
| Length [m] | Weight |
|---|---|
| 1 m | 1,70 kg |
within 7 days
€15.78 including VAT
| Length [m] | Weight |
|---|---|
| 1,2 m | 2,04 kg |
within 7 days
€19.73 including VAT
| Length [m] | Weight |
|---|---|
| 1,5 m | 2,55 kg |
within 7 days
€26.32 including VAT
| Length [m] | Weight |
|---|---|
| 2 m | 3,40 kg |
Description of Fence board, reddish-brown, 120x12mm
PILWOOD® fence boards Made from WPC (wood-plastic composite), combining 60% wood with 40% high-quality, non-toxic HDPE polymer. Pilwood fence boards are a great choice thanks to their high durability and long service life with no need for protective coatings.
They are one of the most durable, long-lasting, maintenance-free materials for your fence. The fence boards are made in the Czech Republic and feature a high-quality, solid-colour profile.

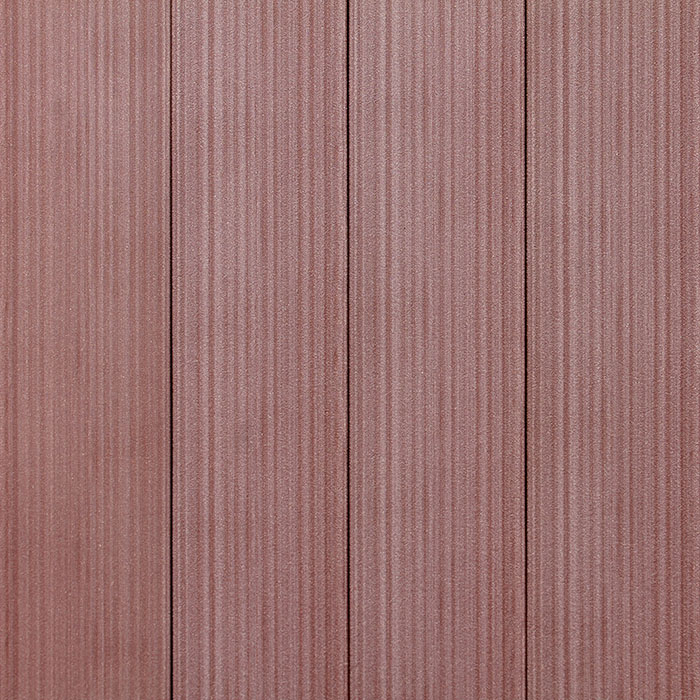

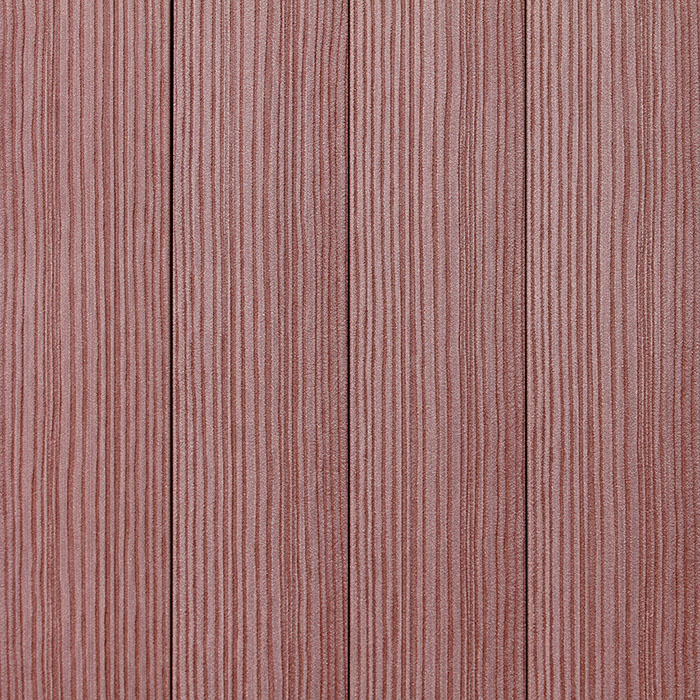

| Red-brown fence board, exterior | Red-brown fence board, interior |
|---|---|
 |
 |
Each size is available in 5 colours - anthracite (ebony), grey (inox), red-brown (merbau), sand (cedar), brown (rosewood) and 4 different lengths - 1 metre, 1.2 metres, 1.5 metres, 2 metres.
| Sand | Brown | Red-brown | Grey | Anthracite |
|---|---|---|---|---|
 |
 |
 |
 |
 |
Pilwood fence board installation instructions
Vertical installation of fence boards
Support rails
- You can choose the longitudinal support rails to suit your needs
- the recommended maximum overhang beyond the support rail at both the top and bottom is 150mm
- the recommended maximum distance between support rails is 780mm
- two support rails are sufficient for fence boards up to 1.2m long; three support rails are recommended for longer boards
- the support rails are easily fastened to the post using a small L-shaped bracket
Fastening a fence board
- fasten the fence board to the support rail using a 4.8x25mm rivet
- pre-drill the hole through the fence board and rail with a 5mm drill bit
- if using two rivets, keep them at least this far from the edge of the fence board: 16mm
Fence board fastening options
- leave a gap of at least 5mm between fence boards to allow for thermal expansion
Option A
Option B
Horizontal installation of fence boards
Support rails
- for horizontal installation, the fence board should be no longer than 1.5m.
- if using a 2m fence board, it must be reinforced at its midpoint with a support, such as a rail.
- the fence boards themselves are attached to the post using a large L-shaped bracket
Fastening a fence board
- fasten the fence board to the L-bracket using a M6x20 coach bolt
- pre-drill the hole in the fence board with a 6mm drill bit
- if using two bolts, keep them at least this far from the edge of the fence board: 16mm
Fence board fastening options
- leave a gap of at least 5mm between fence boards to allow for thermal expansion
