NICE EPMB - Era Photocell Medium - BlueBUS-connected photocells (1 pair)
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€66.17 including VAT
| Weight |
|---|
| 0,20 kg |
Description of NICE EPMB - Era Photocell Medium - BlueBUS-connected photocells (1 pair)
Fully compatible successor NICE MOFB photocells.
Outdoor safety photocells NICE EPMB (technical specifications) are installed facing each other across the gate opening, or at any point where there is a risk of the gate hitting an obstacle. They create an infrared beam along the optical axis; when it is interrupted, they send a signal to stop the gate. They can only be used with devices that support NICE BlueBUS.
Installing NICE EPMB photocells
| 1. Open the photocell | 1a. Remove the transparent cover |
|---|---|
 |
 |
| 2. Pull out the electronics as shown by the arrows | 3. Punch out the holes required for installation |
 |
 |
| 4. Punch out the required cable entry | 5. Refer to the example layouts to determine how to position the photocells at the installation site. |
 |
|
| 6. Depending on the position of the photocells at the installation site, set the address jumpers according to the table. | 7. Position the photocells directly opposite each other |
 |
 |
| 8. Mount the photocell housing on a wall or post | 9. Connect the photocell wiring (be sure to disconnect the power supply first) |
 |
 |
| 10. Fit the connected photocell electronics into the housing and restore the power supply. Run the connected-device recognition procedure on the drive control unit. | 11. Test the photocells. If you encounter a problem, follow the troubleshooting guide |
 |
 |
| 12. Fit the cover onto the photocell and secure it with screws. Remember the insulating gasket | 13. Fit the transparent cover. Remember the insulating gasket. |
 |
 |
Connecting multiple pairs of photocells NICE EPMB to the data network NICE BlueBUS
Position the photocells around the gate or gates according to the example layouts for the complete wiring, and set the jumpers according to the photocell jumper table for NICE EPMB gate drive. To prevent interference between pairs installed close to one another, be sure to follow these example layouts, maintaining the orientation of the transmitters TX and receivers RX. Connect the photocells in parallel as shown (polarity does not need to be observed):
If you want the photocells to function as gate openers (see FA1 and FA2 in the example layouts), i.e. so that when a vehicle passes between their optical axes they open the gate, you need to interrupt connection A on both the transmitter TX and receiver RX, see the illustration:
Examples of complete wiring configurations for multiple pairs of NICE photocells EPMB drive
1. Single-leaf sliding gate
2. Two synchronized sliding gates facing each other
3. Swing gate
4. Sectional garage door
5. Up-and-over garage door
NICE photocell jumper table EPMB gate drive
|
Connecting multiple pairs of photocells to the BlueBUS system is done by setting different jumper combinations, with each connected pair requiring a unique jumper configuration. Make sure that no two pairs in the same BlueBUS data network have the same jumper configuration. Within each pair of photocells, set the jumper to the same position on both the transmitter (TX) and receiver (RX). If the jumper type uses only one jumper, or none, always keep the remaining jumpers for future use. |
| Photocell pair designation | Jumper configuration |
|---|---|
| FOTO |  |
| FOTO II |  |
| FOTO 1 |  |
| FOTO 1 II |  |
| FOTO 2 |  |
| FOTO 2 II |  |
| FOTO 3 |  |
|
FA1 |
 |
|
FA2 |
 |
If a photocell needs to be replaced for any reason, simply set it to the same jumper configuration as the original one; there is no need to run the device recognition procedure.
Checking operation and troubleshooting NICE EPMB photocell wiring EPMB
|
After the drive has recognized the devices, check that the LED on both the transmitter (TX) and receiver (RX) is flashing. The LED flashes indicate the following conditions: |
| LED "L" | Condition | What to do |
|---|---|---|
| Off | The photocell is not receiving power or is faulty. | Check that the voltage at the photocell terminals is approximately 8-12V. If the voltage is correct, the photocells are probably faulty. |
| 3 quick flashes followed by a one-second pause | The device has not been recognized by the drive control unit. | Repeat the recognition procedure on the control unit. Make sure that each pair of photocells has a unique address assigned using jumpers . |
| Very slow flashing | The transmitter (TX) is transmitting regularly The receiver (RX) is receiving an excellent signal |
Normal operation |
| Slow flashing | The receiver (RX) is receiving a good signal | Normal operation |
| Fast flashing | The receiver (RX) is receiving a weak signal | Normal operation. However, ideally you should check the alignment of the transmitter (TX) and receiver (RX), and make sure the covers are clean. |
| Very fast flashing | The receiver (RX) is receiving a very weak signal | Operation is still normal, but marginal. Ideally, check the alignment of the transmitter (TX) and receiver (RX), and make sure the covers are clean. |
| On | The receiver (RX) is not receiving any signal | Make sure the LED on the TX is flashing slowly. Check that there are no obstructions on the optical path between the transmitter (TX) and receiver (RX). Check the alignment of the TX and RX. |
NICE EPMB photocell specifications EPMB
| Product type | Detector for automatic swing gates, sliding gates and garage doors, Type D according to EN 12453, consisting of a transmitter TX and receiver RX. |
|---|---|
| Technology | Direct TX-RX optical interpolation with a modulated infrared beam. |
| Power supply/Output | The device may only be connected to a data network that supports the NICE BlueBUS, from which it receives electrical power and sends an output signal. |
| Power consumption | 1 BlueBUS unit |
| Detection capability | Opaque objects larger than 50 mm passing across the optical axis between the TX transmitter and RX receiver at speeds below 1.6 m/s. |
| TX transmitter beam angle | 20° +-25% |
| RX receiver acceptance angle | 8° +-25% |
| Normal range (usable) | 15 m (may be halved in adverse weather conditions, e.g. fog, rain, dust, etc.) |
| Maximum range | 30 m |
| Addressing | 7 pairs with a safety function and 2 pairs with an "Open" command function |
| Use in acidic or saline environments, or in environments with an increased risk of explosion | No |
| Installation | Vertical wall mounting; the maximum cable length for one branch of the BlueBUS system is 50 m. |
| Protection rating | IP44 |
| Operating temperature | -20°C to 55°C |
| Dimensions (W×H×D) | 50x80x28.5 mm (one photocell) |
| Weight | 143 g (photocells combined) |
Photocell wiring NICE EPMB with operator NICE Robus 400, 600, 1000

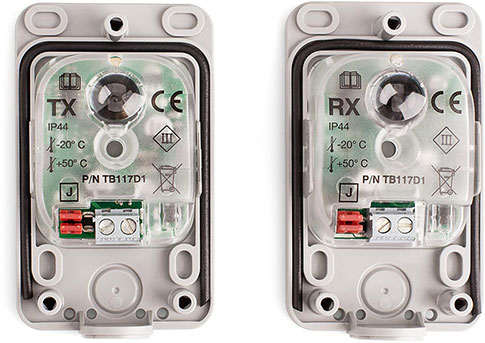

Inside the photocells NICE EPMB for gate operators
