Drive kit for sliding gates up to 400 kg/7 m NICE Robus RB400 (F)
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€725.08 including VAT
| Weight |
|---|
| 16 kg |
Description of Drive kit for sliding gates up to 400 kg/7 m NICE Robus RB400 (F)
The NICE RB400 operator has been replaced by a newer model NICE RBS400. See the benefits of the newer NICE RBS400 and RBS600 models.
The NICE RB400 (F) kit will be replaced by the NICE RBS400 (F) kit
NICE Robus RB400 gate operator is designed for sliding gates weighing up to 400 kg and a passage width of up to 7 m. It has an electromechanical stop switch. The operator is non-reversible. Detailed technical specifications ». Download the manual ».

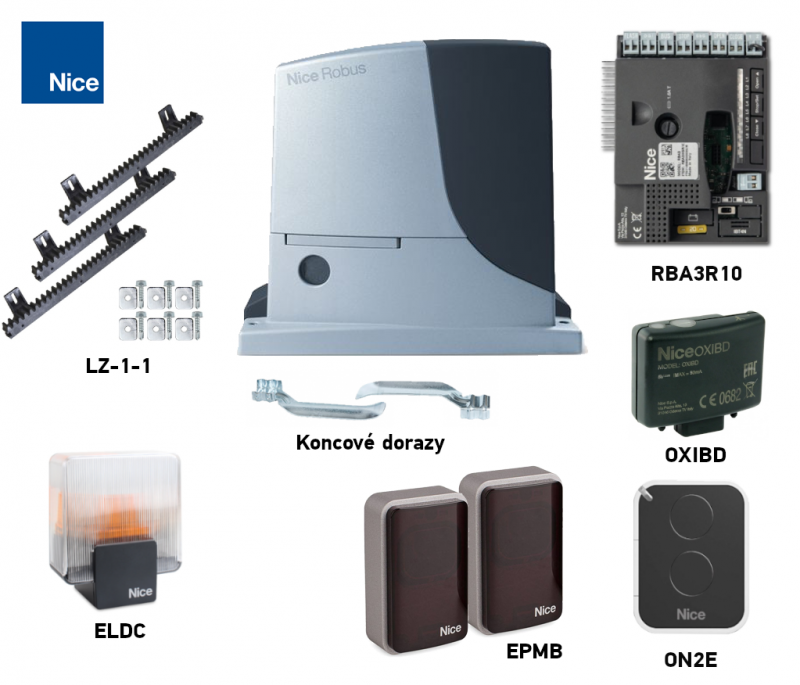

| The set includes: | NICE-RB400-F | |||
|---|---|---|---|---|
 |
1 × | NICE Robus RB400 gate operator | NICE-RB400 | |
|
NICE Robus RB400 electromechanical gate operator with RBA3R10 control unit, for gates weighing up to 400 kg and with a leaf length of up to 7 m. |
Details  |
|||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for opening a gate automatically from a distance. Use it to control four devices, or to send four different commands to one device. Compatible with all NICE operators featuring O-Code rolling-code technology (the 72-bit code allows 4.7 septillion combinations, making it virtually impossible to misuse) and an LED signal transmission indicator. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passageway. They create an infrared beam that, when interrupted by a vehicle or pedestrian, for example, sends a signal to the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE LED flashing ELDC warning light made of impact-resistant polycarbonate, with a built-in antenna to extend the remote control range (up to 150 m). |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it disengages the operator's gear wheel so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robus RB400 installation manual | ||
|
Installation manual for successful installation, with wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
 |
2 × | Limit stop (left + right) | ||
|
The operator limit stops are mounted on the rack and define the gate's travel length. |
||||
| 1 × | Installation accessories | |||
|
Operator installation components, height adjustment screws, mounting plate, anchor caps. |
||||
 |
4 m | Rack with metal reinforcement | LZ-1-4 | |
|
A sliding gate with a rack rigidly mounted to it is driven by the operator's pinion through the rack-and-pinion mechanism. |
Details |
|||
(Is this operator right for me?)
Compare with other operator kits:
| « Lower-powered kit | Alternative kit | Higher-powered kit » |
|---|---|---|
|
No. |
|
|
Drive features NICE ROBUS RB400
The drive is compact, safe and practical, making it ideal for both residential and commercial use. Impact-resistant cover, aluminium alloy body with an epoxy coating.
The drive is suitable for automating sliding gates weighing up to 400 kg, with a gate leaf length of up to 7 m. These values apply under the conditions specified by the manufacturer, including weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Robus RB400 drive with gates operating at no more than 80% of these values. See the Choosing a drive chapter for more information.
Very user-friendly technology BlueBUS allows to power and control up to 7 pairs of photocells using a two-core cable.
Temperature sensor adjusts the drive's pulling force according to the weather conditions. The drive also includes a thermal fuse.
Adjustable speed,, force and pause time for automatic drive closing and much more; see Programming.
Diagnostics using warning beacon.
Gear module 4 is compatible with the rack in our range.
Robus 400 drive functions "Slave unit" synchronises two motors automatically. This means that two sliding gates moving in opposite directions can be automated.
The NICE Robus RB400 is an electromechanical drive suitable for Slovak weather conditions and compliant with all European safety standards.
The ROBUS RB400 in pictures
| release mechanism | control unit | wiring diagram |
|---|---|---|
 |
 |
 |
| Instructions for manual release > |
Programming the drive > |
Detailed wiring diagram > |
For a detailed wiring diagram and further technical information, see the NICE Robus RB400 drive's own webpage, or consult the manual..
Drive technical specifications NICE ROBUS RB400
| Speed | 0,18 - 0,34 m/s |
|---|---|
| Power supply | 230V, 50/60Hz |
| Power consumption | 330W |
| Torque | 6Nm |
| Max. torque | 12Nm |
| Max. gate weight | 400kg |
| Protection rating | IP 44 |
| Operating temperature | -20°C to +50°C |
| Insulation class | 1 |
| Gear module | 4 |
Full technical specifications on the NICE Robus RB400 drive's own webpage.
Accessories compatible with the NICE Robus RB400 drive
We also recommend buying compatible optional accessories for the drive, or choosing one of the pre-assembled discounted kits:
| What | Why | Type |
|---|---|---|
| Beacon | The beacon signals gate movement by flashing—ideal for exits with limited visibility. It also has a built-in antenna for increased remote-control range. | - LED flashing light with antenna ELDC - multifunctional light WLT - wireless solar LED flashing light LLW |
| Photocells | They detect obstacles while closing and stop the movement, so the gate will not hit a car or anyone. | - Era Photocell Medium EPMB - Era Photocell Large EPLB - Era Photocell Slim EPSB - wireless FT210B - wireless EPMOW - solar-powered PHW |
| Transmitter | For remote control of the gate. | - Era One ON2E, ON3EBD, ON3ELR, ON4E, ON9E - Era Flor Flo2RE, Flo4RE - FloR Flo2R-s, Flo4R-s - Inti INTI2, INTI2Y, INTI2L, INTI2B, INTI2R, INTI2G |
| Receiver | Required for remote control of the gate. | - OXI - OXIBD - OXILR - Wi-Fi receiver IT4WIFI - GSM receiver GSM LITE3+, GSM SMART3, GSM PROFI3 |
| Antenna | For improved remote-control range. | - integrated into the flashing light ELDC - standalone antenna ABFKIT |
| Keypad | Useful if you forget your remote control, or if many vehicles or people visit and you do not want to give everyone a remote or open the gate manually. | - wireless EDSWG - wired EDSB |
| Key switch | Operate the gate with a key using a switch connected to the drive by cable, wherever you choose to install it. | - surface-mounted, with a standard cylinder EKS - surface-mounted, with a European cylinder EKSEU - recessed, with a standard cylinder EKSI - recessed, with a European cylinder EKSIEU |
| Card readers | Operate the drive by presenting a card or key fob to the card reader. | - ERA Transponder Reader ETPB |
| Gear rack | Required for the drive automation itself — without the rack, the drive has nothing to move the gate with. | - nylon, with steel reinforcement, 33 cm LZ-1 - nylon, with steel reinforcement, 1 m LZ-10 - nylon, with steel reinforcement, reverse, 1 m LZ-15 - steel, 30x8mm, 1 m LZ-3 - steel, 30x12mm, 1 m LZ-5 - stainless steel, 30x10mm, 1 m LZ-7 |
| Backup power supply | Keeps the gate operational in the event of a power outage. | - backup battery PS124 - solar power supply SYKCE |
