GSM LITE 3+ – Module for controlling a gate by mobile phone, 1 output, 2 inputs

TOP


Product availability: In stock

We normally dispatch goods within 24 hours.

GSM LITE 3+ – Module for controlling a gate by mobile phone, 1 output, 2 inputs GSM LITE 3+ – Module for controlling a gate by mobile phone, 1 output, 2 inputs
GSM-03-PLUS
in stock
€207.94 excluding VAT
€255.76 including VAT

 pcs
Weight
0,30 kg

Description of GSM LITE 3+ – Module for controlling a gate by mobile phone, 1 output, 2 inputs

Device for controlling appliances, mainly sliding gates, garage doors, swing gates or barriers, by calling from a mobile phone. Suitable for homes and small businesses with up to 50 users. The device and user accounts are managed using an Android app or configuration text messages. The GSM LITE 3+ fits under the cover of any sliding gate operator in our range (provided it does not contain a backup battery).

The GSM module comes with a small antenna. To improve GSM reception, we recommend purchasing an external antenna (ANT1, ANT2).

Both the GSM LITE 3+ and SMART 3 modules can operate in two modes:

  • controlled – the module grants access only to authorised numbers (entered by the administrator)
  • “party mode” – the module grants access to anyone who knows the number

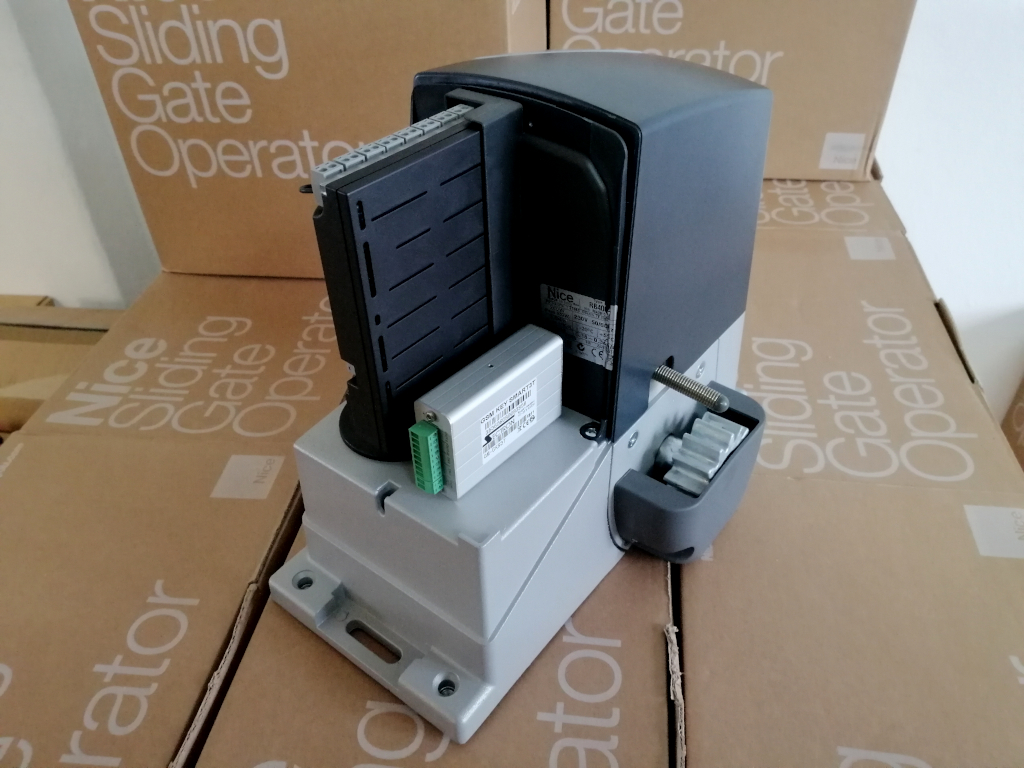

GSM module on a NICE Robus 400 operator

For better signal reception, we recommend purchasing an external GSM antenna.

GSM module comparison

GSM LITE 3+ GSM SMART 3 GSM PROFI 3
gsm lite 3 gsm smart 3 gsmprofi 3
  • 2 inputs
  • 1 output
  • 50 users
  • mobile administration
  • gate status check
  • no event history
  • 2 inputs
  • 2 outputs
  • 1,000 users
  • mobile administration
  • PC administration
  • gate status check
  • event history
  • 4 inputs
  • 4 outputs
  • 1,000 users
  • mobile administration
  • PC administration
  • web interface
  • gate status check
  • event history

GSM LITE 3+ technical specifications

Event history No
Number of users 50
SIM card type Nano SIM
Communication interface 2x input / 1x output
GSM frequency 850 / 900 / 1800 / 1900 MHz
GPRS speed 85.6 kbps
Antenna connector

SMA (f)
Power connector

2-pin header
Power supply 8–30 V AC/DC V
Dimensions 25x54x82mm



If you have any questions, you can visit Sectron GSM module technical support.

Connecting the GSM module to a NICE ROBUS operator (NICE RBA3R10)

Manuals and documents for download

GSM LITE 3+ manual
PDF
Quick setup guide
PDF
Android administration app
LINK
