NICE EPSB - Era Photocell Slim - photocells with BlueBUS connection (1 pair)
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€92.23 including VAT
| Weight |
|---|
| 0,28 kg |
Description of NICE EPSB - Era Photocell Slim - photocells with BlueBUS connection (1 pair)
Fully compatible successor NICE MOFB photocells in a slim design.
Outdoor safety photocells NICE EPSB (technical specifications) are installed opposite each other across the gate opening, or at any point where there is a risk of the gate hitting an obstacle. They create an infrared beam along the optical axis, which, when interrupted, sends a signal to the gate to stop it. They can only be used with devices that support They can only be used with devices that support NICE BlueBUS.
Installing NICE EPSB photocells

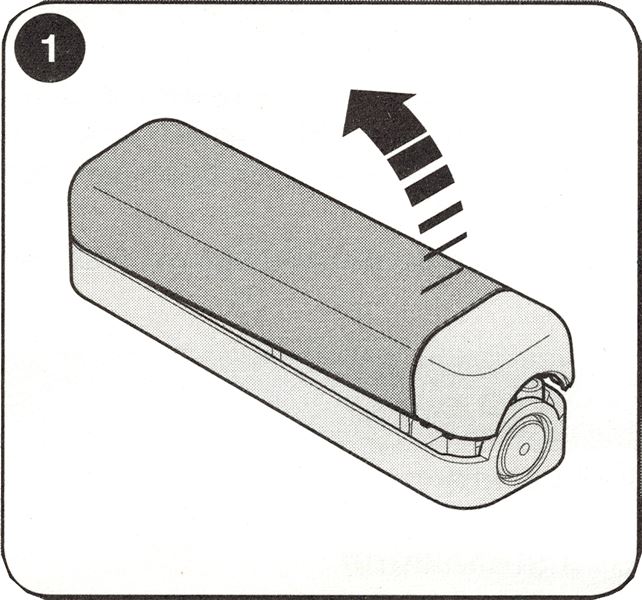

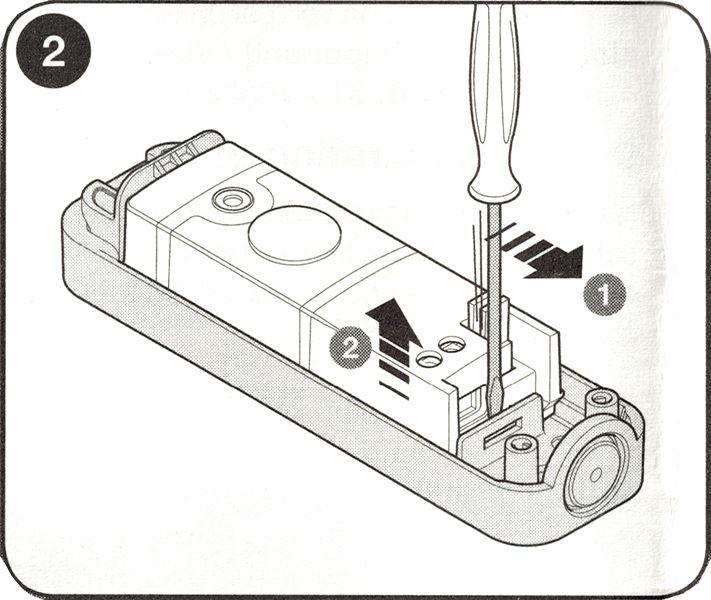

| 1. Open the photocell | 2. Pull out the electronics as shown by the arrows |
|---|---|
 |
 |

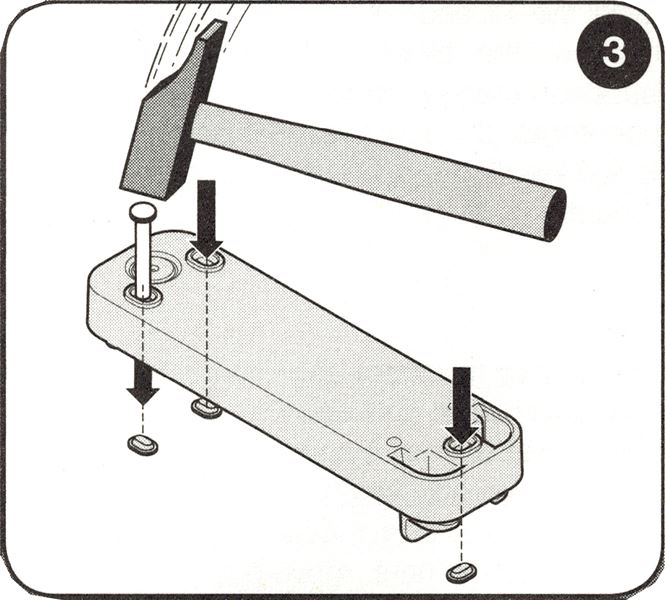

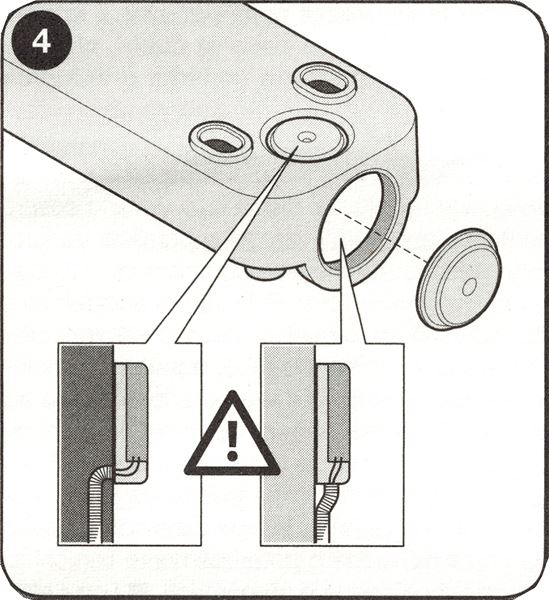

| 3. Punch out the holes required for installation | 4. Punch out the required cable entry |
 |
 |

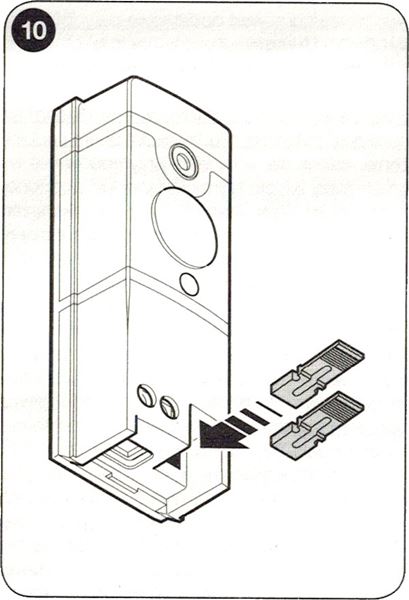

| 5. Refer to the example configurations, to determine where to position the photocells at the installation site. | 6. Based on the position of the photocells at the installation site, set the address jumpers according to the table. |
|
 |

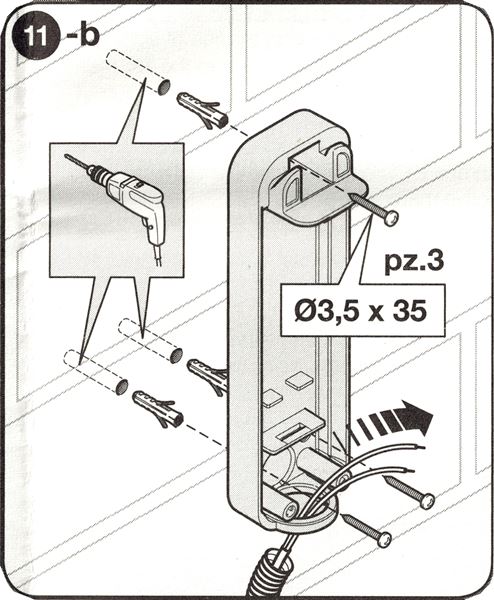

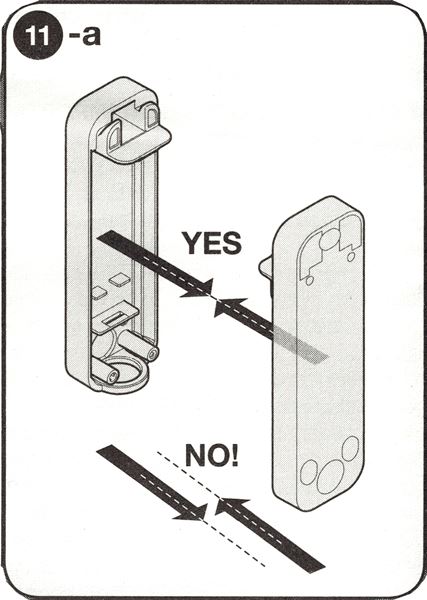

| 7. Position the photocells directly opposite each other | 8. Mount the photocell housings on a wall or post |
 |
 |

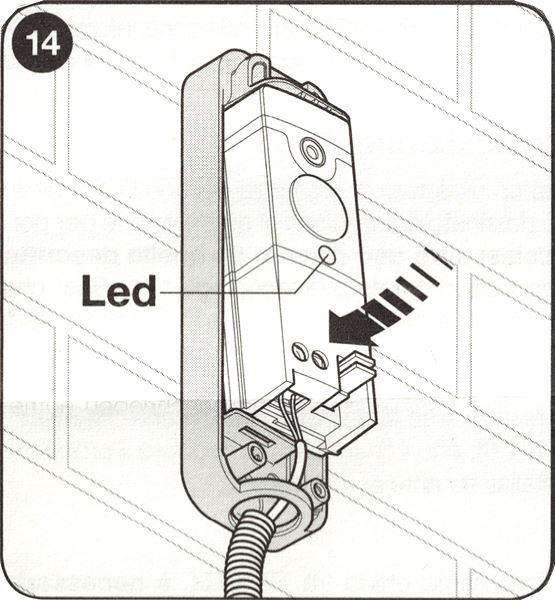

| 9. Connect the photocell wiring (make sure to disconnect the power supply first) | 10. Fit the connected photocell electronics into the housings and restore the power supply. Run the connected-device recognition procedure on the gate operator control unit. |
 |
 |
| 11. Test the photocells. If you encounter any problems, follow the troubleshooting guide | 12. Remove the blanking plug from the photocell cover |
 |
 |

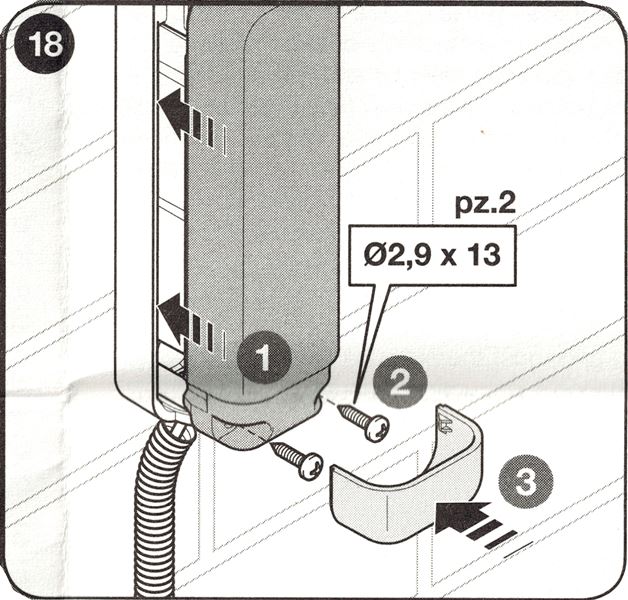

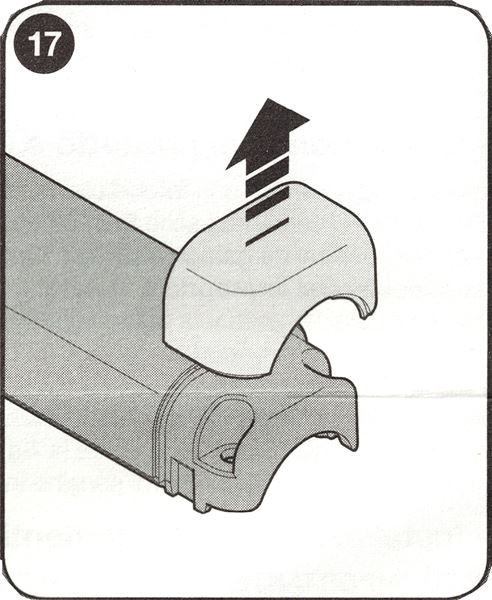

| 13. Fit the photocell cover, tighten the screws and replace the blanking plug | |
 |
Connecting multiple pairs of photocells NICE EPSB to the data network NICE BlueBUS

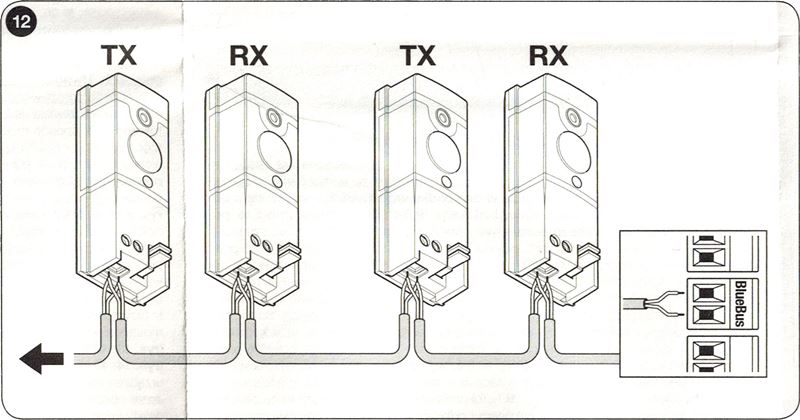

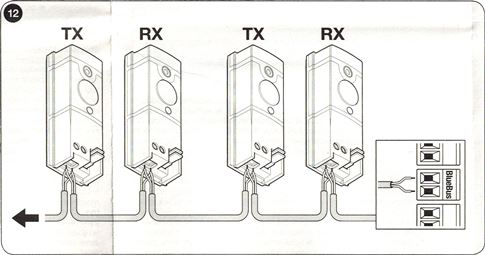

Position the photocells around the gate or gates according to the example configurations for the complete wiring layout and set the jumpers according to the photocell jumper table for NICE EPSB gate operator. To prevent interference between pairs installed close to one another, you must follow these example configurationsand observe the orientation of the transmitters TX and receivers RX. Connect the photocells in parallel as shown (polarity does not need to be observed):

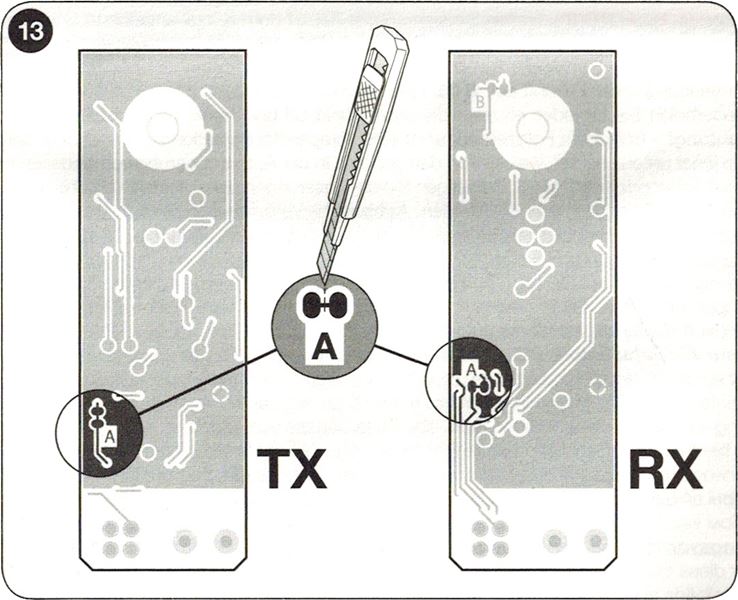

If you need the photocells to operate as gate openers (see FA1 and FA2 in the example configurations), i.e. when a vehicle passes between their optical axes and you want them to open the gate, you need to break connection A on both the transmitter TX and receiver RX, see illustration:
Example configurations for the complete wiring of multiple pairs of NICE EPSB gate operator
1. Single-leaf sliding gate
2. Two synchronized sliding gates facing each other
3. Swing gate
4. Sectional garage door
5. Up-and-over garage door
NICE photocell jumper table EPSB gate operator
|
Connecting multiple pairs of photocells to the system BlueBUS is done by setting different jumper combinations, with each connected pair requiring a unique jumper combination. Make sure that no two pairs in the same BlueBUS data network have the same combination. For each pair of photocells, set the jumper to the same value on both the transmitter (TX) and receiver (RX). If the jumper type uses only one jumper or none, keep any remaining jumpers for future use. |
| Photocell pair designation | Jumper combination |
|---|---|
| FOTO |  |
| FOTO II |  |
| FOTO 1 |  |
| FOTO 1 II |  |
| FOTO 2 |  |
| FOTO 2 II |  |
| FOTO 3 |  |
|
FA1 |
 |
|
FA2 |
 |
If a photocell needs to be replaced for any reason, simply set it to the same jumper as the original; there is no need to run the device recognition phase.
Testing operation and troubleshooting NICE EPSB photocell wiring EPSB
|
After the operator has recognized the devices, check that the LED on both the TX transmitter and RX receiver is flashing. The LED’s flashing pattern may indicate the following: |
| LED “L” | Status | What to do |
|---|---|---|
| Off | The photocell is not powered or is faulty. | Check that the voltage at the photocell inputs is approximately 8–12 V. If the voltage is correct, the photocells are probably faulty. |
| 3 quick flashes followed by a one-second pause | The device has not been recognized by the gate operator’s control unit. | Repeat the recognition phase on the control unit. Make sure each pair of photocells has a unique address assigned using jumpers . |
| Very slow flashing | The TX transmitter is transmitting regularly The RX receiver is receiving an excellent signal |
Normal operation |
| Slow flashing | The RX receiver is receiving a good signal | Normal operation |
| Fast flashing | The RX receiver is receiving a weak signal | Normal operation. However, it is best to check that the TX transmitter and RX receiver are aligned and that their covers are clean. |
| Very fast flashing | The RX receiver is receiving a very weak signal | Operation is still normal, but marginal. It is best to check that the TX transmitter and RX receiver are aligned and that their covers are clean. |
| On | The RX receiver is not receiving any signal | Make sure the LED on the TX transmitter is flashing slowly. Check that there are no obstructions on the optical path between the TX transmitter and RX receiver. Check the alignment of the TX transmitter and RX receiver. |
NICE EPSB photocell technical specifications EPSB
| Product type | Type D detector for automatic swing gates, sliding gates and garage doors in accordance with EN 12453, consisting of a transmitter TX and a receiver RX. |
|---|---|
| Technology | Direct optical TX–RX communication using a modulated infrared beam. |
| Power supply/Output | The device can only be connected to a data network that supports the NICE interface BlueBUS, from which it receives electrical voltage and sends an output signal. |
| Absorption | 1 BlueBUS unit |
| Detection capability | Opaque objects larger than 50 mm passing through the optical axis between the TX transmitter and RX receiver at speeds below 1.6 m/s. |
| TX transmitter beam angle | 20° +-25% |
| RX receiver beam angle | 8° +-25% |
| Normal range (usable) | 15 m (may be halved in adverse weather conditions, e.g. fog, rain, dust, etc.) |
| Maximum range | 30 m |
| Addressing | 7 pairs with a safety function and 2 pairs with an “Open” command function |
| Use in acidic or salty environments, or in environments with an increased risk of explosion | No |
| Installation | Vertical wall mounting; the maximum cable length for one branch of the BlueBUS system is 50m. |
| Protection rating | IP44 |
| Operating temperature | -20°C to 55°C |
| Dimensions (W×H×D) | 29x105x35mm (one photocell) |
| Weight | 118g (both photocells combined) |
Photocell wiring NICE EPSB with drive NICE Robus 400, 600, 1000

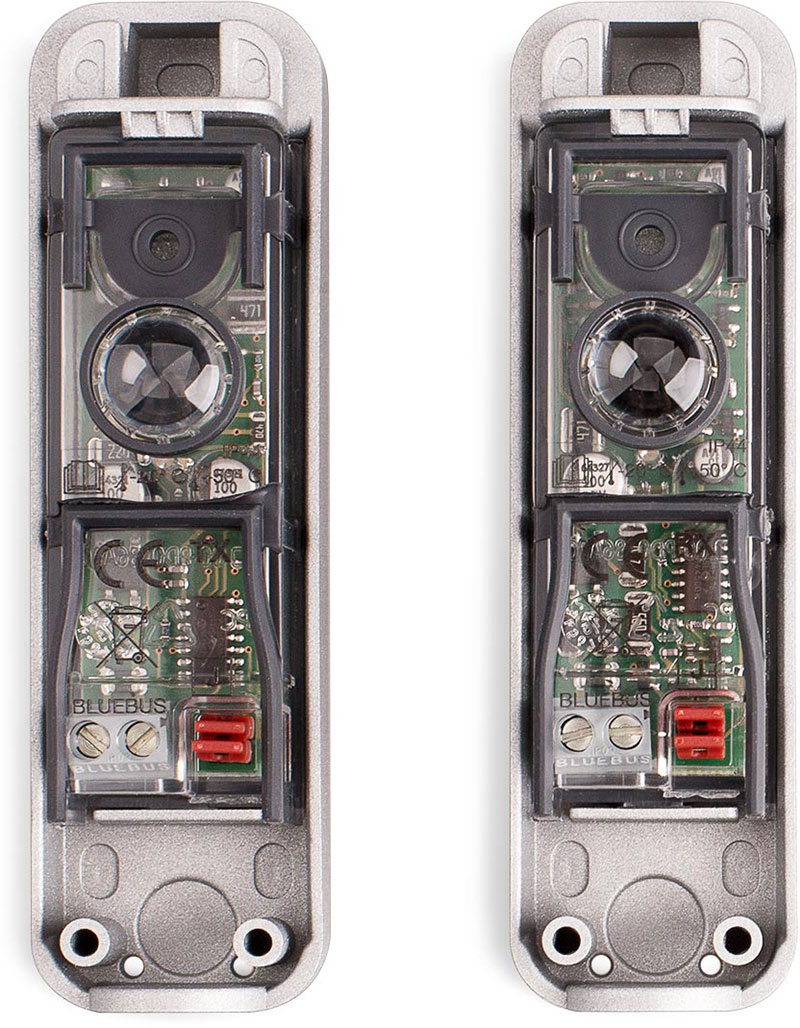

Inside the photocells NICE EPSB for gate drives
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
