NICE OXI – internal radio receiver with rolling code
| Product availability: | replaced | This product is no longer manufactured, but fortunately it has been replaced by a newer model. |
|---|
Description of NICE OXI – internal radio receiver with rolling code
Receiver NICE OXI has been replaced by the newer receiver NICE OXIBD.
NICE OXI is a plug-in four-channel receiver with rolling code for 1,024 users. Suitable for most motors; see the compatibility table.

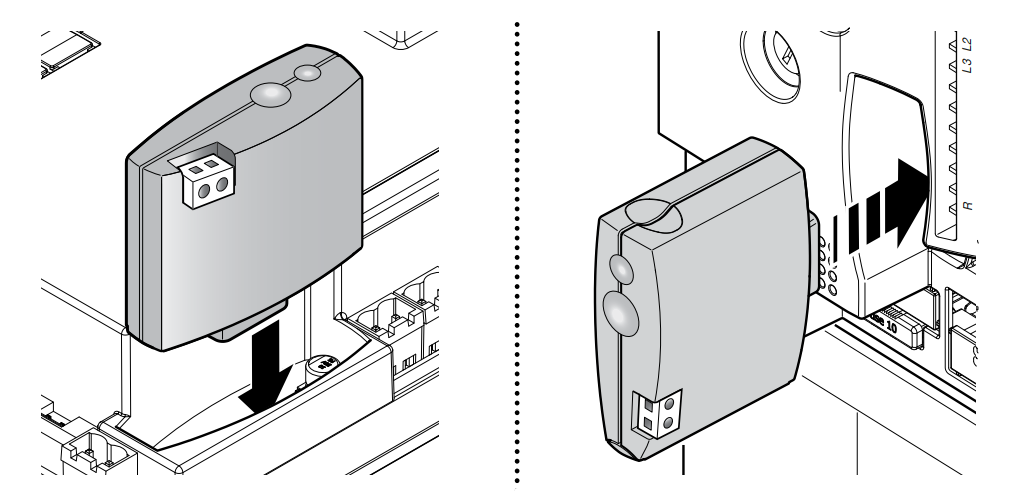

PLUG-IN receiver connection to the control unit
Advanced functions of OXI receiver commands
These functions are supported only by transmitters with O-Code encoding (Era One and Era Inti families). Not all functions are supported by every control unit. Some control units provide only the first 4 commands.
| Command no. | Name | Description |
|---|---|---|
| 1 | Step-by-step | Repeatedly press the button to cycle the gate through its operating sequence |
| 2 | Partial opening I | Partially opens the gate, depending on the control unit |
| 3 | Open only | Press the button again to stop |
| 4 | Close only | Press the button again to stop |
| 5 | Stop movement | Stops any gate manoeuvre |
| 6 | Condominium step-by-step | After an open command, subsequent commands are ignored until the gate is fully open |
| 7 | Priority step-by-step | The drive accepts the command even when blocked |
| 8 | Partial opening II | Depending on the control unit |
| 9 | Partial opening III | Depending on the control unit |
| 10 | Open and lock out the automation | Opens the gate; the drive will then accept only commands 7 and 13 |
| 11 | Close and lock out the automation | Closes the gate; the drive will then accept only commands 7 and 13 |
| 12 | Lock out the automation | Stops the gate; the drive will then accept only commands 7 and 13 |
| 13 | Unlock the automation | Unlocks automation locked by commands 10, 11 or 12 and resumes normal operation |
| 14 | Switch on the lighting timer | The lighting switches on and turns off after the programmed time |
| 15 | Lighting ON-OFF | Repeatedly press the remote control button to switch the lighting on and off |
Technical specifications of the NICE OXI receiver
| Encoding: | "O-Code" / "FloR" / "TTS"; or "Flo"; or "Smilo" |
|
|---|---|---|
| Maximum current draw: | mA | 30 |
| Frequency: | MHz | 433.92 |
| Sensitivity: | µV | above 0.5 |
| Operating temperature: | (°C) | -20 to +55 |
| Outputs: | 4 (on the "SM" connector) | |
| Dimensions: | mm | 50 x 45 x 19 |
| Weight: | g | 20 |
| Input resistance: | Ω | 52 |
NICE OXI receiver compatibility table
| Swing-gate operators | MC424 L | WG2024, WG3524 SFAB2024 TOO3024, TOO4524 |
|---|---|---|
| MC824 H | TO4024, TO5024, TO7024, TO5024I HY7024, HY7124 SFAB2124 TO6024HS, TO5024HS MFAB3024HS, MFAB3024 WG3524HS LFAB4024, LFAB4024HS BFAB5024 TTN3724HS, TTN6024HS |
|
| MC824 HR | TO5624I TTN3724RHS, TTN6024RHS |
|
| MC824 L | OLTRE1824 | |
| POA1 | PP7024 | |
| WLA1 | WL1024C | |
| POA3 | HO7124, PP7124 | |
| HKA1 | HK7024 | |
| HKA2 | HK7024HS | |
| MC800 | TO4005, TO4006, TO4015, TO4605, TO5015, TO5016, TO5605 HY7100, HY7005 WG4000, WG5000 MFAB3000, MFAB3000L, LFAB4000 TOO3000, TOO4500 |
|
| Sliding gate operators | ROA34 | RO300 |
| RBA2 | RB350 | |
| NKA3 | NKSL400, SLH400 | |
| RBA3 | RB400, RB600, RB1000, RUN1500 | |
| RUA1 | RUN1800, RUN2500 | |
| RUA2 + RUA3 | RUN2500I | |
| RBA3/HS | RB250HS, RB500HS | |
| RUA6 | RUN400HS, RUN1200HS | |
| DPRO500 | TUB4000 | |
| Garage door operators | SPA40 | SP6000 |
| SNA20 | SN6021 | |
| SNA3 | SN6031, SPIN30 | |
| SNA4 | SN6041, SPIN40 | |
| SOA2 | SO2000 | |
| SPYBOX B | SPY650KCE, SPY800KCE | |
| TNA2 | TN2010L, TN2010 | |
| Barrier gates | WA20 | WIL |
| WIA20 | WIDE | |
| SIA20 | SIGNO | |
| XBA2 | XBAR | |
| XBA20 | S BAR | |
| XBA3 | M BAR, L BAR |
