NICE ELDC LED Flashing Light 12V/24V/36V
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€50.98 including VAT
| Weight |
|---|
| 0,40 kg |
Description of NICE ELDC LED Flashing Light 12V/24V/36V
NICE LED flashing ELDC is a fully compatible successor to the beacon NICE Era Light ELB and NICE Era Light EL24.
Warning light NICE LED flashing ELDC made of impact-resistant polycarbonate with a built-in antenna for increased remote control range (up to 150 m).
Suitable for operators NICE Road 400, NICE Robus 600, NICE Robus RB1000, etc., for all operators powered by 12V/24V/36V.
Wiring required for the warning light NICE Era Light ELDC
- two-core cable 2x0.5mm² for the beacon light
- coaxial cable for the antenna
Beacon compatibility NICE Era Light ELDC
| NICE-ELDC compatibilityELDC | |
|---|---|
| Control units | |
| Operators |
|
Benefits of using the beacon NICE Era Light ELDC
- Acts as a safety feature, flashing to warn people nearby that the gate is moving
- Built-in antenna significantly increases the range remote control
- Diagnostics using flash sequences, for details of the indicated faults, see the manual for your operator or control unit (for Road, for Robus)

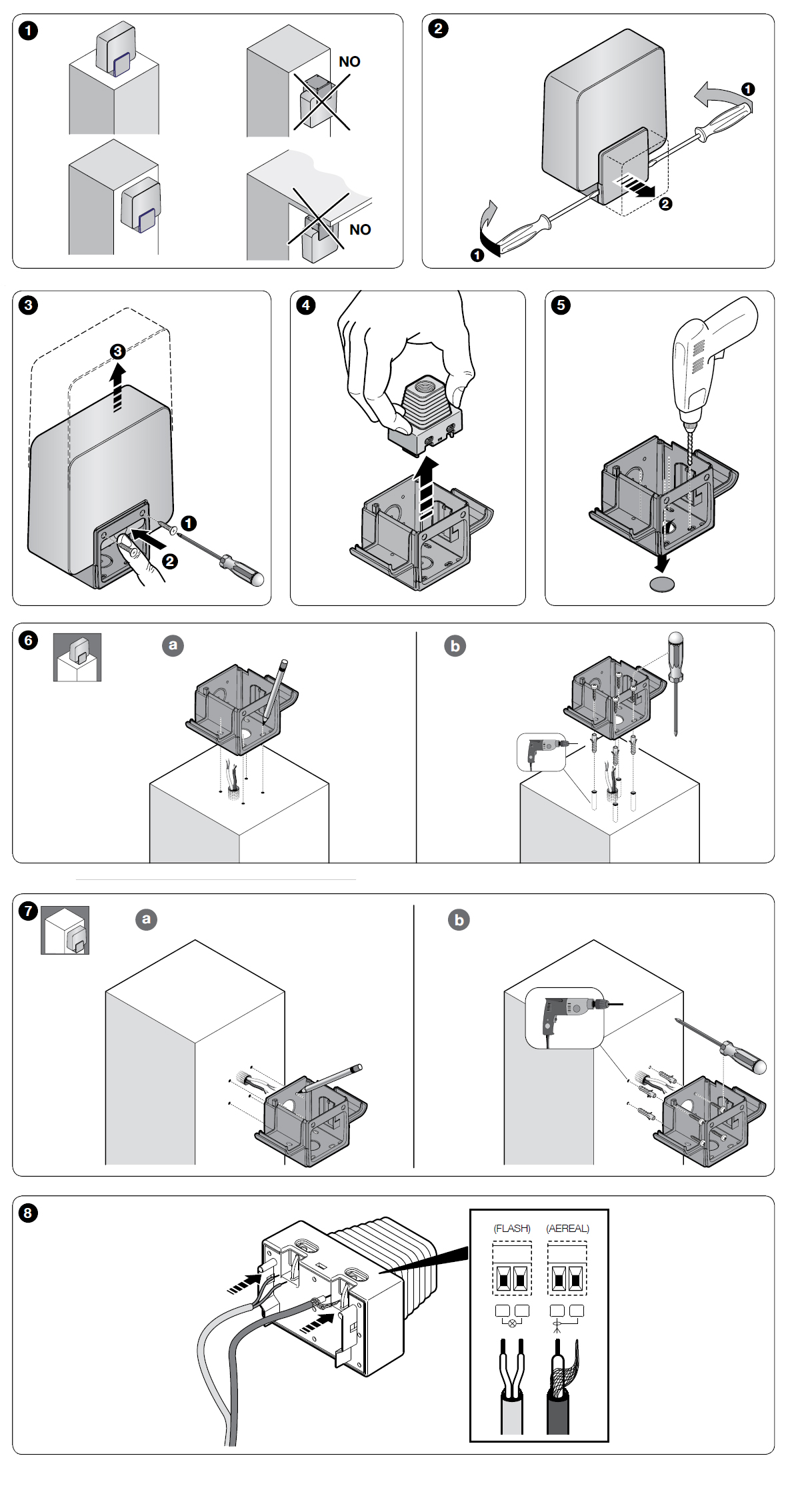

Beacon installation NICE LED flashing ELDC
Beacon technical specifications NICE LED flashing ELDC
| Power supply | 12V / 24V /36V |
|---|---|
| Frequency | DC or 50/60Hz |
| Bulb | LED |
| Built-in flasher | yes |
| Antenna | yes |
| Protection rating | IP44 |
| Operating temperature | -20°C to +50°C |
| Dimensions (W×H×D) | 132×72×155 mm |

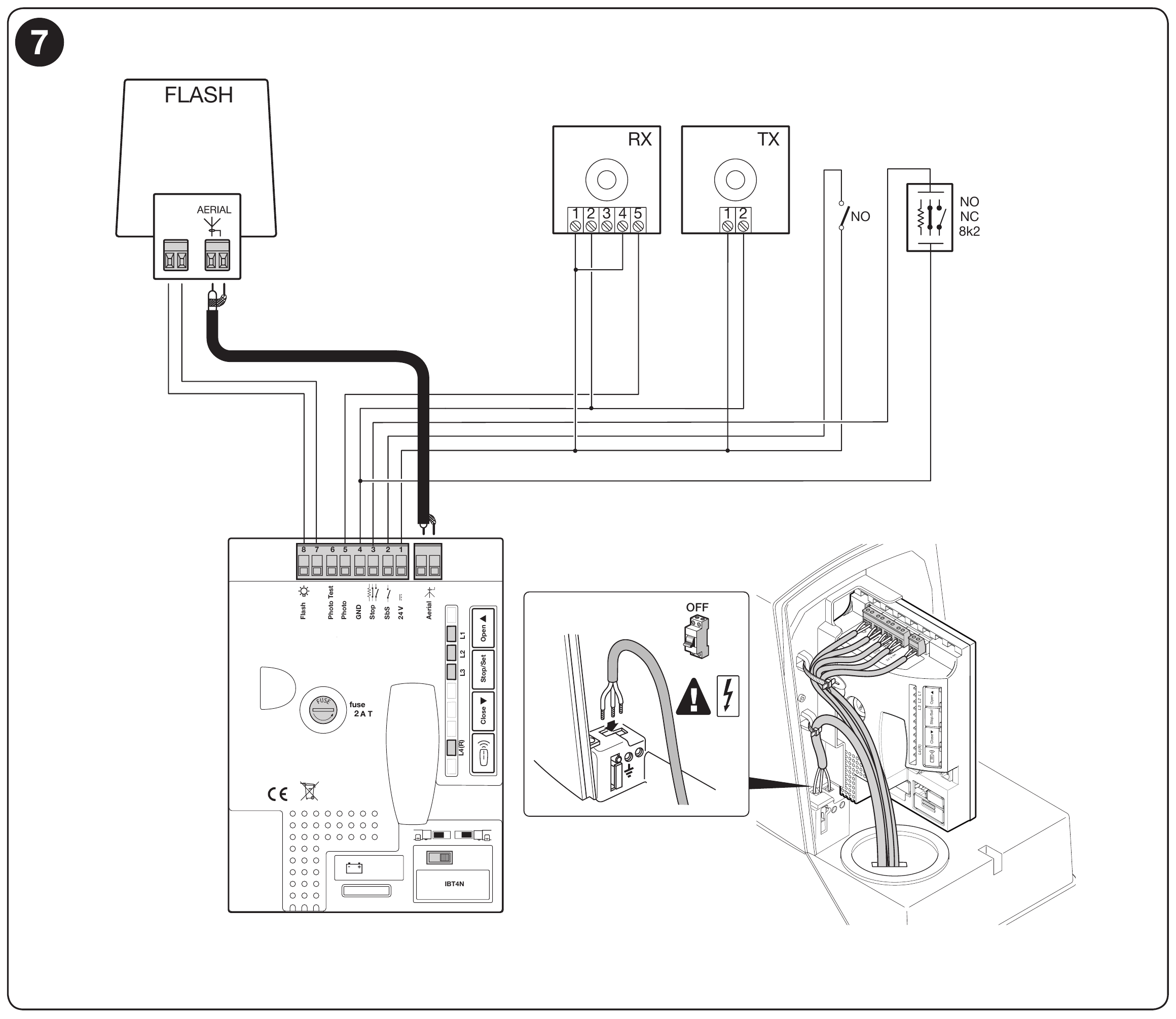

Warning light wiring NICE LED flashing ELDC to the operator NICE Road RD400
Source: NICE ROAD 400 manual, page 10, figure 7.

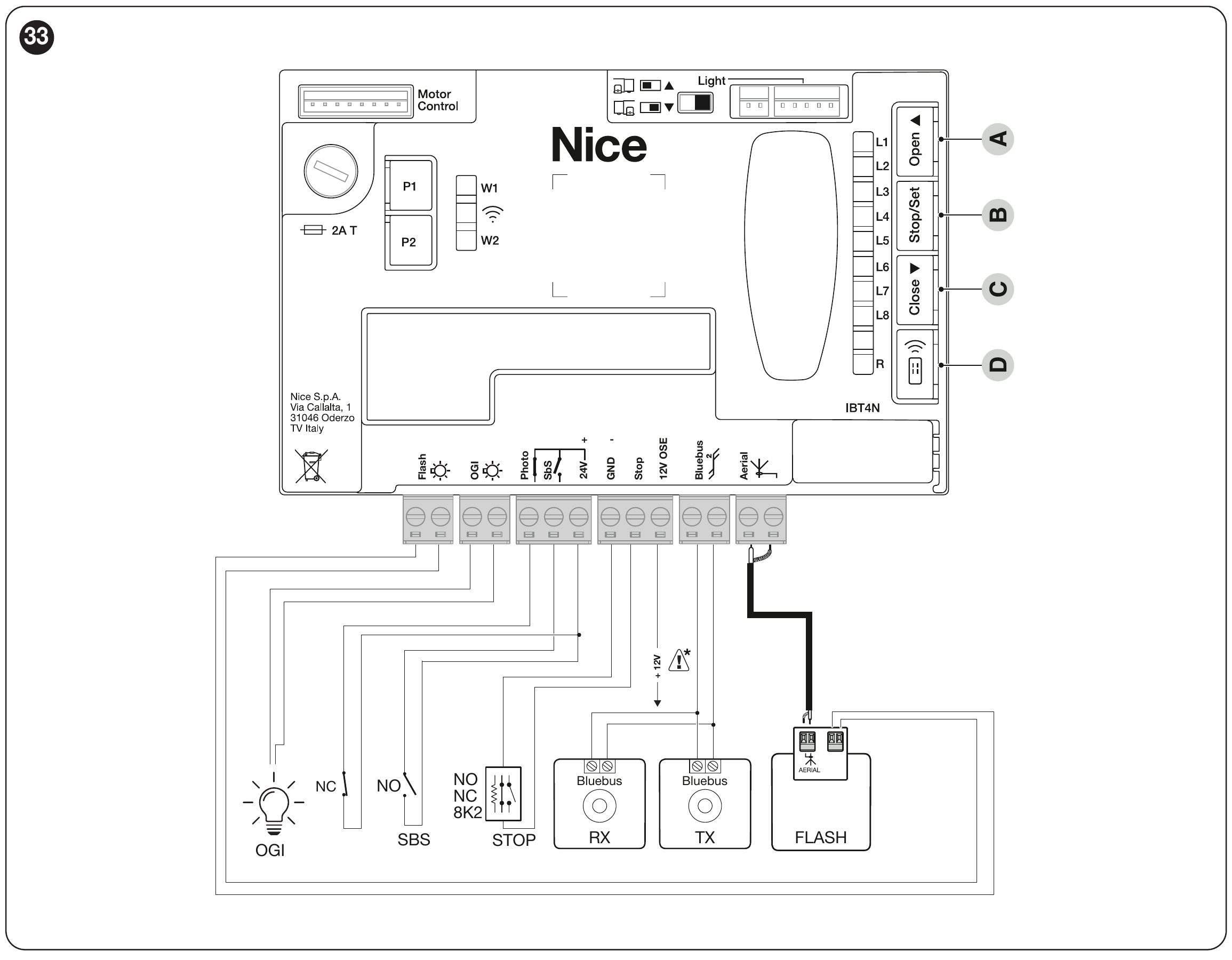

Beacon wiring NICE LED flashing ELDC to NICE ROBUS operators RBS400, RBS600, RBS800, RB1000
The diagram shows the RBS400, RBS600, RBS600HS and RBS800 control units. Connect the beacon to FLASH and the antenna to AERIAL, or directly to the plug-in receiver if it is included with your operator.
Source: NICE ROBUS RBS manual, page 16, figure 33.
On the RUN1500 and RB1000, the beacon and antenna connect to terminals with the same labels, but the terminal layout is different. See the RUN1500 diagram or the RB1000 diagram.
