NICE Era Light ELB – 12V warning light for gate operators, with built-in antenna
| Product availability: | Unavailable | We’ll be happy to help you choose a replacement. Feel free to contact us. |
|---|
Description of NICE Era Light ELB – 12V warning light for gate operators, with built-in antenna
This product has been replaced by a newer warning light NICE LED flashing light .
 |
NICE Era Light ELB is a fully compatible replacement for the warning light NICE MoonLight MLBT with an innovative new design. |
Warning light NICE Era Light ELB (technical specifications) made of impact-resistant polycarbonate with a built-in antenna for greater remote-control range (up to 150 m). Supplied with a bulb.
Suitable for operators NICE Road 400, NICE Robus 600, NICE Robus RB1000, etc. for all operators powered by 12V.
Required wiring for the warning light NICE Era Light ELB
- two-core cable 2x0,5mm² for the warning light
- coaxial cable for the antenna
Benefits of using the warning light NICE Era Light ELB
- It serves as a safety feature, flashing to alert people nearby that the gate is moving
- Built-in antenna significantly increases the range remote control
- Diagnostics using flashing sequences, for specific fault indications, see the manual for your operator or control unit (for Road, for Robus)

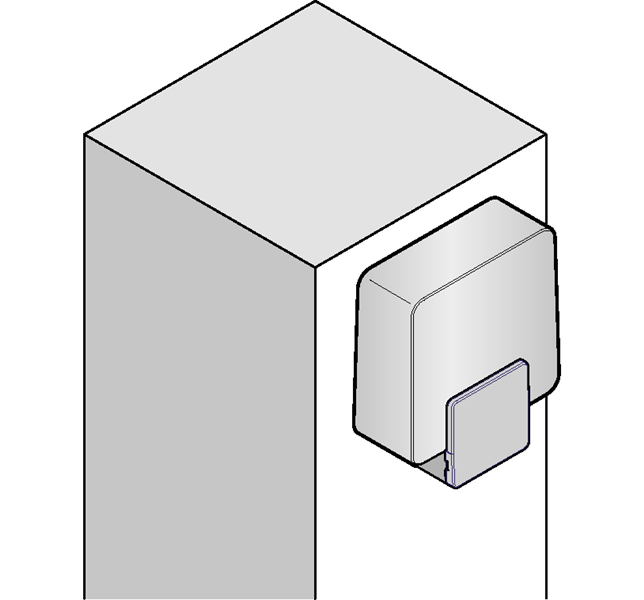

Warning light mounting options NICE Era Light ELB

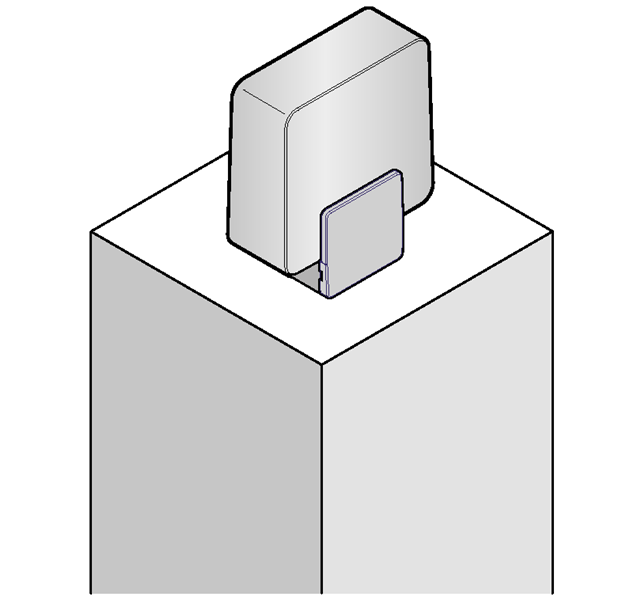

| Top mounting | Side mounting |
|---|---|
 |
 |

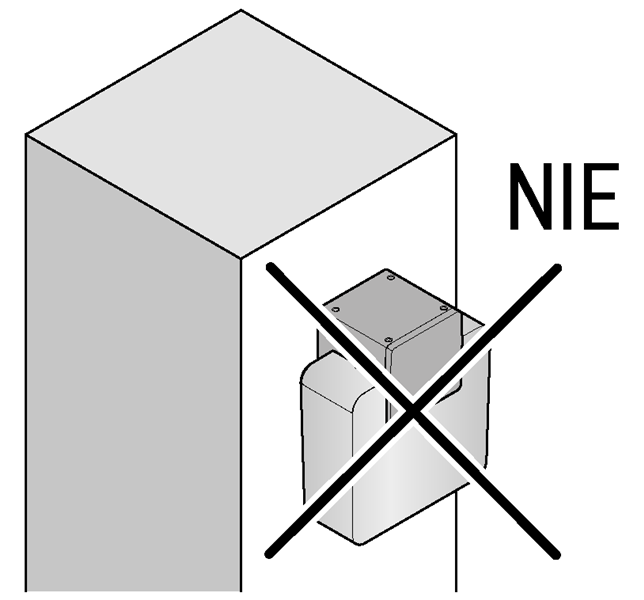

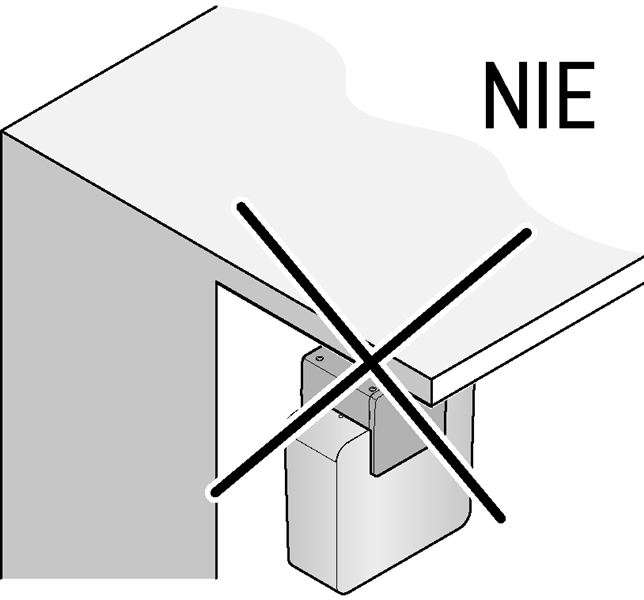

| Incorrect positioning | Incorrect positioning |
 |
 |
How to install the warning light NICE Era Light ELB

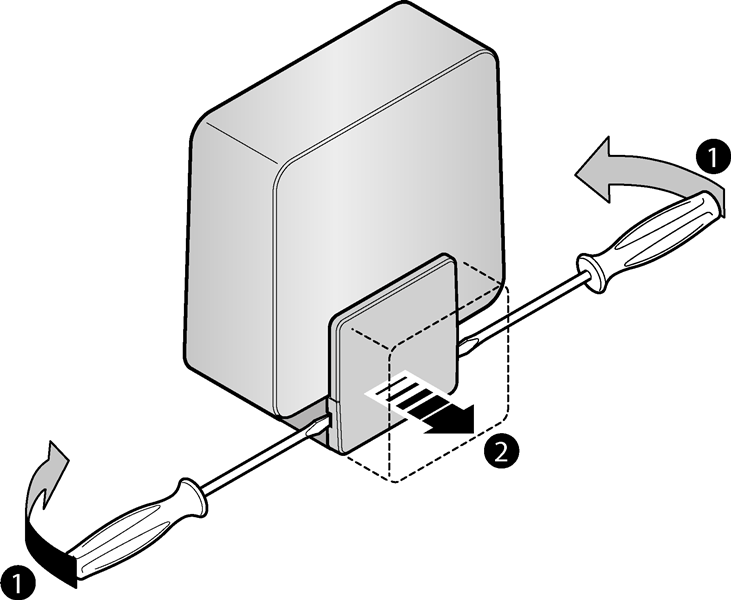

Step 1 - Removing the front plug

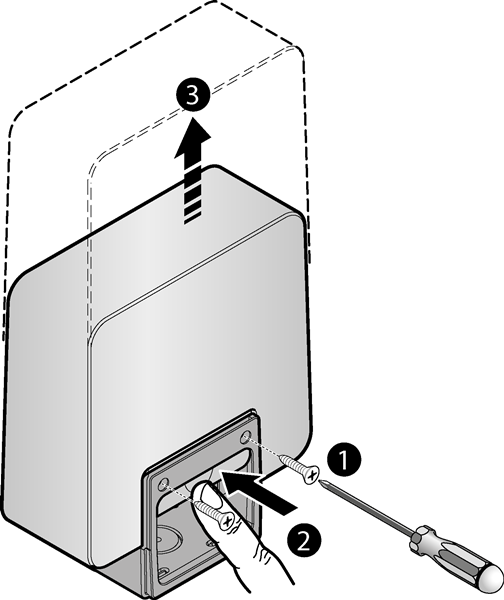

Step 2 - Preparing the warning light for installation

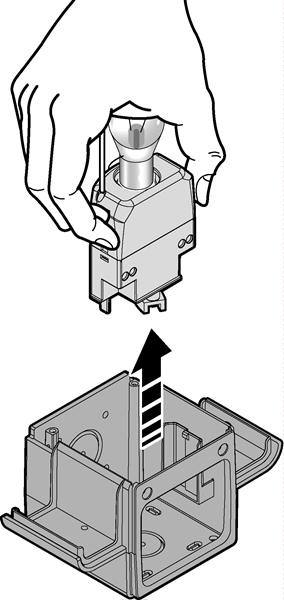

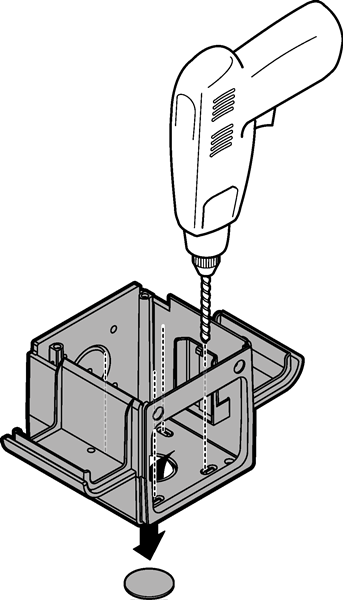

| 1. Slide off the cover | 2. Remove the electronics | 3. Drill the mounting holes |
|---|---|---|
 |
 |
 |

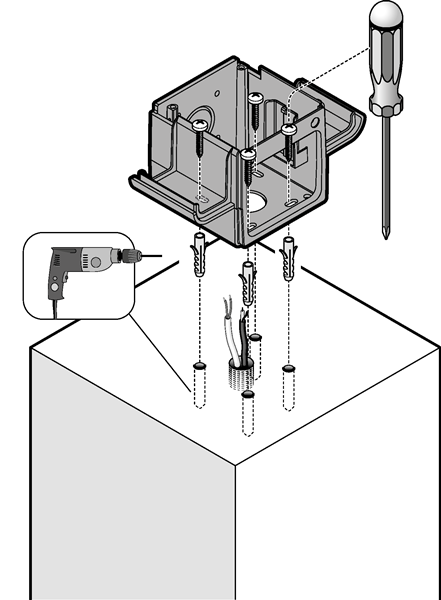

Step 3A - Installing the warning light with top mounting

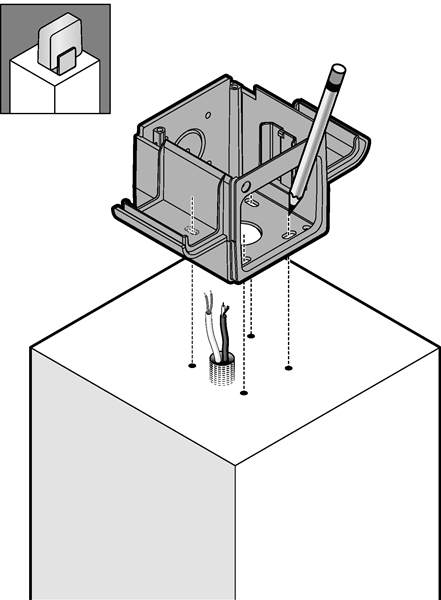

| 1. Marking the holes | 2. Drilling the holes |
|---|---|
 |
 |

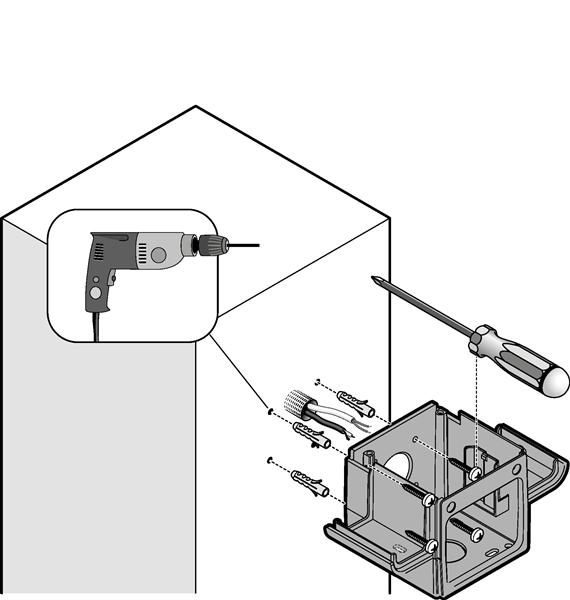

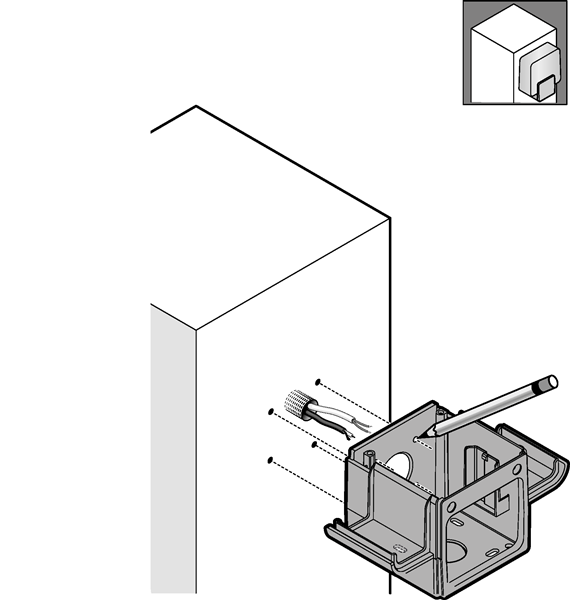

Step 3A - Installing the warning light with side mounting
| 1. Marking the holes | 2. Drilling the holes |
|---|---|
 |
 |

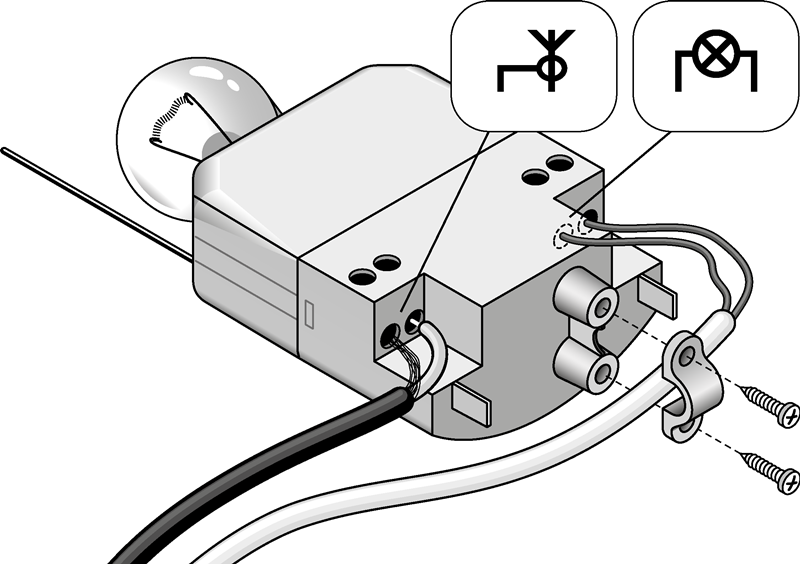

Step 4 - Connecting the electronics
Technical specifications of the warning light NICE Era Light ELB
| Power supply | 12V |
|---|---|
| Frequency | DC or 50/60Hz |
| Bulb | yes, 12V 21W (BA15 fitting) |
| Built-in flasher | no |
| Antenna | yes |
| Protection rating | IP44 |
| Operating temperature | -20°C to +50°C |
| Dimensions (W×D×H) | 132×72×155 mm |

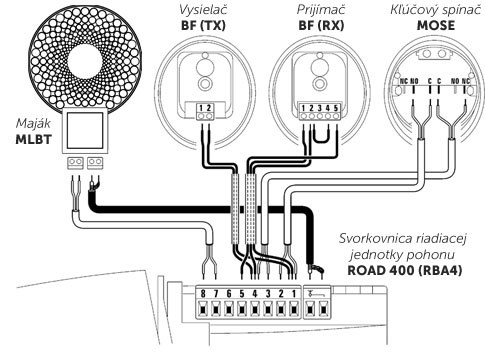

Wiring the warning light NICE Era Light ELB to the drive NICE Road RD400
Note: in the image, the beacon is marked as MLBT.

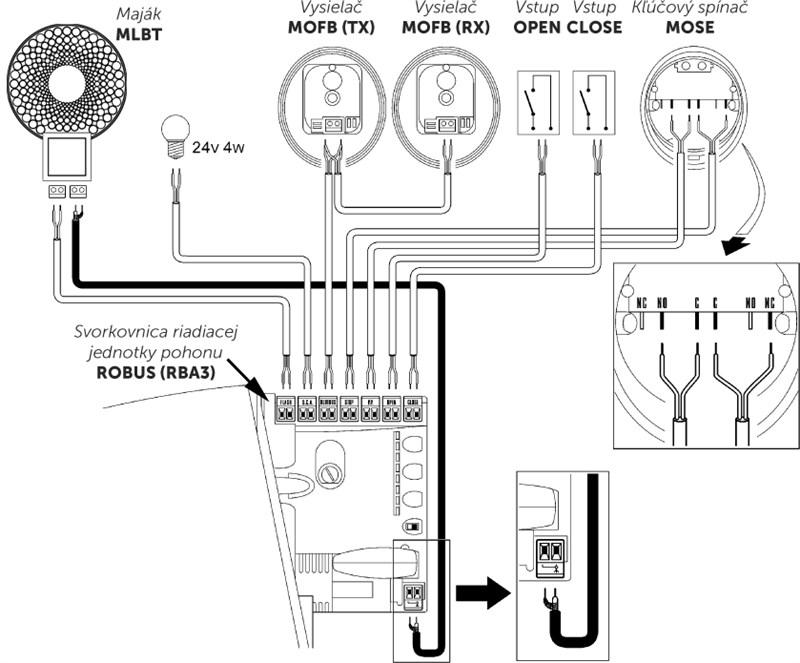

Wiring the beacon NICE Era Light ELB to the drive NICE Robus RB400, RB600, RB1000
Note: in the image, the beacon is marked as MLBT.
