Sliding gate operator kit for gates up to 400 kg/7 m NICE Robus RB400 (D)
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€686.27 including VAT
| Weight |
|---|
| 9,50 kg |
Description of Sliding gate operator kit for gates up to 400 kg/7 m NICE Robus RB400 (D)
The NICE RB400 gate operator has been replaced by a newer model NICE RBS400. Take a look at the advantages of the newer NICE RBS400 and RBS600 models.
The NICE RB400 (D) kit will be replaced by the NICE RBS400 (D) kit.
NICE Robus RB400 gate operator is designed for sliding gates weighing up to 400 kg and a clear opening width of up to 7 m. It has an electromechanical limit switch. The operator is non-reversible. Detailed technical specifications ». Download the manual ».

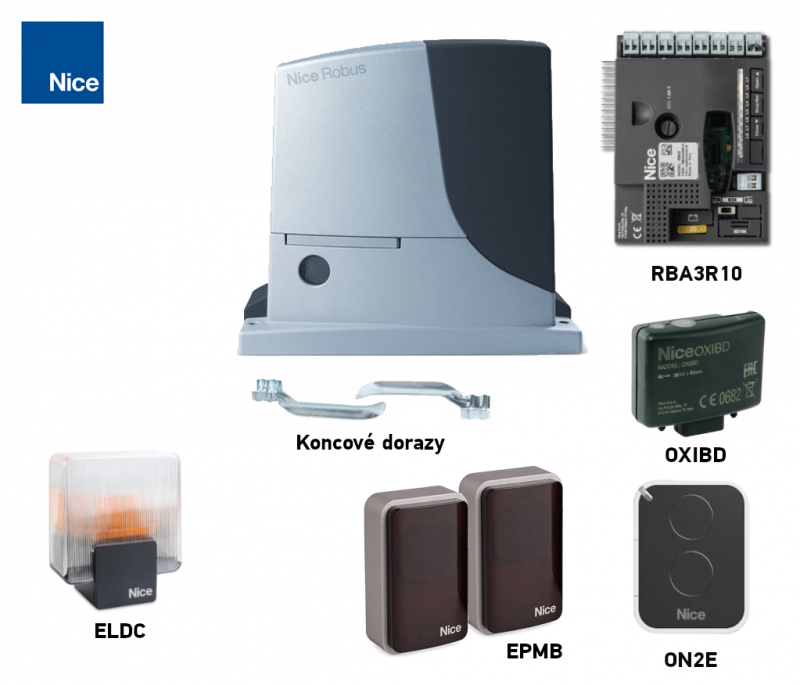

| The kit includes: | NICE-RB400-D | |||
|---|---|---|---|---|
 |
1 × | NICE Robus RB400 gate operator | NICE-RB400 | |
|
NICE Robus RB400 electromechanical gate operator with an RBA3R10 control unit, suitable for gates weighing up to 400 kg and with a leaf length of up to 7 m. |
Details  |
|||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for opening a gate automatically from a distance. It can control four devices or send four different commands to one device. Compatible with all NICE operators featuring O-Code rolling-code technology (the 72-bit code allows 4.7 quadrillion combinations, making it virtually impossible to misuse) and an LED signal transmission indicator. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the gate opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE LED flashing ELDC warning light made of impact-resistant polycarbonate, with a built-in antenna to extend the remote control range (up to 150 m). |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it releases the operator's drive gear so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robus RB400 installation manual | ||
|
Installation manual for successful setup, with wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
 |
2 × | Limit stop (left + right) | ||
|
The operator limit stops are mounted on the rack and determine the gate's travel distance. |
||||
| 1 × | Installation accessories | |||
|
Operator installation components, height adjustment screws, mounting plate, anchor covers. |
||||
(Is this operator right for me?)
Compare it with other operator kits:
| « Lower-powered kit | Alternative kit | Higher-powered kit » |
|---|---|---|
|
No. |
|
|
Drive features NICE ROBUS RB400
The drive is compact, safe and practical, ideal for both residential and commercial use. Impact-resistant cover, aluminium alloy body with an epoxy coating.
The drive is suitable for automating sliding gates weighing up to 400 kg, with a gate leaf length of up to 7 m. These figures apply under conditions specified by the manufacturer, such as weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Robus RB400 drive with gates rated at no more than 80% of these limits. See the Choosing a drive chapter for more information.
Very user- friendly technology BlueBUS allows to power and control up to 7 pairs of photocells using a two-core cable.
Temperature sensor adjusts the drive's pulling force according to the weather conditions. The drive also includes a thermal fuse.
Adjustable speed,, force and pause time for automatic drive closing and much more; see Programming.
Diagnostics using warning beacon.
The gear module 4 is compatible with the rack available in our range.
Robus 400 drive functions "The slave unit" ensures automatic synchronisation of two motors. This means that two sliding gates moving towards each other can be automated.
The NICE Robus RB400 drive is an electromechanical unit suited to the climate in Slovakia and complies with all European safety standards.
Drive ROBUS RB400 in pictures
| release | control unit | wiring diagram |
|---|---|---|
 |
 |
 |
| Instructions for releasing the drive > |
Programming the drive > |
Detailed wiring diagram > |
For the detailed wiring diagram and more technical information, see on the NICE Robus RB400 drive's own page, or in the manual..
Drive specifications NICE ROBUS RB400
| Speed | 0,18 - 0,34 m/s |
|---|---|
| Power supply | 230V, 50/60Hz |
| Power consumption | 250W |
| Torque | 6Nm |
| Max. torque | 12Nm |
| Max. gate weight | 400kg |
| Ingress protection rating | IP 44 |
| Operating temperature | -20°C to +50°C |
| Insulation class | 1 |
| Gear module | 4 |
Complete technical specifications on the NICE Robus RB400 drive's own page.
Accessories compatible with the NICE Robus RB400 drive
We also recommend adding compatible optional accessories to the drive, or choosing one of the pre-assembled discounted sets:
| What | Why | Type |
|---|---|---|
| Warning light | The warning light flashes while the gate is moving—ideal for exits with limited visibility. It also has a built-in antenna for greater remote-control range. | - LED warning light with antenna ELDC - multifunction light WLT - wireless solar LED warning light LLW |
| Photocells | They detect obstacles while closing and stop the movement—the gate won't hit a car or any people. | - Era Photocell Medium EPMB - Era Photocell Large EPLB - Era Photocell Slim EPSB - wireless FT210B - wireless EPMOW - solar-powered PHW |
| Transmitter | For remote control of the gate. | - Era One ON2E, ON3EBD, ON3ELR, ON4E, ON9E - Era Flor Flo2RE, Flo4RE - FloR Flo2R-s, Flo4R-s - Inti INTI2, INTI2Y, INTI2L, INTI2B, INTI2R, INTI2G |
| Receiver | Required for remote control of the gate. | - OXI - OXIBD - OXILR - Wi-Fi receiver IT4WIFI - GSM receiver GSM LITE3+, GSM SMART3, GSM PROFI3 |
| Antenna | For improved remote-control range. | - integrated into the warning light ELDC - stand-alone antenna ABFKIT |
| Keypad | If you forget your remote control, or if many vehicles or people need access and you don't want to give everyone a remote or open the gate manually. | - wireless EDSWG - wired EDSB |
| Key switch | Control the gate with a key using a switch wired to the drive at any suitable location. | - surface-mounted, with a standard cylinder EKS - surface-mounted, with a European cylinder, EKSEU - flush-mounted, with a standard cylinder EKSI - flush-mounted, with a European cylinder EKSIEU |
| Card readers | Control the drives by presenting a card or key fob to the card reader. | - ERA Transponder Reader ETPB |
| Rack | Required for the drive to automate the gate—the drive cannot move the gate without a rack. | - nylon, steel-reinforced, 33 cm LZ-1 - nylon, steel-reinforced, 1 m LZ-10 - nylon, steel-reinforced, reverse-toothed, 1 m LZ-15 - steel, 30x8mm, 1m LZ-3 - steel, 30x12mm, 1m LZ-5 - stainless steel, 30x10mm, 1m LZ-7 |
| Backup power supply | Keeps the gate operating in the event of a power outage. | - backup battery PS124 - solar power supply SYKCE |
Manuals and documents for download
