NICE Aerial ABFKIT - adjustable external drive antenna
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€26.00 including VAT
| Weight |
|---|
| 0,50 kg |
Description of NICE Aerial ABFKIT - adjustable external drive antenna
Adjustable, tilting antenna with a tilt angle of up to 90° (can be installed at an angle of 45° to 135° from the plane). Improves signal reception with a range of up to 150 m, depending on the specific remote control. The antenna comes with a short coaxial cable (10 cm), which can be extended and routed directly to the operator antenna input The antenna, or routed to a warning light, which does not have a built-in antenna. Another option is to route the cable to the receiver.
It is ideal for use with Lucy series warning lights, such as the LUCY24 (see Lucy warning light wiring instructions) and with BXB2K, BB2BK, KXB2, FLOXB2 receivers.
Ideally, connect the antenna to the receiver using a coaxial cable as follows: procedure.
Installation instructions for the NICE Lucy warning light (result)

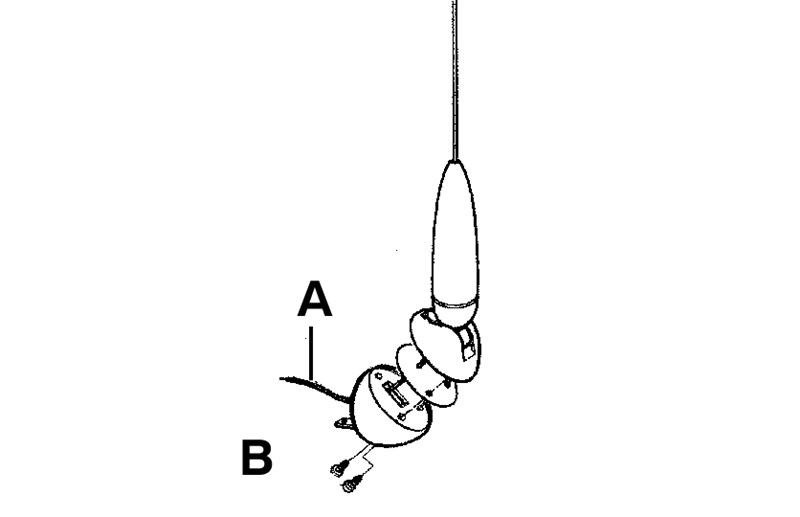

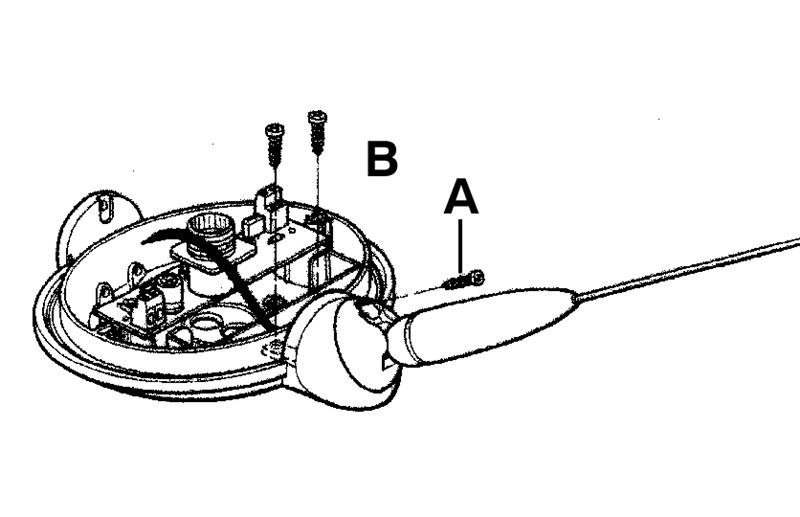

| 1. Insert cable A into the warning light entry point and tighten screws B. | 2. Position the entry point against the warning light, feed the cable inside it and tighten screws A and B. |
 |
 |

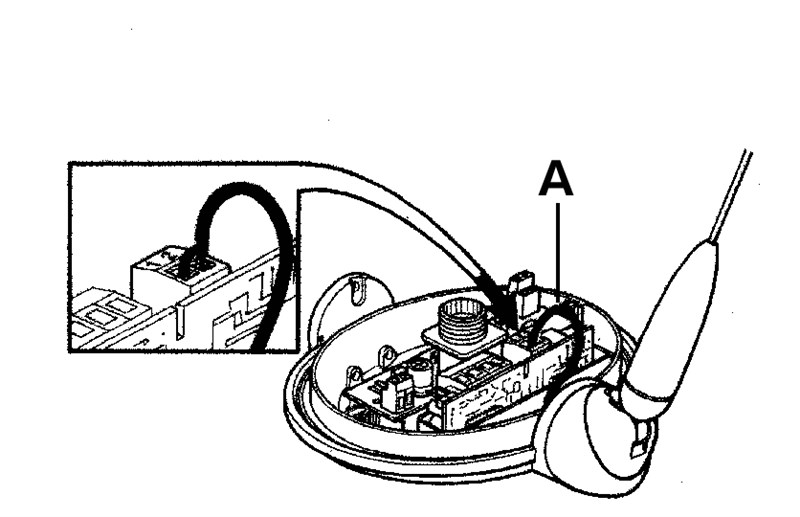

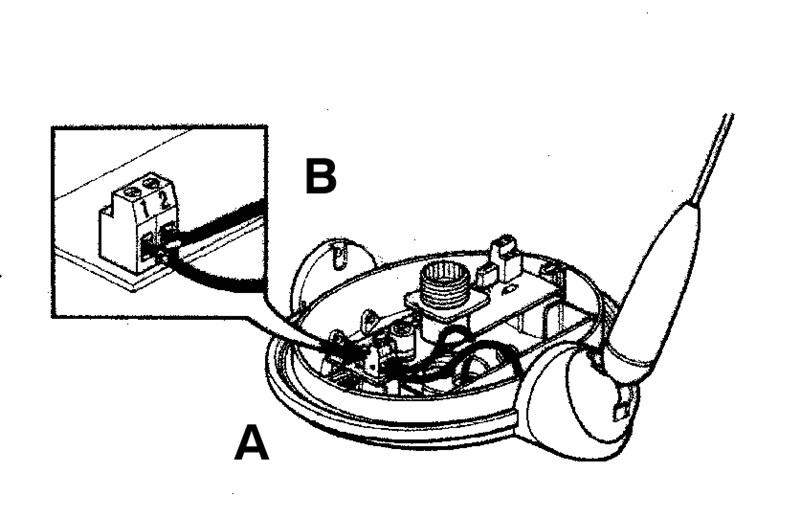

| 3. Connect the antenna cable to input A (on the left) and the receiver cable to input B (on the right). | 4. If you want to install the receiver directly inside the warning light, secure cable A. |
 |
 |
Installation instructions for BXB2K, BB2BK, KXB2, FLOXB2 receivers

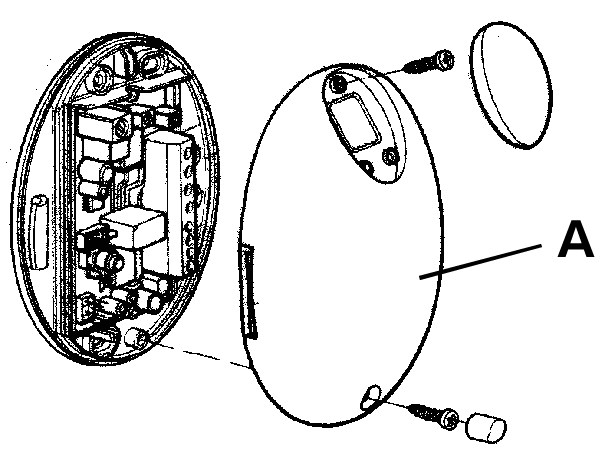

| 1. Open the receiver and remove cover A. | 2. Pry out cover A using a screwdriver, for example. |
 |
 |

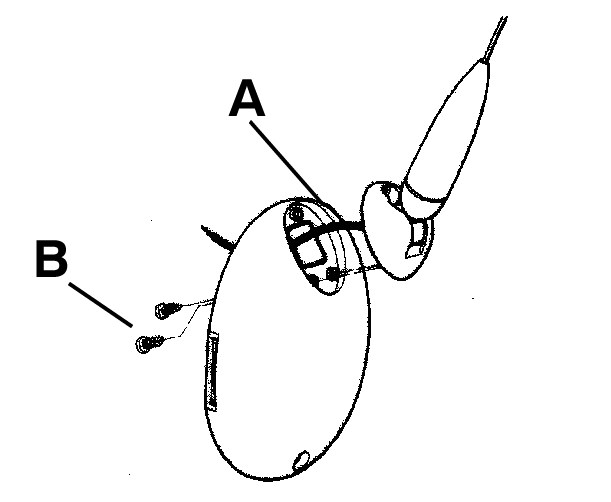

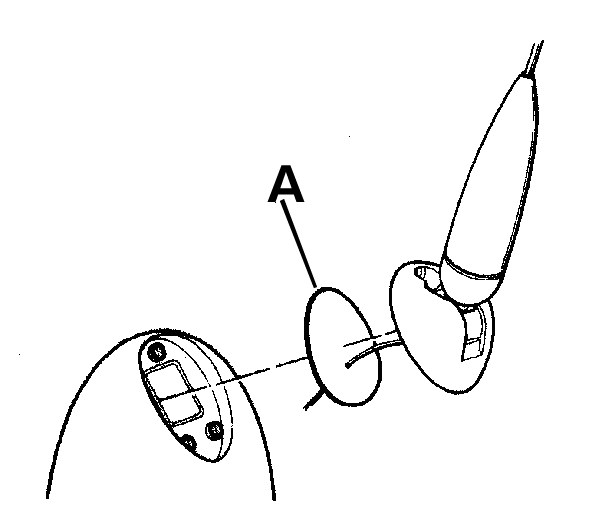

| 3. Position the rubber cover A. | 4. Feed through cable A and tighten screws B, which secure the antenna. |
 |
 |

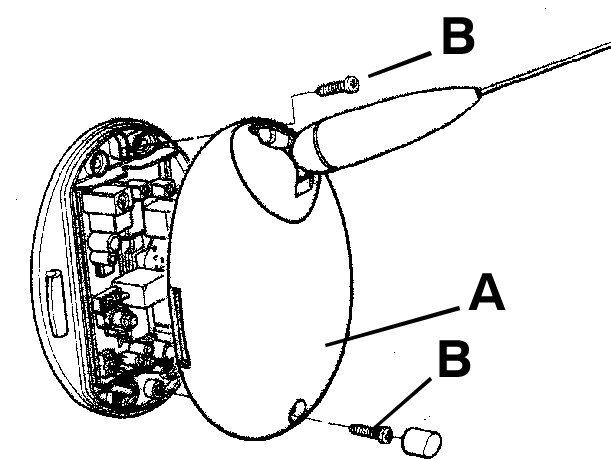

| 5. Connect the antenna to the receiver, replace cover A, tighten screws B and fit the caps. | |
 |
Example of the NICE ABFKIT antenna in use
NICE LUCY24 with ABFKIT antenna and bracket PO.
