Connecting the antenna to the OXIBD receiver

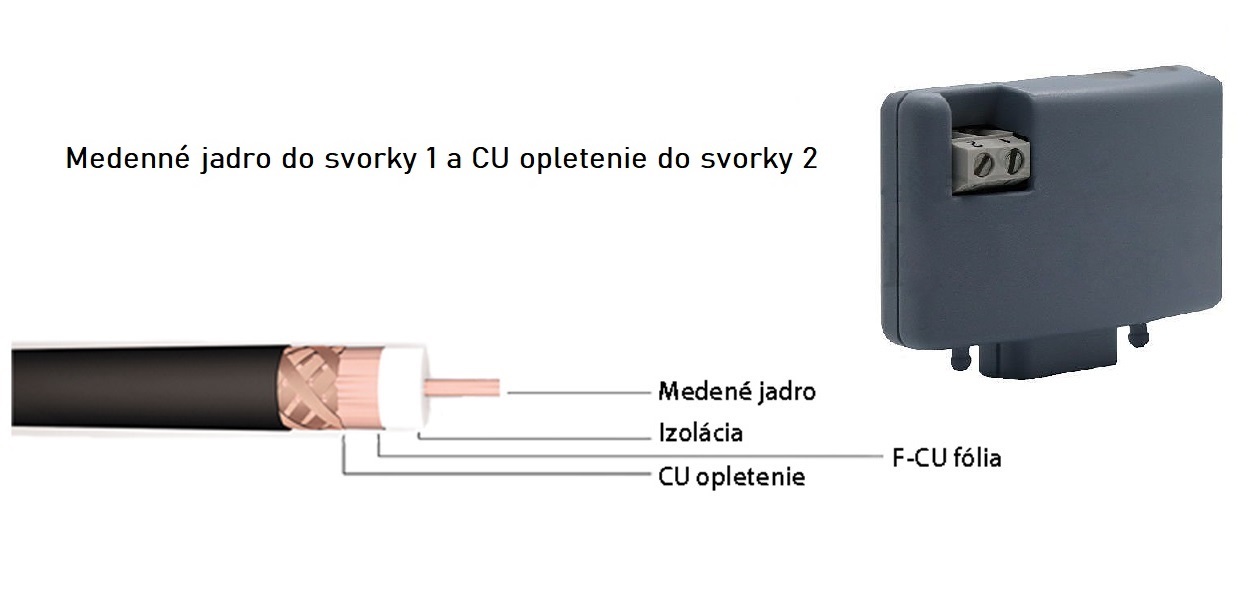

The antenna NICE ABF , NICE ABFKIT or the built-in antenna in the beacon connect using a coaxial cable with an impedance of 50 Ohm as follows:

antenna connection

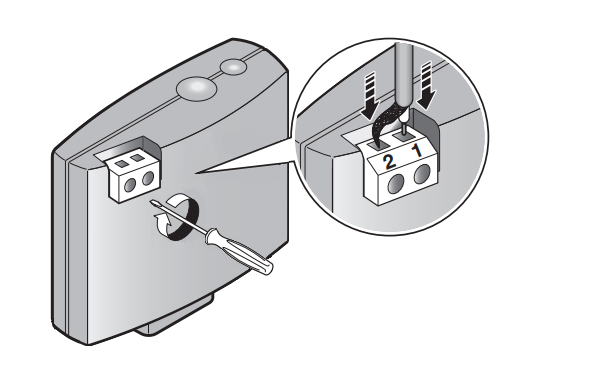

Coaxial cable connection detail to the receiver with a terminal block:

external coaxial antenna connection

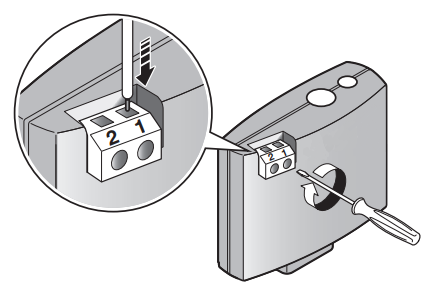

If you do not yet have an antenna/coaxial cable, you can improve the signal by connecting the temporary wire (18,5cm) supplied with the receiver to terminal 1 on the receiver:

connecting the antenna to the receiver
