NICE Wingo WG2024 – standalone operator for swing gates with leaves up to 2 m / 400 kg
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€196.47 including VAT
| Weight |
|---|
| 6,00 kg |
Description of NICE Wingo WG2024 – standalone operator for swing gates with leaves up to 2 m / 400 kg
| Quick navigation on this page: | ||
|---|---|---|
| The operator includes… | Alternative operators… | Discounted kits… |
| Compatible accessories… | Manual… | Selection, limits, service life… |
| Installation… | Photo gallery… | Manual release… |
| Technical specifications… | Ask us anything… | Installing the rear mounting bracket... Bracket dimensions |
Operator NICE Wingo WG2024 is designed to automate swing gates with a leaf length of up to 2 m and a weight of up to 400 kg 400 kg. The operator is non-reversible, and features a two-piece die-cast aluminium housing with a polyester coating that resists weathering. All internal moving parts are made of steel, light alloys and technopolymers. The drive screw is made of bronze for strength and quiet operation. The start capacitor is housed inside the operator to make installation as easy as possible. The operators are dimensionally backward-compatible with the previous Moby and Pluto ranges from Italian manufacturer NICE; all mounting dimensions and pin diameters are the same. The operator uses 24V, making it better suited to frequent use than the 230V version, but conversely it is not suitable for windy locations, especially with solid, opaque gate infill. However, it is not suitable for windy locations, especially with solid, opaque gate infill.
Control unit MCA2R30 in the control panel MC424LR30 allows easy programming, automatic detection of end positions, automatic fault diagnosis, adjustment of the pause time in automatic closing mode, pedestrian opening, deceleration before reaching the end positions, obstacle detection, and emergency operation when used with the PS124 backup power supply, an input for all types of operator safety edges, and much more.
The Wingo operators offer good value for money for automating swing gates in residential and light industrial settings. The entire Wingo range is reliable and quiet. Detailed technical specifications ». Download the manual ».

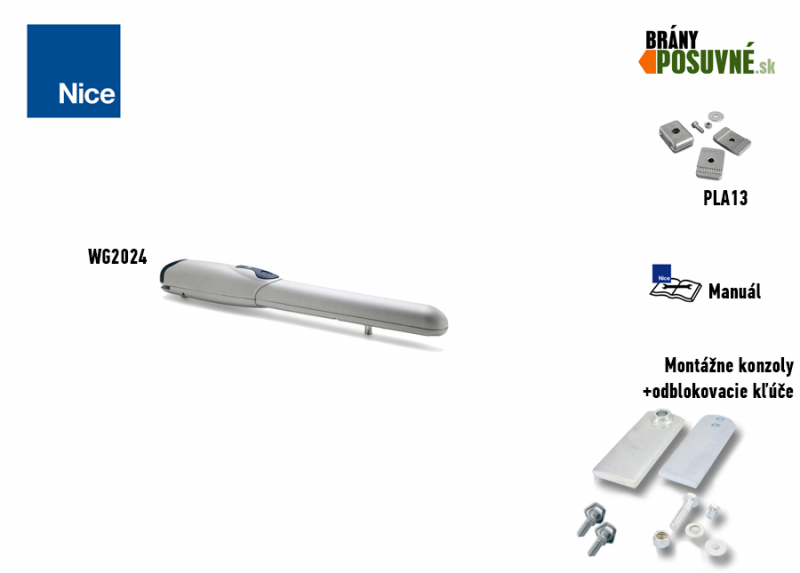

| The operator includes: | Code | |||
|---|---|---|---|---|
 |
1 × | NICE Wingo WG2024 operator |
WG2024 |
|
|
NICE Wingo WG2024 electromechanical operator, suitable for gate leaves weighing up to 400 kg and measuring up to 2 m. |
||||
 |
1 × | Internal mechanical opening stop | PLA13 | |
|
When this is used, external ground stops are not required. Adjustment instructions. |
||||
 |
2 × | Release key | CM-B | |
|
In the event of a power failure, it releases the operator so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | Front weld-on bracket | PMDSMAR04.4610 | |
|
Weld it to the fixed part of the gate leaf. Note that it must be positioned at a different height from the rear bracket. The alternative bolt-on bracket is the PLA8. |
||||
 |
1 × | Front bracket pin | R8.5120 Washer V8X10.5102 Pin |
|
|
Used to attach the front of the operator to the front bracket. |
||||
 |
1 × | Weld-on rear bracket | PMDSMP2.4610 | |
|
It is welded to the mounting screw plate or steel post. Please note: it is installed at a different height from the front bracket. An alternative extended bracket is the PLA6. |
||||
 |
2 × | Rear bracket pin | D10.5110 Nut R10.5120 Washer V10X40.5101 Pin |
|
|
Used to attach the rear of the drive to the rear bracket. |
||||
 |
1 × | NICE Wingo WG2024 installation manual | Download | |
|
Installation manual for a successful setup, with illustrative wiring diagrams, programming instructions and pairing remotes. |
||||
Important note: This drive is a standalone unit, i.e. it will not work on its own.. We offer it separately in our online shop so you can put together an automation system tailored exactly to your needs. You must purchase at least a control unit for the drive (NICE Moonclever MC424LR10), and optionally other accessories. If you are not sure what you need, the best place to start is with an overview of our discounted pre-assembled kits.
(Is this drive right for me?)
Compare it with other drives:
| « Less powerful drive | Alternative drive | More powerful drive » | |||||
|---|---|---|---|---|---|---|---|
|
It isn't. |
230 V NICE Wingo drive:
Quote and delivery on request. |
|
Discounted kits featuring the drive NICE Wingo WG2024:
| Single-leaf gate kit » | Double-leaf gate kit » |
|---|---|
|
Wingo drive for gates up to 400 kg/2 m, control unit, remote control and receiver. |
2 x Wingo drives for gates up to 400 kg/2 m, control unit, remote control and receiver. |
| Single-leaf gate kit with photocells » | Double-leaf gate kit with photocells » |
|
Wingo drive for gates up to 400 kg/2 m, control unit, remote control, receiver, photocells, warning light and key switch. |
2 x Wingo drives for gates up to 400 kg/2 m, control unit, remote control, receiver, photocells, warning light and key switch. |
| Single-leaf gate kit with accessories » | Double-leaf gate kit with accessories » |
|
Wingo drive for gates up to 400 kg/2 m, control unit, remote control, receiver, photocells, warning light and key switch. |
2 x Wingo drives for gates up to 400 kg/2 m, control unit, remote control, receiver, photocells, warning light and key switch. |
Accessories compatible with the NICE Wingo WG2024 drive
We also recommend purchasing these optional accessories compatible with the drive:
| What | Why | Type |
|---|---|---|
| Control unit | Drive control electronics. | |
| Warning light | Flashes to signal gate movement—ideal for entrances with limited visibility. Also includes an antenna for extended remote-control range. |
Alternatively, all warning lights with 12V-24V power supply from other manufacturers. |
| Photocells | They detect obstacles as the gate closes and stop its movement, preventing it from hitting vehicles or people. | |
| Remote control | For remote operation of the gate. | |
| Receiver |
For remote operation of the gate. The MCA2R30 control unit MCA2R30 already has a built-in receiver. These additional receivers are optional extras. |
|
| Antenna |
For improved remote-control range. |
|
| Keypad |
If you forget your remote control, or if many vehicles or people visit and you don't want to give everyone a remote or open the gate yourself each time. |
|
| Key switch |
Operate the gate with a key using a switch connected to the drive by cable from any location. |
|
| Card readers |
Control the gate opener by presenting a card or key fob to the card reader. |
|
| Electric locks |
The safety electric locks are synchronised with the gate opener via the control unit. When an opener command is issued, the electric lock is released first, and only then does the gate begin to open. The lock engages again once the gate has closed. Required for gate leaves longer than 3.5 m. |
|
| Backup power supply |
Backup power source. |
NICE Wingo WG2024 gate opener manual
NICE gate opener manual Wingo WG2024 download here:
NICE Wingo WG2024 gate opener manual
Choosing a gate opener – is the opener NICE Wingo WG2024 suitable for my gate?
|
|

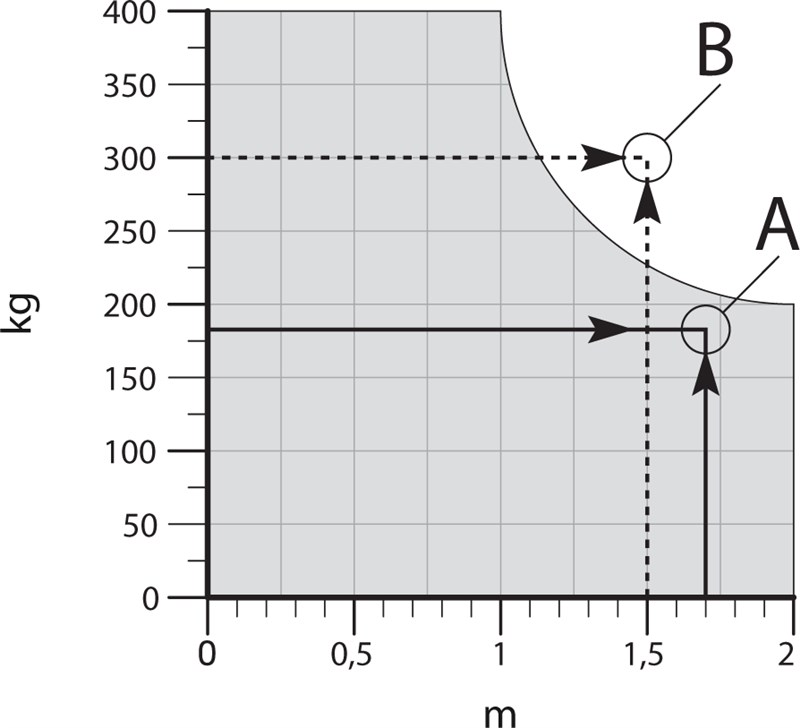

NICE Wingo WG2024 opener limitsEach gate has a leaf length (and therefore leverage) and weight (and therefore gravitational force acting on the lever), and every gate opener has its limits. The NICE Wingo WG2024 gate opener is suitable for gates with leaf lengths and weights within the limits shown in the image on the left. /1m to 200kg/ 2m/1m to 200kg/2m. Example: Point B, with a leaf weight of 300kg and a leaf length of 1.5 m, is outside the permitted range and is therefore unsuitable. Choose a more powerful gate opener. Point A, with a leaf weight of 180kg and a leaf length of 1.7m, is within the limits. You can install it. |
NICE Wingo WG2024 gate opener service life
In the table below, add the stress indices for leaf weight and length, then add the indices for any other applicable factors. Then use the graph to determine the gate opener's service life in number of cycles.
Example: I have a gate with a 3 m opening (two 1.5m leaves) and a weight of up to 100kg per leaf, including the frame and infill. I calculate the leaf-length index as approx. 20, plus a gate-weight index of 10. To be on the safe side, I also add an index of 10 for low temperatures, as we have harsh winters, giving me a total index of 40. The graph shows that the gate opener's service life is approximately 60,000 cycles. At 10 operating cycles per day, this corresponds to a service life of approximately 16 years.
| Overall automation characteristics | Index | Service life graph |
|---|---|---|
|
Weight of one gate leaf |
The recommended maximum total index is up to 60%. (i.e. 50,000 cycles, which is 13 years at a typical rate of 10 cycles/day) |
|
| Up to 100 kg | 10 | |
| 100-200 kg | 20 | |
| 200-300 kg | 30 | |
| Leaf length | ||
| 1-2 m | 20 | |
|
Other factors (if the probability of their occurrence is greater than 10%) |
||
| Ambient temperature above 40°C or below 0°C, or humidity above 80% | 20 | |
| Solid gate infill | 15 | |
| Windy area | 15 | |
Installing the NICE Wingo WG2024 gate opener
Typical (optional) gate opener and accessories wiring layout is as follows:
List of accessories
|
NICE Wingo WG2024 gate opener wiring
| 1. Remove the cover from the gate opener | 2. Route the power cable through and connect it |
|---|---|
 |
 |
I. Installing the rear mounting bracket
 |
 |
| Inward opening diagram | Outward opening diagram |

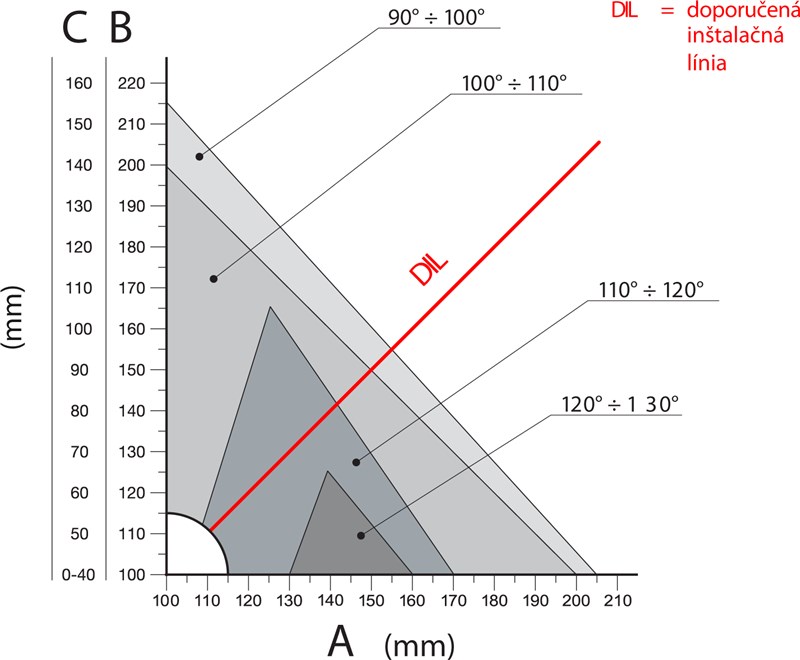

Calculate the position of the rear bracket using the graph, from which you can read the dimensions A and B and the maximum opening angle. Note that the values A and B must be similar (ideally identical) so that the gate operator can move smoothly in a straight line.
 |
 |
| Calculation graph | Example of reading values from the graph |
Complete dimensions of the mounting bracket.
Calculation procedure:
- Measure the distance C from the diagram
- On the graph draw a horizontal line that intersects the measured value C
- The intersection of this line with the DIL (Recommended Installation Line) gives you the maximum opening angle
- If the maximum opening angle is unsuitable, you will need to adjust the value A and, if necessary, the value B, so that they are similar (ideally identical)
Before attaching the bracket to a post or wall, shorten it to the required length to match dimensions A and B and weld it to the mounting plate.
 |
 |
| 1. Cut the bracket to the required length | 2. Weld the shortened bracket to the mounting plate |
The supplied package includes a 150 mm bracket. If you need a longer bracket for special situations, or need the gate to open outward, we recommend ordering the extended NICE PLA6 bracket.
|
Before attaching the rear bracket, check that the front bracket will be positioned on a solid part of the gate leaf, as there is a height difference between the front and rear brackets, as shown in the picture.
Difference F = 30 mm. |
 |
If everything is suitable, attach the rear bracket to the post or wall using screws, wall plugs and washers.
II. Installing the front mounting bracket
The front bracket must be fitted to the gate leaf at a distance determined by the values D and E, which you can read from the table (the value of D is fixed at 700 mm):
| A | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | 600 | 590 | 580 | 570 | 560 | 550 | 540 | 530 | 520 | 510 | 500 | 490 | 480 | 470 |
The supplied package includes a weld-on bracket. If you would prefer a screw-on bracket, we recommend ordering the alternative NICE PLA8 screw-on bracket.
- Calculate from the table the value E
- Calculate the height according to the diagram bracket heights (view image)
- Attach the bracket to the gate leaf (if welding the bracket, we recommend tack-welding it for now only)
III. Mounting the gate operator on the rear bracket
 |
|
IV. Mounting the gate operator on the front bracket
 |
|
V. Setting the mechanical travel stop
If the internal mechanical travel stop, which the operator reaches when opening, is used, external ground stops are not required. Set it as follows:
 |
|
NICE Wingo operator photo gallery
|
Installation example |
Installation example |
Installation example |
|
Installation example |
Installation example |
Installation example |
|
Installation example
|
Operator released |
Operator with the cover removed |
|
Rear underside |
Worm screw and internal mechanical stop |
Front underside |
|
Rear section with cable connected |
Manual release of the NICE Wingo WG2024 operator
In the event of a power failure, you will not be able to operate the gate using the remote control. Therefore, the operator can be released using the release key so the gate can be moved manually:
| 1. Slide the release-lock cover aside | 2. Insert the release key and turn it clockwise | 3. Pull out the release lever; you can now move the gate manually |
|---|---|---|
 |
 |
 |
Technical specifications of the NICE Wingo WG2024 operator
| Model | NICE Wingo WG2024 |
|---|---|
| Product description | Electromechanical gearmotor for the automatic operation of sliding gates in private settings. |
| Force | 1500N |
| Rated force | 500N |
| Speed | 0.018 m/s |
| Rated speed | 0.013 m/s |
| Maximum consecutive operating cycles | 40 cycles/hour |
| Travel per revolution | 320 mm |
| Service life | from 125,000 to 80,000 cycles, depending on the weight and length of the gate leaf, as well as the drive settings |
| Power supply | 24Vdc |
| Power consumption [Load] |
85W [3.5A] |
| Rated power consumption [Rated load] |
50W [2A] |
| Insulation class | A |
| Operating temperature | -20°C to +50°C |
| Protection rating | IP44 |
| Dimensions | 98×770×95 (W×L×H) |
| Weight | 6kg |
