NICE PLA11 – horizontal electric lock for a swing gate, NICE-PLA11
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€140.98 including VAT
| Weight |
|---|
| 0,80 kg |
Description of NICE PLA11 – horizontal electric lock for a swing gate, NICE-PLA11
NICE PLA11 electric lock is designed for indoor and outdoor use on gates and gatelets that open automatically or manually swing gates and pedestrian gates. It operates in automatic mode by default; after removing the detachable component, it operates in semi-automatic mode. The electric lock is designed for horizontal use, but in principle it can also be installed vertically. For vertical installation, it is recommended to choose the alternative PLA10 electric lock.
Manuals and downloads
Technical information
| Installation: | horizontal (also vertical) |
|---|---|
| Backset: | 70mm from the edge of the lock to the cylinder axis |
| Functions: |
|
| Coil: | Dual replaceable coil for continuous-duty operation and a long service life. |
| Voltage: | 12V AC |
| Construction: |
Housing and mechanical stop galvanized steel. Brass latch. |
| Cylinder: | Double or half (the half cylinder is included in the package). |

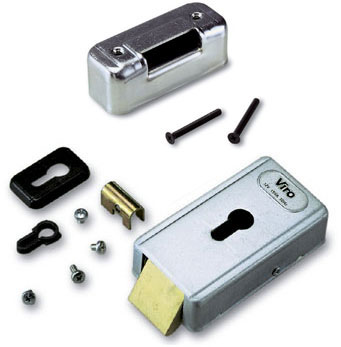

Package contents
The NICE PLA11 electric lock package includes:
 |
|
Electric lock functions
 |

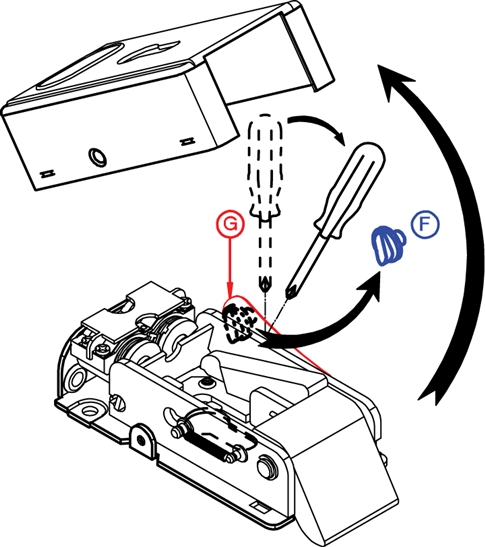

The NICE PLA11 electric lock operates in automatic mode by default; after removing the detachable component, it operates in semi-automatic mode. In automatic mode, the lock is released by an electric pulse and locks only after the gate has subsequently opened and closed. In semi-automatic mode, after removing the detachable component, the lock is released only when an electric pulse is followed by manually pushing the gate leaf. To activate this function, push back the pressure plate G and pull out the plastic component F. |

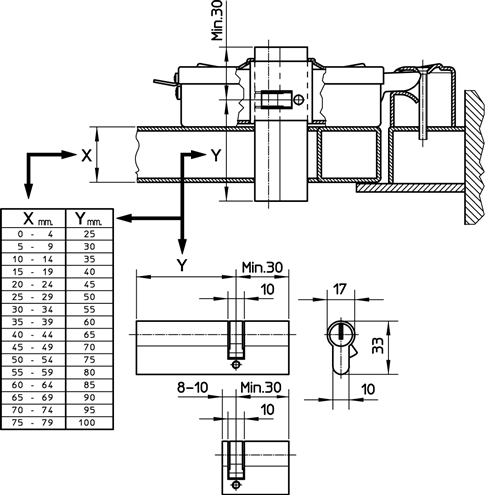

Dimensions of compatible cylinders
The electric lock is supplied with a half cylinder. To determine the size of another cylinder you need, refer to the table below. It shows which size is suitable for the thickness of the gate material to which you are attaching the electric lock. Alternatively, you can use a single-sided cylinder with the dimensions shown in the drawing.

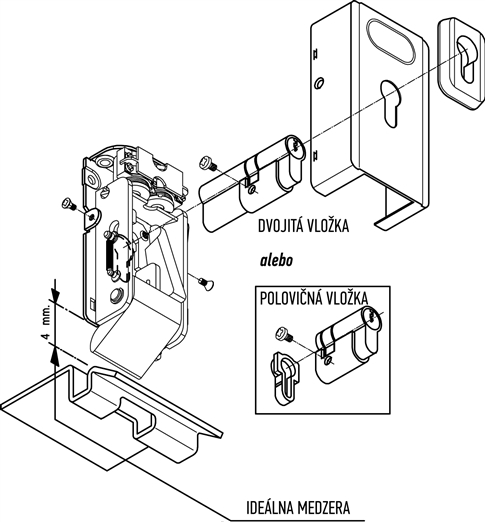

Fitting the cylinder
After selecting the correct cylinder, fit it in the electric lock as shown in the diagram below. Maintain the ideal 4mm clearance between the lock body and the top of the mechanical stop.

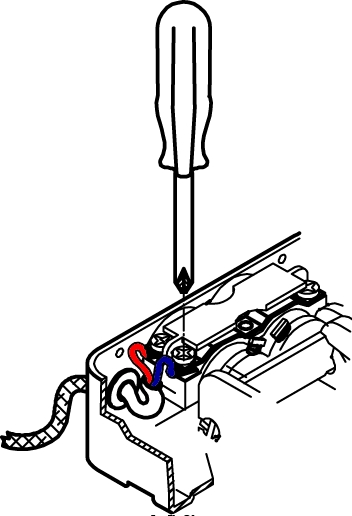

Electrical connection of the electric lock
Route the wiring through the rubber opening at the back of the lock and connect the cable as shown:
Electric lock photo gallery

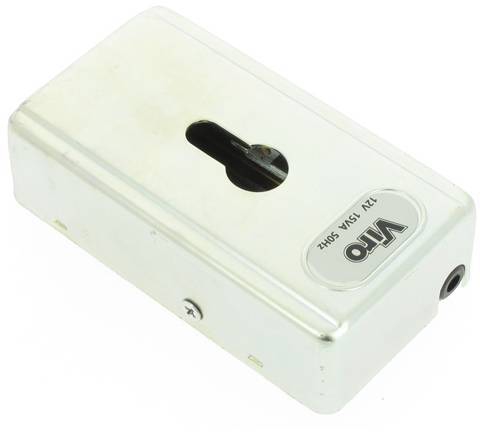

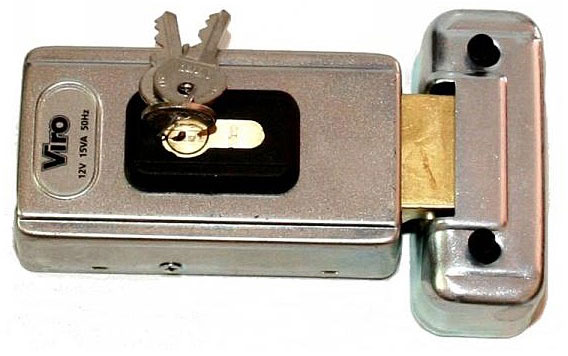

| NICE PLA11 electric lock body and stop | NICE PLA11 electric lock body |
|---|---|
 |
 |

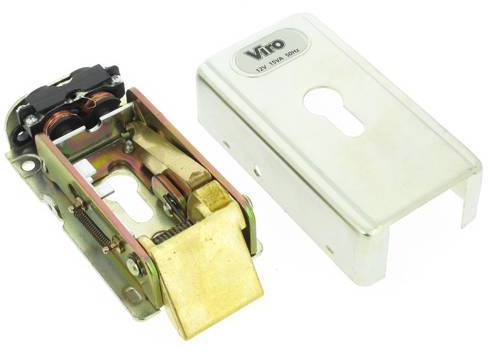

| Inside the NICE PLA11 electric lock | NICE PLA11 electric lock box |
 |
 |

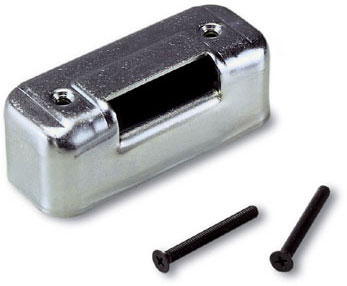

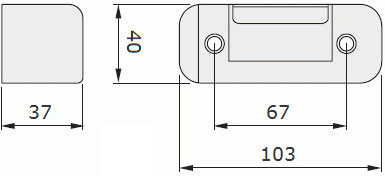

Electric lock stop photo gallery
 |
 |
NICE PLA11 electric lock is designed for both indoor and outdoor use, for gates that open automatically or manually swing gates and pedestrian gates. It operates in automatic mode by default; after removing the detachable component, it operates in semi-automatic mode. The electric lock is designed for horizontal use, but in principle it can also be installed vertically. For vertical installation, it is recommended to choose the alternative PLA10 electric lock.
Technical information
| Installation: | horizontal (also vertical) |
|---|---|
| Backset: | 70mm from the edge of the lock to the cylinder axis |
| Functions: |
|
| Coil: | Dual replaceable coil for continuous-duty operation and a long service life. |
| Voltage: | 12V AC |
| Design: |
Housing and mechanical stop galvanized steel. Brass tongue. |
| Cylinder: | Double or half (the half cylinder is included package). |
Package contents
The NICE PLA11 electric lock package contains:
|
|
Electric lock features
|
The NICE PLA11 electric lock operates in automatic mode; after the removable component is pulled out, it operates in semi-automatic mode. In automatic mode, the lock is released by an electric pulse and locks only after the gate has subsequently been opened and closed. In semi-automatic mode, after the removable component is pulled out, the lock is released only by combining an electric pulse with manually pushing the gate leaf afterward. To activate this function, push back the pressure plate G and pull out the plastic component F. |
Dimensions of compatible cylinders
The electric lock is supplied with a half cylinder. To determine the size of another cylinder you need, refer to the following table. It shows which size is suitable for you, depending on the thickness of the gate material to which you are attaching the electric lock. Alternatively, you can use a one-sided cylinder in the dimensions shown in the drawing.
Installing the cylinder
After selecting the correct cylinder, install the electric lock according to the following diagram. Maintain the ideal 4 mm clearance between the lock body and the top of the mechanical stop.
Electrical wiring of the electric lock
Route the wiring through the rubber opening at the back of the lock and connect the cable as shown:
Electric lock photo gallery
| NICE PLA11 electric lock body and its stop | NICE PLA11 electric lock body |
|---|---|
|
|
| Inside the NICE PLA11 electric lock | NICE PLA11 electric lock box |
|
|
Electric lock stop photo gallery
|
|
