NICE PLA10 - vertical electric lock for swing gate, NICE-PLA10
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€140.98 including VAT
| Weight |
|---|
| 0,80 kg |
Description of NICE PLA10 - vertical electric lock for swing gate, NICE-PLA10
NICE PLA10 electric lock designed for both indoor and outdoor use, for automatically or manually operated swing gates and pedestrian gates. It normally operates in automatic mode; when the removable component is withdrawn, it operates in semi-automatic mode. The electric lock is designed for vertical installation, but it can also be installed horizontally. For horizontal installation, we recommend choosing the alternative PLA11 electric lock.
Manuals and downloads
Technical information
| Installation: | vertical (also horizontal) |
|---|---|
| Backset: | 70mm from the edge of the lock to the cylinder axis |
| Modes: |
|
| Coil: | Dual replaceable coil for smooth operation and a long service life. |
| Voltage: | 12V AC |
| Construction: |
Housing and mechanical striker galvanized steel. Brass latch. |
| Cylinder: | Double or half (the half cylinder is included in the package). |

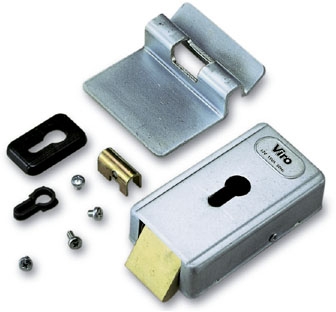

Package contents
The NICE PLA10 electric lock package includes:
 |
|
Electric lock gallery

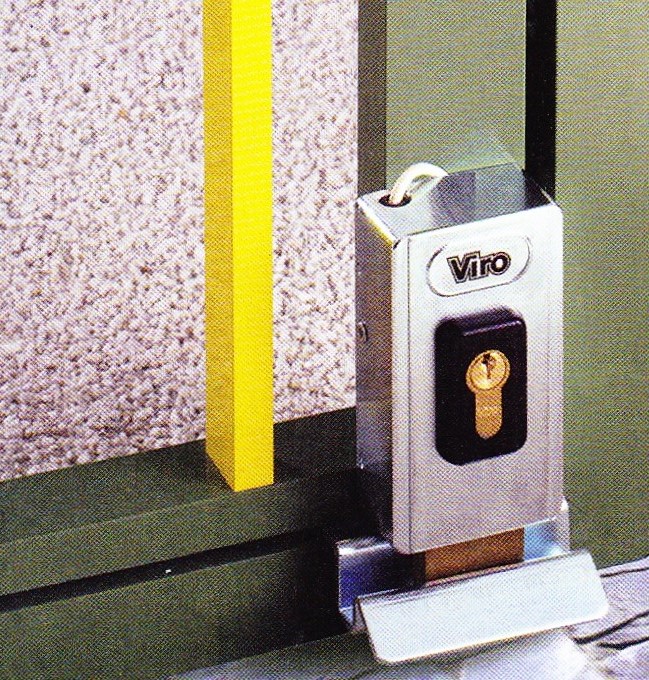

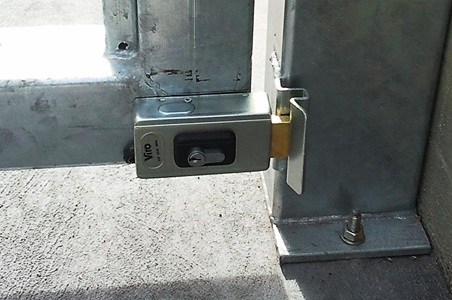

| Vertical installation | Horizontal installation |
|---|---|
 |
 |
Electric lock features
 |
The NICE PLA10 electric lock operates in automatic mode; when the removable component is withdrawn, it operates in semi-automatic mode. In automatic mode, the lock releases with an electric pulse and locks only after the gate has subsequently been opened and closed. In semi-automatic mode, after the removable component is withdrawn, the lock releases only when an electric pulse is followed by manually pushing the gate leaf. To activate this function, push back the pressure plate G and pull out the plastic component F. |
Compatible cylinder dimensions
The electric lock is supplied as standard with a half cylinder. Use the following table to determine the required cylinder size; it shows which size is suitable for the thickness of the gate material to which you are attaching the electric lock. Alternatively, you can use a single-sided cylinder with the dimensions shown in the drawing. Alternatively, you can use a single-sided cylinder with the dimensions shown in the drawing.
Fitting the cylinder
After selecting the correct cylinder, fit it in the electric lock as shown in the diagram below. Maintain the recommended 4mm clearance between the lock body and the top of the mechanical striker.
Electric lock wiring
Route the wiring through the rubber grommet at the back of the lock and connect the cable as shown:
Electric lock gallery

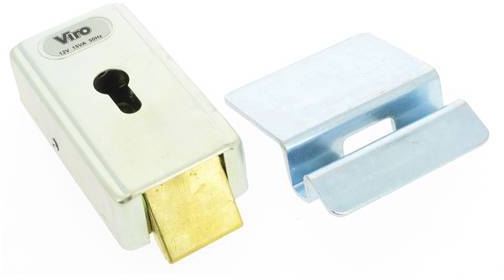

| NICE PLA10 electric lock body and striker | NICE PLA10 electric lock body |
|---|---|
 |
 |
| Inside the NICE PLA10 electric lock | NICE PLA10 electric lock box |
 |
 |

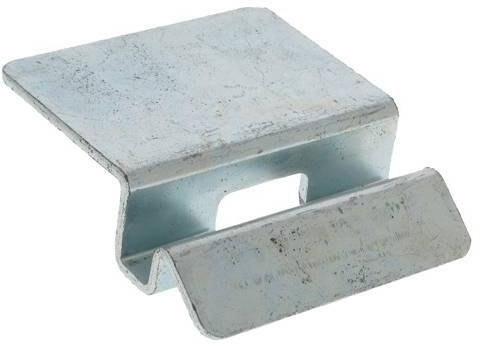

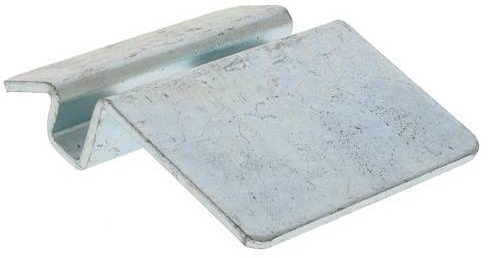

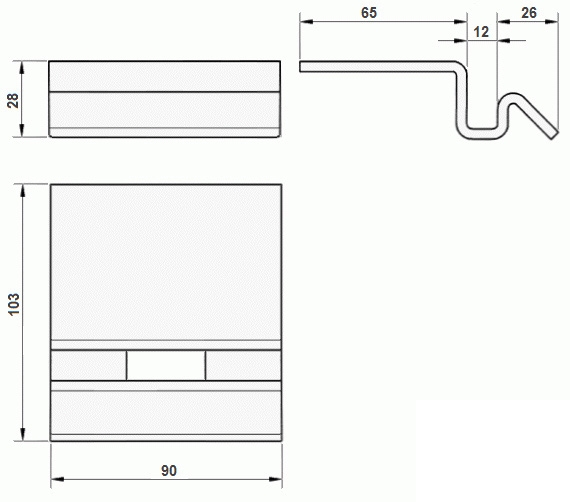

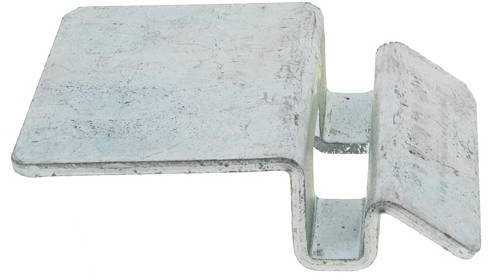

Electric lock striker gallery
 |
 |
 |
 |
NICE PLA10 electric lock designed for both indoor and outdoor use, for automatically or manually operated swing gates and pedestrian gates. It normally operates in automatic mode; when the removable component is withdrawn, it operates in semi-automatic mode. The electric lock is designed for vertical installation, but it can also be installed horizontally. For horizontal installation, it is recommended to choose an alternative PLA11 electric lock.
Technical information
| Installation: | vertical (also horizontal) |
|---|---|
| Backset: | 70 mm from the edge of the lock to the cylinder axis |
| Functions: |
|
| Coil: | Double replaceable coil for continuous operation and a long service life. |
| Voltage: | 12V AC |
| Construction: |
Housing and mechanical striker galvanized steel. Brass latch. |
| Cylinder: | Double or half (the half cylinder is included in the package). |
Package contents
The NICE PLA10 electric lock package contains:
|
|
Electric lock installation gallery
| Vertical installation | Horizontal installation |
|---|---|
|
|
Electric lock functions
|
The NICE PLA10 electric lock operates in automatic mode; after the removable component is pulled out, it operates in semi-automatic mode. In automatic mode, the lock is released by an electric pulse and locks only after the gate has subsequently been opened and closed. In semi-automatic mode, after the removable component is pulled out, the lock is released only by an electric pulse followed by manually pushing the gate leaf. To activate this function, push back pressure plate G and pull out plastic component F. |
Dimensions of compatible cylinders
The electric lock is supplied as standard with a half cylinder. To determine the required cylinder, refer to the following table to find the appropriate size based on the thickness of the gate material to which you are attaching the electric lock. Alternatively, you can use a single-sided cylinder in the dimensions shown in the drawing.
Fitting the cylinder
After selecting the correct cylinder, fit it in the electric lock as shown in the diagram below. Maintain the ideal 4 mm clearance between the lock body and the top of the mechanical striker.
Electric lock wiring
Route the cable through the rubber grommet at the rear of the lock and connect it as shown:
Electric lock photo gallery
| NICE PLA10 electric lock body and striker | NICE PLA10 electric lock body |
|---|---|
|
|
| Inside the NICE PLA10 electric lock | NICE PLA10 electric lock box |
|
|
Electric lock striker photo gallery
|
|
|
|
