NICE Wingo WG3524 - standalone operator for swing gates with a leaf up to 3.5 m/500 kg
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€243.82 including VAT
| Weight |
|---|
| 7,20 kg |
Description of NICE Wingo WG3524 - standalone operator for swing gates with a leaf up to 3.5 m/500 kg
| Quick navigation on this page: | ||
|---|---|---|
| The drive includes… | Alternative drives… | Discounted sets… |
| Compatible accessories… | Manual… | Selection, limits, service life… |
| Installation… | Photo gallery… | Manual release… |
| Technical specifications… | Ask us anything… | Installing the rear mounting bracket.... Bracket dimensions... |
Drive NICE Wingo WG3524 is designed for automating swing gates with a leaf length of up to 3.5 m and a weight of up to 500 kg. The drive is non-reversible, and features a two-piece body made of pressure-die-cast aluminium with a polyester coating that resists weathering. All internal moving parts are made of steel, light alloys and technopolymers. The lead nut is made of bronze to ensure high strength and quiet operation. The start capacitor is located inside the drive to make installation as simple as possible. The drives are dimensionally backward-compatible with the previous Moby and Pluto ranges from Italian manufacturer NICE; all mounting dimensions and pin diameters are the same. The drive uses 24V, making it better suited to applications with more frequent use than the 230V version. However, it is not suitable for windy locations, especially with solid, opaque gate infill.
Control unit MCA2R30 in the control panel MC424LR30 allows simple programming, automatic learning of limit positions, automatic fault diagnosis, adjustable pause time in automatic closing mode, pedestrian mode, slow-down before the end positions, obstacle impact detection, and emergency operation when using PS124 backup power supply, using the connecting cable CABLA11, an input for all types of drive safety edges, and much more.
The Wingo drives offer good value for money for automating swing gates in residential and light industrial settings. The entire Wingo range is reliable and quiet. Detailed technical specifications ». Download the manual ».

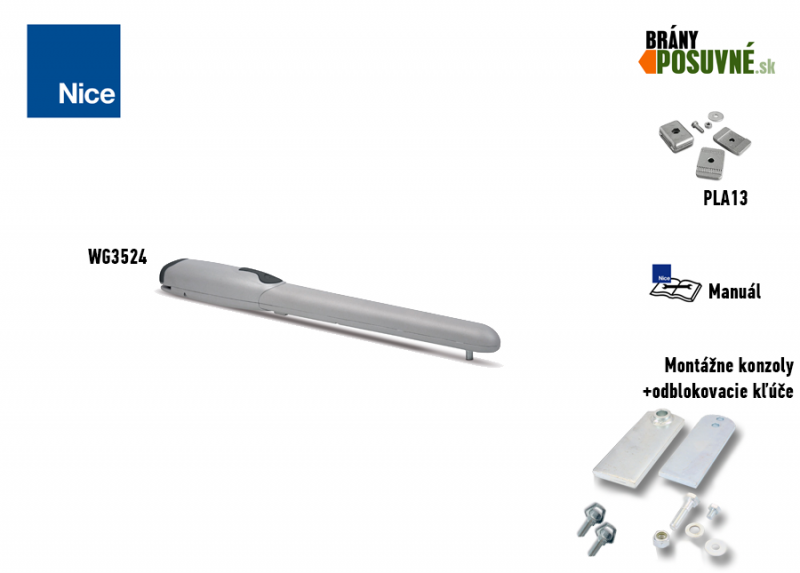

| The drive includes: | Code | |||
|---|---|---|---|---|
 |
1 × | NICE Wingo WG3524 drive |
WG3524 |
|
|
NICE Wingo WG3524 electromechanical drive for gate leaves weighing up to 400 kg and measuring up to 3.5 m in length. |
||||
 |

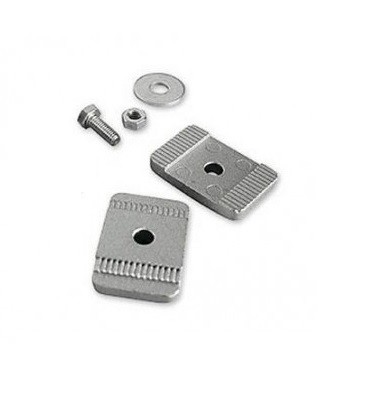

1 × | Internal mechanical opening stop | PLA13 | |
|
When this is used, external ground stops are not required. Adjustment instructions. |
||||
 |
2 × | Release key | CM-B | |
|
In the event of a power failure, it releases the drive so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | Weld-on front bracket | PMDSMAR04.4610 | |
|
Weld it to the fixed part of the gate leaf. Note that it must be positioned at a different height from the rear bracket. An alternative screw-on bracket is the PLA8. |
||||
 |
1 × | Front bracket pin | R8.5120 Washer V8X10.5102 Pin |
|
|
Used to attach the front of the drive to the front bracket. |
||||
 |
1 × | Rear weld-on bracket | PMDSMP2.4610 | |
|
It is welded to the mounting screw plate or steel post. Note: it is installed at a different height from the front bracket. An alternative extended bracket is the PLA6. |
||||
 |

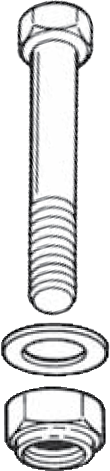

2 × | Rear bracket pin | D10.5110 Nut R10.5120 Washer V10X40.5101 Pin |
|
|
Used to attach the rear of the drive to the rear bracket. |
||||
 |
1 × | NICE Wingo WG3524 Installation Manual | Download | |
|
Installation manual for a successful installation, with wiring diagrams, programming instructions and pairing remote controls. |
||||
Important note: This drive is a standalone unit, i.e. it will not work on its own.. We offer it separately in our online shop so you can put together an automation system tailored exactly to your requirements. You must purchase at least a control unit for the drive (NICE Moonclever MC424LR30 or the older MC424LR10), and optionally other accessories. If you’re not sure what you need, a good place to start is our selection of discounted pre-configured kits.
(Is this drive right for me?)
Compare it with other drives:
| « Lower-powered drive | Alternative drive | Higher-powered drive » | |||||
|---|---|---|---|---|---|---|---|
|
|
230V NICE Wingo drive:
Quote and delivery available to order. |
|
Discounted kits containing the drive NICE Wingo WG3524:
| Single-leaf gate kit » | Double-leaf gate kit » |
|---|---|
|
Wingo drive for gates up to 500kg/3.5m, control unit, remote control, receiver. |
2 x Wingo drives for gates up to 500kg/3.5m, control unit, remote control, receiver. |
| Single-leaf gate kit with photocells » | Double-leaf gate kit with photocells » |
|
Wingo drive for gates up to 500kg/3.5m, control unit, remote control, receiver, photocells, warning light, key switch. |
2 x Wingo drives for gates up to 500kg/3.5m, control unit, remote control, receiver, photocells, warning light, key switch. |
| Single-leaf gate kit with accessories » | Double-leaf gate kit with accessories » |
|
Wingo gate operator for gates up to 500 kg/3.5 m, control unit, remote control, receiver, photocells, warning light, key switch. |
2 x Wingo gate operators for gates up to 500 kg/3.5 m, control unit, remote control, receiver, photocells, warning light, key switch. |
Accessories compatible with the NICE Wingo WG3524 gate operator
We also recommend adding these compatible optional accessories to your gate operator:
| What | Why | Type |
|---|---|---|
| Control unit | Gate operator control electronics. | |
| Warning light | Flashes to indicate gate movement—ideal for exits with limited visibility. Also includes an antenna for a longer remote-control range. |
Alternatively, all warning lights with a 12 V–24 V power supply from other manufacturers. |
| Photocells | When closing, they detect obstacles and stop the gate—preventing it from hitting vehicles or people. | |
| Transmitter | For remote control of the gate. | |
| Receiver |
For remote control of the gate. The control unit MCA2R30 already has a built-in receiver. These additional receivers are optional extras. |
|
| Antenna |
For improved remote-control range. |
|
| Keypad |
If you forget your remote, or if many vehicles or people need access and you don't want to give everyone a remote or open the gate manually. |
|
| Key switch |
To operate the gate with a key using a switch wired to the drive from any location. |
|
| Card readers |
Operate the drive by holding a card or key fob up to the card reader. |
|
| Electric locks |
Safety electric locks are synchronized with the drive via the control unit. When the drive receives an opening command, the electric lock is released first, and only then does the gate start to open. The lock engages again once the gate has closed. Required for gate leaves longer than 3.5 m. |
|
| Backup power supply |
Backup power source. |
NICE Wingo WG3524 drive manual
NICE drive manual Wingo WG3524 download here:
NICE Wingo WG3524 drive manual
Choosing a drive – is the drive NICE Wingo WG3524 suitable for my gate?
|
|

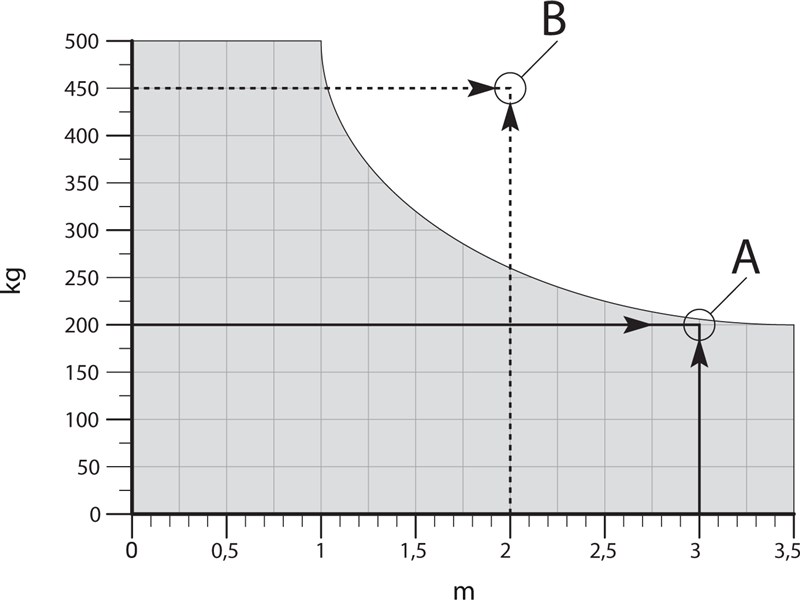

NICE Wingo WG3524 drive limitsEach gate has a leaf length (and therefore leverage) and weight (and therefore the force exerted by the leaf's weight), and each drive has its limits. The NICE Wingo WG3524 drive is suitable for gate leaf lengths and weights within the limits shown in the image on the left. This means the drive is suitable for gates ranging from 500 kg per metre to 200 kg per1 m3.5 m. Example: Point B, with a gate leaf weighing 450 kg and measuring 2 m, is outside the permitted range and is therefore unsuitable. Choose a more powerful drive. Point A, with a gate leaf weighing 200 kg and measuring 3 m, is within the permitted range. You can install it. |
Service life of the NICE Wingo WG3524 drive

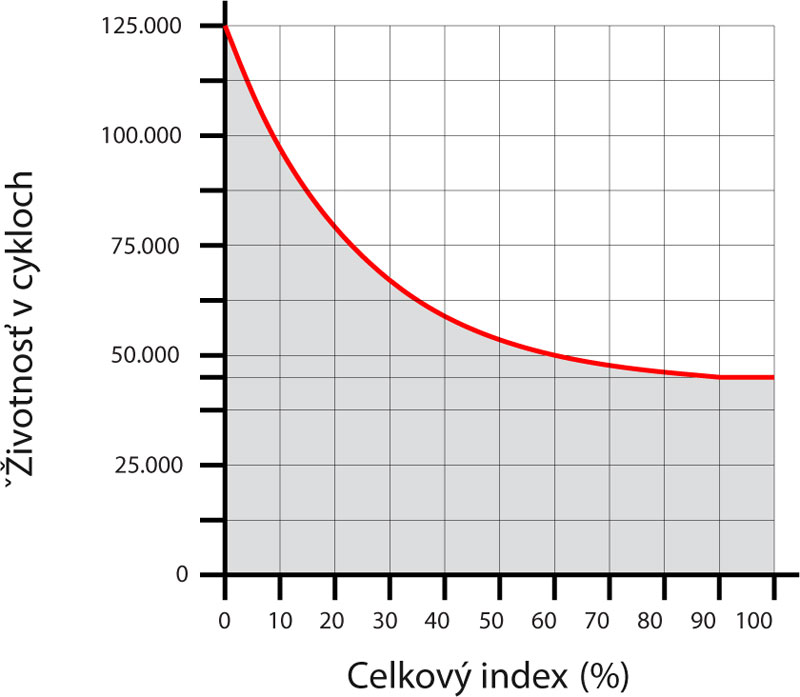

In the following table, add the stress index values for the gate leaf's weight and length, then add the index values for any other applicable factors. Then use the graph to estimate the drive's service life in operating cycles.
Example: I have a gate with a 6 m opening (two 1.5 m leaves) and a frame with infill weighing up to 200 kg per leaf. I calculate the leaf-length index as approximately 20, add the gate-weight index of 10, and, to be on the safe side, add 10 for low temperatures because our winters are harsher. This gives me a total index of 40. The graph indicates that the drive's service life is approximately 60,000 cycles. At 10 operations per day, this works out to a service life of approximately 16 years.
| Overall automation characteristics | Index | Service life graph |
|---|---|---|
|
Weight of one gate leaf |
The recommended maximum total index is up to 60%. (i.e. 50,000 cycles, which equals 13 years at a typical rate of 10 cycles/day) |
|
| Up to 100 kg | 0 | |
| 100-200 kg | 10 | |
| 200-300 kg | 20 | |
| 300-400 kg | 30 | |
| Gate leaf length | ||
| 1-2 m | 0 | |
| 2-3 m | 10 | |
| 3-3.5m | 20 | |
|
Other factors (if the probability of occurrence is greater than 10%) |
||
| Ambient temperature above 40°C or below 0°C, or humidity above 80% | 20 | |
| Solid gate leaf infill | 15 | |
| Windy area | 15 | |
Installing the NICE Wingo WG3524 drive

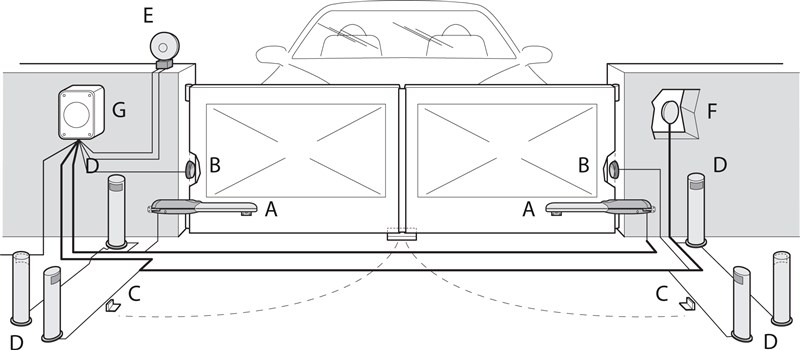

A typical (optional) drive and accessory wiring layout looks like this:
List of accessories
|
NICE Wingo WG3524 drive wiring

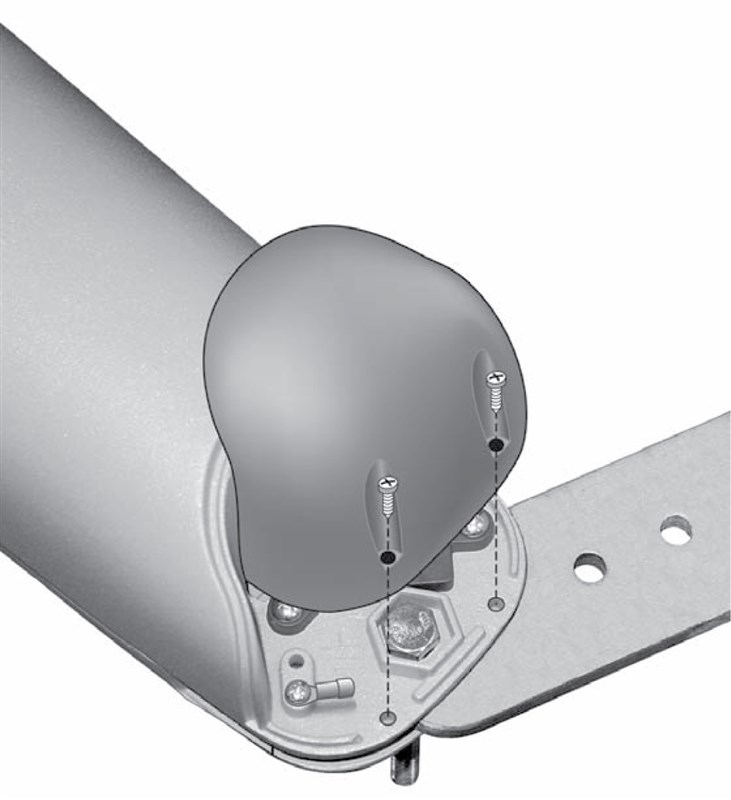

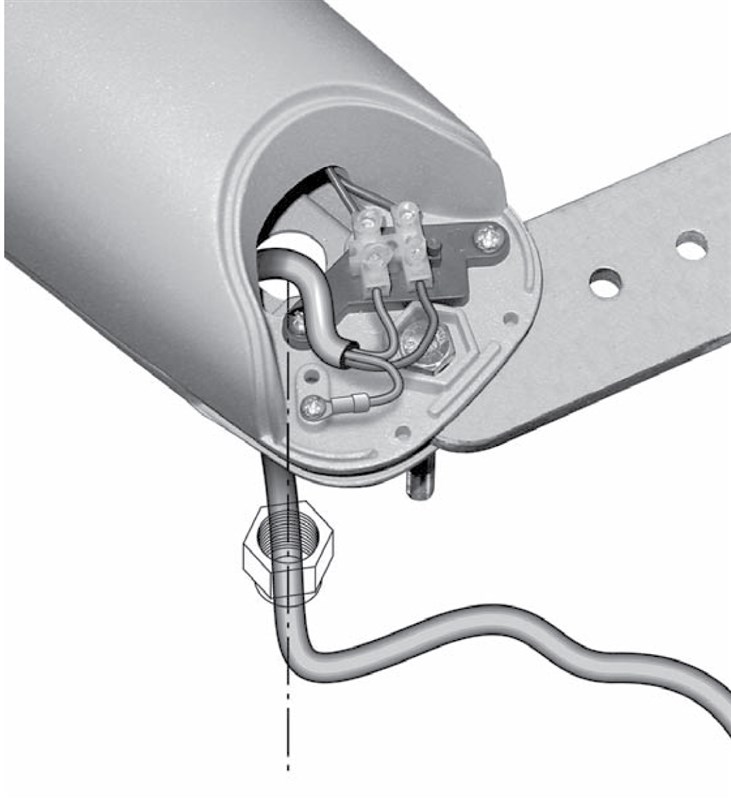

| 1. Open the drive cover | 2. Route and connect the power cable |
|---|---|
 |
 |
I. Installing the rear mounting bracket
 |
 |
| Diagram showing inward opening | Diagram showing outward opening |

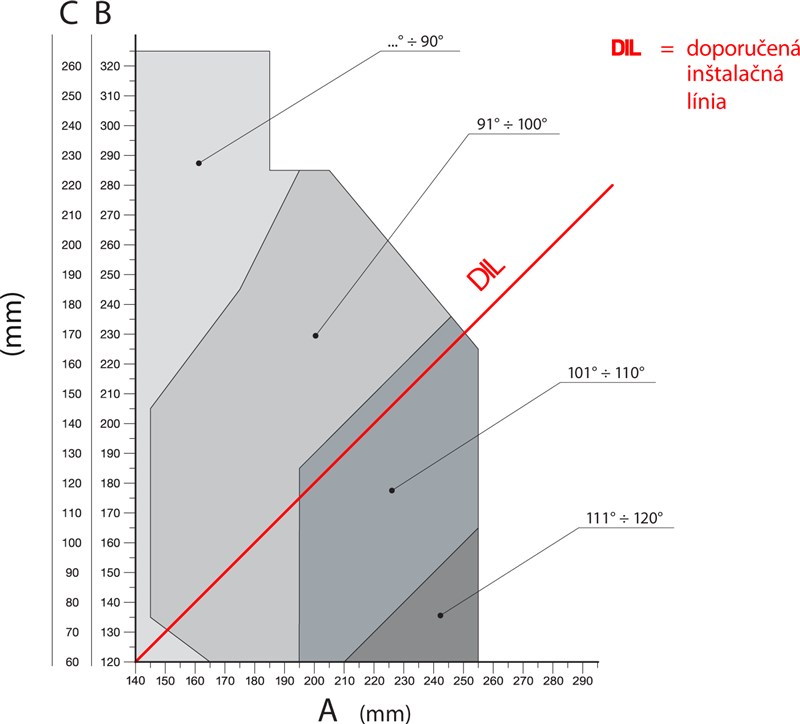

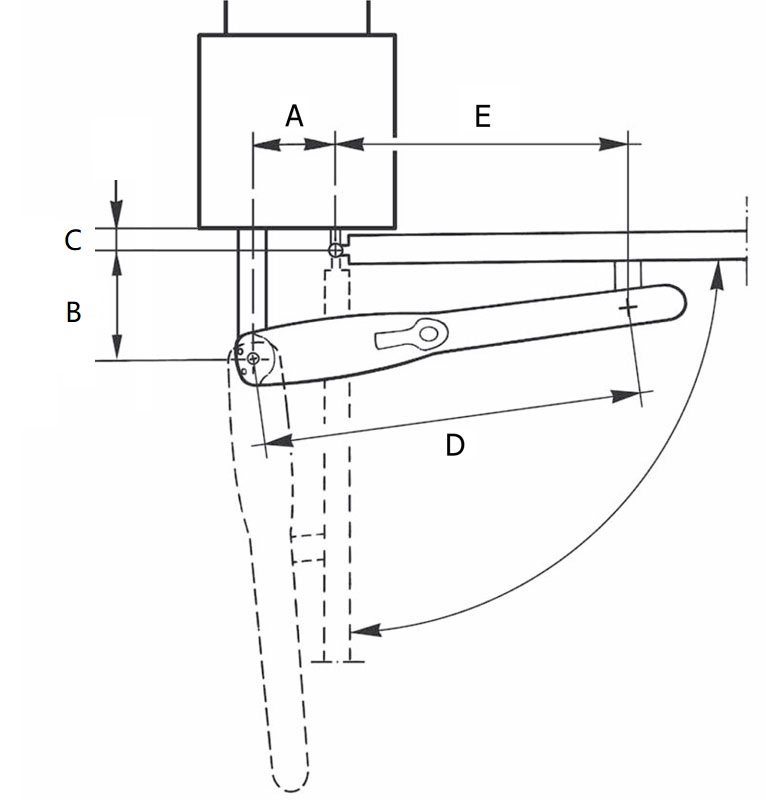

Calculate the position of the rear bracket using the Graph, which shows the dimensions A and B and the maximum opening angle. Note that the values A and B must be similar (ideally identical) to ensure the drive moves smoothly in a straight line.
 |
 |

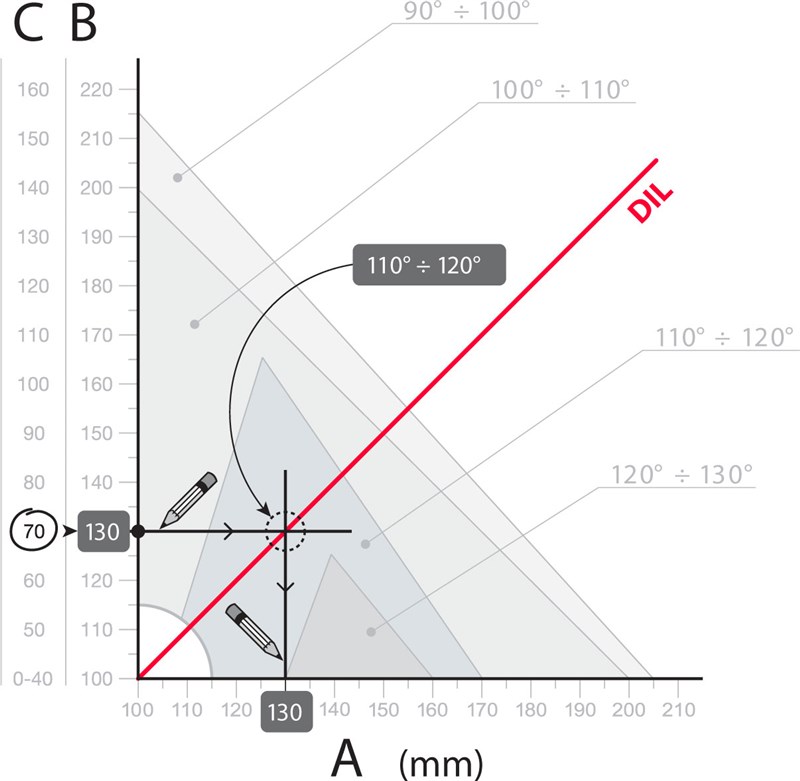

| Calculation graph | Example of reading values from the graph |
Full dimensions of the mounting bracket.
Calculation procedure:
- Measure the distance C from the Diagram
- On the Graph draw a horizontal line intersecting the measured value C
- The point where this line intersects the DIL (Recommended Installation Line) shows you the maximum opening angle
- If the maximum opening angle is unsuitable, you will need to adjust the value A and, if necessary, the value B, so that they are similar (ideally identical)
Before attaching the bracket to a post or wall, cut it to the required length corresponding to the dimensions A and B and weld it to the mounting plate.
 |
 |
| 1. Cut the bracket to the required length | 2. Weld the shortened bracket to the mounting plate |
The supplied package includes a 150 mm bracket. If you need a longer bracket for a special installation, or if you need the gate to open outward, we recommend ordering the extended NICE PLA6 bracket.
|

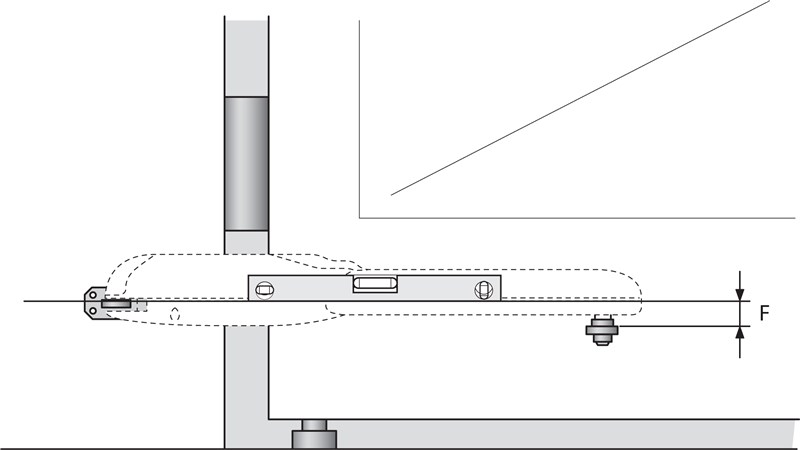

Before attaching the rear bracket, check that the front bracket will sit on the solid part of the gate leaf, as there is a height difference between the front and rear brackets, as shown in the image.
Height difference F = 30 mm. |
 |
If everything is correct, attach the rear bracket to the post or wall using screws, wall plugs and washers.
II. Installing the front mounting bracket

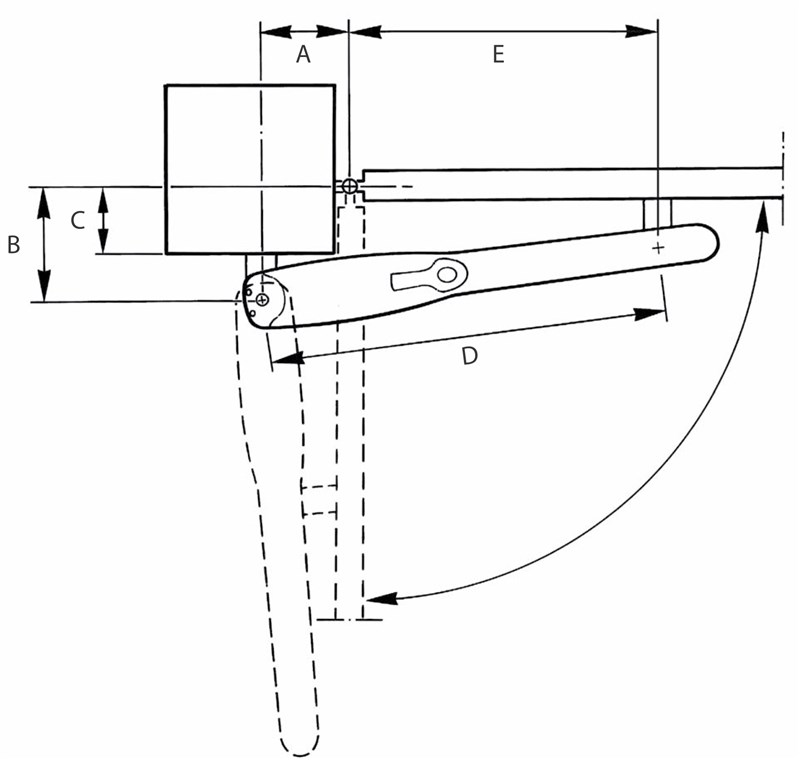

The front bracket must be mounted on the gate leaf at a distance determined by the values D and E, which you can read from the Table (value D is fixed at 850 mm):
| A | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | 750 | 740 | 730 | 720 | 710 | 700 | 690 | 680 | 670 | 660 | 650 | 640 | 630 | 620 | 610 | 600 | 590 | 580 | 570 |
The supplied package includes a weld-on bracket. If you would prefer a screw-on bracket, we recommend ordering the alternative NICE PLA8 screw-on bracket.
- Calculate from the table value E
- Calculate the height according to the image bracket heights (view image)
- Attach the bracket to the gate leaf (if welding the bracket, we recommend only tacking it in place for now)

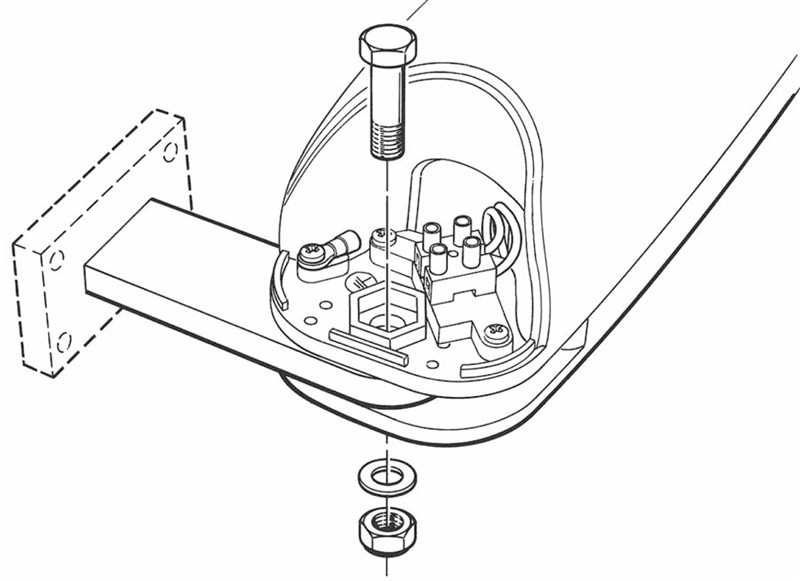

III. Mounting the gate operator on the rear bracket
 |
|

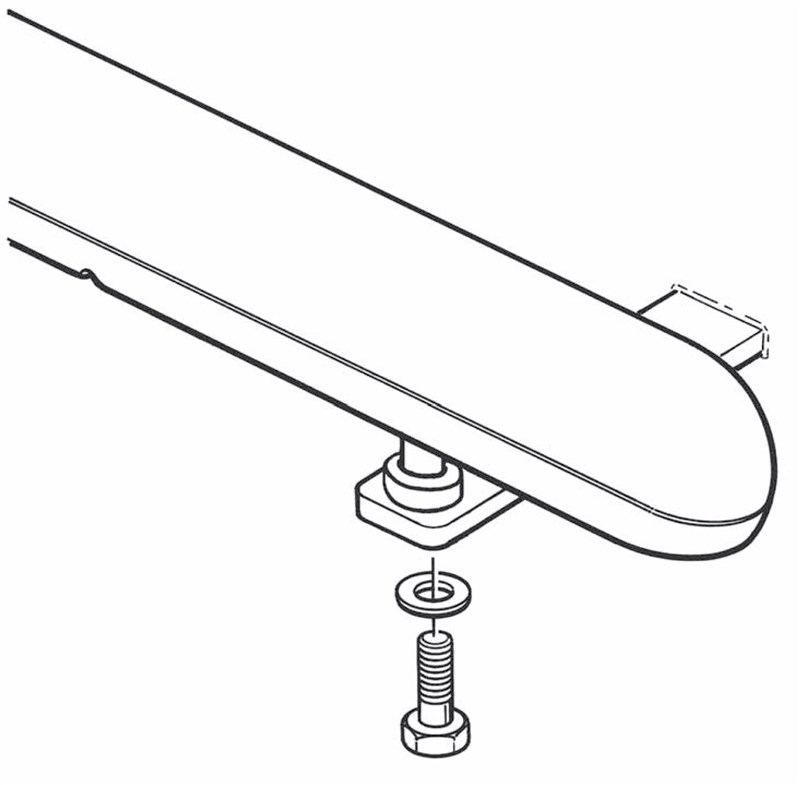

IV. Mounting the gate operator on the front bracket
 |
|
V. Adjusting the mechanical travel stop

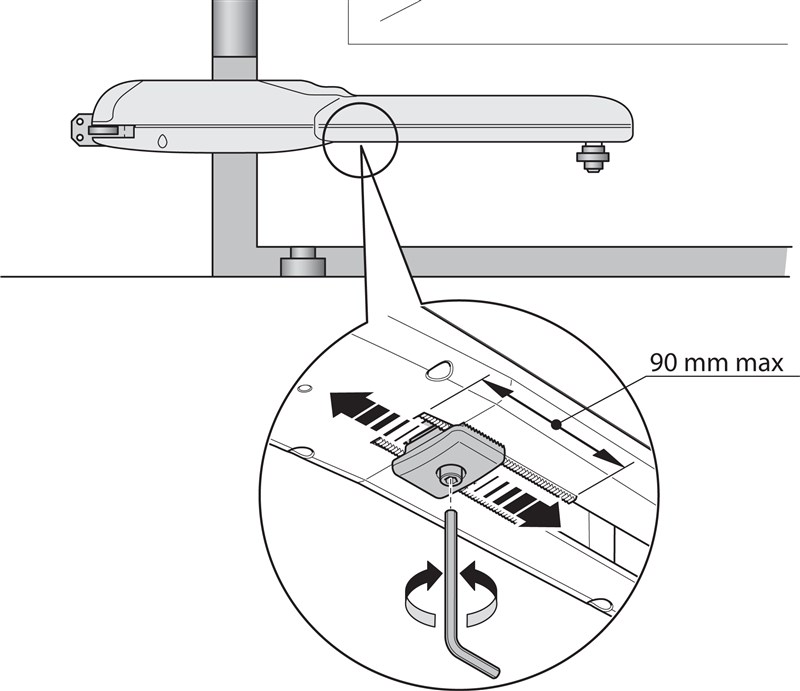

If using the internal mechanical travel stop, against which the operator stops when opening, there is no need to use external ground stops. Adjust as follows:
 |
|
NICE Wingo operator photo gallery
|

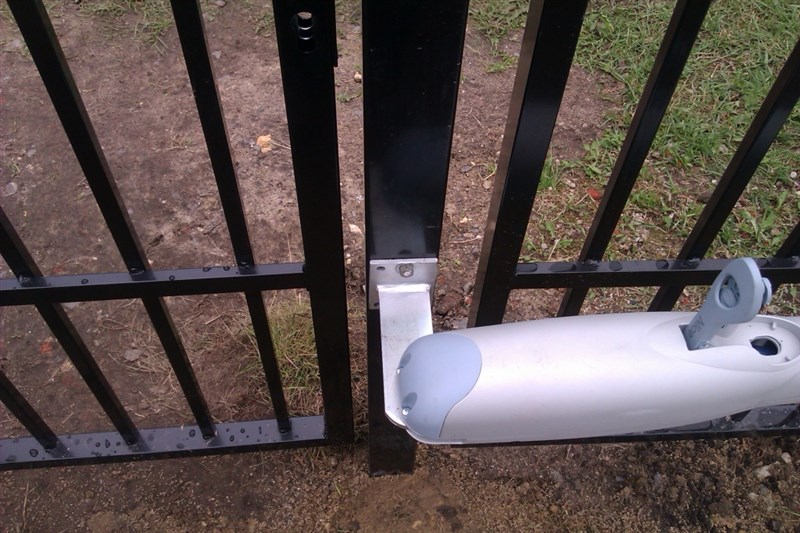

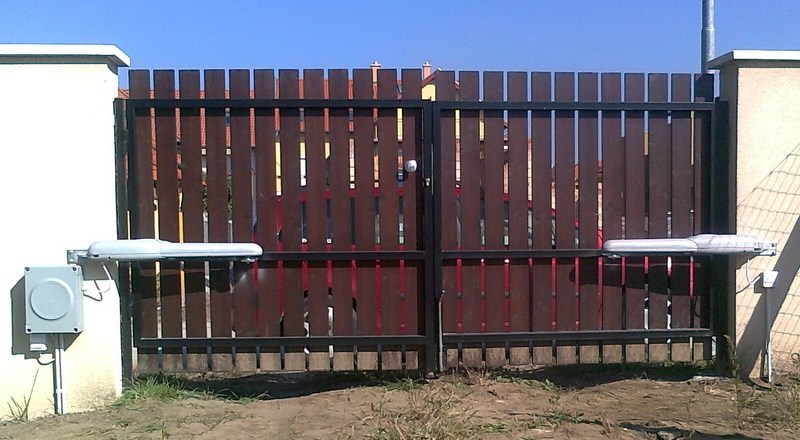

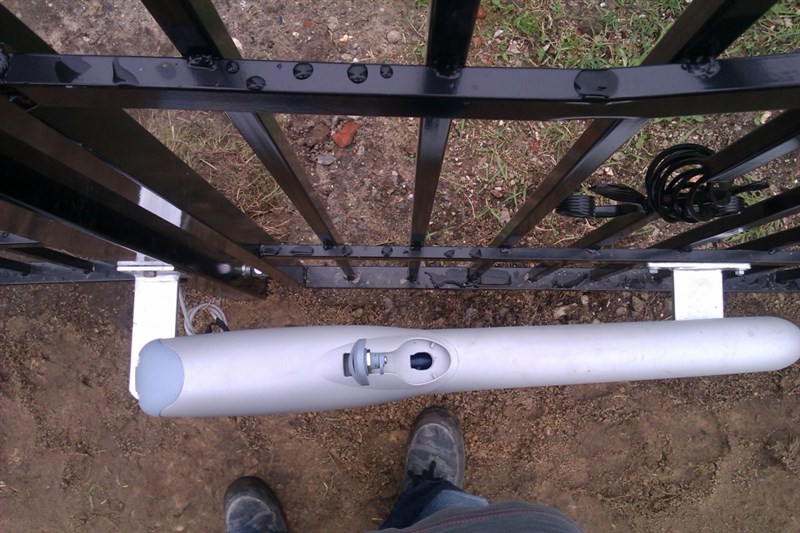

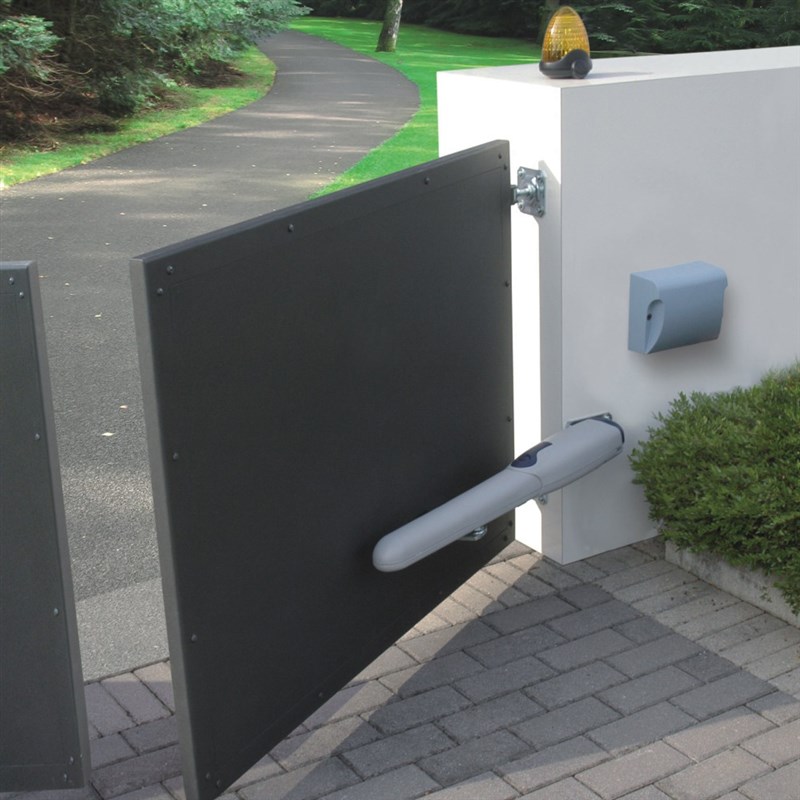

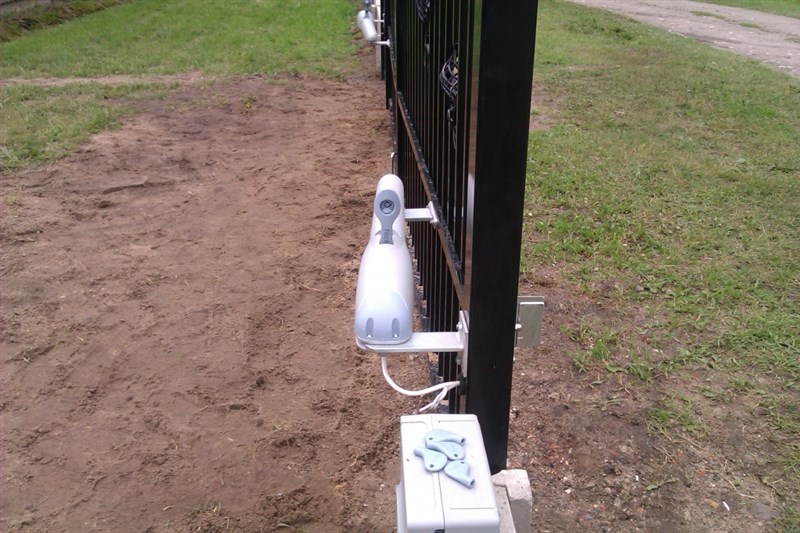

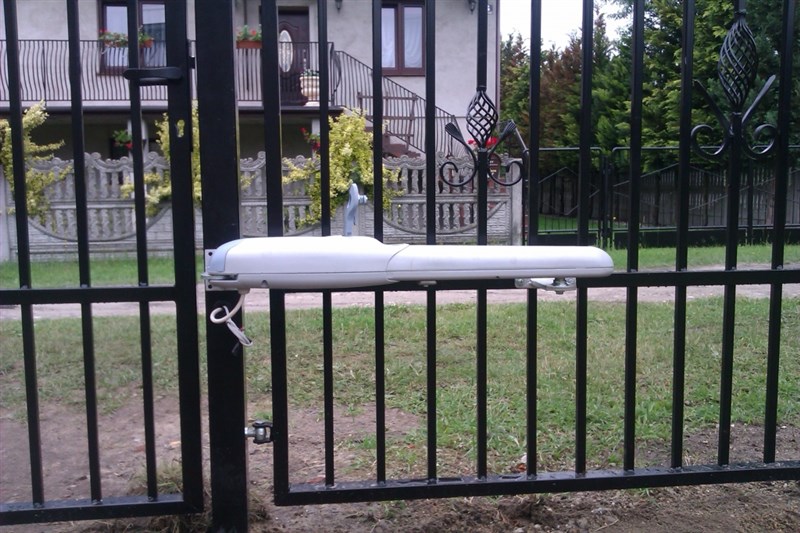

Installation example |
Installation example |
Installation example |
|
Installation example |

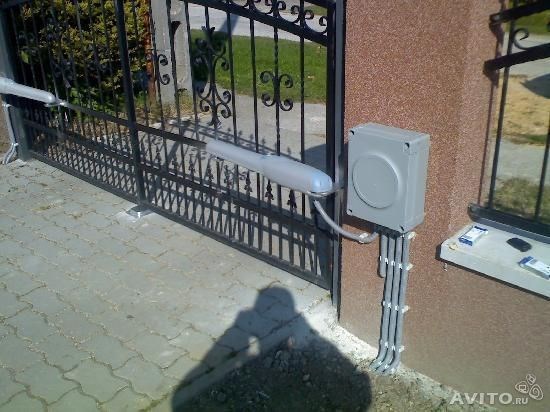

Installation example |
Installation example |
|
Installation example
|
Operator released |

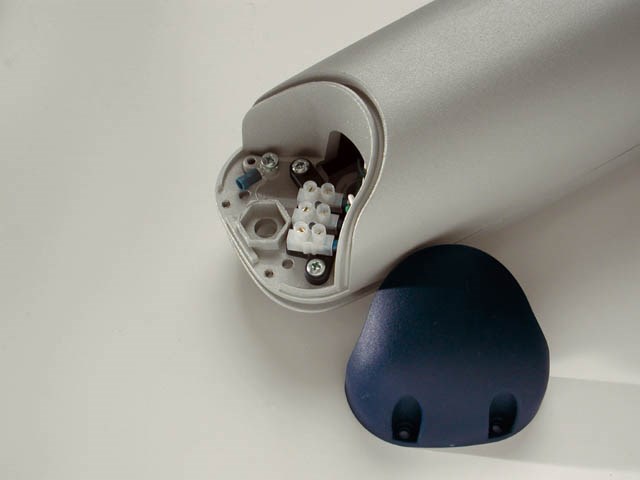

Operator with cover removed |
|

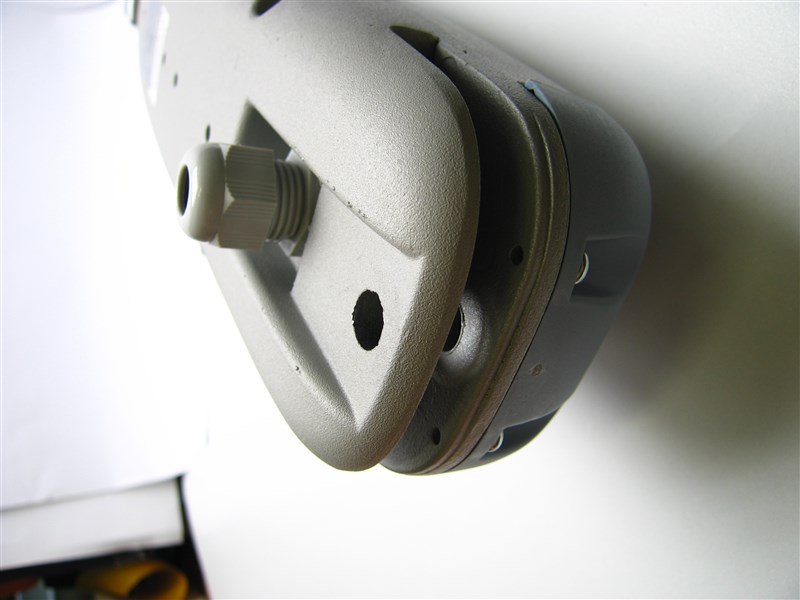

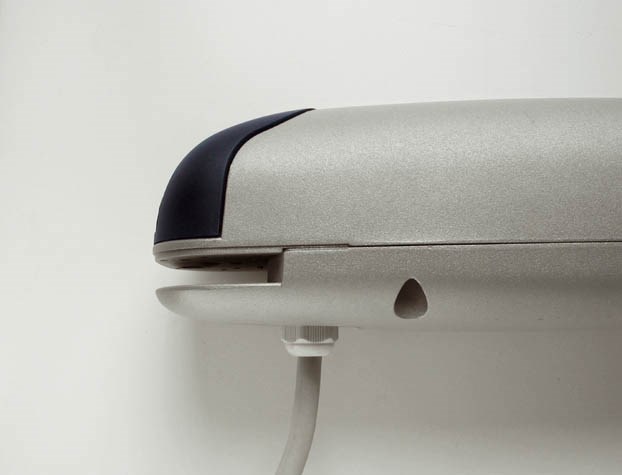

Rear underside |

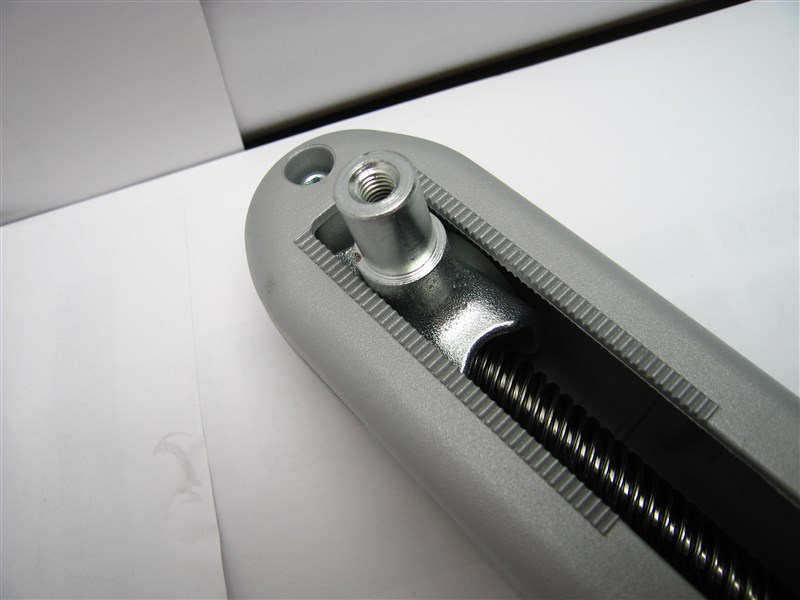

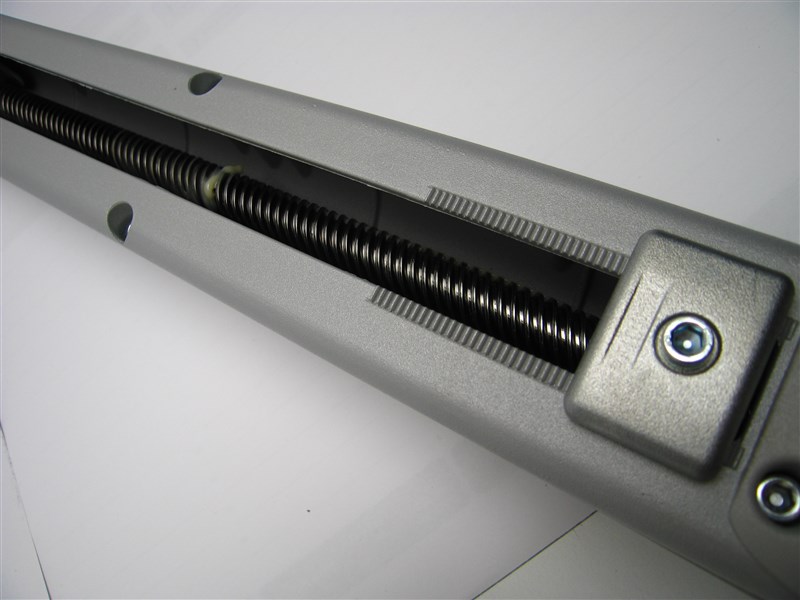

Worm screw and internal mechanical stop |
Front underside |
|
Rear section with the cable connected |
Manual release of the NICE Wingo WG3524 drive
In the event of a power outage, you will not be able to operate the gate using the remote control. Therefore, the drive can be released using the release key and the gate can be moved manually:

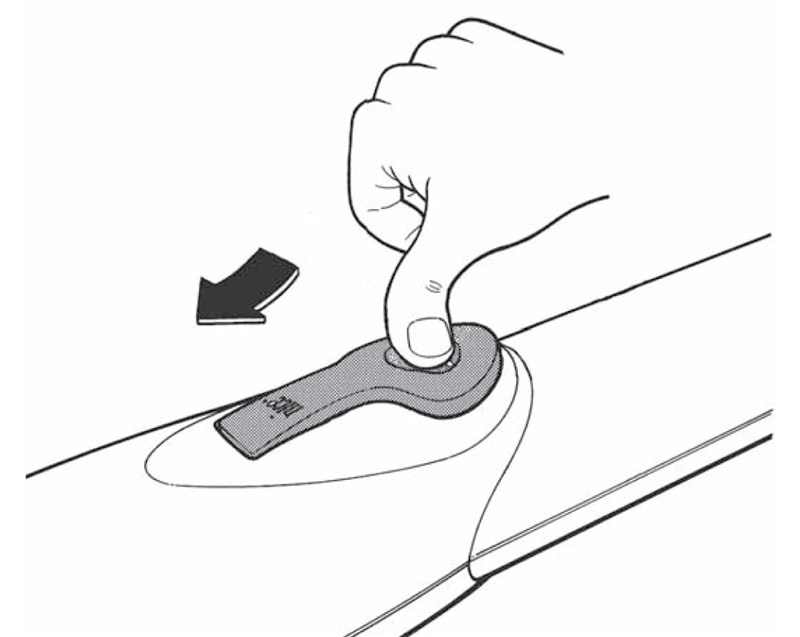

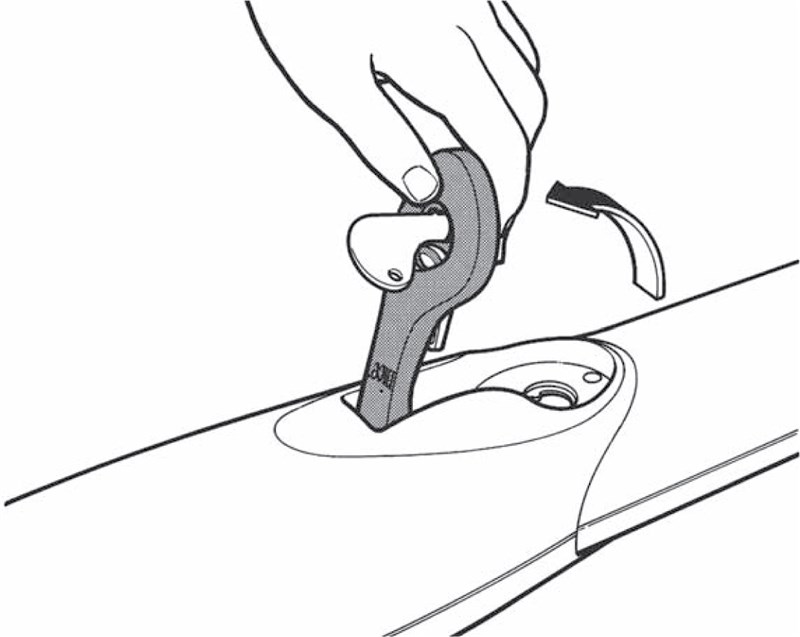

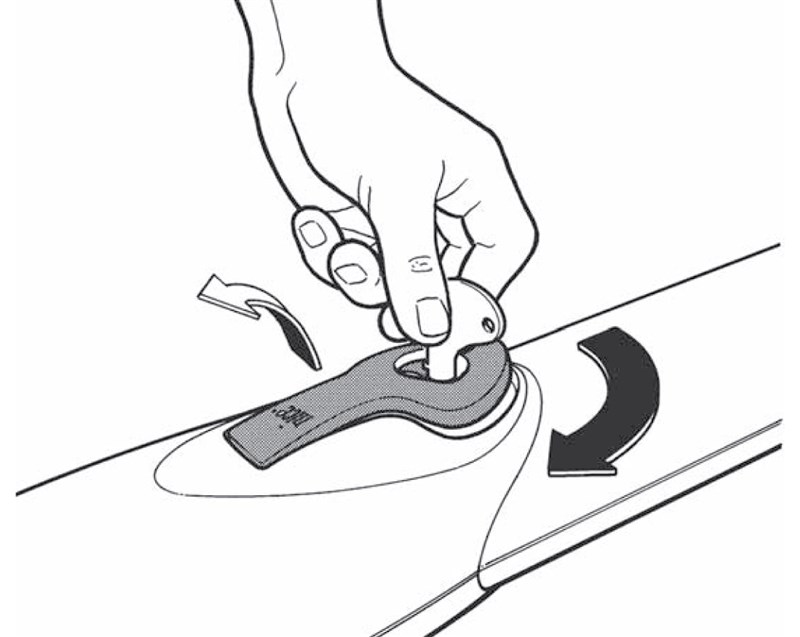

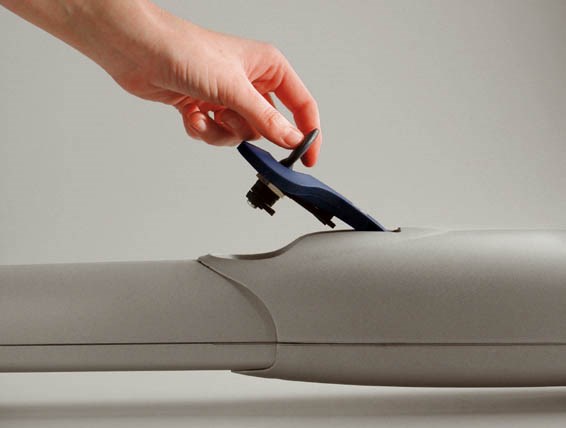

| 1. Slide the release lock cover aside | 2. Insert the release key and turn it clockwise | 3. Pull out the release lever and move the gate manually |
|---|---|---|
 |
 |
 |
Technical specifications of the NICE Wingo WG3524 drive
| Model | NICE Wingo WG3524 |
|---|---|
| Description | Electromechanical geared motor for automatic operation of swing gates in residential settings. |
| Force | 1500N |
| Rated force | 500N |
| Speed | 0,016 m/s |
| Rated speed | 0,012 m/s |
| Maximum consecutive operating cycles | 40 cycles/hour |
| Rotational travel length | 470 mm |
| Service life | from 125,000 to 80,000 cycles, depending on the weight and length of the gate leaf, as well as the drive settings |
| Power supply | 24Vdc |
| Power consumption [Load] |
85W [3,5A] |
| Rated power consumption [Rated load] |
50W [2A] |
| Insulation class | A |
| Operating temperature | -20°C to +50°C |
| Protection rating | IP44 |
| Dimensions | 98×920×95 (W×D×H) |
| Weight | 6kg |
