Drive kit for sliding gates up to 600 kg / 8 m NICE Robus RB600 (E)
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€991.81 including VAT
| Weight |
|---|
| 19 kg |
Description of Drive kit for sliding gates up to 600 kg / 8 m NICE Robus RB600 (E)
The NICE RB400 drive has been replaced by a newer model NICE RBS600. See the advantages of the newer NICE RBS400 and RBS600 models.
The NICE RB600 (E) kit will be replaced by the NICE RBS600 (E) kit.

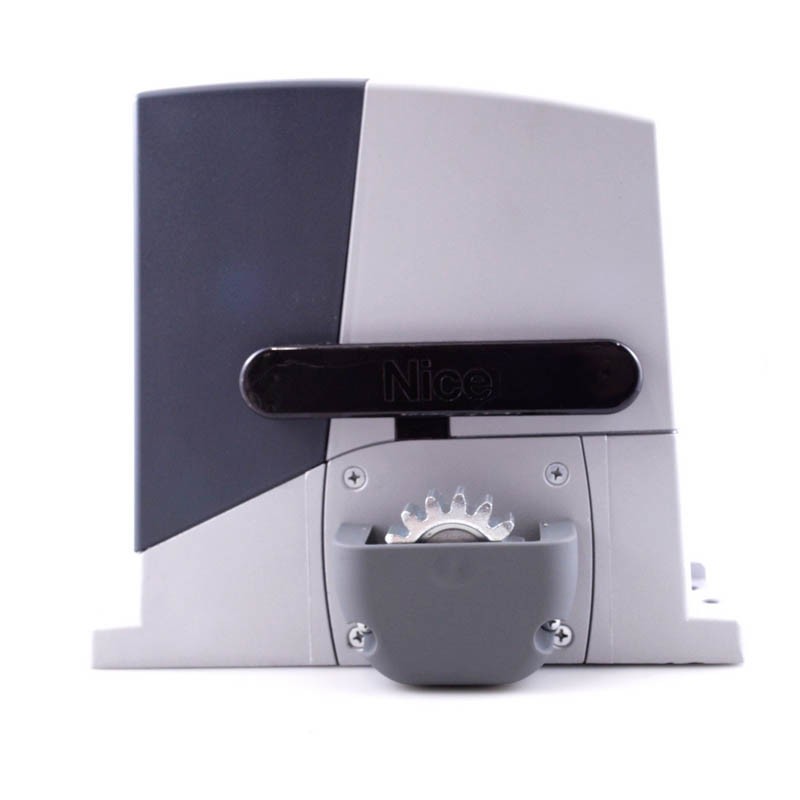

NICE Robus RB600 gate operator is designed for sliding gates weighing up to 600 kg and a passage width up to 8 m. It has an electromechanical limit switch. The operator is non-reversible. Detailed technical specifications ». Download the manual ».
| The set includes: | NICE-RB600-E | |||
|---|---|---|---|---|
 |
1 × | NICE Robus RB600 gate operator | NICE-RB600 | |
|
NICE Robus RB600 electromechanical gate operator with an RBA3R10 control unit, suitable for gates weighing up to 600 kg and with a leaf length of up to 8 m. |
Details  |
|||
 |

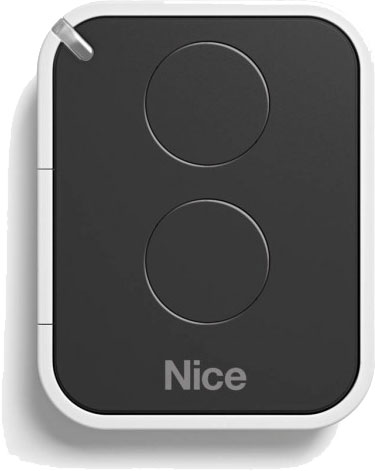

1 × | NICE Era One ON2E remote control | NICE-ON2E | |
|
Two-channel remote control from the NICE Opera range, compatible with all NICE operators using the O-Code rolling code. This remote control lets you operate two NICE devices, or, with a NICE FloX2R receiver, a device from another brand. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passage opening. They create an infrared beam that, when interrupted, for example by a car or pedestrian, sends a signal to the operator to stop the gate or prevent it from opening. If it is interrupted, for example by a car or pedestrian, a signal is sent to the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it disengages the operator's gear so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robus RB600 installation manual | ||
|
Installation manual with illustrative wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
 |
2 × | Limit stop (left + right) | ||
|
The operator's limit stops are mounted on the rack and define the gate's travel length. |
||||
| 1 × | Mounting accessories | |||
|
Operator mounting components, height adjustment screws, mounting plate, anchor caps and limit stops for the operator sensor. |
||||
 |
4 m | Gear rack with metal reinforcement | LZ-1-4 | |
|
The sliding gate, with the gear rack fixed to it, is moved by the operator's pinion through the rack-and-pinion drive. |
Details |
|||
(Is this operator right for me?)
Compare with other operator kits:
| « Lower-powered kit | Alternative kit | Higher-powered kit » |
|---|---|---|
|
|
|
|
Drive features NICE ROBUS RB600
The drive is compact, safe and practical, and ideal for both residential and commercial use. Impact-resistant housing, an aluminium alloy body with an epoxy coating.
The drive is suitable for automating a sliding gate weighing up to 600 kg with a gate leaf length of up to 8 m. These values apply under the conditions specified by the manufacturer, such as weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Robus RB600 drive ideally with gates operating at 80% of these values. See the Choosing a drive chapter for more information.
A very user- friendly BlueBUS allows to power and control up to 7 pairs of photocells using a two-core cable.
The temperature sensor adjusts the drive's pulling force according to the climatic conditions. The drive also includes a thermal fuse.
Adjustable speed,, force and pause time for the drive's automatic closing and much more; see Programming.
Diagnostics using warning beacon.
Gear module 4 is compatible with the gear rack in our range.
Robus 600 drive functions "The slave unit" ensures automatic synchronisation of two motors. This means that two sliding gates moving towards each other can be automated.
The NICE Robus RB600 drive is an electromechanical operator suitable for the climatic conditions in Slovakia and meets all European safety standards.
The ROBUS RB600 in pictures
| manual release | control unit | wiring diagram |
|---|---|---|
 |
 |
 |
| Instructions for manual release > |
Programming the drive > |
Detailed wiring diagram > |
For a detailed wiring diagram and more technical information, see the NICE Robus RB600 drive product page, or consult the manual.
Drive specifications NICE ROBUS RB600
| Speed | 0,15 - 0,31 m/s |
|---|---|
| Power supply | 230V, 50/60Hz |
| Power consumption | 515W |
| Torque | 9Nm |
| Max. torque | 18Nm |
| Max. gate weight | 600kg |
| Protection rating | IP 44 |
| Operating temperature | -20°C to +50°C |
| Insulation class | 1 |
| Gear module | 4 |
on the NICE Robus RB600 drive product page.
Accessories compatible with the NICE Robus RB600 drive
We also recommend purchasing compatible optional accessories for the drive, or choosing one of our pre-assembled discounted sets:
| What | Why | Type |
|---|---|---|
| Beacon | The beacon flashes to signal gate movement—ideal for exits with poor visibility. It also has a built-in antenna for increased remote-control range. | - LED beacon with antenna ELDC - multifunction light WLT - wireless solar LED beacon LLW |
| Photocells | They detect obstacles while closing and stop the gate, preventing it from hitting cars or people. | - Era Photocell Medium EPMB - Era Photocell Large EPLB - Era Photocell Slim EPSB - wireless FT210B - wireless EPMOW - solar-powered PHW |
| Transmitter | For remote gate control. | - Era One ON2E, ON3EBD, ON3ELR, ON4E, ON9E - Era Flor Flo2RE, Flo4RE - FloR Flo2R-s, Flo4R-s - Inti INTI2, INTI2Y, INTI2L, INTI2B, INTI2R, INTI2G |
| Receiver | Required for remote gate control. | - OXI - OXIBD - OXILR - Wi-Fi receiver IT4WIFI - GSM receiver GSM LITE3+, GSM SMART3, GSM PROFI3 |
| Antenna | For better remote-control range. | - integrated into the warning light ELDC - antenna only ABFKIT |
| Keypad | Useful if you forget your remote, if many vehicles or people visit your property, or if you don't want to give everyone a remote or have to open the gate manually. | - wireless EDSWG - wired EDSB |
| Key Switch | Operate the gate with a key using a switch wired to the drive and installed wherever needed. | - surface-mounted, with standard cylinder EKS - surface-mounted, with European cylinder EKSEU - flush-mounted, with standard cylinder EKSI - flush-mounted, with European cylinder EKSIEU |
| Card Readers | Operate the drives by presenting a card or key fob to the card reader. | - ERA Transponder Reader ETPB |
| Rack | Required for the gate drive to operate automatically—the drive needs a rack to move the gate. | - nylon, steel-reinforced, 33 cm LZ-1 - nylon, steel-reinforced, 1 m LZ-10 - nylon, steel-reinforced, reverse profile, 1 m LZ-15 - steel, 30x8mm, 1m LZ-3 - steel, 30x12mm, 1m LZ-5 - stainless steel, 30x10mm, 1m LZ-7 |
| Backup power supply | Keeps the gate operating in the event of a power outage. | - backup battery PS124 - solar power supply SYKCE |
Manuals and documents for download
