Drive kit for sliding gates up to 1000kg/12m NICE Robus RB1000 (E)
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€959.78 including VAT
| Weight |
|---|
| 21 kg |
Description of Drive kit for sliding gates up to 1000kg/12m NICE Robus RB1000 (E)
NICE Robus RB1000 gate operator is designed for sliding gates weighing up to 1000 kg and a passage width of up to 12 m. It has an electromechanical stop switch. The operator is non-reversible. Detailed technical specifications ». Download manual ».
| The set includes: | NICE-RB1000-E | |||
|---|---|---|---|---|
 |
1 × | NICE Robus RB1000 gate operator | NICE-RB1000 | |
|
Electromechanical NICE Robus RB1000 gate operator with an RBA3R10 control unit, suitable for gates weighing up to 1000 kg and with a leaf length of up to 12m. |
Details  |
|||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for automatically opening a gate remotely. Use it to control four devices or send four different commands to one device. Compatible with all NICE operators using O-Code rolling-code technology (the 72-bit code offers 4.7 quadrillion combinations, making it virtually impossible to misuse) and an LED signal indicator. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passageway. They create an infrared beam which, when interrupted by a car or pedestrian, for example, signals the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power outage, it disengages the operator's drive gear so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robus RB1000 installation manual | ||
|
Installation manual for easy setup, with wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
 |
2 × | Limit stop (left + right) | ||
|
The operator's limit stops are mounted on the rack and set the gate's travel limits. |
||||
| 1 × | Installation accessories | |||
|
Operator installation components, height adjustment screws, mounting plate, anchor caps, limit stops for the operator sensor. |
||||
 |
4 m | Rack with metal reinforcement | LZ-1-4 | |
|
A sliding gate with a rack fixed to it is moved by the operator's pinion engaging with the rack. |
Details |
|||
(Is this operator right for me?)
Compare with other operator kits:
| « Lower-capacity kit | Alternative kit | Higher-capacity kit » |
|---|---|---|
|
|
|
|
Operator features NICE ROBUS RB1000
The operator is compact, safe and practical, making it ideal for both residential and commercial use. Impact-resistant housing, aluminium alloy body with an epoxy coating.
The operator is suitable for automating sliding gates weighing up to 1000 kg with a leaf length of up to 12 m. These values apply under the conditions specified by the manufacturer, including weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Robus RB1000 operator for gates at no more than 80% of these values. See the Choosing an operator chapter for more information.
Very user- friendly technology BlueBUS allows you to power and control up to 7 pairs of photocells using a two-core cable.
Temperature sensor adjusts the operator's pulling force according to the weather conditions. The operator also includes a thermal fuse.
Adjustable speed,, force and pause time for automatic operator closing, and much more; see Programming.
Diagnostics using a warning light.
Gear module 4 is compatible with the rack available in our range.
Robus 1000 operator functions "The slave unit" ensures automatic synchronisation of two motors. This means that two sliding gates moving in opposite directions can be automated.
The NICE Robus RB1000 operator is electromechanical, suitable for Slovakia's climate, and complies with all European safety standards.
Operator ROBUS RB1000 in pictures

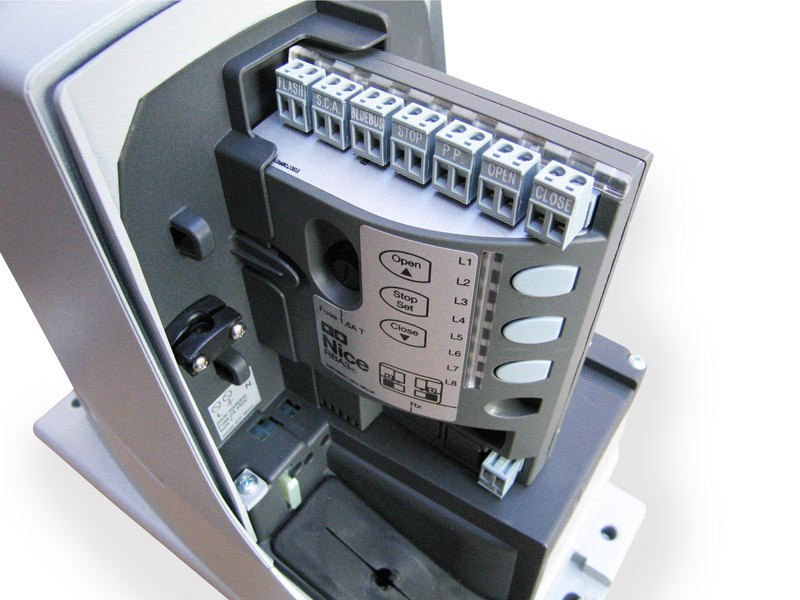

| release | control unit | wiring diagram |
|---|---|---|
 |
 |
 |

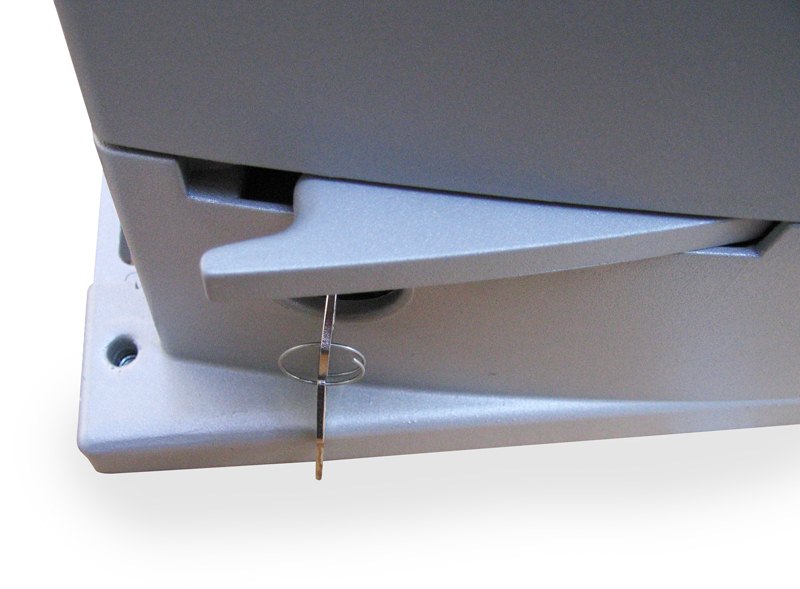

| Instructions for releasing > |
Programming the operator > |
Detailed wiring diagram > |
For a detailed wiring diagram and more technical information, see on the NICE Robus RB1000 operator's own page, or in the manual.
Operator technical specifications NICE ROBUS RB1000
| Speed | 0,14 - 0,28 m/s |
|---|---|
| Power supply | 230V, 50/60Hz |
| Power consumption | 450W |
| Torque | 15Nm |
| Max. torque | 27Nm |
| Max. gate weight | 1000kg |
| Protection rating | IP 44 |
| Operating temperature | -20°C to +50°C |
| Insulation class | 1 |
| Gear module | 4 |
Complete technical specifications on the NICE Robus RB1000 operator's own page.
Accessories compatible with the NICE Robus RB1000 operator
We also recommend buying compatible optional accessories for the operator, or choosing one of the pre-assembled discounted sets:
| What | Why | Type |
|---|---|---|
| Warning light | The warning light flashes to indicate gate movement—ideal for exits with limited visibility. It also has a built-in antenna for increased remote-control range. | - LED warning light with antenna ELDC - multifunctional light WLT - wireless solar LED beacon LLW |
| Photocells | They detect an obstacle while the gate is closing and stop its movement, preventing it from hitting a car or anyone. | - Era Photocell Medium EPMB - Era Photocell Large EPLB - Era Photocell Slim EPSB - wireless FT210B - wireless EPMOW - solar-powered PHW |
| Transmitter | For remote gate control. |
- MYGO4 - Era One ON2E, ON3EBD, ON3ELR, ON4E, ON9E |
| Receiver | Required for remote gate control. | - OXI - OXIBD - OXILR - Wi-Fi receiver IT4WIFI - GSM receiver GSM LITE3+, GSM SMART3, GSM PROFI3 |
| Antenna | For improved remote-control range. | - integrated into the beacon ELDC - standalone antenna ABFKIT |
| Keypad | Useful if you forget your remote, if many vehicles or people visit and you do not want to give everyone a remote, or if you do not want to open the gate manually. | - wireless EDSWG - wired EDSB |
| Key switch | Control the gate with a key using a switch wired to the drive at any convenient location. | - surface-mounted, with a standard cylinder EKS - surface-mounted, with a European cylinder EKSEU - flush-mounted, with a standard cylinder EKSI - flush-mounted, with a European cylinder EKSIEU |
| Card readers | Operate the drives by presenting a card or key fob to the card reader. | - ERA Transponder Reader ETPB |
| Rack | Required for the drive automation itself—the drive cannot move the gate without a rack. | - nylon, steel-reinforced, 33 cm LZ-1 - nylon, steel-reinforced, 1 m LZ-10 - nylon, with steel reinforcement, reverse-facing, 1m LZ-15 - steel, 30x8mm, 1m LZ-3 - steel, 30x12mm, 1m LZ-5 - stainless steel, 30x10mm, 1m LZ-7 |
| Backup power supply | In the event of a power outage, it keeps the gate operating. | - backup battery PS124 - solar power supply SYKCE |
Manuals and documents for download
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
