NICE Toona 5024 drive kit for a single-leaf gate up to 5 m / 500 kg, with photocells
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€932.46 including VAT
| Weight |
|---|
| 13 kg |
Description of NICE Toona 5024 drive kit for a single-leaf gate up to 5 m / 500 kg, with photocells
Drive kit NICE Toona 5 TO5024 is designed for automation of swing gates up to leaf length 5 m and weight up to 500 kg. The operator is based on 24V and features PLA13 mechanical opening stop. The operator is notreversible. Operators Toona are currently at the forefront of swing gate automation in both residential and industrial settings. The entire Toona family is reliable and quiet. Detailed technical specifications ». Download the manual ».
| Set NICE-TO5024-BZ1 contains: | ||||
|---|---|---|---|---|
|
1 × | NICE Toona 5 TO5024 Drive | NICE-TO5024 | |
|
NICE Toona TO5024 electromechanical gate operator for gate leaves weighing up to 500 kg and measuring up to 5 m in length.
|
Details
|
|||
|
1 × | Control unit for 24 V swing gate operators, MC824HR30 | NICE-MC824HR30 | |
|
The control unit in a designer enclosure, containing the MCA1R30 control board to which the drives and accessories are connected, is part of the automation system. |
Details
|
|||
|
1 × | NICE MYGO4 - four-channel remote control | NICE-MYGO4 | |
|
NICE MYGO4 - four-channel remote control, rolling code, 433.92 MHz |
Details
|
|||
|
1 × | NICE OXIBD remote control receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. Supports two-way communication with selected remote control models. Range of up to 200m with an antenna. |
Details
|
|||
|
1 × | NICE EPMB - Era Photocell Medium - photocells with BlueBUS connection | NICE-EPMB | |
|
Safety photocells are installed on either side of the opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the drive to stop the gate or prevent it from opening. |
Details
|
|||
|
1 × | NICE Toona 5 TO5024 Installation Manual |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
2 pcs. release keys
front + rear bracket
Mounting accessories
(Is this gate operator right for me?)
Compare with other gate operators:
| « Lower-powered kit | Alternative kit | Higher-powered kit » | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

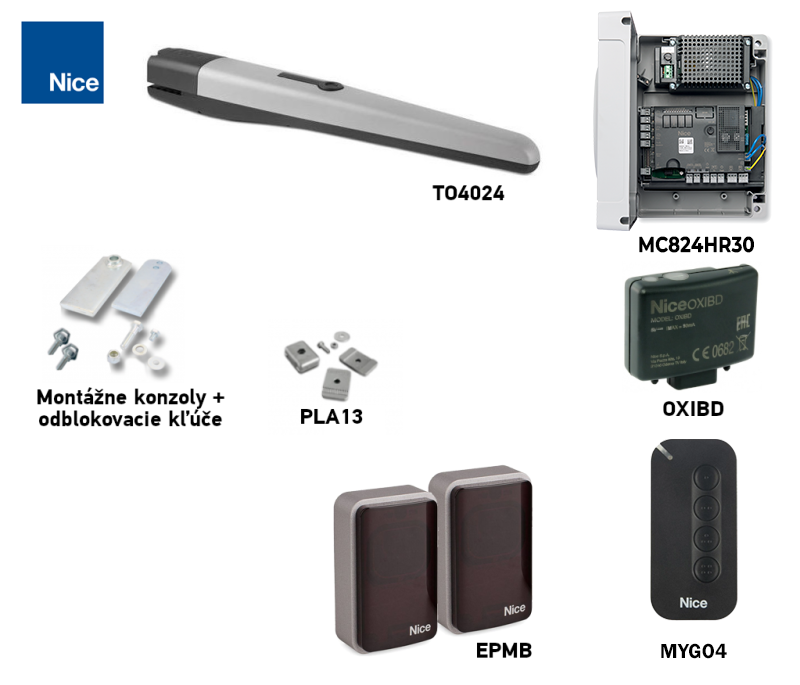

NICE Toona 4 TO4024 operator kit
|
NICE Toona 230V operators:
Price quote and delivery available on request. |
NICE Toona 7 TO7024 operator kit
|
Operator features NICE Toona TO5024
The operator has a two-piece die-cast aluminium body with a polyester finish that resists the effects of weather. All moving internal parts are made of steel, light alloys and technopolymers. The lead nut is made of bronze to ensure high strength and quiet operation. The starting capacitor is housed inside the operator to make installation as simple as possible. The operators are dimensionally backward-compatible with the previous range range and and Pluto from the Italian manufacturer NICE; all mounting dimensions and pin diameters are the same. The operator uses 24V, making it better suited to situations with more frequent use than the 230V version, but conversely it is not suitable for windy locations, especially with opaque, solid gate infill. However, it is not suitable for windy locations, especially with opaque, solid gate infill.
The operator has a magnetic encoder, which enables the Moonclever MC824HR30 control unit for the operator to determine the operator's position along its travel path. MC824HR30 control unit is equipped with the BlueBus, which allows simple programming, automatic learning of end positions, automatic fault diagnosis, adjustment of the pause time in automatic closing mode, pedestrian access, deceleration before the end positions, a dual system for detecting impacts with obstacles, and emergency operation when used with the PS324 backup power supply, an input for all types of safety edges for the operator, and much more. To connect the PS324 , a CABLA11.
Accessories compatible with the NICE Toona 5 TO5024 operator
We also recommend purchasing these optional accessories compatible with the operator:
| What | Why | Type |
|---|---|---|
| Control unit |
Operator control electronics. |
|
| Warning light | Flashes to indicate gate movement—ideal for exits with limited visibility. Also includes an antenna for a longer remote-control range. |
Alternatively, all warning lights with a 12V–24V power supply from other manufacturers. |
| Photocells | Detect obstacles while the gate is closing and stop its movement, preventing it from hitting vehicles or people. | |
| Transmitter | For remote control of the gate. | |
| Receiver |
For remote control of the gate. |
|
| Antenna | For improved remote-control range. | |
| Keypad | If you forget your remote control, or have many vehicles/users and don't want to issue a remote control to everyone. | |
| Key switch | Operate the gate with a key using a switch wired to the drive. | |
| Electric locks | The safety electric locks are synchronised with the drive via the control unit. When a command is sent to the drive, the electric lock unlocks first, and only then does the gate begin to open. Likewise, once the gate is closed, the electric lock engages. They are required for gate leaves longer than 3m. |
|
| Card readers | Operate the drive by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operating during a power outage. |
|
Manual for the NICE Toona 5 TO5024 drive and NICE Moonclever control unit Moonclever MC824H
Manual for the NICE Toona 5 TO5024 and NICE control unit Moonclever MC824H download here:
Manual for the NICE Toona 5 TO5024 drive
NICE Toona drive photo gallery
|
Installation example |
Installation example |
Installation example |
|
Installation example |
Installation example |
Operator with cover removed |
|
Comparison of Toona 4, 5, 7 operators |
Operator released |
Operator, underside |
Technical specifications
| Detailed technical specifications of NICE Toona 5 TO5024 operators |
