NICE Toona 5024I drive kit for a double-leaf gate – one leaf up to 5 m/600 kg
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,635.60 including VAT
| Weight |
|---|
| 26 kg |
Description of NICE Toona 5024I drive kit for a double-leaf gate – one leaf up to 5 m/600 kg
Drive kit NICE Toona 5 TO5024I is designed for automation of swing gates up to leaf length 5 m and weight up to 600 kg. For intensive use. The operator uses 24V and includes PLA13 mechanical opening stop. The operator is non-reversible. The Toona operators are currently at the forefront of swing gate automation in both residential and industrial settings. The entire Toona range is reliable and quiet. Detailed technical specifications ». Download the manual ».
| The kit includes: | NICE-TO5024I-B2 | |||
|---|---|---|---|---|
 |
2 × | NICE Toona 5 TO5024I operator | NICE-TO5024I | |
|
NICE Toona TO5024I electromechanical operator, suitable for gate leaves weighing up to 600 kg and measuring up to 5m in length. |
Details  |
|||
 |
1 × | NICE Moonclever MC824HR30 control unit | NICE-MC824HR30 | |
|
Housed in a stylish Moonclever box, the control unit contains the MCA1 controller, to which the operators and accessories are connected, and is an essential part of the automation system. |
Details |
|||
 |

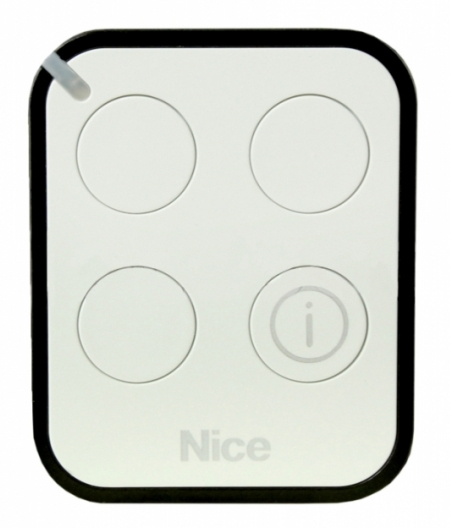

1 × | NICE Era One ON3EBD remote control | NICE-ON3EBD | |
|
Three-button remote control for operating a gate automatically from a distance. Use it to control three devices, or to send three different commands to one device. BD technology enables two-way communication, allowing the remote to indicate the current gate status (green - open, orange - partially open, red - closed). |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, use it to release the operator so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Toona 5 TO5024 installation manual | ||
|
Installation manual with illustrations of wiring diagrams and instructions for programming and pairing remote controls, to help ensure a successful installation. |
Download |
|||
| 1 × | Installation accessories | |||
|
Operator installation components: front and rear brackets for welding. |
||||
Operator features NICE Toona TO5024
The operator features a two-piece body made from die-cast aluminium, with a polyester coating resistant to weathering. All internal moving parts are made of steel, light alloys and technopolymers. The lead nut is made of bronze for strength and quiet operation. The start capacitor is housed inside the operator to make installation as simple as possible. The operators are dimensionally backward compatible with the previous Moby and Pluto ranges from Italian manufacturer NICE; all mounting dimensions and pin diameters are the same. The operator uses 24V, making it better suited to situations involving more frequent use than the 230V version. However, it is not suitable for windy locations, especially with solid, opaque gate infill.
The operator has a digital inductive encoder, which enables the Moonclever MC824HR30 control unit for the operator to know precisely the motor's current rotational position. The MC824HR30 control unit is equipped with the BlueBus, which enables simple programming, automatic learning of end positions, automatic fault diagnostics, adjustment of the pause time in automatic closing mode, pedestrian opening, deceleration before reaching end positions, a dual obstacle-detection system, emergency operation when used with the PS324 backup power supply, an input for all types of safety edges for the operator, and much more. A CABLA11 cable is required to connect PS324 ..
Accessories compatible with the NICE Toona 5 TO5024I operator
We also recommend purchasing the following optional accessories compatible with the operator:
| What | Why | Type |
|---|---|---|
| Control unit |
The operator's control electronics. |
|
| Warning light | Flashes to signal gate movement—ideal for exits with limited visibility. Also includes an antenna for greater remote-control range. |
Alternatively, any warning lights with a 12V–24V power supply from other manufacturers. |
| Photocells | They detect obstacles as the gate closes and stop its movement, preventing it from hitting vehicles or people. | |
| Remote control | For operating the gate remotely. | |
| Receiver |
For operating the gate remotely. |
|
| Antenna | For better remote-control range. | |
| Keypad | Useful if you forget your remote or have many vehicles or users and don't want to issue a remote to everyone. | |
| Key switch | Operate the gate with a key using a switch wired to the operator. | |
| Electric locks | Safety electric locks are synchronised with the operator via the control unit. When an operator command is given, the electric lock is released first; only then does the gate begin to open. The lock engages again once the gate has closed. Required for gate leaves longer than 3 m. |
|
| Card readers | Operate the gate by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operating during a power outage. |
|
Manual for the NICE Toona 5 TO5024I operator and NICE Moonclever control unit Moonclever MC824H
NICE drive manual Toona 4 TO5024I and NICE control unit Moonclever MC824H download here:
NICE Toona 5 TO5024I drive manual
NICE Toona drive photo gallery
|
Installation example |
Installation example |
Installation example |
|
Installation example |
Installation example |
Drive with its cover removed |
|
Comparison of Toona 4, 5, and 7 drives |
Drive in the released position |
Drive viewed from below |
Technical specifications
| Detailed technical specifications of NICE Toona 5 TO5024I drives |
