NICE Toona 5024 gate opener kit for a single-leaf gate up to 5 m/500 kg, with accessories
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€964.72 including VAT
| Weight |
|---|
| 13 kg |
Description of NICE Toona 5024 gate opener kit for a single-leaf gate up to 5 m/500 kg, with accessories
Drive kit NICE Toona 5 TO5024 is designed for automation of swing gates up to gate leaf length 5 m and weight up to 500 kg. The operator is based on 24V and has PLA13 mechanical opening stop. The operator is non-reversible. Operators Toona are currently the leading choice for automating swing gates in both residential and industrial settings. The entire range Toona is reliable and quiet. Detailed technical specifications ». Download the manual ».

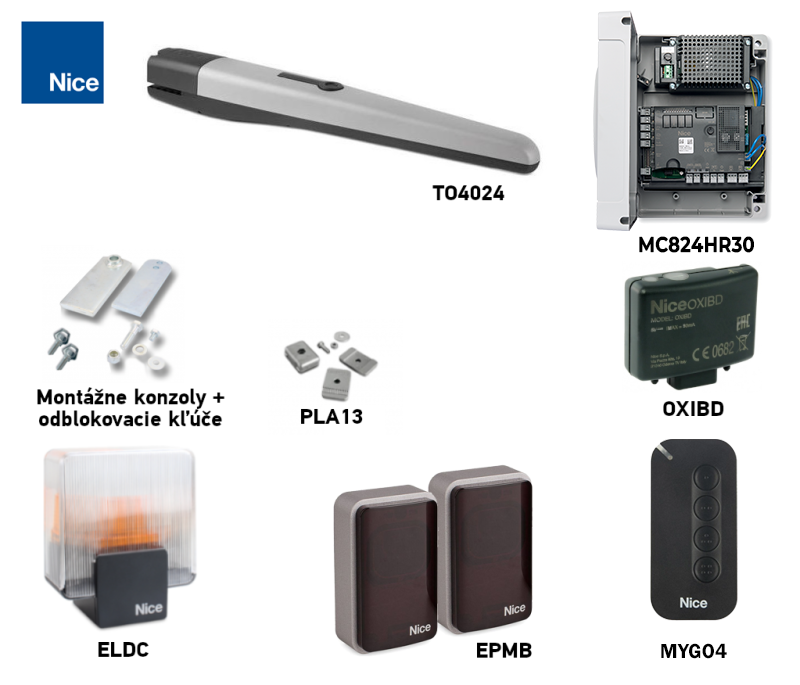

| Set NICE-TO5024-BE1 contains: | ||||
|---|---|---|---|---|
|
1 × | NICE Toona 5 TO5024 Drive | NICE-TO5024 | |
|
NICE Toona TO5024 electromechanical gate operator for gate leaves weighing up to 500 kg and measuring up to 5 m in length.
|
Details
|
|||
|
1 × | Control unit for 24 V swing gate operators, MC824HR30 | NICE-MC824HR30 | |
|
The control unit in a designer enclosure, containing the MCA1R30 control board to which the drives and accessories are connected, is part of the automation system. |
Details
|
|||
|
1 × | NICE MYGO4 - four-channel remote control | NICE-MYGO4 | |
|
NICE MYGO4 - four-channel remote control, rolling code, 433.92 MHz |
Details
|
|||
|
1 × | NICE OXIBD remote control receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. Supports two-way communication with selected remote control models. Range of up to 200m with an antenna. |
Details
|
|||
|
1 × | NICE EPMB - Era Photocell Medium - photocells with BlueBUS connection | NICE-EPMB | |
|
Safety photocells are installed on either side of the opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the drive to stop the gate or prevent it from opening. |
Details
|
|||
|
1 × | NICE ELDC LED Beacon with Antenna | NICE-ELDC | |
|
NICE LED ELDC flashing warning light made of impact-resistant polycarbonate with a built-in antenna for greater remote-control range (up to 150 m). |
Details
|
|||
|
1 × | NICE Toona 5 TO5024 Installation Manual |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
2 pcs. release keys
front + rear bracket
Mounting accessories
(Is this drive right for me?)
Compare with other drives:
| « Lower-powered kit | Alternative kit | Higher-powered kit » | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
230V NICE Toona drives:
Price quote and delivery available on request. |
|
Drive features NICE Toona TO5024
The drive features a two-piece die-cast aluminium housing with a polyester finish resistant to weathering. All internal moving parts are made of steel, light alloys and engineering polymers. The lead screw is made of bronze to ensure strength and quiet operation. The starting capacitor is housed inside the drive to make installation as easy as possible. The drives are dimensionally backward-compatible with the previous Moby and Pluto series from the Italian manufacturer NICE; all mounting dimensions and pin diameters are the same. The drive uses 24V, making it better suited to more frequent use than the 230V version, but is not suitable for windy locations, especially with opaque, solid gate infill. However, it is not suitable for windy locations, especially with opaque, solid gate infill.
The drive has a magnetic encoder, which enables the Moonclever MC824HR30 drive control unit to determine its position along the travel path. MC824HR30 control unit is equipped with the BlueBus, which allows easy programming, automatic limit-position learning, automatic fault diagnosis, adjustment of the pause time in automatic-closing mode, pedestrian access, deceleration before the end positions, dual obstacle-impact detection, and emergency operation when used with the PS324 backup power supply, an input for all types of safety edges for the drive, and much more. To connect the PS324 , a CABLA11.
Accessories compatible with the NICE Toona 5 TO5024 drive
We also recommend purchasing the following optional accessories compatible with the drive:
| What | Why | Type |
|---|---|---|
| Control unit |
Drive control electronics. |
|
| Warning light | Flashes to indicate gate movement—ideal for exits with limited visibility. Also includes an antenna for greater remote-control range. |
Alternatively, all warning lights with 12V–24V power supply from other manufacturers. |
| Photocells | They detect obstacles while the gate is closing and stop its movement, preventing it from hitting cars or people. | |
| Transmitter | For remote control of the gate. | |
| Receiver |
For remote control of the gate. |
|
| Antenna | For better remote-control range. | |
| Keypad | If you forget your remote control, or have many vehicles/users and don't want to issue a remote control to everyone. | |
| Key switch | Operate the gate with a key using a switch wired to the drive. | |
| Electric locks | The safety electric locks are synchronised with the drive via the control unit. When a command is sent to the drive, the electric lock unlocks first, and only then does the gate begin to open. The lock engages again once the gate has closed. Required for gate leaves over 3 m long. |
|
| Card readers | Operate the drive by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operating during a power outage. |
|
Manual for the NICE Toona 5 TO5024 gate operator and NICE Moonclever control unit Moonclever MC824H
Manual for the NICE gate operator Toona 5 TO5024 and NICE control unit Moonclever MC824H download here:
Manual for the NICE Toona 5 TO5024 gate operator
NICE Toona gate operator photo gallery
|
Installation example |
Installation example |
Installation example |
|
Installation example |
Installation example |
Operator with cover removed |
|
Comparison of Toona 4, 5 and 7 operators |
Operator in manual release mode |
Underside view of operator |
Technical specifications
| Detailed technical specifications of NICE Toona 5 TO5024 operators |
