NICE Hi-Speed fast drives
Italian manufacturer NICE offers both standard and high-speed 24 V Hi-Speed motors for sliding gates, swing gates and garage doors. They are particularly useful where fast operation or a high level of security is required. An advanced control unit, including built-in sensors, can provide even more precise obstacle detection. Hi-Speed systems are synonymous with reliability, safety and comfort.
Product ranges
Hi-Speed motors for sliding gates:
Hi-Speed motors for swing gates:
- NICE Toona HS (gate leaf up to 6 m / 1 450 kg)
- NICE Wingo HS (gate leaf up to 3 m / 200 kg)
- NICE Titan HS (gate leaf up to 6 m / 450 kg)
- NICE Hyke HS (gate leaf up to 3 m / 270 kg)
- NICE M-Fab HS (underground installation, gate leaf up to 3 m / 300 kg)
- NICE L-Fab HS (underground installation, gate leaf up to 4 m / 400 kg)
Hi-Speed motors for garage doors:
NICE Robus RBS HS
The new generation of NICE Robus RBS operators includes just one high-speed motor, the Robus RBS Hi-Speed. Model RBS600HS is designed for fast operation of sliding gates weighing up to 600 kg, with a passage width of up to 8 m. It opens a 4-metre-long gate in approximately 9* seconds and a gate up to 8 metres long in 18* seconds.
If you are interested in this motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.
Design
Dimensions
Recommended accessories
- receiver: OXI, OXIBD
- transmitter: MYGO2, MYGO4, MYGO8, ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, DOMIW3C
- photocells: EPMOR, EPMORB, EPMOB, EPMB, EPLB, EPSB, EPMOW, FT210B, F210 - Model RBS600HS allows some photocells to be installed directly beneath the operator cover. To use this option, you need to purchase the installation kit RBSKITSAFE1, as it is not included as standard. You can find out more about this option in the manual HERE.
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Robus RBS600HS |
|---|---|
| Force | 300 N |
| Max. starting force | 600 N |
| Speed | 0,44 m/s |
| Duty cycle limit | 20 - 40 cycles / hour (depending on gate length and weight) |
| Power supply | 230 V, 50/60Hz |
| Power consumption | 450 W |
| Operating temperature | -20°C to +55°C |
| Protection rating | IP 44 |
| Dimensions | 340 x 220 x 303 mm |
| Weight | 11 kg |
NICE Robus HS
The NICE Robus HS range includes two motors RB250 HS and RB500 HS for sliding gates. The difference lies in the maximum load capacity: the first model can operate a gate weighing up to 250 kg, while the second can handle up to 500 kg. In this case, opening a 4-metre-wide gate takes 9* (RB250 HS) to 10* seconds (RB500 HS).
If you are interested in the motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.

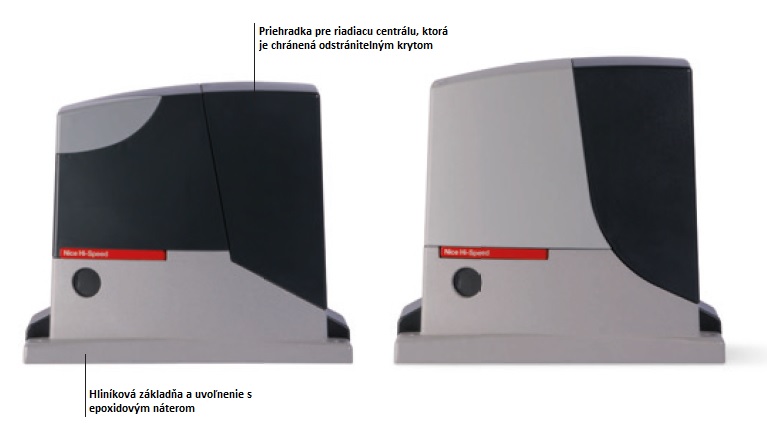

Design

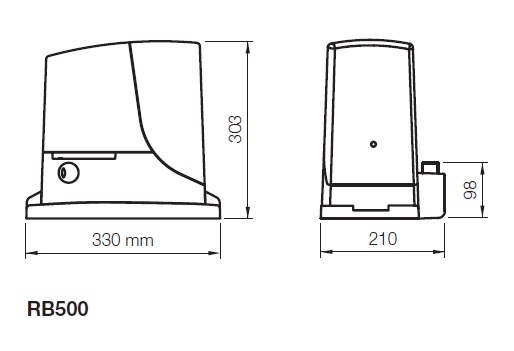

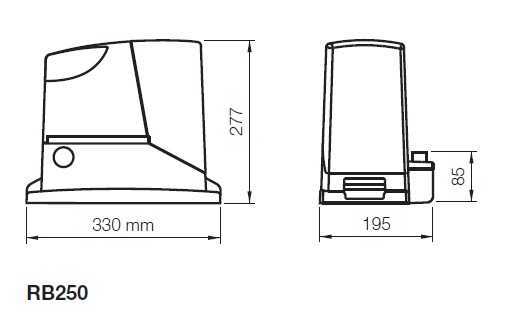

Dimensions
Recommended accessories
- receiver: OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B, FT210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Robus RB250 HS |
|---|---|
| Force | 310 N |
| Speed | 0.4 m / s |
| Duty cycle limit | 50 cycles / hour |
| Power supply | 230 V (ac) |
| Power consumption | 430 W (2.1 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 330 × 195 × 277 mm |
| Weight | 8 kg |
| Model | NICE Robus RB500 HS |
|---|---|
| Force | 360 N |
| Speed | 0.44 m / s |
| Duty cycle limit | 50 cycles / hour |
| Power supply | 230 V (ac) |
| Power consumption | 450 W (2.2 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 330 × 210 × 303 mm |
| Weight | 11 kg |
NICE Run HS
The NICE Run HS range includes the RUN400 HS and RUN1200 HS. The first model can operate sliding gates weighing up to 400 kg, while the second can handle gates weighing up to 1,200 kg. As for operating speed, the RUN400 HS can open a 4-metre-long gate in 6* seconds. The RUN1200 HS takes approximately 18* seconds to open a 7-metre-wide gate.
If you are interested in the motor, you can contact us by phone or email. You can find our contact details in this section of the Fortamigo.com.sk.

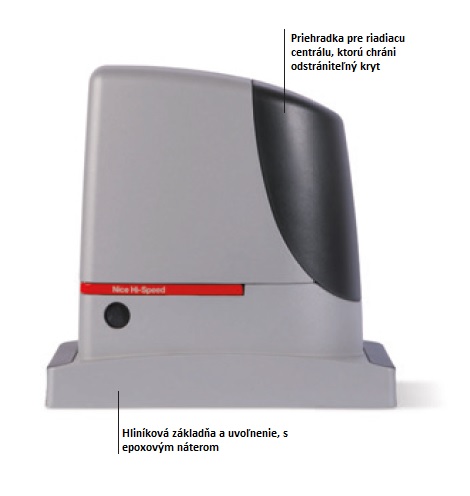

Design

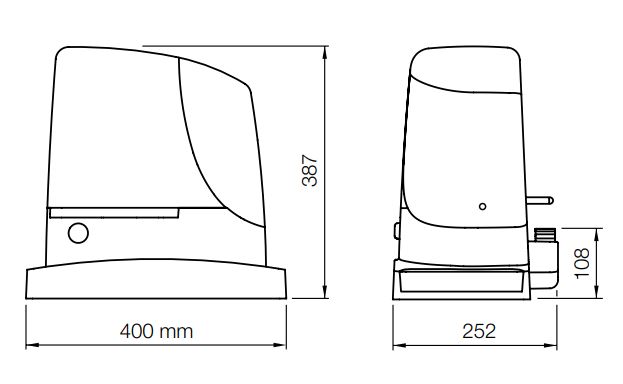

Dimensions
Recommended accessories
- receiver: OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B, FT210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Run RUN400 HS |
|---|---|
| Force | 409 N |
| Speed | 0.7 m / s |
| Cycle limit | 60 cycles / hour |
| Power supply | 230 V (ac) |
| Power consumption | 415 W (2 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 400 × 255 × 387 mm |
| Weight | 24.5 kg |
| Model | NICE Run RUN1200 HS |
|---|---|
| Force | 790 N |
| Speed | 0.37 m / s |
| Cycle limit | 60 cycles / hour |
| Power supply | 230 V (ac) |
| Power consumption | 415 W (2 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 400 × 255 × 387 mm |
| Weight | 24.5 kg |
NICE Toona HS
The NICE Toona HS range consists of very fast operators for automating swing gates. Model TO5024 HS is designed for a gate with a leaf up to 5 metres long and weighing up to 400 kg, while model TO6024 HS is for a gate with a leaf up to 6 metres long and weighing up to 1,450 kg. The high-speed versions of the standard motors can open the gate through 90 degrees in 30* (TO5024 HS) to 16* seconds (TO6024 HS).
If you are interested in this motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.

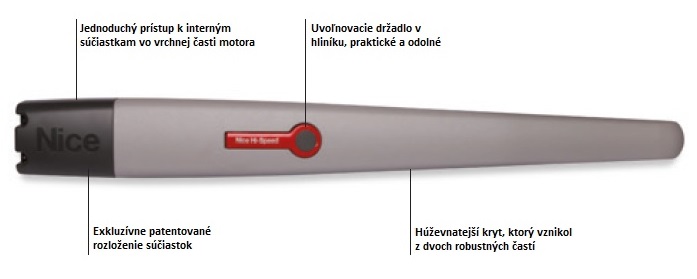

Design

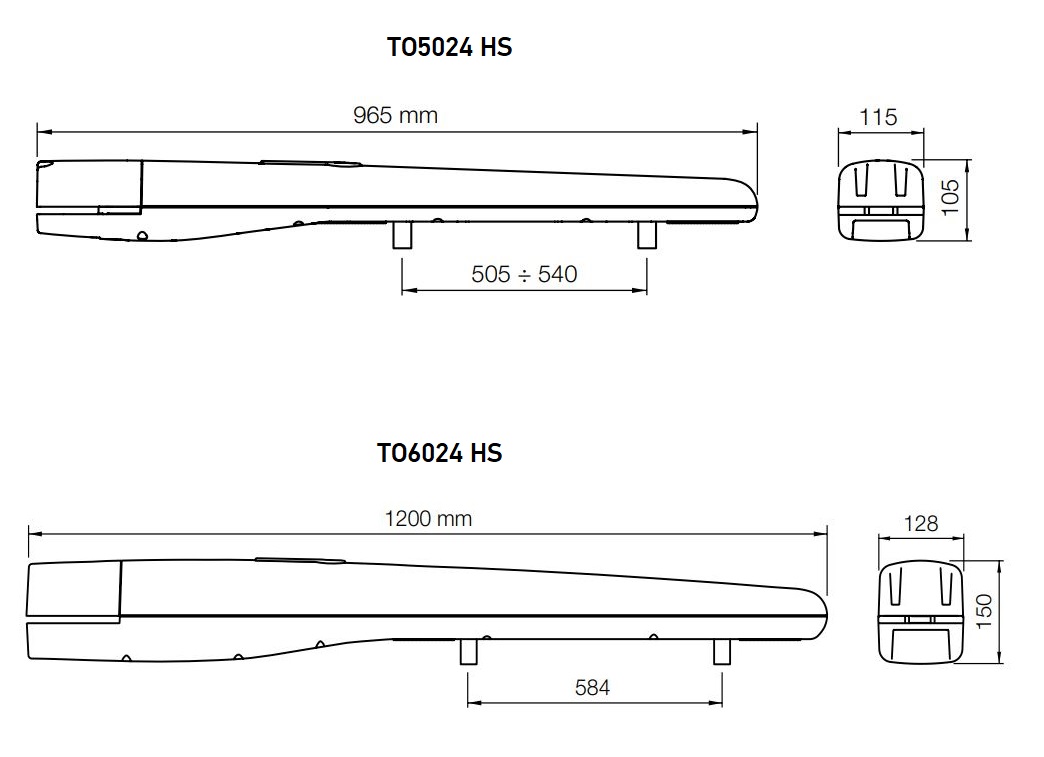

Dimensions

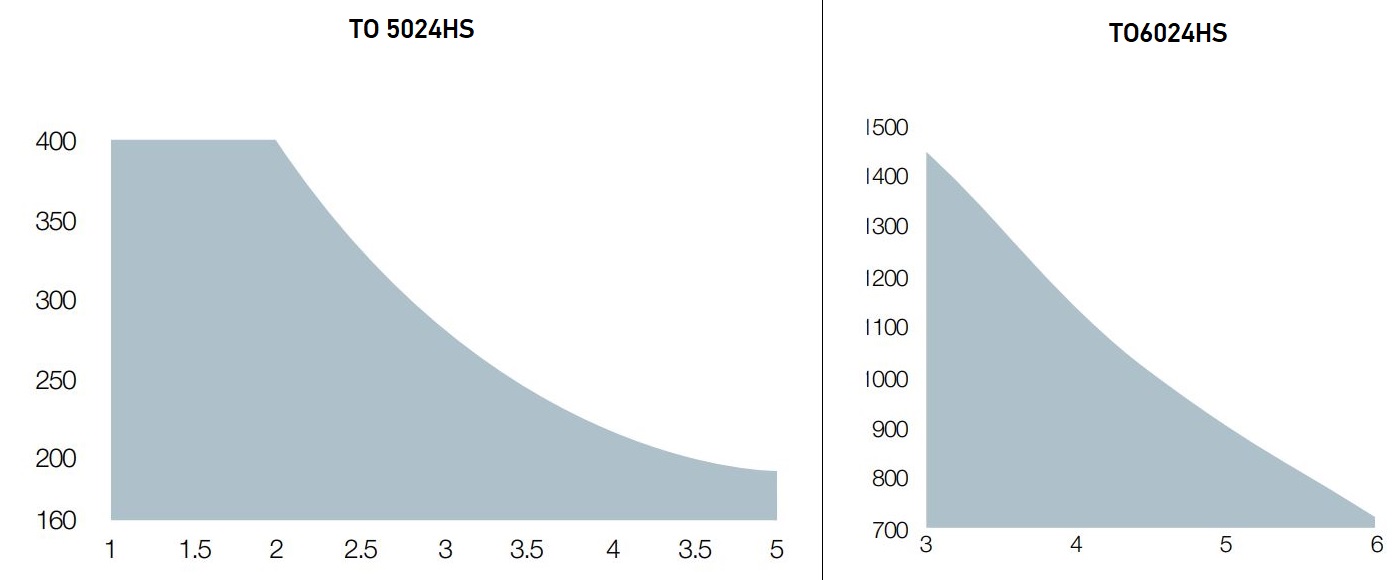

Limit chart
Recommended accessories
- control unit / receiver: MC824H / OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Toona TO5024 HS |
|---|---|
| Force | 1,800 N |
| Speed | 0.025 m / s |
| Cycle limit | 95 cycles / hour |
| Power supply | 24 V (dc) |
| Power consumption | 120 W (5 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 965 × 115 × 105 mm |
| Weight | 7.5 kg |
| Model | NICE Toona TO6024 HS |
|---|---|
| Force | 2,200 N |
| Speed | 0.016 m / s |
| Cycle limit | 41 cycles / hour |
| Power supply | 24 V (dc) |
| Power consumption | 120 W (5 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 1200 × 128 × 150 mm |
| Weight | 15 kg |
NICE Wingo HS
The NICE Wingo HS range consists of an operator designated WG3524 HS, which provides fast operation of swing gates. It can open through 90 degrees in approximately 10* seconds. In terms of capacity, the motor can automate gates up to 3 metres or 200 kg.
If you are interested in a motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.

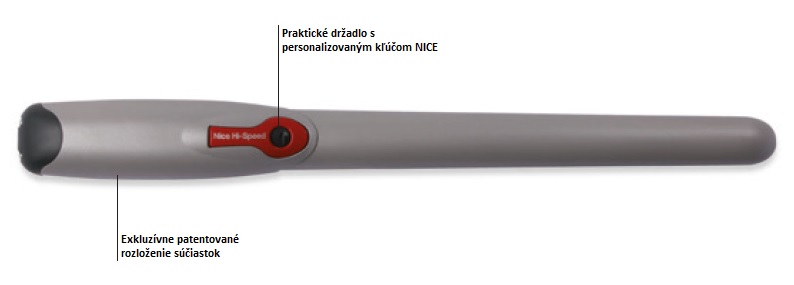

Design

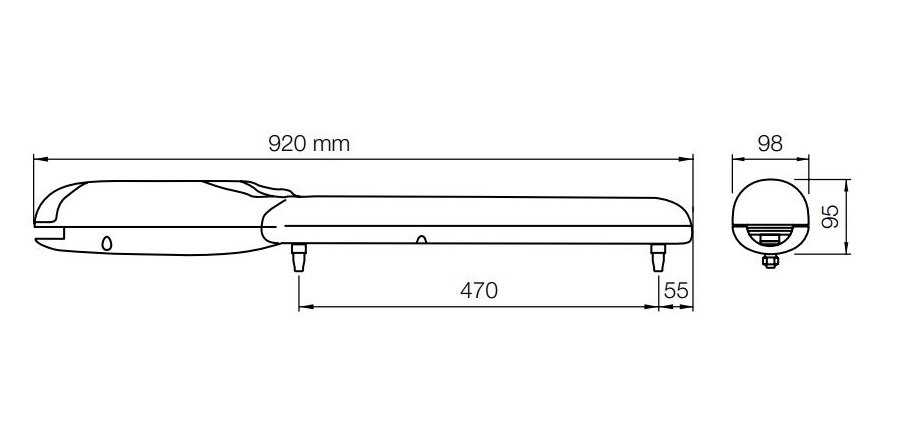

Dimensions

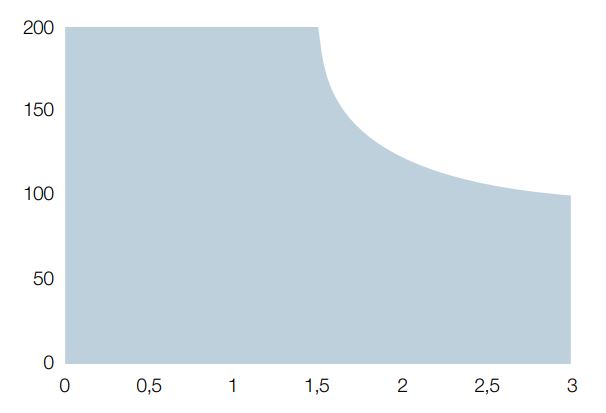

Limit graph
Recommended accessories
- control unit / receiver: MC824H / OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Wingo WG3524 HS |
|---|---|
| Force | 1 500 N |
| Speed | 0,04 m / s |
| Cycle limit | 30 cycles / hour |
| Power supply | 24 V (dc) |
| Power consumption | 120 W (5 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 920 × 98 × 95 mm |
| Weight | 6 kg |
NICE Titan HS
The NICE Titan HS range includes a total of four different high-speed motors. TTN3724 HS and TTN3724 RHS can handle sliding gates up to 3.7 metres long, while TTN6024 HS and TTN6024 RHS can handle gates up to 6 metres long (or 450 kg). As for opening speed, the first two models can open to 90 degrees in just 12* seconds. The other two are about 7* seconds slower.
If you are interested in a motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.

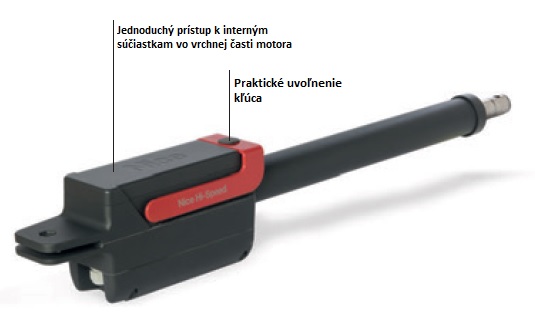

Design

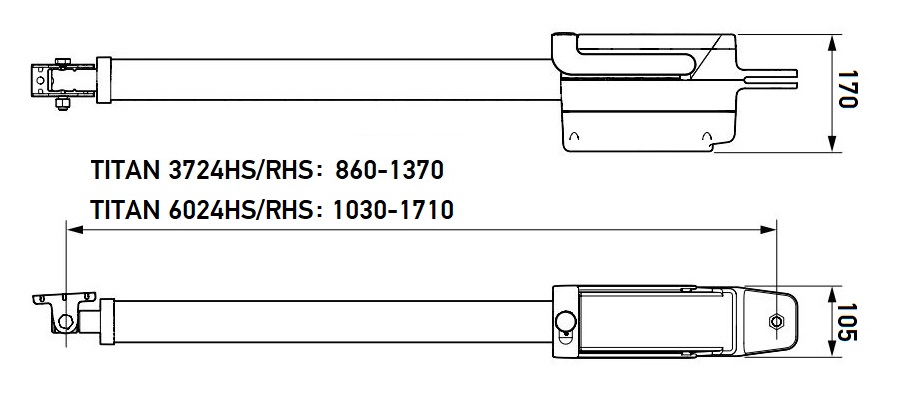

Dimensions

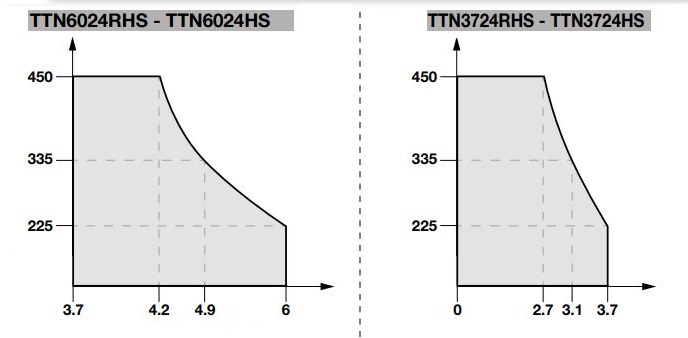

Limit graph
Recommended accessories
- control unit / receiver: MC824H / OXI, OXIBD, OXILR (TTN3724 HS + TTN6024 HS) + MC824HR / OXI, OXIBD, OXILR (TTN3724 RHS + TTN6024 RHS)
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Titan TTN3724 HS |
|---|---|
| Force | 1 900 N |
| Speed | 0,032 m / s |
| Cycle limit | continuous duty cycle |
| Power supply | 24 V (dc) |
| Power consumption | 150 W (6 A) |
| Operating temperature | -20 °C to +55 °C |
| Protection rating | IP54 |
| Dimensions | 910 × 105 × 170 mm |
| L max / L min | 1370 / 860 mm |
| W x H | 105 x 170 mm |
| Weight | 6 kg |
| Model | NICE Titan TTN6024 HS |
|---|---|
| Force | 1 900 N |
| Speed | 0.027 m / s |
| Cycle limit | continuous duty cycle |
| Power supply | 24 V (dc) |
| Power consumption | 150 W (7 A) |
| Operating temperature | -20 °C to +55 °C |
| Protection rating | IP54 |
| Dimensions | 1080 × 105 × 170 mm |
| L max / L min | 1710 / 1030 mm |
| W x H | 105 x 170 mm |
| Weight | 9 kg |
| Model | NICE Titan TTN3724 RHS |
|---|---|
| Force | 1 900 N |
| Speed | 0.032 m / s |
| Cycle limit | continuous duty cycle |
| Power supply | 24 V (dc) |
| Power consumption | 170 W (6 A) |
| Operating temperature | -20 °C to +55 °C |
| Protection rating | IP54 |
| Dimensions | 910 × 105 × 170 mm |
| L max / L min | 1370 / 860 mm |
| W x H | 105 x 170 mm |
| Weight |
8 kg |
| Model | NICE Titan TTN6024 RHS |
|---|---|
| Force | 1 900 N |
| Speed | 0.027 m / s |
| Cycle limit | continuous duty cycle |
| Power supply | 24 V (dc) |
| Power consumption | 170 W (7 A) |
| Operating temperature | -20 °C to +55 °C |
| Protection rating | IP54 |
| Dimensions | 1080 × 105 × 170 mm |
| L max / L min | 1710 / 1030 mm |
| W x H | 105 x 170 mm |
| Weight | 9 kg |
NICE Hyke HS
The Hyke HS high-speed motor range consists of two models. The first is the HK7024 HS motor with a built-in control unit for single-leaf gates, while the second is the HK7224 HS motor without a control unit, used in combination with the first motor for double-leaf gates. The HYKE motor’s biggest advantage is its ability to open a gate mounted on a wide post, with the hinges set up to 40 cm back.
If you are interested in this motor, you can contact us by phone or email. You can find our contact details in this section of the Fortamigo.com.sk.

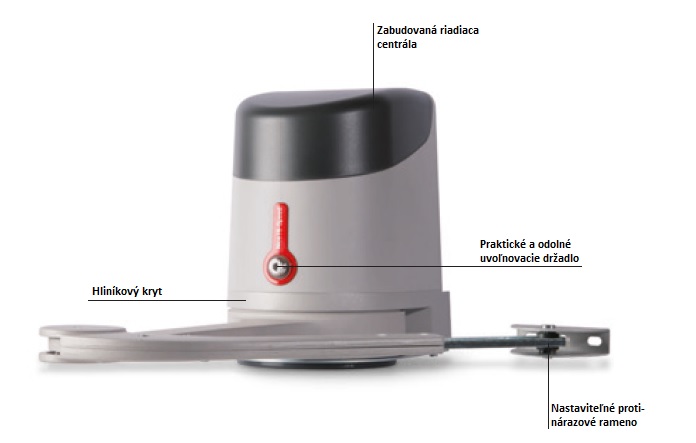

Design

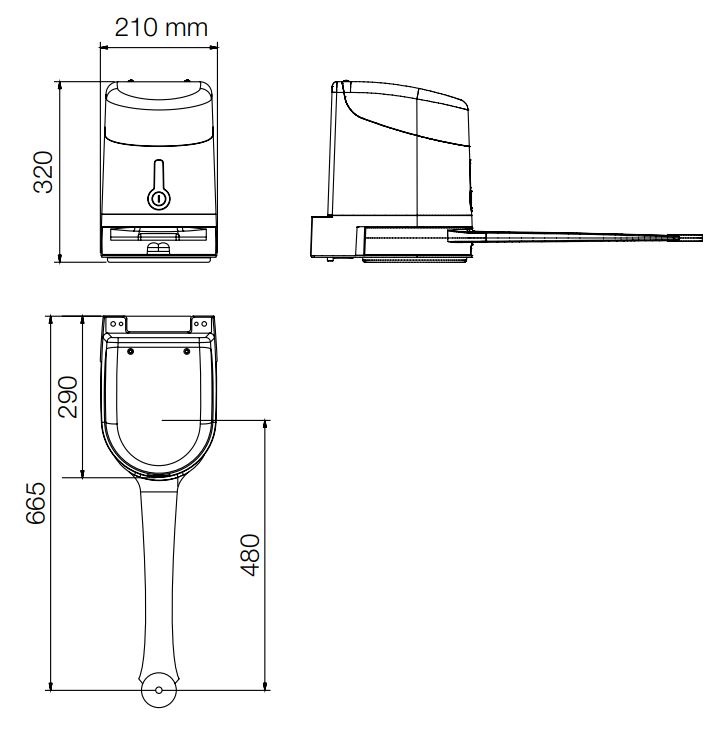

Dimensions

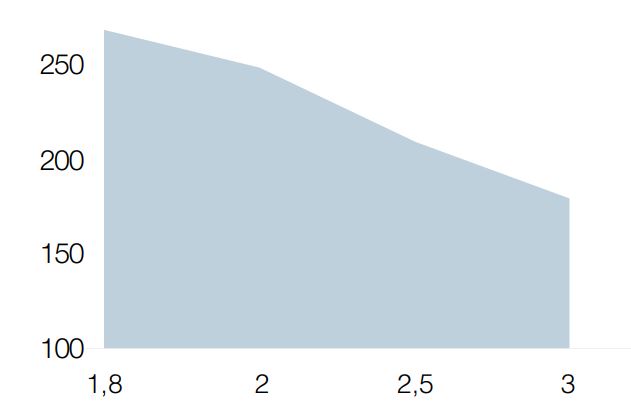

Limit graph
Recommended accessories
- control unit / receiver: built-in (HK7024 HS) / OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Hyke HK7024 HS |
|---|---|
| Speed | 2 rpm |
| Torque | 500 N.m |
| Cycle limit | 40 cycles / hour |
| Power supply | 230 V (ac) |
| Power consumption | 300 W (1,5 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP54 |
| Dimensions | 290 × 210 × 320 mm |
| Weight | 10,5 kg |
| Model | NICE Hyke HK7224 HS |
|---|---|
| Speed | 2 rpm |
| Torque | 500 N.m |
| Cycle limit | 40 cycles / hour |
| Power supply | 24 V (dc) |
| Power consumption | 140 W (6 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP54 |
| Dimensions | 290 × 210 × 320 mm |
| Weight | 9,5 kg |
NICE M-Fab HS
Underground high-speed motor MFAB3024 HS belongs to the NICE M-Fab HS, designed for intensive use and fast operation of swing gates up to 3 metres long or weighing up to 300 kg. The user can open the gate to 90 degrees in approximately 8* seconds.
If you are interested in this motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.

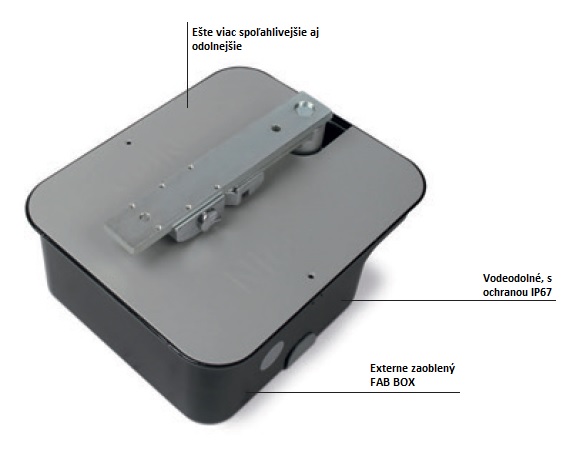

Design

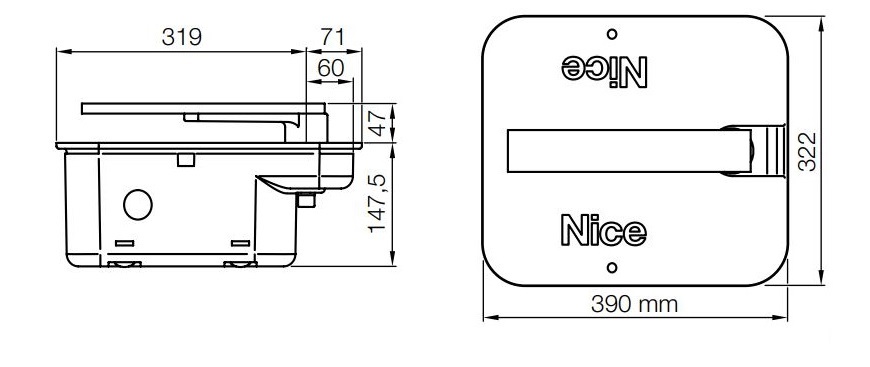

Dimensions

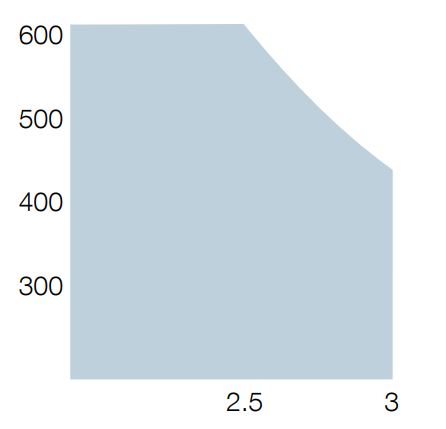

Limit graph
Recommended accessories
Technical specifications
| Model | NICE M-Fab MFAB3024 HS |
|---|---|
| Speed | 2,6 rpm |
| Torque | 180 N.m |
| Cycle limit | 80 cycles / hour |
| Power supply | 24 V (dc) |
| Power consumption | 170 W (6 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP67 |
| Dimensions | 390 × 322 × 194 mm |
| Weight | 11 kg |
NICE L-Fab HS
Model range NICE L-Fab HS consists of the underground motor LFAB4024 HS, which offers very fast operation. It can open the gate to 90 degrees in just about 6* seconds. In terms of capacity, the maximum gate length is 4 metres, and the maximum weight is 400 kg.
If you are interested in this motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com

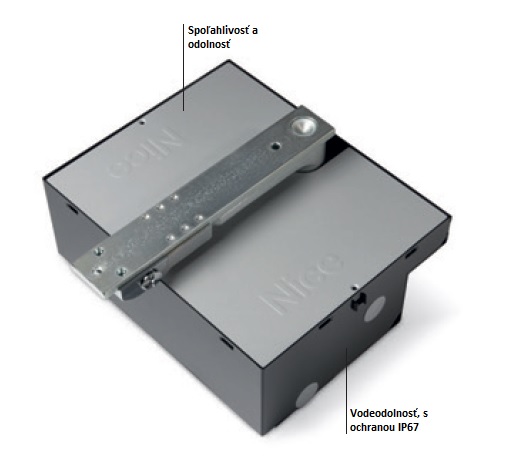

Design

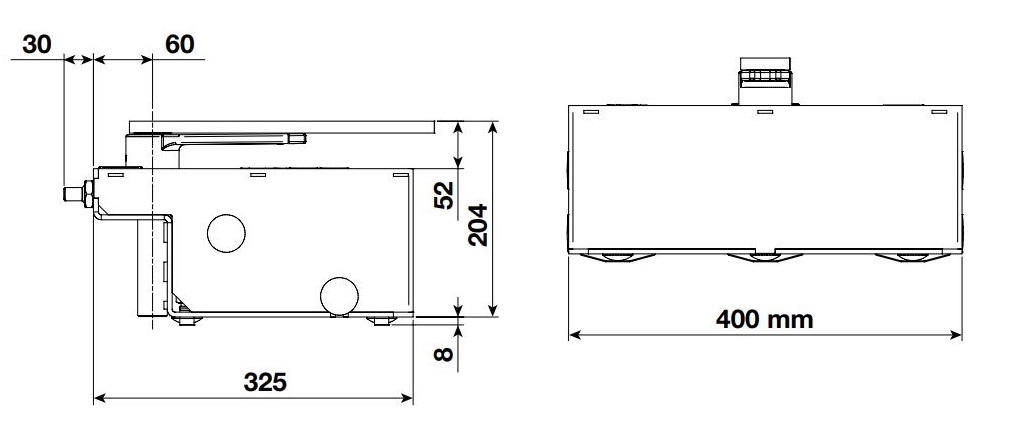

Dimensions

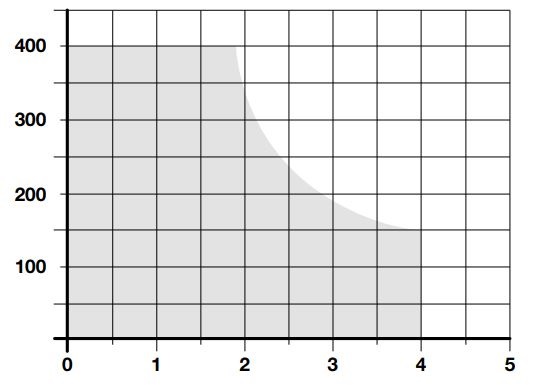

Limit graph
Recommended accessories
- control unit / receiver: MC842H / OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE L-Fab LFAB4024 HS |
|---|---|
| Speed | 3 rpm |
| Torque | 200 N.m |
| Duty cycle limit | 50 cycles/hour (50% at 180°) |
| Power supply | 24 V (dc) |
| Power consumption | 170 W (7 A) |
| Operating temperature | -20 °C to +55 °C |
| Protection rating | IP67 |
| Dimensions | 375 × 225 × 110 mm |
| Weight | 14.4 kg |

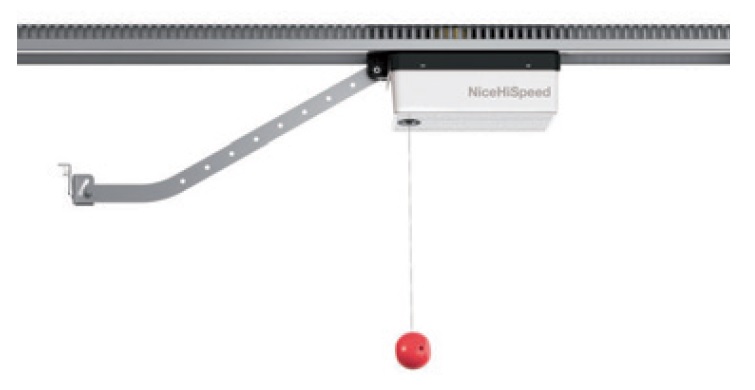

NICE Spykit 650 HS BD
High-speed motor NICE Spykit 650 HS BD is designed for sectional doors up to 10.5 square metres and up-and-over doors up to 11.5 square metres. In both cases, the operating speed is approximately 8.5* seconds.
If you are interested in this motor, you can contact us by phone or email. You can find our contact details in this section of the fortamigo.com.
Design

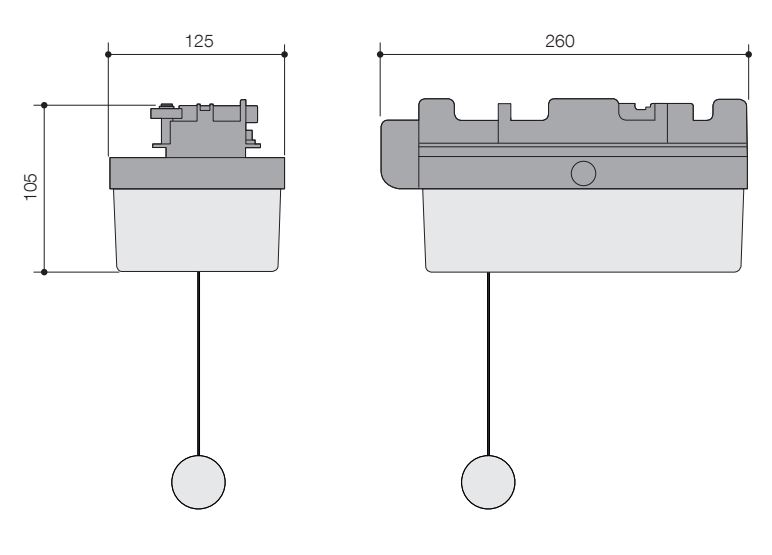

Dimensions
Recommended accessories
- control unit / receiver: built-in (SPYBOX HS; the built-in receiver is not compatible with the Opera system) / OXI, OXIBD, OXILR
- transmitter: ERA INTI, ERA ONE, ERA ONE BD, ERA ONE LR, ERA FLOR, NICEWAY
- photocells: EPSB, EPMB, EPLB, EPMOW, F210B, FT210B
- warning light: ELDC, WLT
Technical specifications
| Model | NICE Spykit 650 HS BD |
|---|---|
| Force | 409 N |
| Speed | 0.7 m / s |
| Duty cycle limit | 60 cycles/hour |
| Power supply | 230 V (ac) |
| Power consumption | 415 W (2 A) |
| Operating temperature | -20 °C to +50 °C |
| Protection rating | IP44 |
| Dimensions | 400 × 255 × 387 mm |
| Weight | 24.5 kg |
* The starred figures indicate the time for a standard installation. However, they do not include the gate's acceleration and deceleration.
