NICE M-Fab MFAB3024 drive kit for a double-leaf gate – one leaf 3.5 m/600 kg
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,979.35 including VAT
| Weight |
|---|
| 33 kg |
Description of NICE M-Fab MFAB3024 drive kit for a double-leaf gate – one leaf 3.5 m/600 kg
The kit comes with non-reversible electromechanical 24 V motors and is designed for a double-leaf gate with a leaf length of up to 3.5m and a leaf weight of up to 600kg. NICE M-FAB is fully compatible with the previous Metro range.
The operator also serves as the gate's bottom hinge.
| THE KIT INCLUDES: | NICE-MFAB3024-BE2 | |||
|---|---|---|---|---|
 |
2 × | NICE M-FAB3024 underground operator | NICE-MFAB3024 | |
|
NICE M-Fab 3024 - underground operator for a swing gate with a leaf up to 3,5m/600kg |
Detail | |||
 |

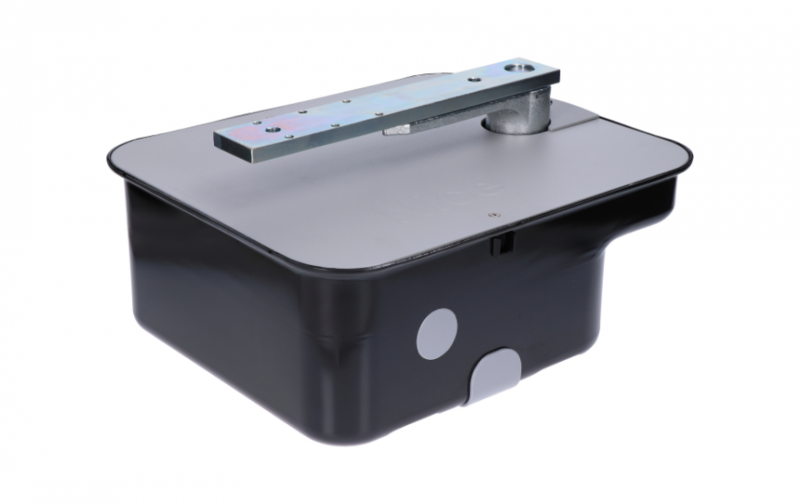

2 × | MFABBOX foundation box | NICE-MFABBOX | |
|
FNICE MFABBOX foundation box for NICE M-Fab 3000/3024 underground operators. Cataphoresis-treated steel |
Detail  |
|||
 |

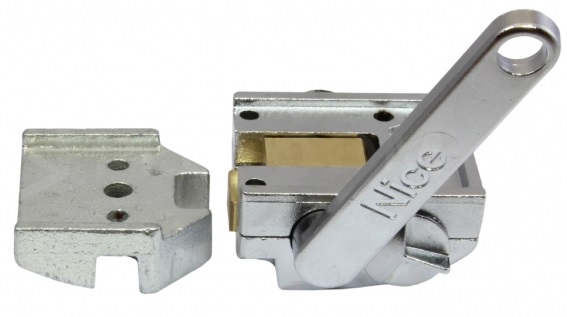

2 × | Lever release with key | NICE-MEA3 | |
|
Lever release with key for M-Fab operators |
Detail | |||
 |
1 × | Control unit for 24 V operators | NICE-MC824HR30 | |
|
The control unit is housed in a designer enclosure and includes the MC824HR30 control board, to which the operators and accessories are connected. It is part of the automation system. |
Detail | |||
 |
1 × | Internal radio receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Detail | |||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for operating an automatic gate. Use it to control four devices or send four different commands to one device. Compatible with all NICE operators using O-Code rolling-code technology (the 72-bit code offers 4.7 quadrillion combinations, making it virtually impossible to compromise) and an LED indicator for the transmitted signal. |
Detail |
|||
 |

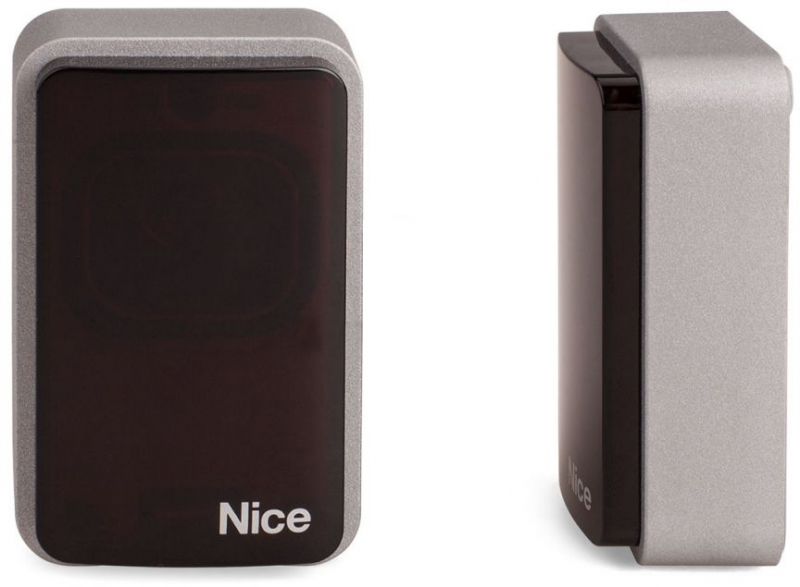

1 × | Pair of NICE EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the gate opening. They create an infrared beam which, when interrupted by a vehicle or pedestrian, for example, sends a signal to the operator to stop the gate or prevent it from opening. |
Detail | |||
 |

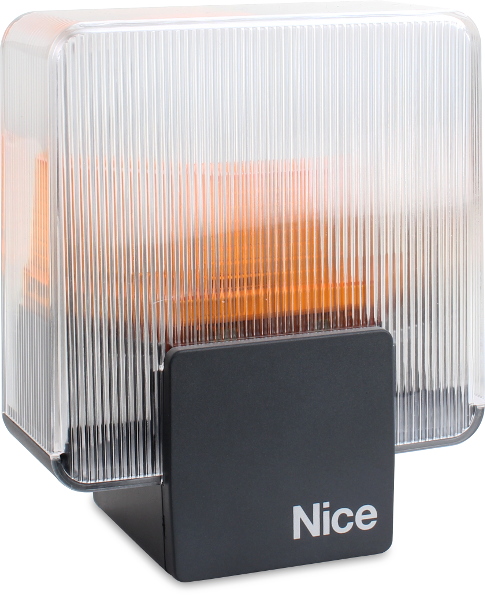

1 × | NICE ELDC LED flashing light with antenna |
NICE-ELDC | |
|
NICE ELDC LED flashing warning light, made of impact-resistant polycarbonate and fitted with a built-in antenna for extended remote-control range (up to 150 m). |
Detail |
|||
 |
1 × | NICE M-FAB 3024 installation manual | ||
|
Installation manual for a successful installation, with illustrative wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
Compatible accessories
We also recommend purchasing these compatible optional accessories for the operator:
| What | Why | Type |
|---|---|---|
| Control unit |
Operator control electronics. |
|
| Flashing light | Flashes to indicate gate movement—ideal for exits with limited visibility. Also includes an antenna for greater remote-control range. |
Alternatively all beacons with a 12V–24V power supply from other manufacturers. |
| Photocells | They detect an obstacle while closing and stop the movement—the gate will not hit a car or people. | |
| Transmitter | For remote control of the gate. | |
| Receiver |
For remote control of the gate. |
|
| Antenna | For better remote-control range. | |
| Keypad | If you forget your remote control, or have many vehicles/people and do not want to give everyone a remote control. | |
| Key switch | Operate the gate with a key using a switch wired to the drive. | |
| Electric locks | The safety electric locks are synchronised with the drive via the control unit. When a command is sent to the drive, the electric lock unlocks first, and only then does the gate begin to open. Likewise, after the gate closes, the electric lock engages. Required for gate leaves longer than 3m. |
|
| Card readers | Operate the drive by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operating during a power outage. |
|
DRIVE TECHNICAL SPECIFICATIONS:
| Control unit | MC824HR10 |
| Power supply | 230 V |
| Motor voltage (24, 230V) | 24 V |
| Power consumption | 120 W |
| Force | 250Nm N |
| Motor current | 5 A |
| Gate type | double-leaf |
| Duty type | intensive |
| Protection rating | IP 67 |
| Operating temperature | -20 +55 °C |
| Installation | underground |
| Length of one gate leaf | 3.5 m |
| Gate leaf area - open infill | 6 m² |
Advantages of M-Fab motors
- Compact drive housing with a depth of just 147.5 mm. Steel construction with a cataphoresis coating for corrosion protection. Motor height above ground: just 47 mm.
- Quick and easy installation thanks to the bracket on the motor, which attaches directly to the gate leaf.
- Adjustable mechanical opening and closing stops.
- Opens up to 110°, can be extended up to 360° using accessories NICE MEA1.
- Motor protection rating IP67.
- The drive can be unlocked from both the inside and the outside using a special key.
For more information about the drive, please visit the page for the NICE MFAB3024 standalone drive.
The drive was previously referred to as NICE METROPLEX ME3024.
