Drive kit for sliding gates up to 400 kg/8 m NICE Road RD400 (E)
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€523.54 including VAT
| Weight |
|---|
| 15 kg |
Description of Drive kit for sliding gates up to 400 kg/8 m NICE Road RD400 (E)
NICE Road RD400 drive is designed for sliding gates weighing up to 400 kg and a passage width of up to 8 m (recommended maximum length 5m). It has an electromechanical stop switch. The drive is non-reversible. Detailed technical specifications ». Download the manual ».
| Set NICE-RD400-E contains: | ||||
|---|---|---|---|---|
|
1 × | NICE Road 400 Gate Opener | NICE-RD400-A | |
|
NICE electromechanical operator with RBA4R10 control unit and built-in receiver, suitable for gates weighing up to 400 kg.
|
Details
|
|||
|
1 × | NICE Era INTI2 Remote Control | NICE-INTI2 | |
|
Remote control with two buttons for operating a gate automatically from a distance. You can use it to control two devices or send two different commands to one device. |
Details
|
|||
|
4 m | Rack with metal reinforcement | LZ-1-1 | |
|
A sliding gate with a fixed rack is moved by the drive gear via a rack-and-pinion mechanism. |
Details
|
|||
|
1 × | NICE EPM photocells with conventional wiring | NICE-EPM | |
|
NICE EPM outdoor safety photocells are installed opposite each other across the gate opening, or at any point where there is a risk of the gate hitting an obstacle. |
Details
|
|||
|
1 × | Installation Manual for the NICE Road 400 Gate Opener |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
2 unlocking keys
End stops
(Is this gate opener right for me?)
Compare with other gate openers:
| « Weaker set | Alternative set | Stronger set » |
|---|---|---|
|
No. |
|
|
Gate opener features NICE Road 400
This compact, safe and practical gate opener is ideal for both residential and commercial use. Impact-resistant cover, aluminium alloy body with an epoxy coating.
The gate opener is suitable for automating a sliding gate weighing up to 400 kg, with a leaf length of up to 8 m. These figures apply under the conditions specified by the manufacturer, including weather conditions, temperature differences, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Road RD400 gate opener with gates operating at up to 60% of these limits. See the Choosing a gate opener chapter for more information.
The standard wiring allows you to power and control 2 pairs of photocells using a four-core cable.
The temperature sensor adjusts the gate opener's pulling force according to the climatic conditions.
Adjustable speed,, force and pause time for automatic gate closing, and more; see Programming.
Diagnostics using a warning beacon.
The gear wheel module 4 is compatible with the rack in our range.
The NICE Road RD400 is an electromechanical gate opener suited to Slovakia's climate and compliant with all European safety standards.
The NICE Road RD400 in pictures

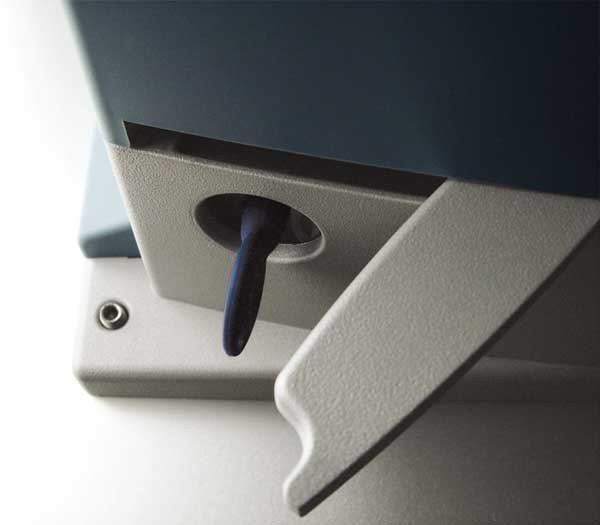

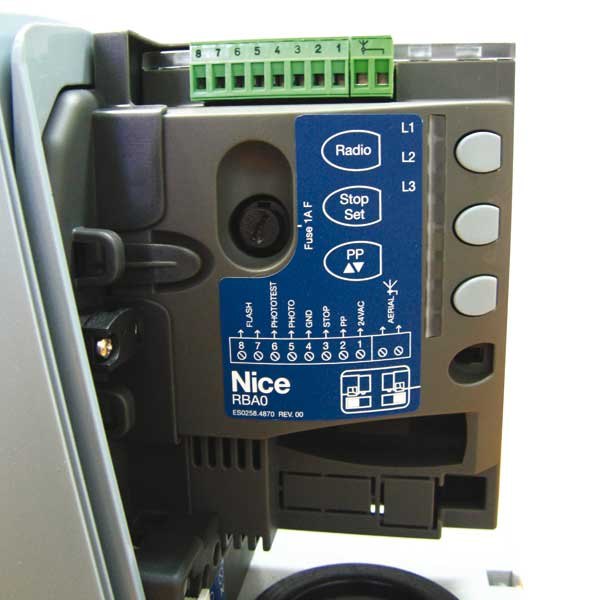

| manual release | control unit | wiring diagram |
|---|---|---|
 |
 |
 |
| Instructions for manual release > |
Programming the gate opener > |

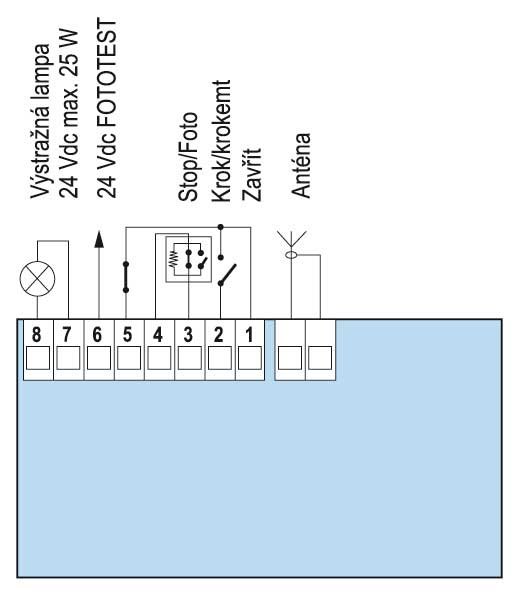

Detailed wiring diagram > |
For a detailed wiring diagram and more technical information, visit the NICE Road RD400 gate opener's product page, or consult the manual..
Warning: if you do not use photocells, the gate opener can still operate without them, but you will need to connect on the terminal block bridge terminals 1 and 5.
Gate opener technical specifications NICE Road RD400
| Speed | 0,25 m/s |
|---|---|
| Power supply | 230V, 50Hz |
| Power consumption | 210W |
| Torque | 12NM |
| Max. rated torque | 5 |
| Max. gate weight | 400kg |
| Ingress protection rating | IP 44 |
| Operating temperature | -20°C to +50°C |
| Insulation class | 1 |
| Gear module | 4 |
Complete technical specifications on the website NICE Road RD400 drive unit only.
Compatible accessories for the NICE Road RD400 drive unit
We also recommend purchasing compatible optional accessories for the drive unit, or choosing one of the pre-assembled discounted kits:
| What | Why | Type |
|---|---|---|
| Warning light | The warning light flashes to indicate that the gate is moving—ideal for exits with poor visibility. It also has a built-in antenna for greater remote-control range. | - LED warning light with antenna ELDC - multifunctional LED light WLT |
| Photocells | When closing, they detect an obstacle and stop the gate—preventing it from hitting cars or people. | - photocells with conventional wiring BF - Era Photocell Medium EPM - Era Photocell Large EPL - Era Photocell Slim EPS - wireless/conventional FT210 - Era Photocell Medium Antivandal EPMA |
| Transmitter | For remote control of the gate. | - Era One ON2E, ON3EBD, ON3ELR, ON4E, ON9E - Era Flor Flo2RE, Flo4RE - FloR Flo2R-s, Flo4R-s - Inti INTI2, INTI2Y, INTI2L, INTI2B, INTI2R, INTI2G |
| Receiver | For remote control of the gate. The Road 400 drive unit already has a built-in receiver. These additional receivers are optional extras. |
- Wi-Fi receiver IT4WIFI - GSM receiver GSM LITE3+, GSM SMART3, GSM PROFI3 |
| Antenna | For better remote-control range. | - integrated into the warning light ELDC - standalone antenna ABFKIT |
| Keypad | If you forget your remote control, or if many vehicles or people visit and you don't want to give everyone a remote control or open the gate manually. | - wired EDS |
| Key switch | For operating the gate with a key via a switch connected by cable to the drive unit, which can be installed anywhere. | - surface-mounted, with a standard cylinder EKS - surface-mounted, with a European cylinder, EKSEU - flush-mounted, with a standard cylinder EKSI - flush-mounted, with a European cylinder EKSIEU |
| Card readers | Control the drive by presenting a card or key fob to the card reader. | - ERA Transponder Reader ETP |
| Gearing | Required for the drive automation itself — without a rack, the drive has nothing to move the gate with. | - nylon, with steel reinforcement, 33 cm LZ-1 - nylon, with steel reinforcement, 1 m LZ-10 - nylon, with steel reinforcement, reverse, 1 m LZ-15 - steel, 30x8mm, 1 m LZ-3 - steel, 30x12mm, 1 m LZ-5 - stainless steel, 30x10mm, 1 m LZ-7 |
| Backup power supply | Keeps the gate operating during a power outage. | - backup battery PS124 |
Manuals and documents for download
