NICE Wingo 3524 drive kit for a double-leaf gate – single leaf 3.5 m/500 kg (X)
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€769.07 including VAT
| Weight |
|---|
| 12 kg |
Description of NICE Wingo 3524 drive kit for a double-leaf gate – single leaf 3.5 m/500 kg (X)
Gate operator NICE Wingo WG3524 is designed for automating swing gates up to leaf length 3.5 m and weight up to 5000 kg. The operator uses 24V and features PLA13 mechanical opening stop. The operator is non-reversible. The Wingo range offers good value for money for automating swing gates in residential and light industrial settings. The entire Wingo range is reliable and quiet. Detailed technical specifications ». Download the manual ». NICE Wingo WG3524 comes with a new control unit MC424LR30 which incorporates the control board MCA2R30 with a built-in receiver, The slot for an add-on receiver has been retained in case you want to use an older receiver with your transmitters already programmed.
| The set includes: | NICE-WG3524-BX2 | |||
|---|---|---|---|---|
 |
2 × | NICE Wingo WG3524 gate operator | NICE-WG3524 | |
|
NICE Wingo WG3524 electromechanical gate operator, suitable for gate leaves weighing up to 500 kg and measuring up to 3.5 m in length. |
Details | |||
 |
1 × | NICE MC424LR30 control unit | NICE-MC424LR30 | |
|
The Moonclever control unit in a stylish enclosure incorporates a MCA2R30 with a built-in receiver, to which the operators and accessories are connected, is an essential part of the automation system. |
Details  |
|||
 |
2 × | NICE Era INTI2 remote control | NICE-INTI2 | |
|
Two-button remote control for operating a gate automatically from a distance. Use it to control two devices, or to send two different commands to one device. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, use it to release the operator so the gate can be moved manually by pushing or pulling it. |
||||
 |
1 × | NICE Wingo WG3524 installation manual | ||
|
Installation manual for a successful setup, with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
| 1 × | Installation accessories | |||
|
Components for mounting the operator, including front and rear weld-on brackets, |
||||
(Is this operator right for me?)
Compare with other operators:
| « Lower-powered kit | Alternative operator | More powerful kit » | |||||
|---|---|---|---|---|---|---|---|
|
NICE Wingo WG2024 operator kit
|
230V NICE Wingo operator:
Quote and delivery available on request. |

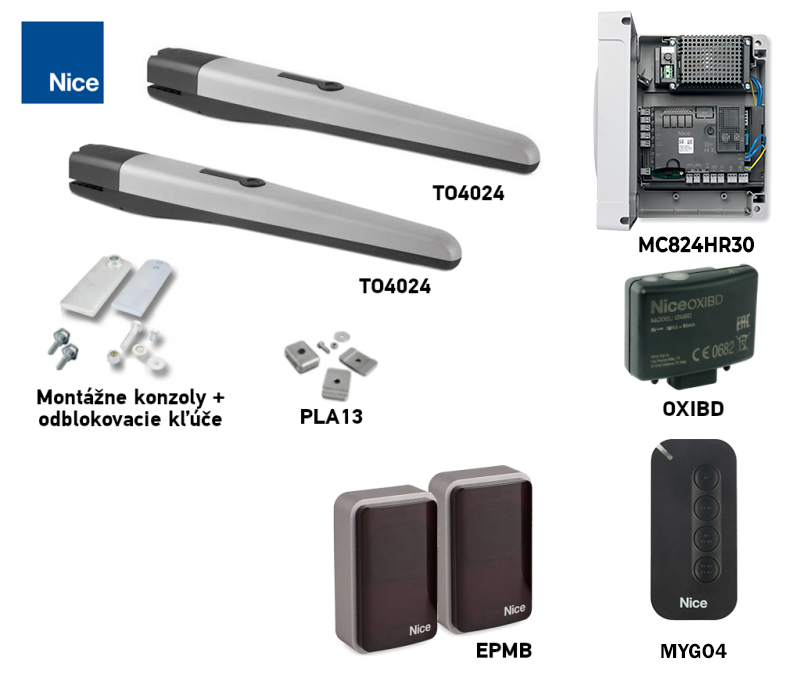

NICE Toona 4 TO4024 operator kit
|
OPERATOR FEATURES NICE WINGO WG3524
The operator has a two-piece die-cast aluminium housing with a polyester finish that resists weathering. All internal moving parts are made of steel, light alloys and technopolymers. The lead nut is made of bronze to ensure strength and quiet operation. The starting capacitor is located inside the operator for easier installation. The operators are dimensionally backward-compatible with the previous Moby and Pluto ranges from the Italian manufacturer NICE; all mounting dimensions and pin diameters are the same. The operator uses 24V, making it better suited to applications with more frequent use than the 230V version. However, it is not suitable for windy conditions, especially with opaque, solid gate infill.
Control unit MCA2R30 in the control panel MC424LR30 allows easy programming, automatic learning of end positions, automatic fault diagnostics, setting the pause time in automatic closing mode, pedestrian access, slow-down before end positions, obstacle impact detection, and emergency operation when using the PS124 backup power supply, using the connecting cable CABLA11, input for all types of safety edges for the operator, and much more.
ACCESSORIES COMPATIBLE WITH THE NICE WINGO WG3524 OPERATOR
We also recommend purchasing these optional accessories compatible with the operator:
| What | Why | Type |
|---|---|---|
| Control panel | Operator control electronics. Includes a built-in control unit. Conventional wiring system. |
|
| Flashing warning light | Flashes to indicate gate movement—ideal for exits with limited visibility. Also includes an antenna for increased remote-control range. |
Alternatively, any warning lights with a 12V-24V power supply from other manufacturers. |
| Photocells | They detect obstacles while the gate is closing and stop its movement, preventing it from hitting vehicles or people. | |
| Remote control | For operating the gate remotely. | |
| Receiver |
For operating the gate remotely. The control unit MCA2R30 already has a built-in receiver. These additional receivers are optional. |
|
| Antenna |
For better remote-control range. |
|
| Keypad |
If you forget your remote control, or if many vehicles or people visit your property and you don't want to give everyone a remote or open the gate manually. |
|
| Key switch |
Operate the gate with a key using a switch connected to the drive by cable, wherever you choose to install it. |
|
| Card readers |
Operate the drive by presenting a card or key fob to the card reader. |
|
| Electric locks |
The safety electric locks are synchronized with the drive via the control unit. When a command is sent to the drive, the electric lock is unlocked first, and only then does the gate begin to open. Likewise, once the gate closes, the electric lock is engaged. Required for gate leaves over 3.5 m long. |
|
| Backup power supply |
Backup power source. |
NICE WINGO WG3524 DRIVE MANUAL
NICE drive manual Wingo WG3524 download here:
NICE Wingo WG3524 drive manual
NICE Wingo drive photo gallery
|
Installation example |
Installation example |
Installation example |
|
Installation example |
Installation example |
Installation example |
|
Installation demonstration
|
Operator in the released state |
Operator with the cover removed |
|
Rear view from below |
Worm screw and internal mechanical stop |
Front view from below |
|
Rear view with the cable connected |
Technical specifications
| Detailed technical specifications of NICE Wingo WG3524 operators > | Detailed technical specifications of the NICE Moonclever MC424LR30 control unit > |
