NICE S-Fab SFAB2124 Drive Kit for a Double Swing Gate – One Leaf 2.3 m/400 kg
TOP| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,723.50 including VAT
| Weight |
|---|
| 33 kg |
Description of NICE S-Fab SFAB2124 Drive Kit for a Double Swing Gate – One Leaf 2.3 m/400 kg
Underground operator kit with non-reversible electromechanical 24V motors, designed for a double-leaf gate with a leaf length of up to 2.3m and a leaf weight of 400kg.
A modern underground operator that offers easy installation thanks to its low height of 81mm. The gate leaf can open either with the help of built-in limit stops (±10° tolerance) to 90° or 180°, or with the help of external limit stops at any angle below 180°.
| KIT INCLUDES: | NICE-SFAB2124-BE2 | |||
|---|---|---|---|---|
 |

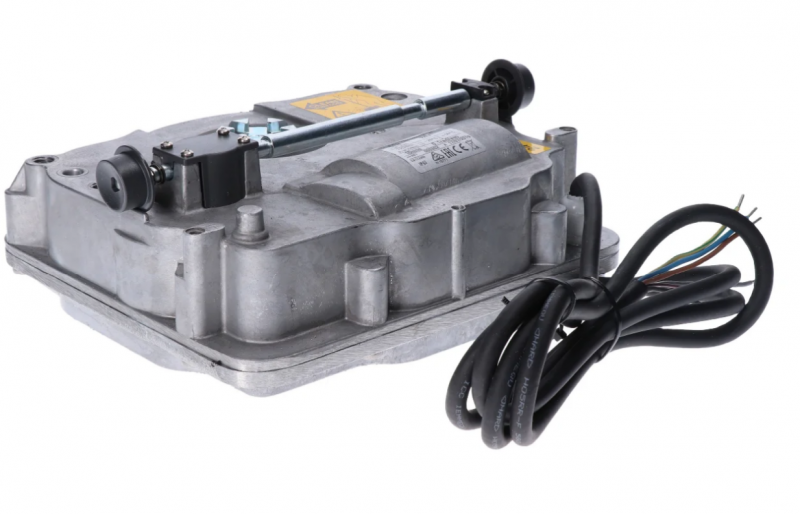

2 × | NICE S-Fab 2124 underground motor | NICE-SFAB2124 | |
|
NICE S-Fab2124 - underground operator for a swing gate with leaves up to 2.3m/400kg |
Details  |
|||
 |
2 × | Foundation box for underground operator | NICE-SFABBOX | |
|
NICE SFABBOX foundation box for the NICE S-Fab2124 underground operator. Cataphoretically treated steel. |
Details | |||
 |
1 × | NICE MC824HR30 control unit | NICE-MC824HR30 | |
|
The control unit, housed in a design box and containing the MC824HR30 control board, is part of the automation system; the operators and accessories connect to it. |
Details |
|||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for opening a gate automatically from a distance. Use it to control four devices or to send four different commands to a single device. Compatible with all NICE operators using O-Code rolling-code technology (the 72-bit code allows 4.7 quadrillion combinations, making it virtually impossible to compromise) and featuring an LED indicator for the transmitted signal. |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details |
|||
 |
1 × | Pair of NICE EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE ELDC LED flashing warning light made of impact-resistant polycarbonate, with a built-in antenna for extended remote-control range (up to 150 m). |
Details |
|||
 |
1 × | NICE S-FAB 2124 installation manual | ||
|
Installation manual for successful setup, with wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
Compatible accessories
We also recommend purchasing the following optional accessories compatible with the operator:
| What | Why | Type |
|---|---|---|
| Control unit |
Operator control electronics. |
|
| Warning light | Flashes to indicate gate movement – ideal for exits with poor visibility. Also includes an antenna for increased remote-control range. |
Alternatively, any warning lights with a 12V-24V power supply from other manufacturers. |
| Photocells | They detect obstacles while the gate is closing and stop it, preventing it from hitting vehicles or people. | |
| Transmitter | For remote gate control. | |
| Receiver |
For remote gate control. |
|
| Antenna | For better remote-control range. | |
| Keypad | If you forget your remote control, or have many vehicles/users and don't want to issue a remote control to everyone. | |
| Key switch | Operate the gate with a key using a switch wired to the drive. | |
| Electric locks | Safety electric locks are synchronised with the drive via the control unit. When a command is sent to the drive, the electric lock is unlocked first, and only then does the gate start to open. The lock is secured again once the gate has closed. They are required for gate leaves over 3 m long. |
|
| Card readers | Operate the drive by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operational during a power outage. |
|
DRIVE TECHNICAL SPECIFICATIONS:
| Control unit | MC824HR30 |
| Power supply | 230 V |
| Motor voltage (24, 230 V) | 24 V |
| Power consumption | 120 W |
| Force | 250 Nm N |
| Motor current consumption | 5 A |
| Gate type | double-leaf |
| Duty cycle | standard, intensive |
| Protection rating | IP 67 |
| Operating temperature | -20 to +55 °C |
| Installation | underground |
| Length of each gate leaf | 2.3 m |
| Gate leaf area – open infill | 4.6 m² |
| Opening time to 90° | 30 s |
| Maximum opening angle | 180° |
For more information about the drive, please visit the page for the NICE SFAB2124 drive unit.
The drive was previously known as NICE X-Fab ME2124.
