NICE L-Fab LFAB4024 drive kit for a single-leaf gate up to 4 m / 650 kg
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,441.83 including VAT
| Weight |
|---|
| 17 kg |
Description of NICE L-Fab LFAB4024 drive kit for a single-leaf gate up to 4 m / 650 kg
The kit comes with a non-reversible electromechanical 24 V motor and is designed for a single-leaf gate with a leaf length of up to 4m and a leaf weight of 650 kg.
A new underground gate operator designed mainly for entrance gates, passageways, wrought-iron gates and similar applications. Its advantages include quiet operation and an unobtrusive design..
The operator itself also serves as the bottom gate hinge.
| KIT INCLUDES: | NICE-LFAB4024-BE1 | |||
|---|---|---|---|---|
 |
1 × | NICE L-FAB4024 underground gate operator | NICE-LFAB4024 | |
|
NICE L-Fab 4024 – underground gate operator for a swing gate with a leaf up to 4 m/650 kg |
Details | |||
 |

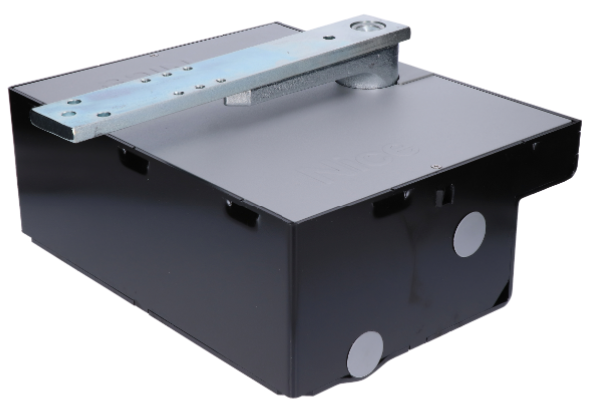

1 × | Foundation box for underground gate operator | NICE-LFABBOX4 | |
|
NICE LFABBOX4 foundation box for the NICE L-Fab 4000/4024 underground gate operator. Steel with a cataphoretic coating. |
Details  |
|||
 |
1 × | Lever release with key | NICE-BMA3 | |
|
Lever release with key |
Details |
|||
 |
1 × | Control unit for 24 V gate operator | NICE-MC824HR30 | |
|
The control unit, housed in a stylish box, includes the MC824HR30 control board, to which the operators and accessories are connected, and is part of the automation system. |
Details | |||
 |
1 × | Internal radio receiver | NICE-OXIBD | |
|
Receiver for radio signals from remote controls. |
Details | |||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for operating an automatic gate remotely. Use it to control four devices or send four different commands to a single device. Compatible with all NICE operators using O-Code rolling-code technology (the 72-bit code offers 4.7 quadrillion combinations, making it virtually impossible to compromise) and an LED indicator that confirms signal transmission. |
Details |
|||
 |
1 × | Pair of NICE EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passage. They emit an infrared beam. If it is interrupted, for example by a vehicle or pedestrian, a signal is sent to the operator to stop the gate or prevent it from opening. |
Details | |||
 |
1 × | NICE ELDC LED flashing light with antenna |
NICE-ELDC | |
|
NICE ELDC LED warning light made from impact-resistant polycarbonate, with a built-in antenna to extend remote control range (up to 150 m). |
Details |
|||
 |
1 × | NICE L-FAB 4024 installation manual | ||
|
Installation manual for a successful installation, with illustrative wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
Compatible accessories
We also recommend purchasing the following compatible optional accessories for the operator:
| What | Why | Type |
|---|---|---|
| Control unit |
Operator control electronics. |
|
| Flashing light | Flashes to indicate gate movement—ideal for exits with limited visibility. Also includes an antenna for increased remote control range. |
Alternatively all signal lights with a 12V–24V power supply from other manufacturers. |
| Photocells | They detect obstacles as the gate closes and stop its movement, preventing it from hitting a vehicle or a person. | |
| Transmitter | For remote gate control. | |
| Receiver |
For remote gate control. |
|
| Antenna | For improved remote-control range. | |
| Keypad | If you forget your remote control or have many vehicles/users and don't want to give each one a remote. | |
| Key switch | Operate the gate with a key using a switch wired to the drive. | |
| Electric locks | Safety electric locks are synchronized with the drive via the control unit. When a command is sent to the drive, the electric lock unlocks first, and only then does the gate start to open. The lock engages again once the gate has closed. They are required for gate leaves over 3m long. |
|
| Card readers | Operate the drive by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operating during a power outage. |
|
DRIVE TECHNICAL SPECIFICATIONS:
| Control unit | MC824HR30 |
| Power supply | 230 V |
| Motor voltage (24, 230V) | 24 V |
| Power consumption | 120 W |
| Force | 300Nm N |
| Motor consumption | 1,5 A |
| Gate type | single-leaf |
| Protection rating | 67 IP |
| Operating temperature | -20 +55 °C |
| Installation | underground |
| Length of one gate leaf | 4 m |
| Maximum duty | 60 cycles / hour |
For more information about the drive, please visit the page for the NICE LFAB4024 standalone drive.
The drive was previously designated NICE BM4024.
