NICE Big-Fab BFAB5024 gate operator kit for a double-leaf gate – one leaf 5 m/900 kg
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€2,730.05 including VAT
| Weight |
|---|
| 33 kg |
Description of NICE Big-Fab BFAB5024 gate operator kit for a double-leaf gate – one leaf 5 m/900 kg
The kit comes with non-reversible electromechanical 24V motors and is designed for a double-leaf gate with a leaf length of up to 5m and a leaf weight of 900kg.
A new underground drive model designed mainly for entrance gates, passageways, wrought-iron gates, and similar applications. Its advantages include quiet operation and an unobtrusive design..
The drive itself also serves as the lower gate hinge.
| KIT INCLUDES: | NICE-BFAB5024-BE2 | |||
|---|---|---|---|---|
 |
2 × | NICE Big-Fab BFAB5024 underground motor | NICE-BFAB5024 | |
|
NICE B-Fab 5024 - underground drive for a swing gate with a leaf up to 5m/900kg |
Details  |
|||
 |

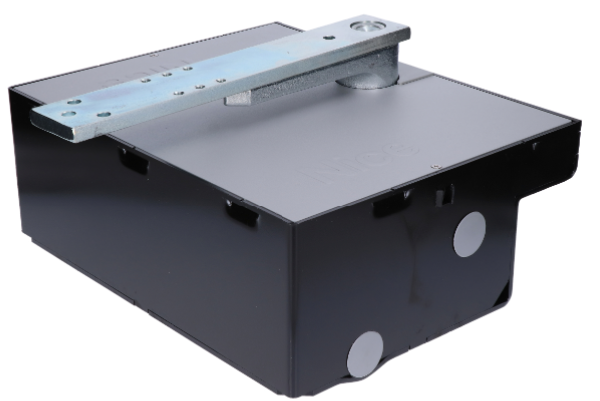

2 × | Foundation box for underground drive | NICE-BFABBOX | |
|
NICE BFABBOX foundation box for the NICE B-Fab 5024 underground drive. Cataphoresis-treated steel. |
Details |
|||
 |

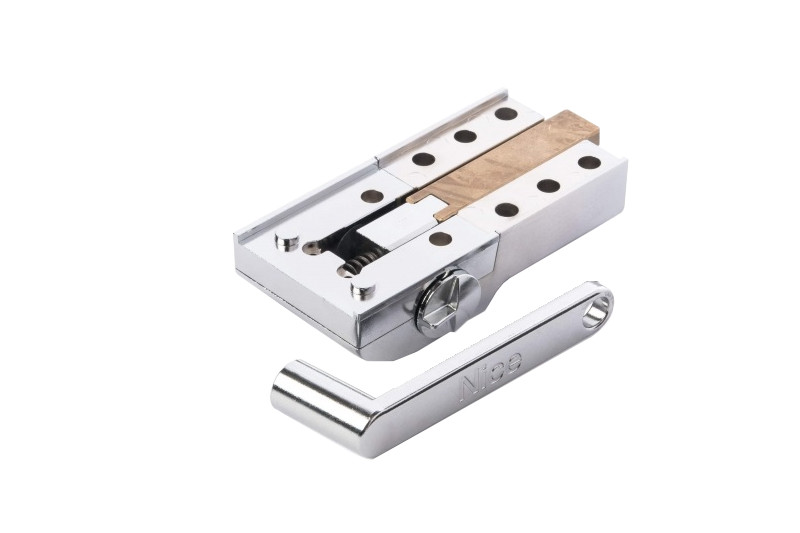

2 × | NICE BMA3 release system | NICE-BMA3 | |
|
Lever-operated release with key |
Details |
|||
 |

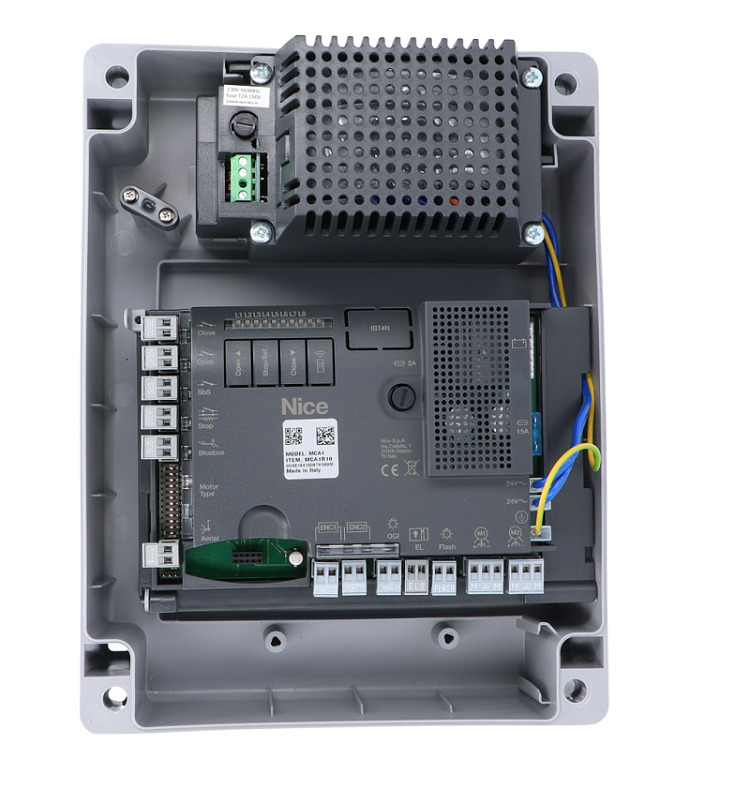

1 × | NICE MC824HR30 control unit | NICE-MC824HR30 | |
|
Control unit in a stylish housing, containing the MC824HR30 control board to which the drives and accessories are connected, included as part of the automation system. |
Details |
|||
 |

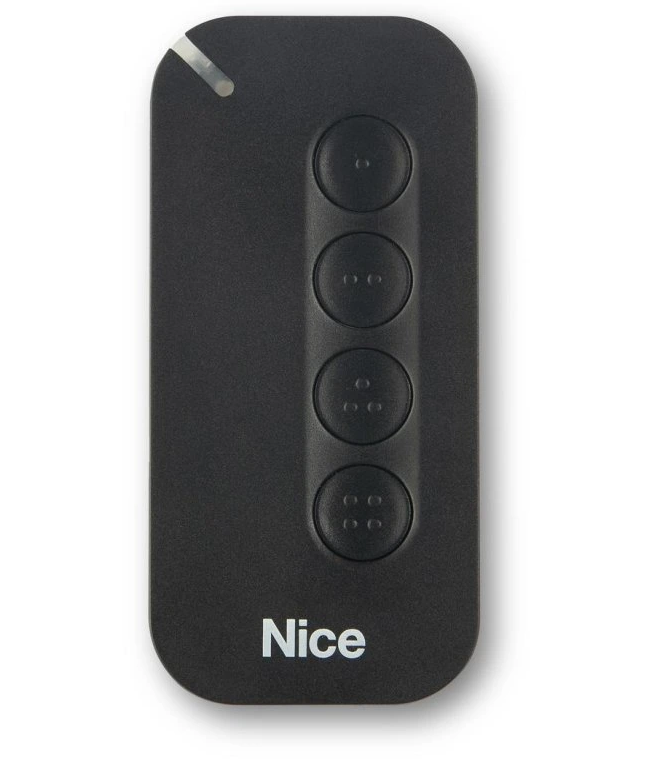

1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for operating the gate automatically from a distance. Use it to control four devices or send four different commands to a single device. Compatible with all NICE drives featuring O-Code rolling-code technology (the 72-bit code allows 4.7 quadrillion combinations, making it virtually impossible to compromise) and an LED signal transmission indicator. |
Details |
|||
 |

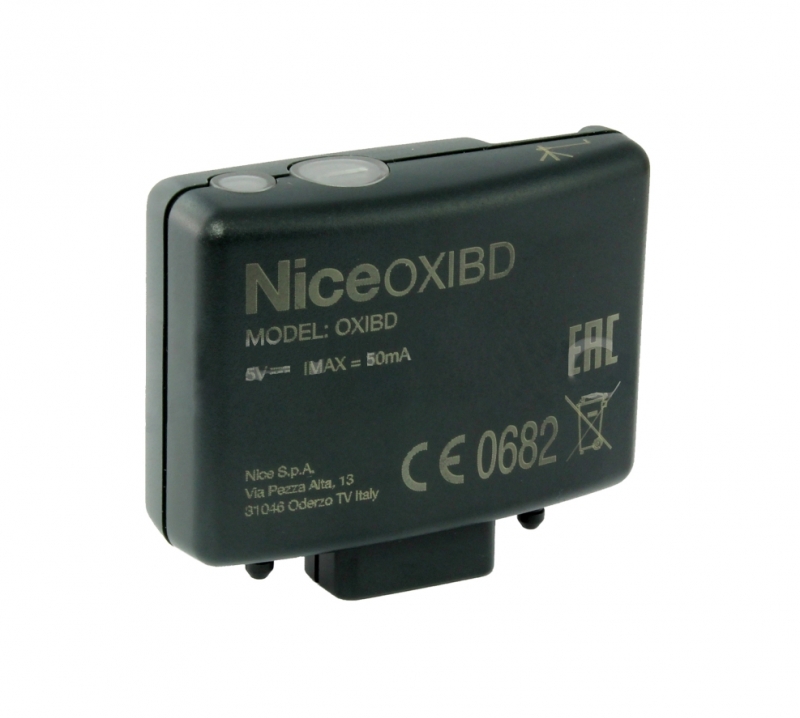

1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. |
Details |
|||
 |
1 × | Pair of NICE EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passageway. They create an infrared beam which, when interrupted by a vehicle or pedestrian, for example, sends a signal to the drive to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE ELDC LED warning light made of impact-resistant polycarbonate, with a built-in antenna to extend the remote control's range (up to 150 m). |
Details | |||
 |
1 × | NICE B-FAB 5024 installation manual | ||
|
Installation manual for successful setup, with wiring diagrams and instructions for programming and pairing remote controls. |
Details |
|||
Compatible accessories
We also recommend purchasing the following compatible optional accessories for the drive:
| What | Why | Type |
|---|---|---|
| Control unit |
Drive control electronics. |
|
| Warning light | Signals gate movement by flashing—ideal for exits with limited visibility. Also includes an antenna for greater remote-control range. |
Alternatively, any warning lights with a 12V-24V power supply from other manufacturers. |
| Photocells | When closing, they detect an obstacle and stop the movement—the gate won’t hit a car or people. | |
| Transmitter | For remote gate control. | |
| Receiver |
For remote gate control. |
|
| Antenna | For better remote-control range. | |
| Keypad | If you forget your remote control, or have many vehicles/people and don’t want to issue a remote to everyone. | |
| Key switch | Control the gate with a key using a switch wired to the operator. | |
| Electric locks | Safety electric locks are synchronized with the operator via the control unit. When a command is sent to the operator, the electric lock is released first, and only then does the gate begin to open. Once the gate has closed, the electric lock is secured again. Required for gate leaves over 3m long. |
|
| Card readers | Control the operator by presenting a card or key fob to the reader. |
|
| Backup power supply | Keeps the gate operating during a power outage. |
|
OPERATOR TECHNICAL SPECIFICATIONS:
| Control unit | MC824HR30 |
| Power supply | 230 V |
| Motor voltage (24, 230V) | 24 V |
| Power consumption | 170 W |
| Force | 400Nm N |
| Motor current | 7 A |
| Gate type | double-leaf |
| Protection rating | 67 IP |
| Operating temperature | -20 +55 °C |
| Installation | underground |
| Length of one gate leaf | 5 m |
| Maximum load | 45 cycles / hour |
For more information about the operator, please visit the page for the NICE BFAB5024 standalone operator.
The operator was previously known as NICE Big-Metro BM5024.
