Aluminium retaining profile for slats, U-shaped, 20.5 mm wide, grey RAL 9007 with a textured finish
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€35.64 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 2,31 kg |
in stock
€17.83 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 1,16 kg |
in stock
€11.88 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 0,77 kg |
Description of Aluminium retaining profile for slats, U-shaped, 20.5 mm wide, grey RAL 9007 with a textured finish
Aluminium fixing profile for fence slats has a U shape, with a finish in textured grey RAL 9007, so it is suitable for installation between the posts on a gate, fence or other opening. The profile's external width is 20.5 mm, the projection is 23 mm and the length is 2 m, 3 m or 6 m.
- Fixing profile compatibility
- Installation method for parallelogram-shaped slats
- Installation method for rectangular aluminium slats
- Finish
- Technical specifications
On the outer side of the profile there are recessed grooves for precise horizontal positioning of the screws. The ideal screws are stainless-steel self-tapping screws DIN 7982, 3.5x19 mm, with a countersunk head.
FIXING PROFILE COMPATIBILITY:
The profile is suitable for vertical installation of the following slat models:
Aluminium slats with no surface finish -
- rectangular, 16 mm wide and available in the following heights: 60 mm, 80 mm, 100 mm, 120 mm, 160 mm, 200 mm,
- parallelogram-shaped, measuring 108x16 mm,
- and slats for completing the pattern when alternating slat heights: 20x16 mm and anodised slat, 20x16 mm.
Aluminium slats in anthracite -
- with a smooth finish – rectangular, 16 mm wide and available in the following heights: 80 mm, 100 mm, 160 mm,
- with a smooth finish – parallelogram-shaped, measuring 108x16 mm,
- with a textured finish – rectangular, available in the following sizes: 80 mm, 100 mm, 160 mm,
- with a textured finish – parallelogram-shaped, measuring 108x16 mm.
Aluminium slats with a wood-effect finish:
INSTALLATION METHOD FOR PARALLELOGRAM-SHAPED ALUMINIUM SLATS:
The fixing U-profile has a recessed groove into which you can pre-drill holes for the screws. Inside the hollow slat, guide grooves run along the sides and hold the screw in place.
A grey, textured parallelogram-shaped fence slat together with a fixing U-profile in the same colour and finish creates a uniform, modern look.
The parallelogram-shaped slat can also be installed at an angle to create a louvre pattern, but you need to use a fixing profile 50 mm wide.
 |
 |
 |
 |
INSTALLATION METHOD FOR RECTANGULAR ALUMINIUM SLATS:
As an example, we can use an 80x16 mm rectangular aluminium fence slat in textured grey, matching the fixing profile in colour and finish. For vertical installation, slide the fixing profile into the slat and screw it in place. A recessed groove runs down the centre of the fixing profile's outer face. You can pre-drill screw holes in it at intervals to create the desired pattern. Once the slat is slid into the fixing profile, the screw engages with the guide groove inside the slat.
 |
 |
 |
 |
FINISH
Aluminium is an excellent material that resists corrosion and weathering and has a long service life. The fixing profile is made from EN AW-6060 T66 aluminium and comes with a textured grey RAL 9007 finish.
The profile is powder-coated. After application, the powder coating is cured in an oven.
This finish is characterised by a long service life and resistance to UV radiation and yellowing.. It is intended for use in construction, where long-lasting colour and gloss are essential.
Please note
The manufacturing process requires that at the ends of profiles with a powder-coated finish, approximately 1 cm of profile is left at each end for holding it during painting. At the ends of the profile, there is a small hole, which you should take into account. This hole does not interfere with installation, but the end can easily be cut off if necessary.

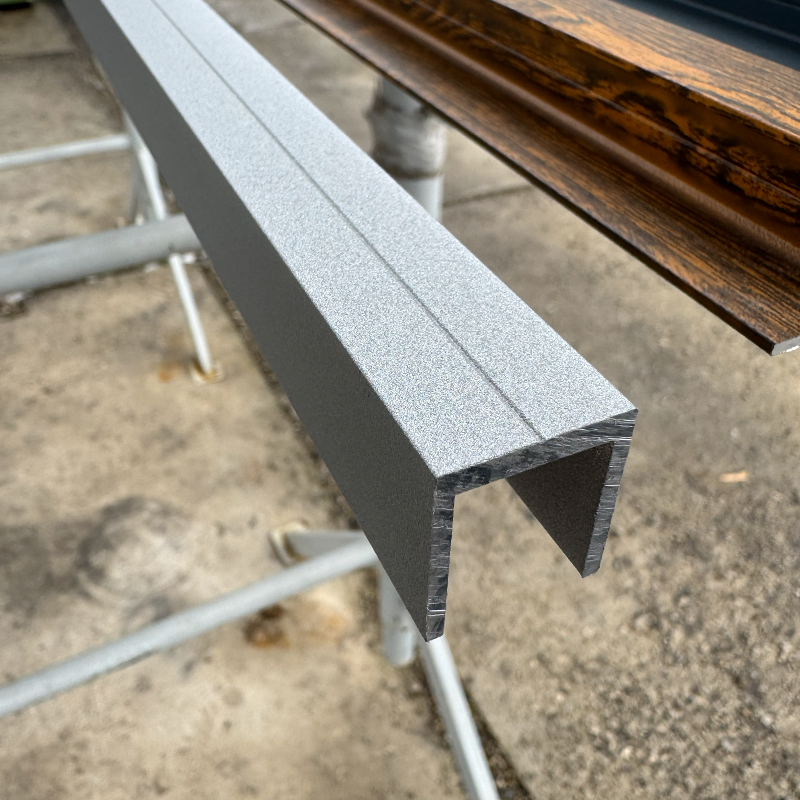

Real-life photo
TECHNICAL SPECIFICATIONS OF THE ALUMINIUM FIXING PROFILE FOR FENCE SLATS:
Material: natural aluminium (EN AW-6060 T66)
Finish: Textured grey RAL 9007
Dimensions: 20.5x23 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 0.77 kg, 1.155 kg, 2.31 kg
