Aluminium fence slat, 160x16 mm, rectangular, anthracite RAL7016, smooth finish
NEW| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€160.46 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 9,97 kg |
in stock
€80.24 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 4,99 kg |
in stock
€53.49 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 3,32 kg |
Description of Aluminium fence slat, 160x16 mm, rectangular, anthracite RAL7016, smooth finish
Aluminum slat, with a finish in anthracite, can be used as infill for a fence, gate, or any other space. The slat has a rectangular shape with a height of 160 mm and a width of 16 mm, and is available in lengths of 2 m, 3 m, or 6 m.
The slat is hollow and has guide grooves on the sides for the fixing screws. The easiest installation method is to use fixing profiles with pre-machined grooves for accurate pre-drilling and screw fixing.
The slat is suitable for creating an opaque infill. To create an opaque infill, the slat can be combined with a narrow slat. This creates an elegant infill with a thin strip that can be highlighted in a different color.

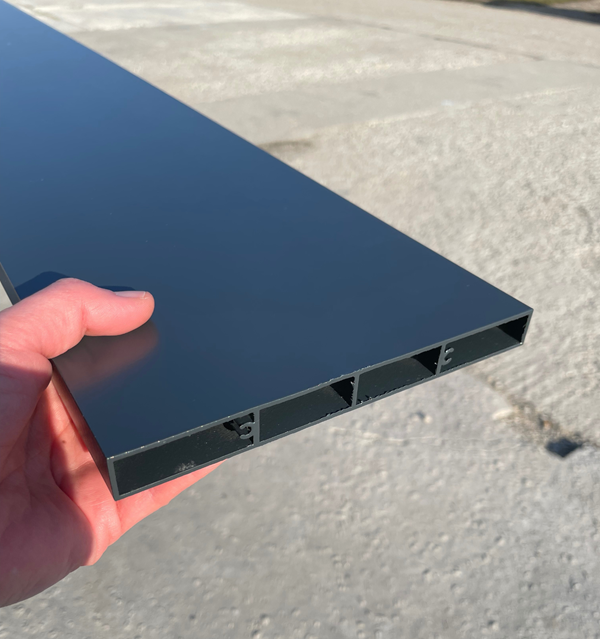

Realistic photo of the slat in anthracite:

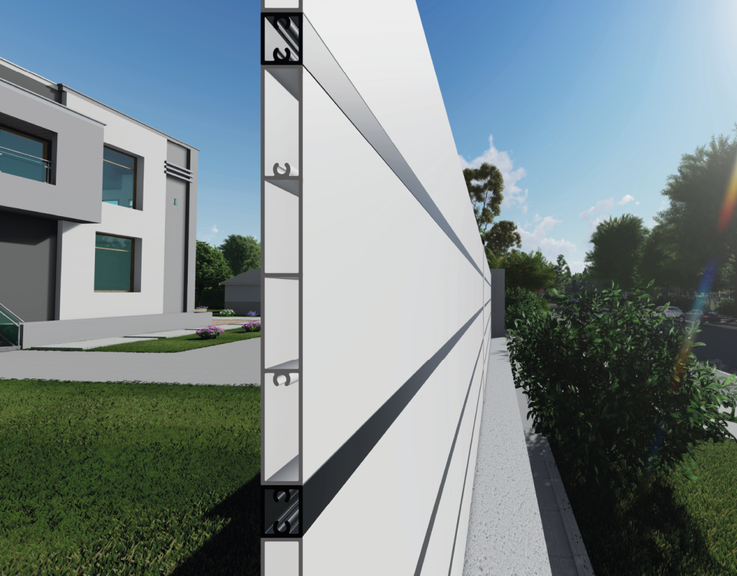

RECTANGULAR ALUMINUM SLAT PATTERNS:
When combined with a fixing profile, you can create a vertical pattern:
- in combination with a fixing profile 20.5 mm wide
 |
 |
INSTALLATION METHODS FOR RECTANGULAR ALUMINUM FENCE SLATS:
Method of fixing the slats vertically in a U-profile (20.5 mm wide):
 |
 |

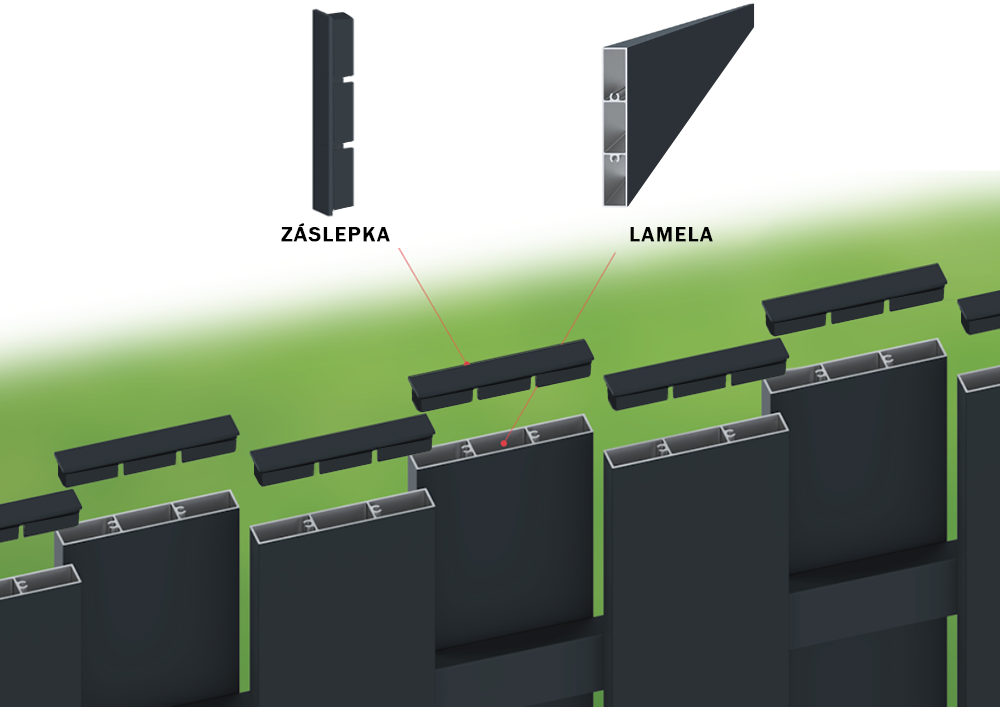

The slats can also be installed vertically using end caps, which slide into the top of the slat.
FINISH:
Aluminum is generally an excellent material with corrosion and weather resistance, and a long service life. The slat is made from EN AW-6060 T66 aluminum and supplied with an anthracite RAL 7016 finish.
The profile is finished with a smooth powder-coated surface. After application, the powder coating is cured in an oven. This finish is characterized by a long service life and resistance to UV radiation and yellowing.. It is intended for use in construction, where long-lasting color and gloss are essential.
Please note
The manufacturing process requires at the ends of profiles with a powder-coated finish approximately 1 cm of profile to be left at each end for holding during coating. There is a small hole at the end of the profile, which should be taken into account. If necessary, the end can easily be cut off or concealed inside the fixing profile.
Difference between smooth and textured finishes:
Textured anthracite Smooth anthracite
SUITABLE FIXING SCREWS:
Screws with countersunk heads, DIN 7982, 3.9 × 19 mm
TECHNICAL SPECIFICATIONS FOR ALUMINUM GATE AND FENCE INFILL SLAT:
Material: natural aluminum (EN AW-6060 T66)
Finish: Anthracite – smooth finish
Dimensions: 160 × 16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 3.324 kg, 4.986 kg, 9.972 kg
