Aluminum fence slat, 108 × 16 mm, parallelogram-shaped
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€75.33 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 5,80 kg |
in stock
€37.67 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 2,90 kg |
in stock
€25.10 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,93 kg |
Description of Aluminum fence slat, 108 × 16 mm, parallelogram-shaped
Aluminium slat, can be used as infill for a fence, gate, or any other space. The slat has a parallelogram shape with a height of 108 mm and a width of 16 mm and is available in lengths of 2 m, 3 m, or 6 m.
- Designs
- Installation method
- Surface finish
- Suitable screws
- 360° view
- Realistic photos
- Technical specifications

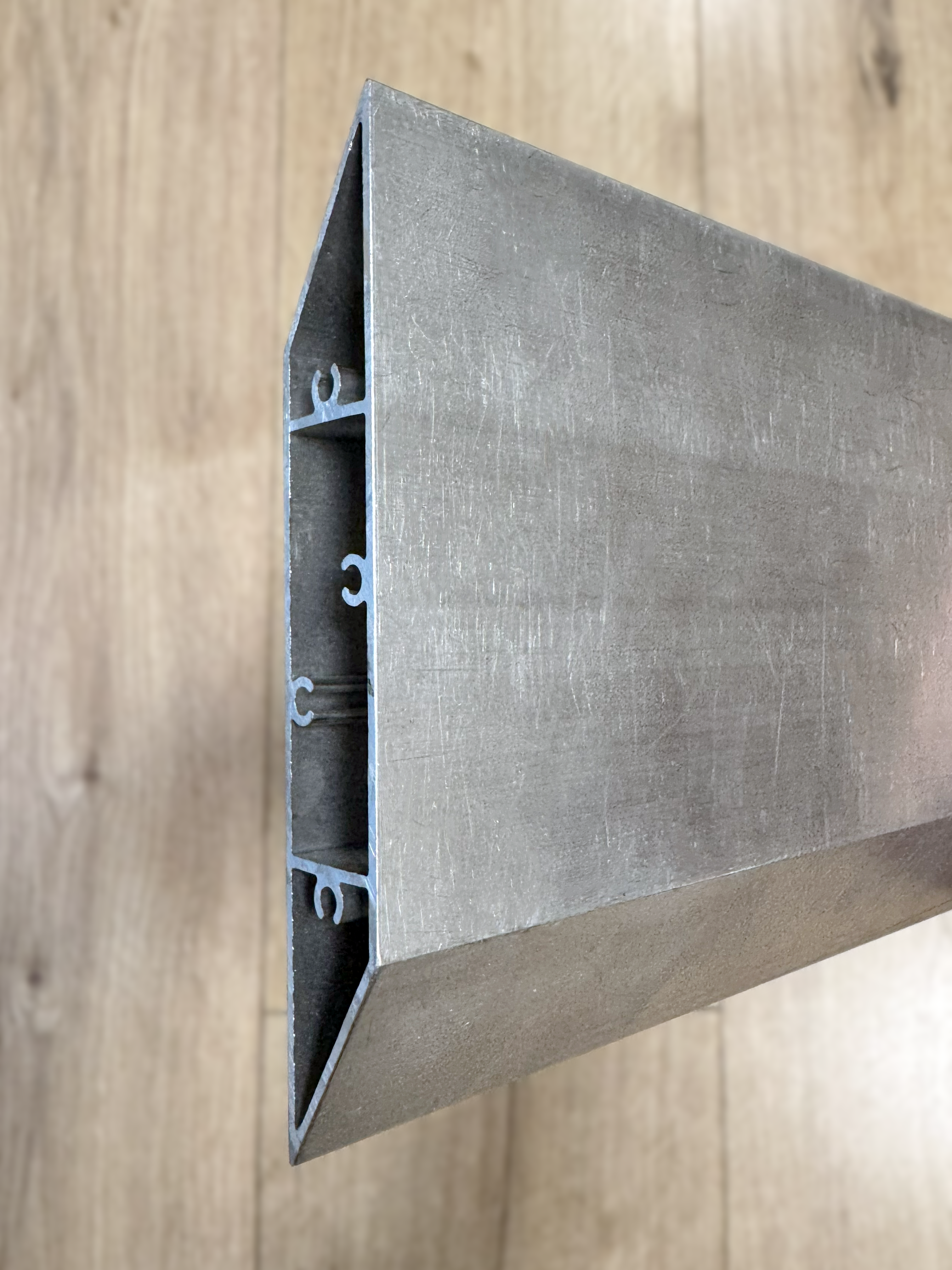

The slat is hollow and on the sides it has guide grooves for fixing screws. The simplest installation method is to use mounting profiles with pre-cut grooves for precise drilling and screw fastening.
Design options for the parallelogram-shaped aluminium slat:
In combination with mounting profiles, you can create two designs:
- Vertical slats - with a mounting profile 20.5 mm wide
 |
 |
- Angled slats - with a mounting profile 50 mm wide
 |
Installation options for parallelogram-shaped aluminium fence slats:
Mounting profiles are available in two versions:
- U-shaped profile - for mounting "between" the posts
- UT-shaped profile - for mounting "in front of" the posts
How to attach slats vertically in a U-profile (20.5 mm wide):
 |
 |
How to attach slats at an angle in a U-profile (50 mm wide):
 |
 |
How to attach slats at an angle in a UT-profile (50 mm wide):
 |
 |
Surface finish:
In general, aluminium is an excellent material with resistance to corrosion and weathering, and a long service life. The slat is made from EN AW-6060 T66 aluminium and supplied unfinished. Before applying paint, if desired, thoroughly degrease the aluminium surface and roughen it with fine-grit sandpaper.
Suitable fixing screws:
for the UT-profile screws with countersunk heads, DIN 7982 3.9x19 mm
for the U-profile screws with countersunk heads, DIN 7982 3.9x19 mm
360° view of angled aluminium fence slats fitted in a U-profile:

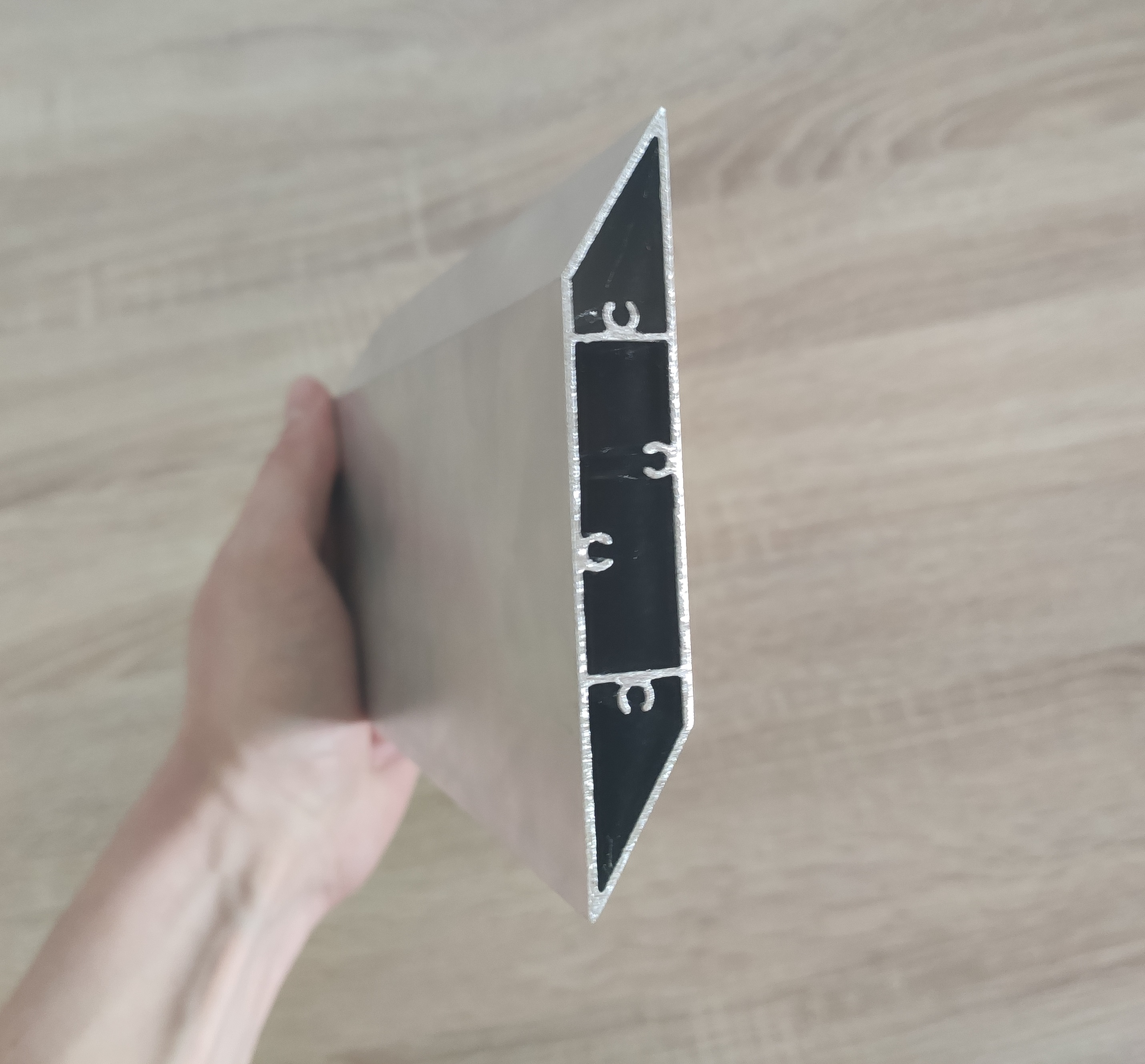

Realistic photos:
Technical specifications for the aluminium slat used as gate and fence infill:
Material: natural aluminium (EN AW-6060 T66)
Surface finish: unfinished
Dimensions: 108x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.80 kg, 2.70 kg, 5.40 kg
