Aluminium U-shaped mounting profile for slats, 50 mm wide
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€55.65 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 3,72 kg |
in stock
€27.82 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 1,86 kg |
in stock
€18.55 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,24 kg |
Description of Aluminium U-shaped mounting profile for slats, 50 mm wide
Aluminium fixing profile for fence slats is U-shaped, making it suitable for installation between the posts on a gate, fence, or other opening. The profile's external width is 50 mm, the projection is 22 mm and the length is 2m, 3m or 6m.
- Fixing profile compatibility
- Installation method for parallelogram-shaped slats
- Installation method for louvre slats
- Installation method for teardrop slats
- Surface finish
- 360° view
- Realistic photos
- Technical specifications

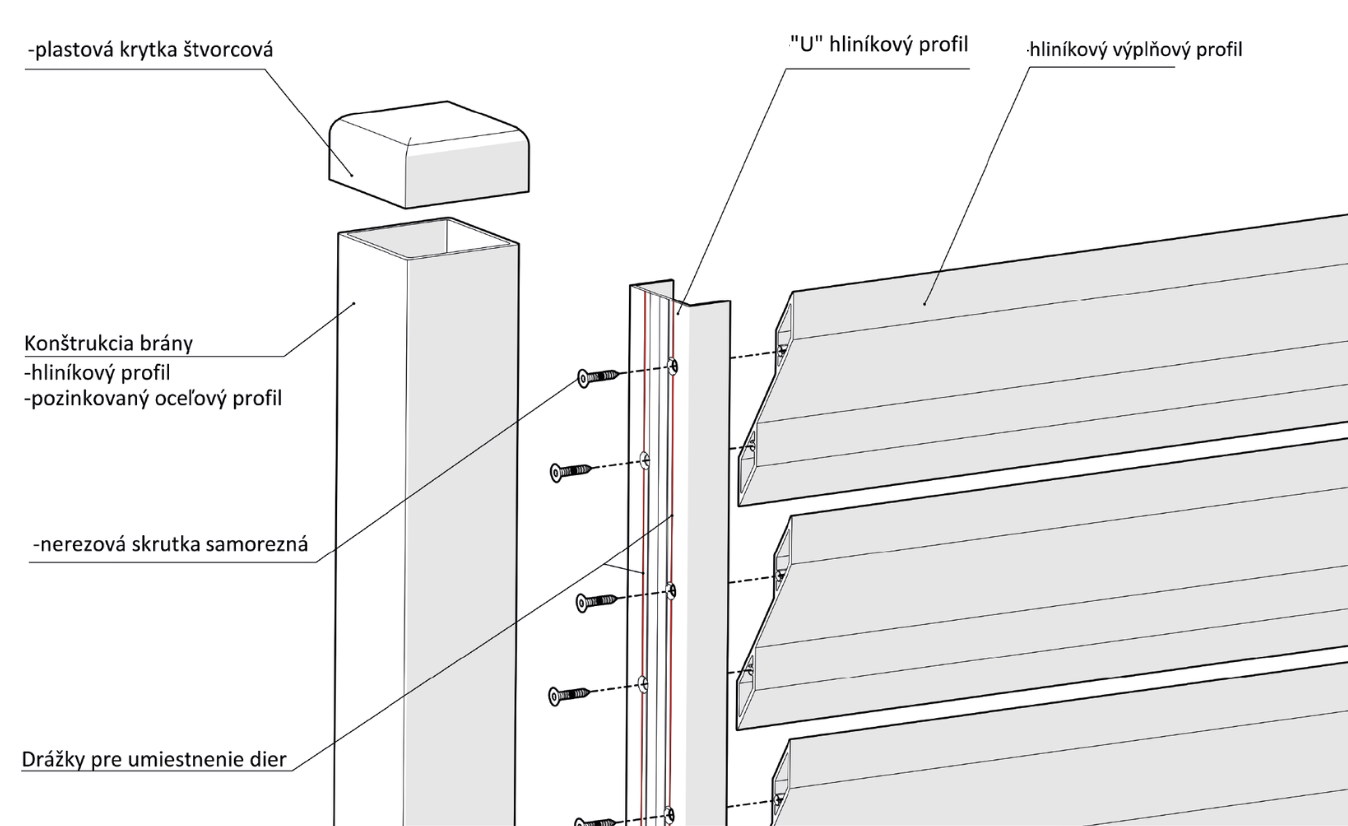

On the outside of the profile, there are recessed grooves for precise horizontal positioning of the screws. The ideal screws are stainless steel self-tapping screws DIN 7982, countersunk head, 3.5x19 mm.
Fixing profile compatibility:
The profile is suitable for angled installation of the following slat models:

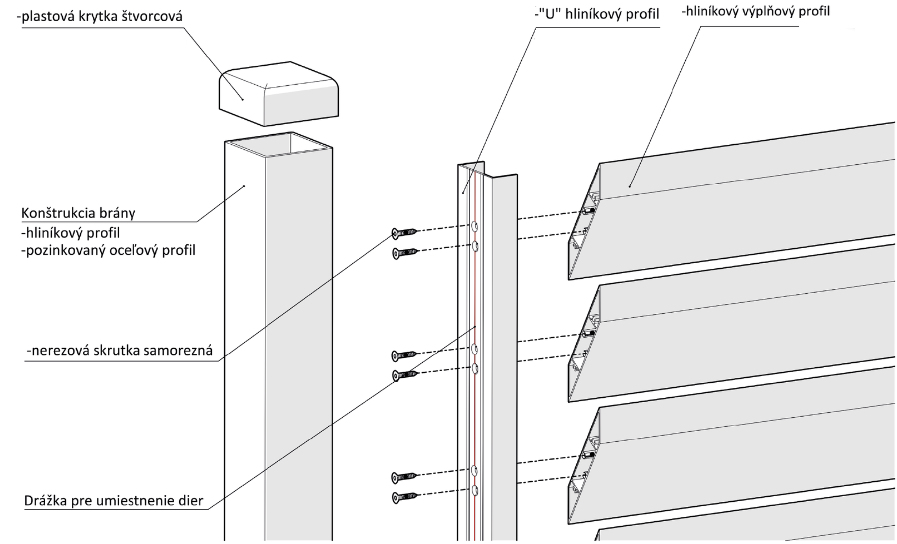

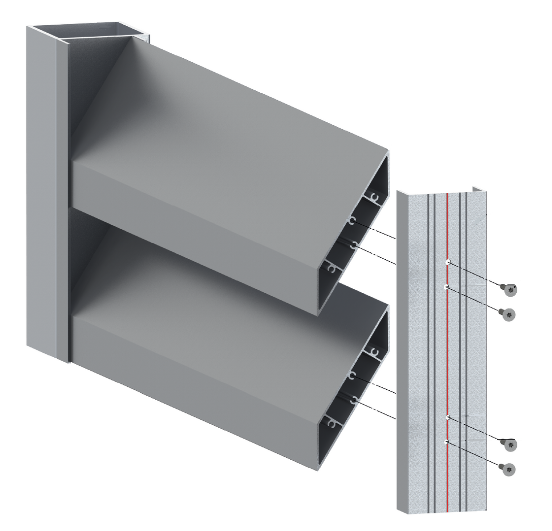

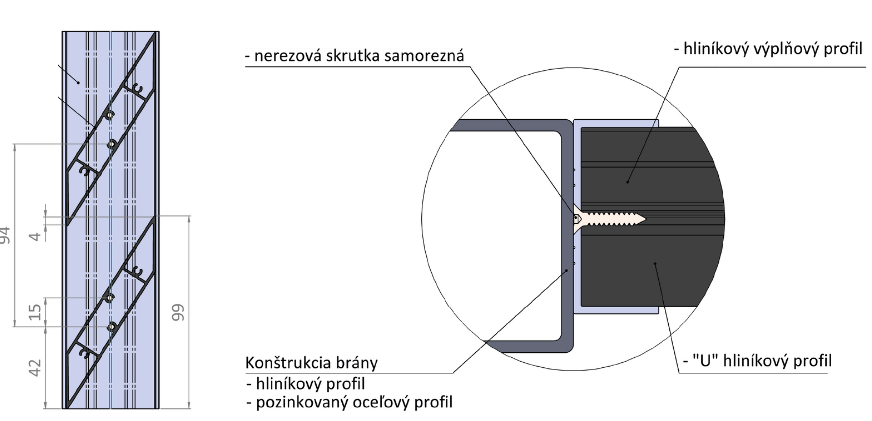

Installation method for aluminium parallelogram-shaped slats:
Slat detail - Aluminium fence slat, 108x16 mm, parallelogram shape, 6 m long
 |
 |
 |

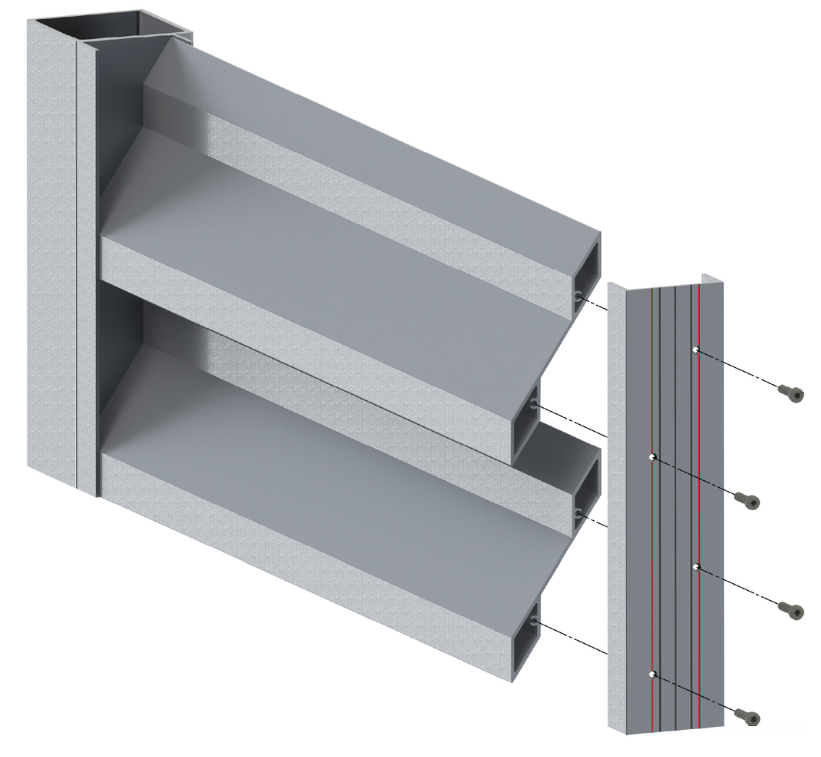

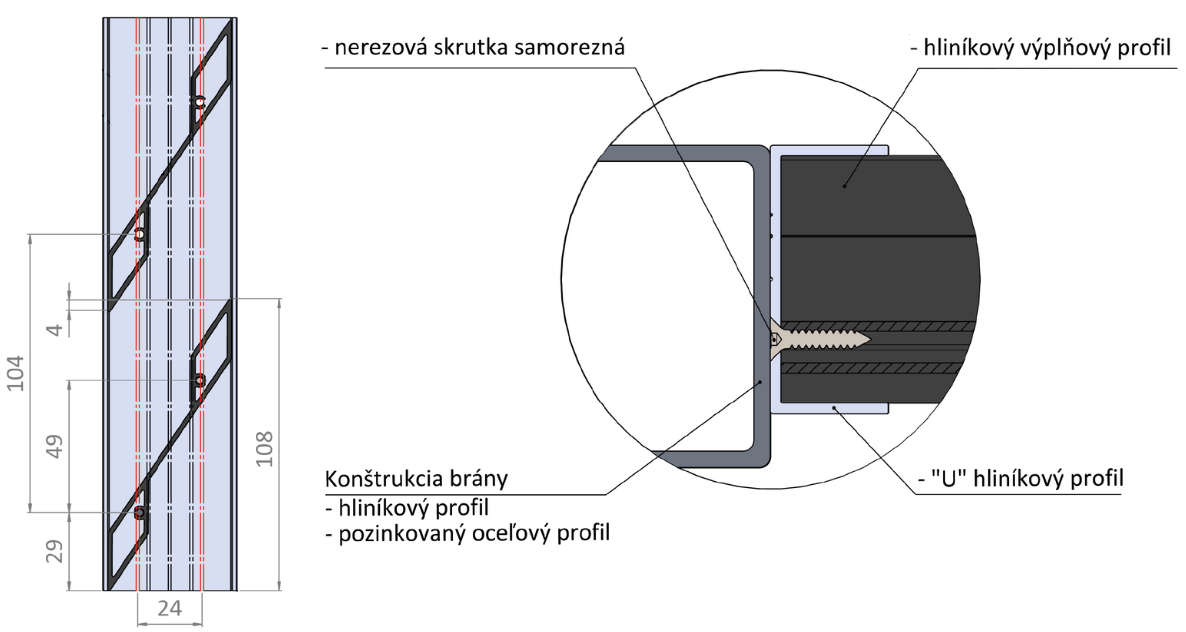

Installation method for aluminium louvre slats:
Slat detail - Aluminium fence slat, 115.2x24.4 mm, louvre shape, 1.6 mm thick, 6 m long
 |
 |
 |
 |

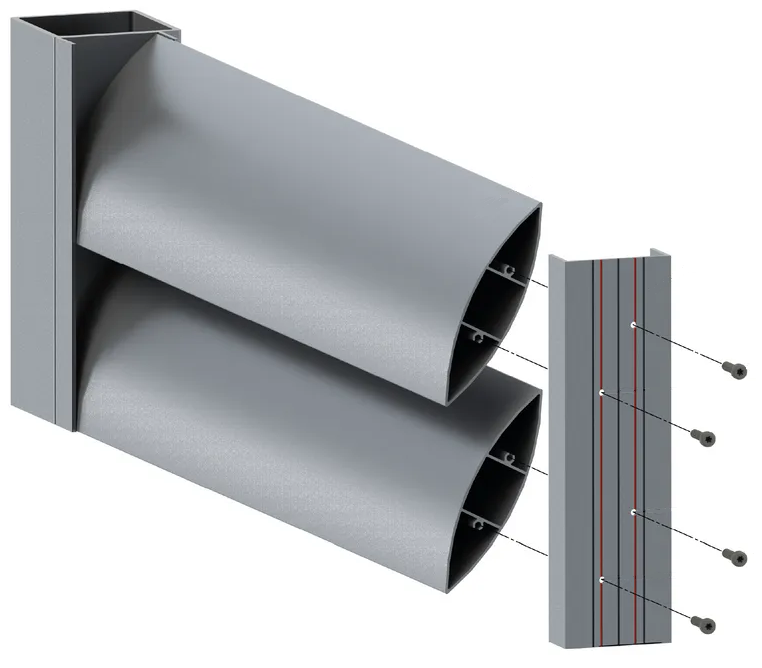

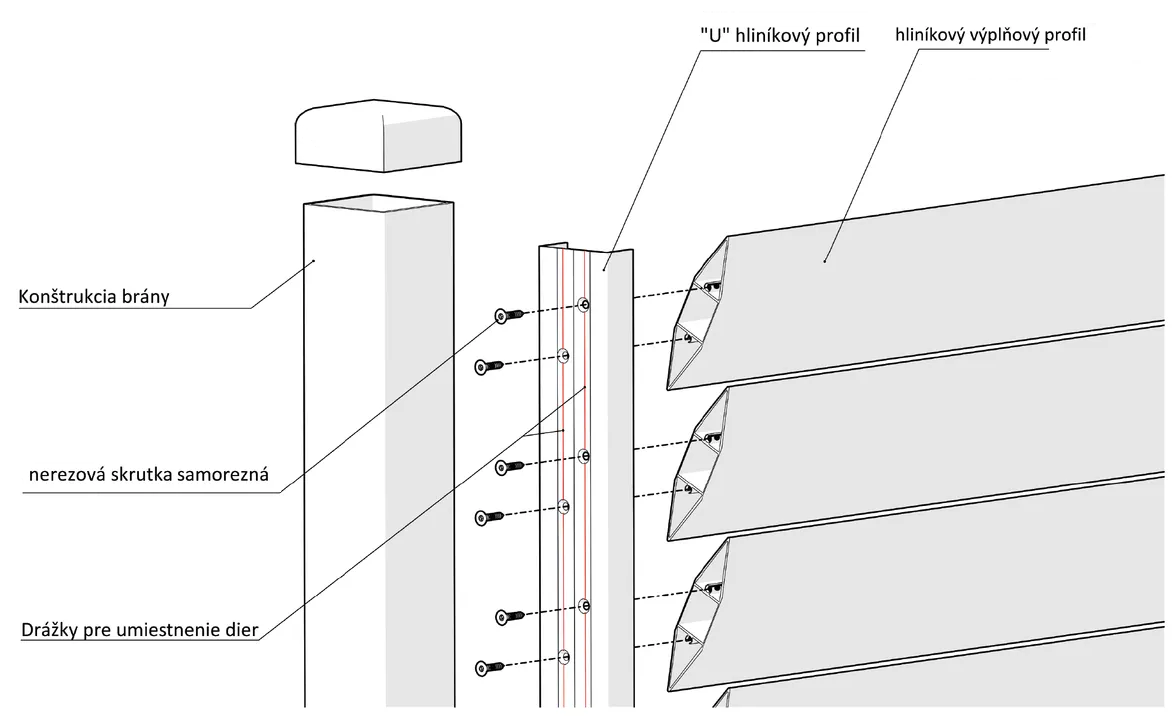

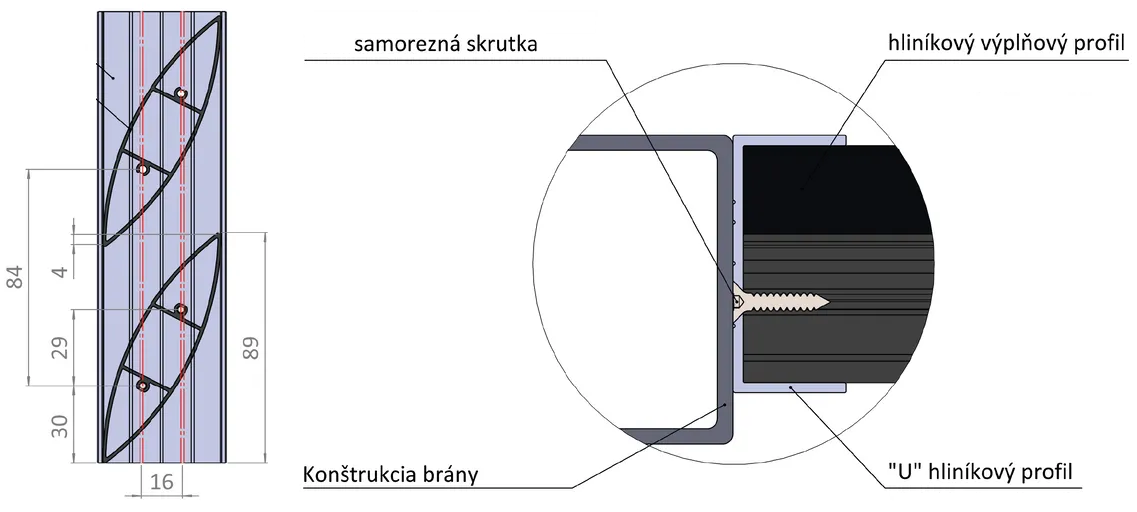

Installation method for aluminium teardrop slats:
Slat detail - Aluminium fence slat, 100x24.5 mm, teardrop shape, 6 m long
 |
 |
 |
 |
Surface finish
Aluminium is generally an excellent material, resistant to corrosion and weathering, with a long service life. The fixing profile is made from EN AW-6060 T66 aluminium and is supplied unfinished. Before applying paint, if desired, thoroughly degrease the aluminium surface and roughen it with fine-grit sandpaper.

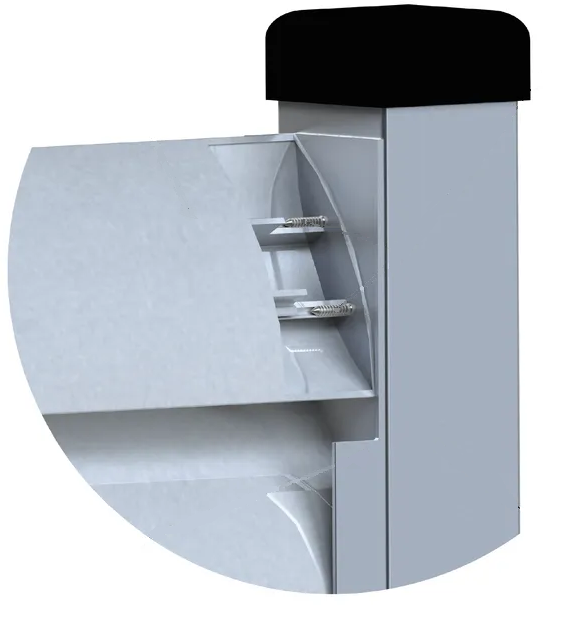

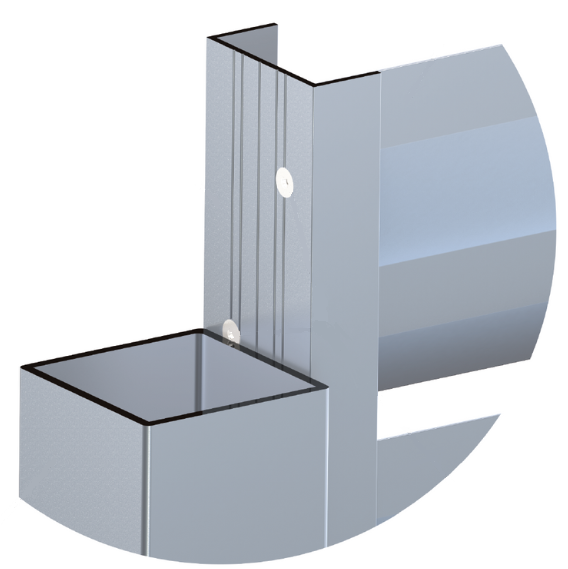

360° view of the 50 mm-wide aluminium fixing profile with a teardrop-shaped slat:

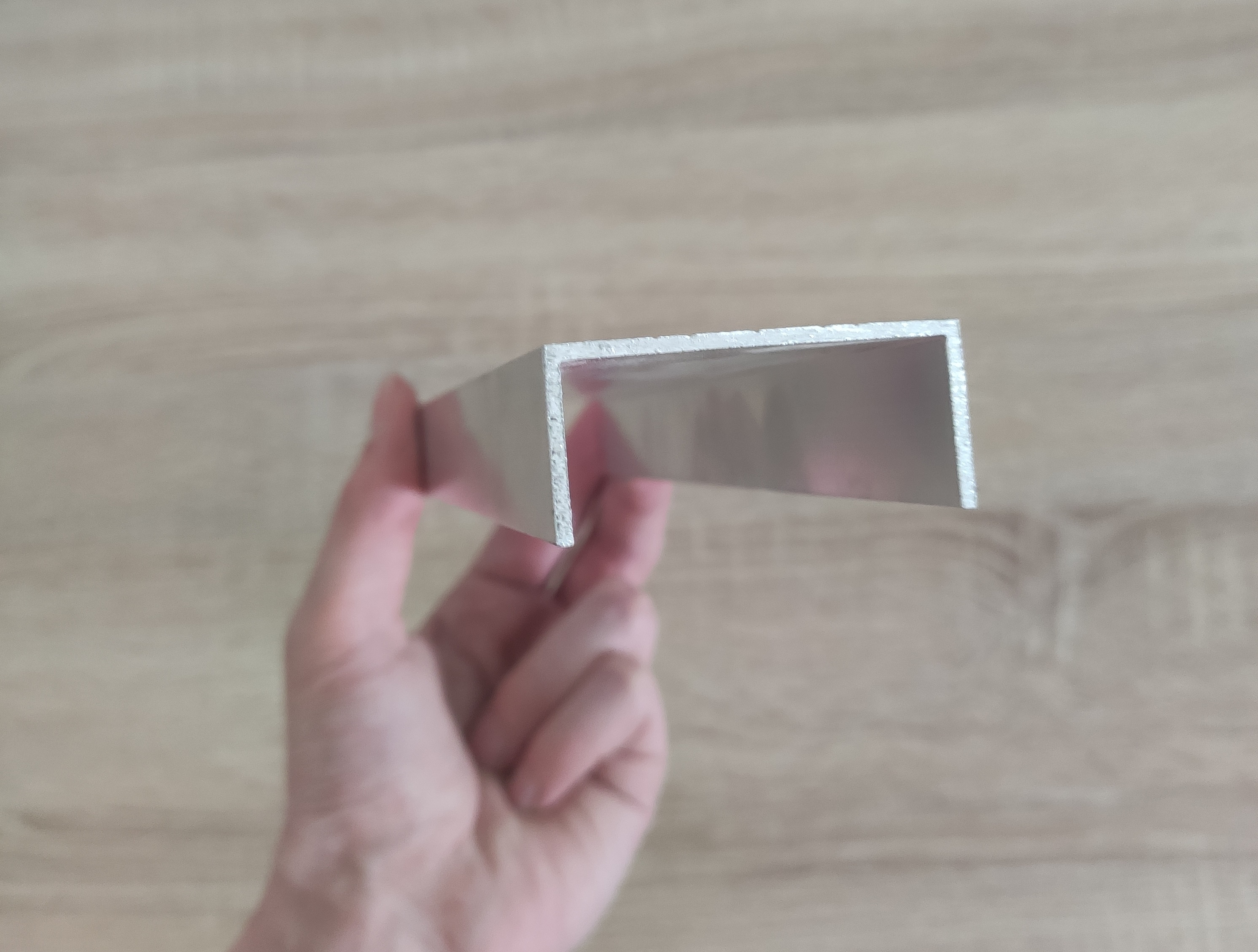

Realistic photos:
Technical specifications of the aluminium fixing profile for fence slats:
Material: natural aluminium (EN AW-6060 T66)
Surface finish: unfinished
Dimensions: 50x22 mm
Length: 2 000 mm, 3 000 mm, 6 000 mm
Weight: 0.94 kg, 1.41 kg, 2.82 kg
