Aluminium fence slat 115.2x24.4 mm, louvre style, 1.6 mm thick
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€100.43 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 6,20 kg |
in stock
€50.22 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 3,10 kg |
in stock
€33.48 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 2,07 kg |
Description of Aluminium fence slat 115.2x24.4 mm, louvre style, 1.6 mm thick
Aluminium slat, can be used as infill for a fence, a gate, or any other space. The slat is shaped like a louvre with a height of 115.2 mm, and a width of 24.4 mm and a thickness of 1.6 mm and is supplied in lengths of 2 m, 3 m, or 6 m.
- Patterns
- Installation method
- Surface finish
- Suitable screws
- 360° view
- Realistic photos
- Technical specifications

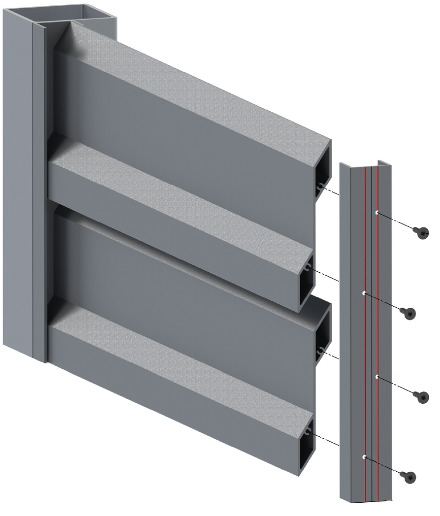

The slat is hollow and has guide grooves on the sides for mounting screws. The easiest installation method is to use mounting profiles with pre-drilled grooves for accurate drilling and screw fixing.
Patterns for aluminium louvre slats:
In combination with mounting profiles, you can create two patterns:
- Vertical slats – with a mounting profile 29 mm wide
 |
 |
- Angled slats – with a mounting profile 50 mm wide
 |
 |
Installation methods for aluminium louvre-style fence slats:
Mounting profiles are available in two versions:

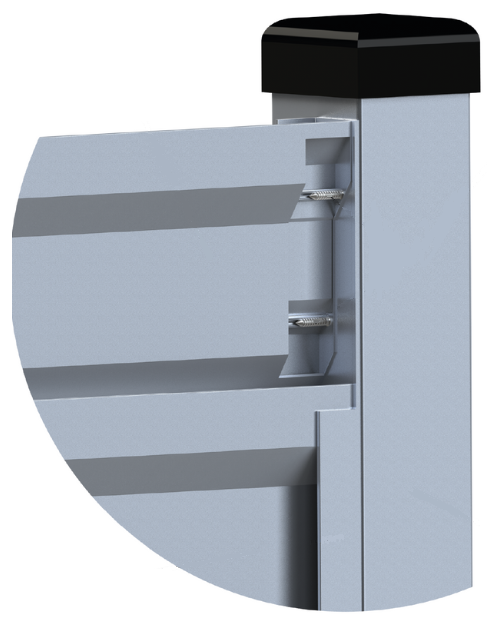

- U-shaped profile – for mounting “between” the posts
- UT-shaped profile – for mounting “in front of” the posts

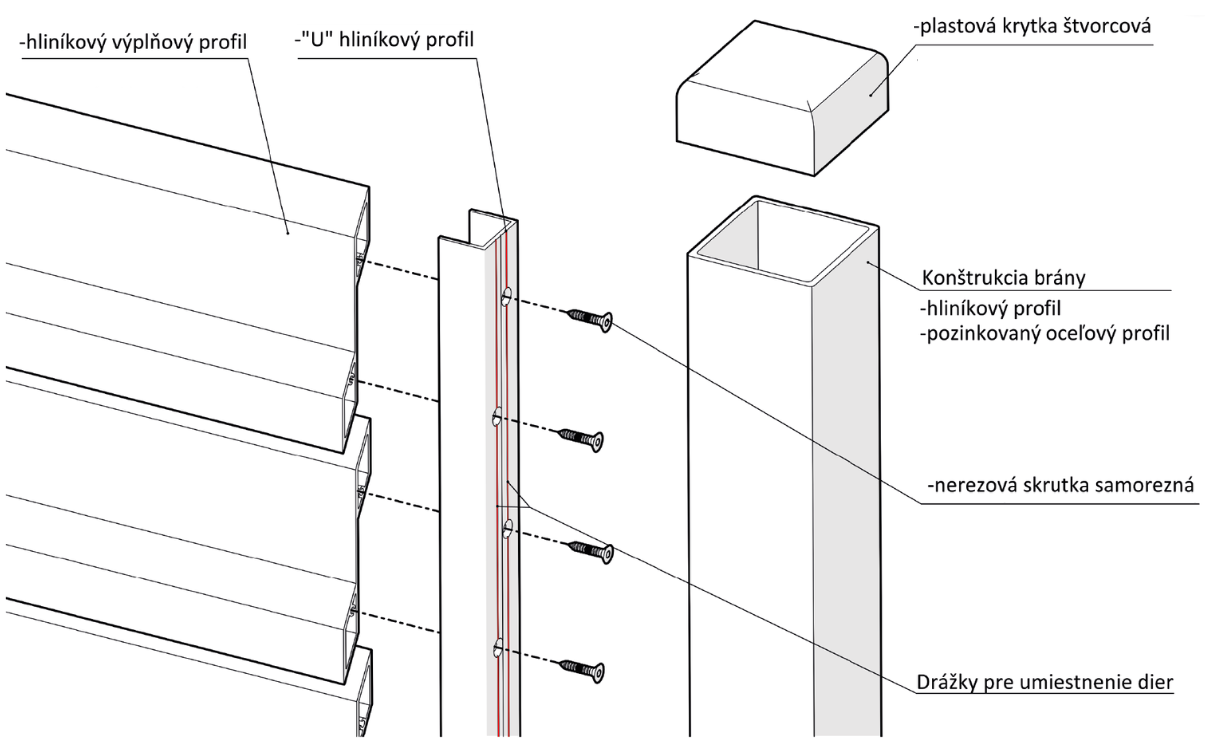

How to mount the slats vertically in a U-profile (29 mm wide):
 |
 |

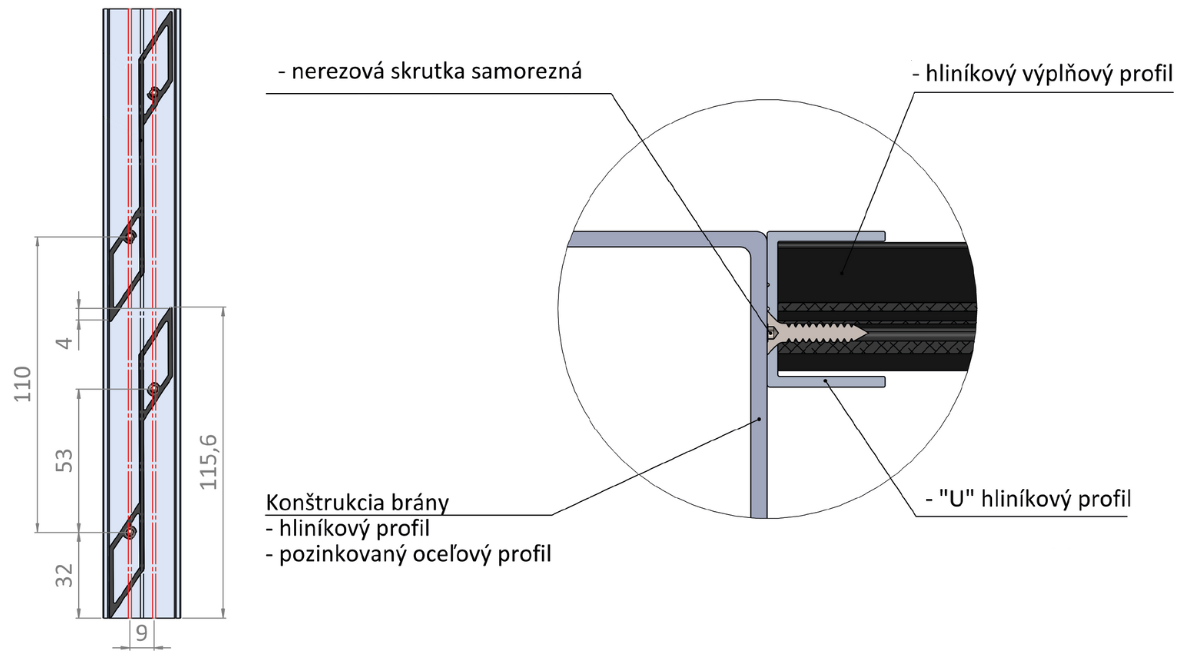

How to mount the slats at an angle in a U-profile (50 mm wide):
 |
 |

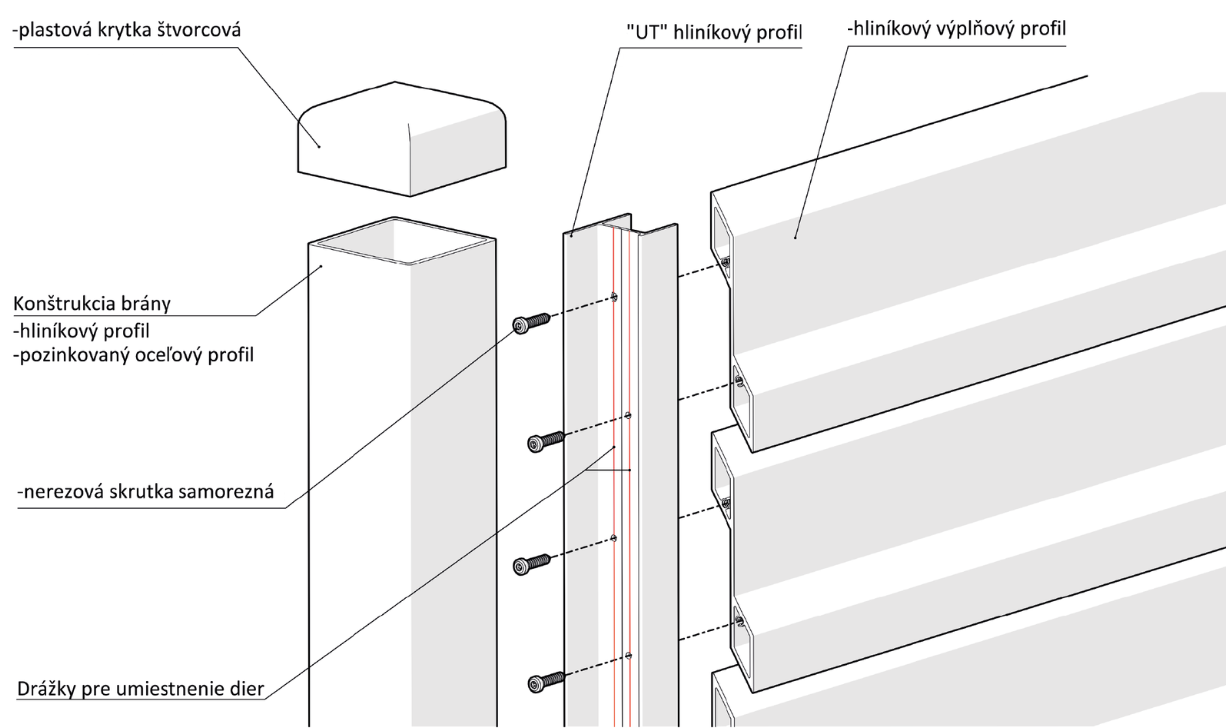

How to mount the slats vertically in a UT-profile (29 mm wide):
 |
 |

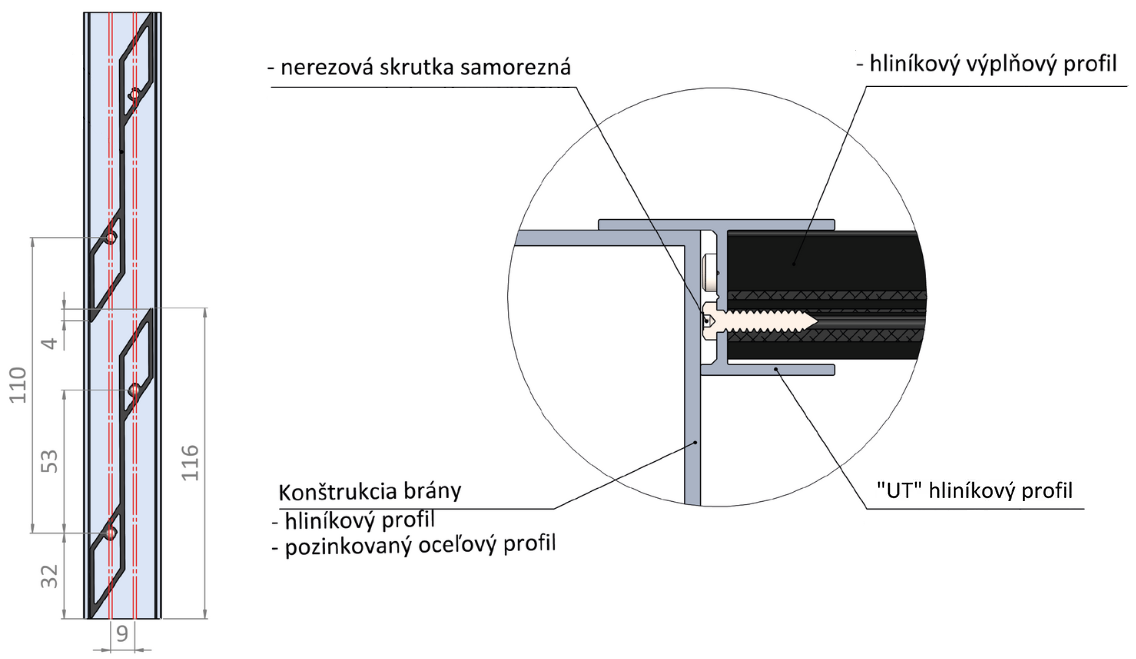

How to mount the slats at an angle in a UT-profile (50 mm wide):
 |
 |
Surface finish:
Aluminium is generally an excellent material with good corrosion and weather resistance and a long service life. The slat is made from EN AW-6060 T66 aluminium and is supplied unfinished. Before applying paint, if required, thoroughly degrease the aluminium surface and lightly sand it with fine-grit sandpaper.
Suitable mounting screws:
for UT-profile screws with pan head, DIN 7981, 3.5 × 19 mm
for U-profile screws with countersunk head, DIN 7982, 3.5 × 19 mm

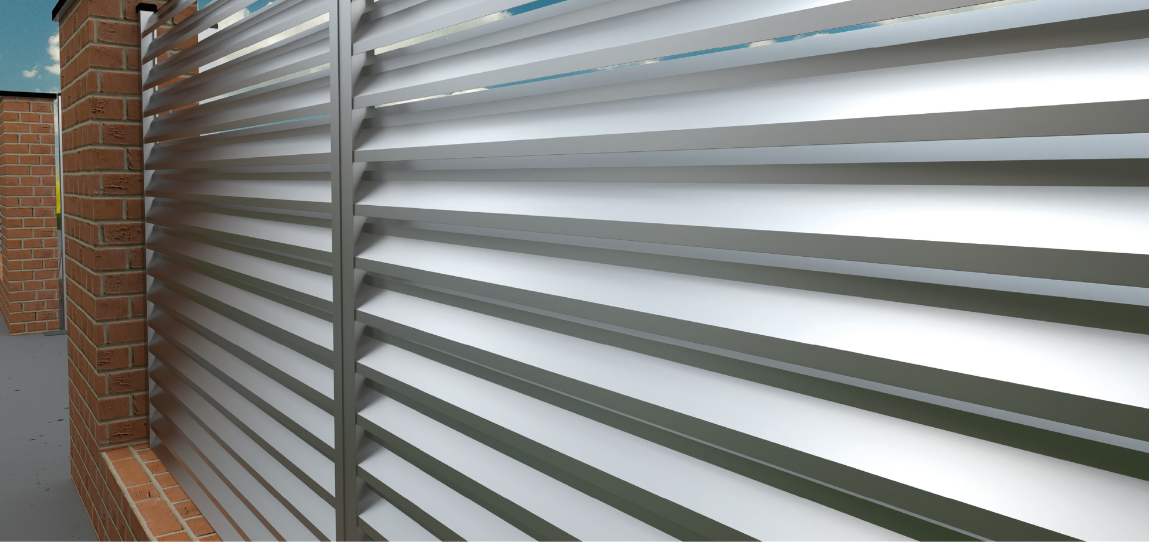

360° view of angled aluminium fence slats with a UT-profile:

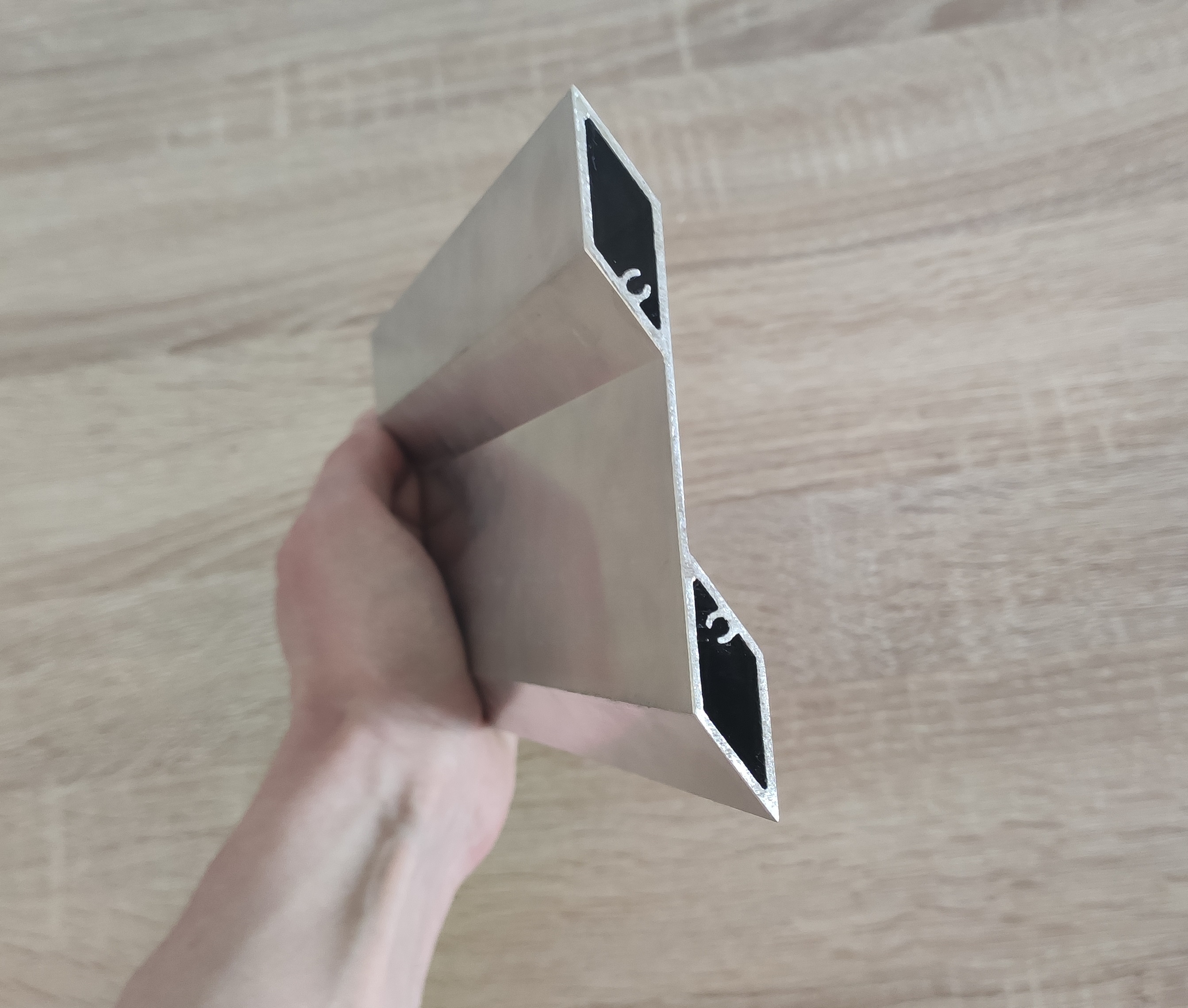

Realistic photos:
Technical specifications for aluminium slats used as gate and fence infill:
Material: natural aluminium (EN AW-6060 T66)
Surface finish: unfinished
Dimensions: 115.2 × 24.4 × 1.6 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.86 kg, 2.79 kg, 5.58 kg
