Aluminum mounting profile for slats, UT shape, 50 mm wide
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€61.00 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 3,66 kg |
in stock
€30.51 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 1,83 kg |
in stock
€20.32 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,22 kg |
Description of Aluminum mounting profile for slats, UT shape, 50 mm wide
Aluminium fixing profile for fence slats has a U-shaped cross-section, making it suitable for installation in front of the posts on a gate, fence or other opening. The external width of the profile is 50 mm, the overlap is 44 mm and the length is 2 m, 3 m or 6 m.
- Compatible fence slats
- Installation method for a parallelogram-shaped slat
- Installation method for a louvred slat
- Installation method for a teardrop-shaped slat
- Surface finish
- 360° view
- Realistic photos
- Technical specifications
On the outside of the profile there are recessed grooves for precise horizontal positioning of the screws. The ideal screws are stainless-steel self-tapping screws DIN 7981 with a pan head 3.5 × 19 mm.
Compatible fence slats:
The profile is suitable for installing the following slat models at an angle:
- parallelogram-shaped aluminium slat
- louvred aluminium slat (wall thickness 1.6 or 2 mm)
- teardrop-shaped slat

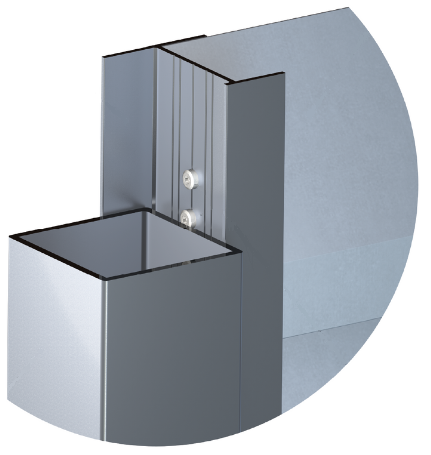

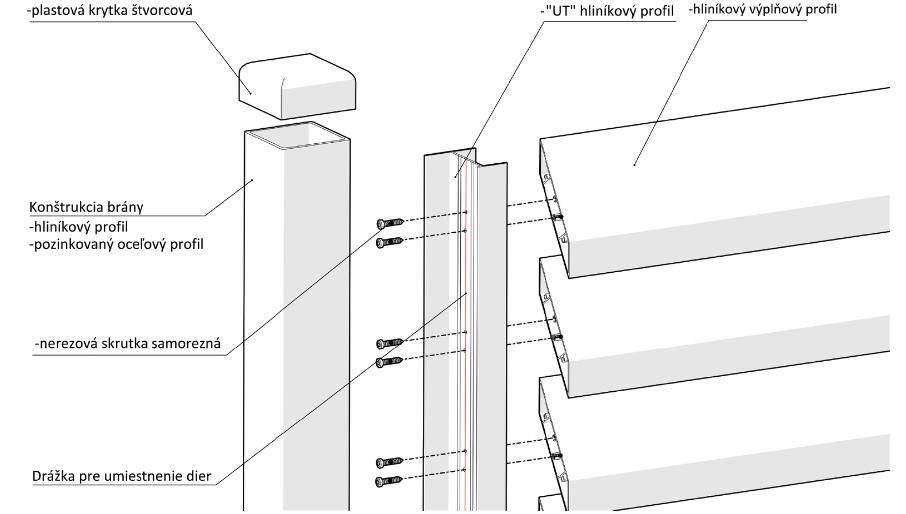

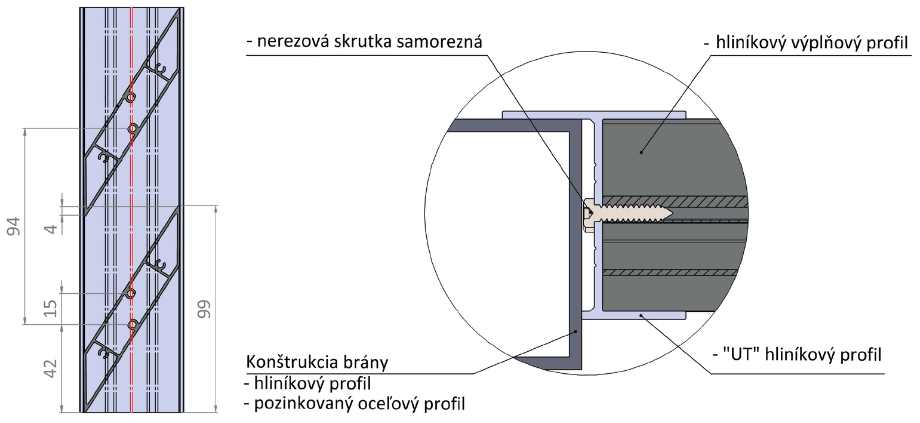

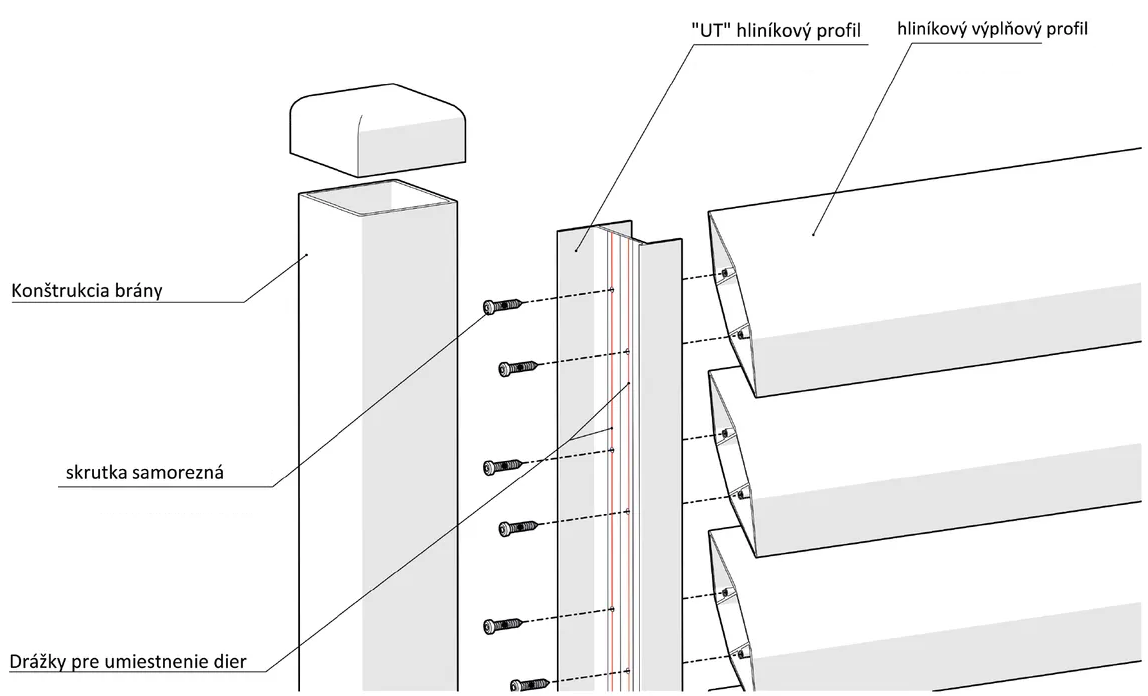

Installation method for a parallelogram-shaped aluminium slat:
Slat detail - Aluminium fence slat 108 × 16 mm, parallelogram-shaped, 6 m long
 |
 |
 |
 |

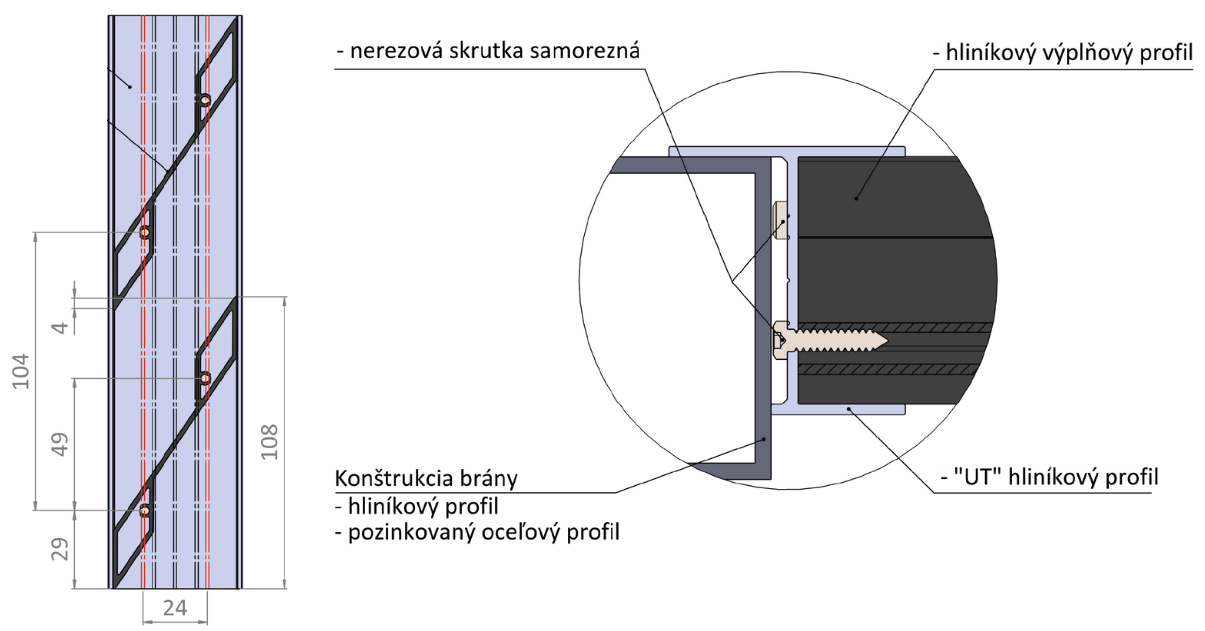

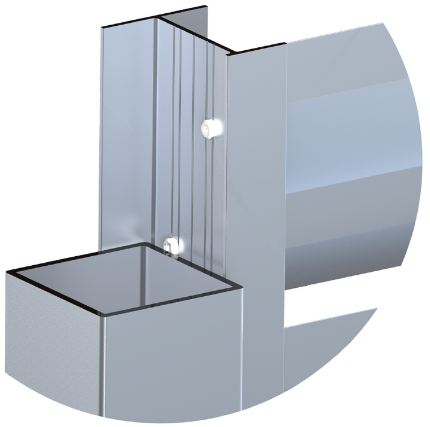

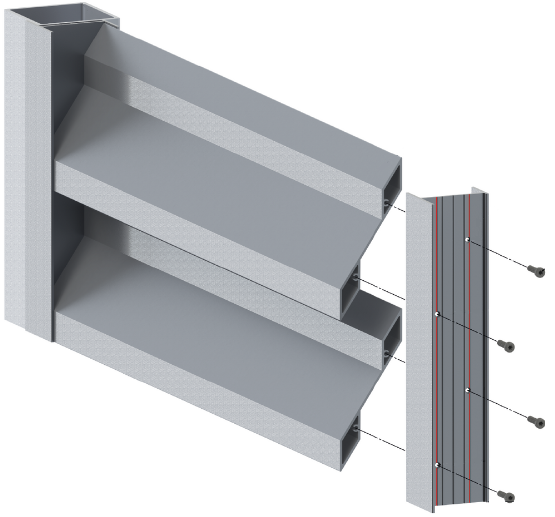

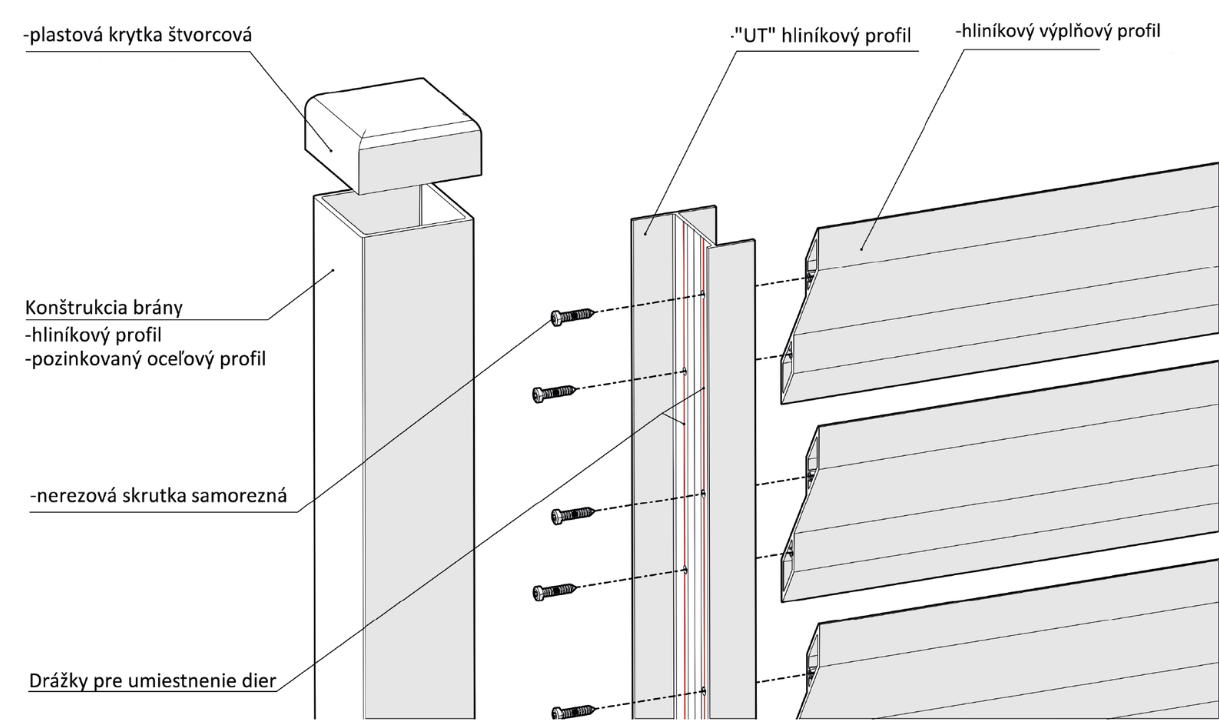

Installation method for a louvred aluminium slat:
Slat detail - Aluminium fence slat 115.2 × 24.4 mm, louvre-shaped, 1.6 mm thick, 6 m long
 |
 |
 |
 |

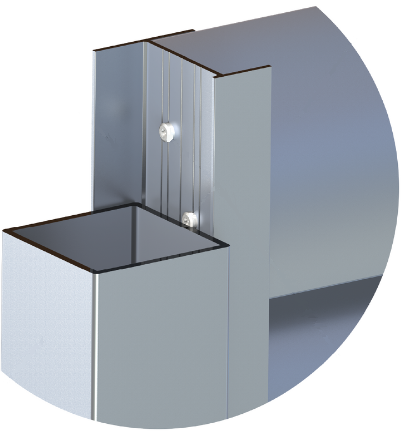

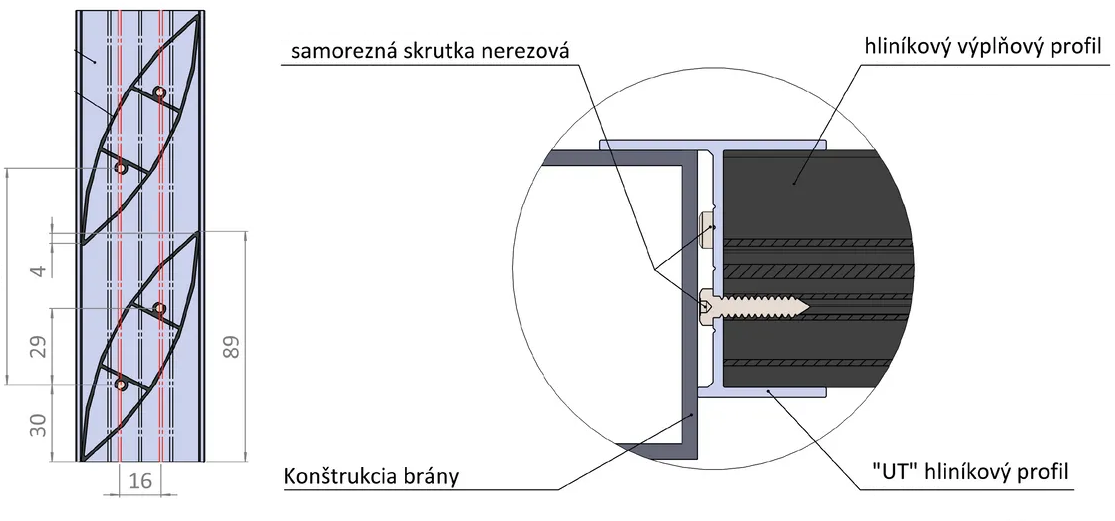

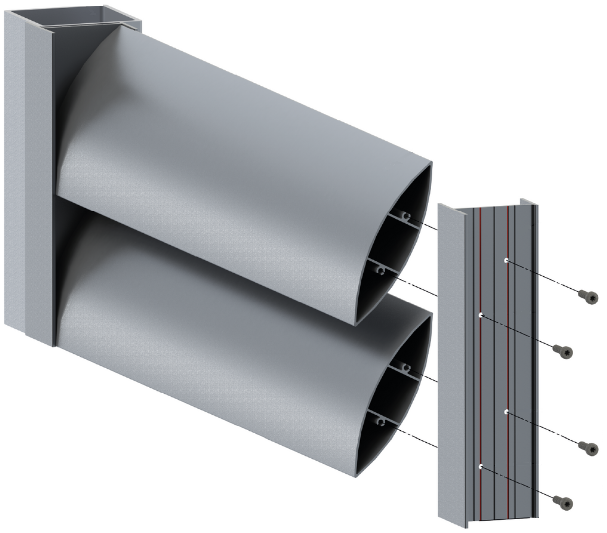

Installation method for a teardrop-shaped aluminium slat:
Slat detail - Aluminium fence slat 100 × 24.5 mm, teardrop-shaped, 6 m long
 |
 |
 |
 |
Surface finish
Aluminium is generally an excellent material, resistant to corrosion and weathering, with a long service life. The fixing profile is made from EN AW-6060 T66 aluminium and is supplied unfinished. Before applying paint, if required, thoroughly degrease the aluminium surface and roughen it with fine-grit sandpaper.
360° view of the 50 mm-wide aluminium fixing profile with a louvred slat:

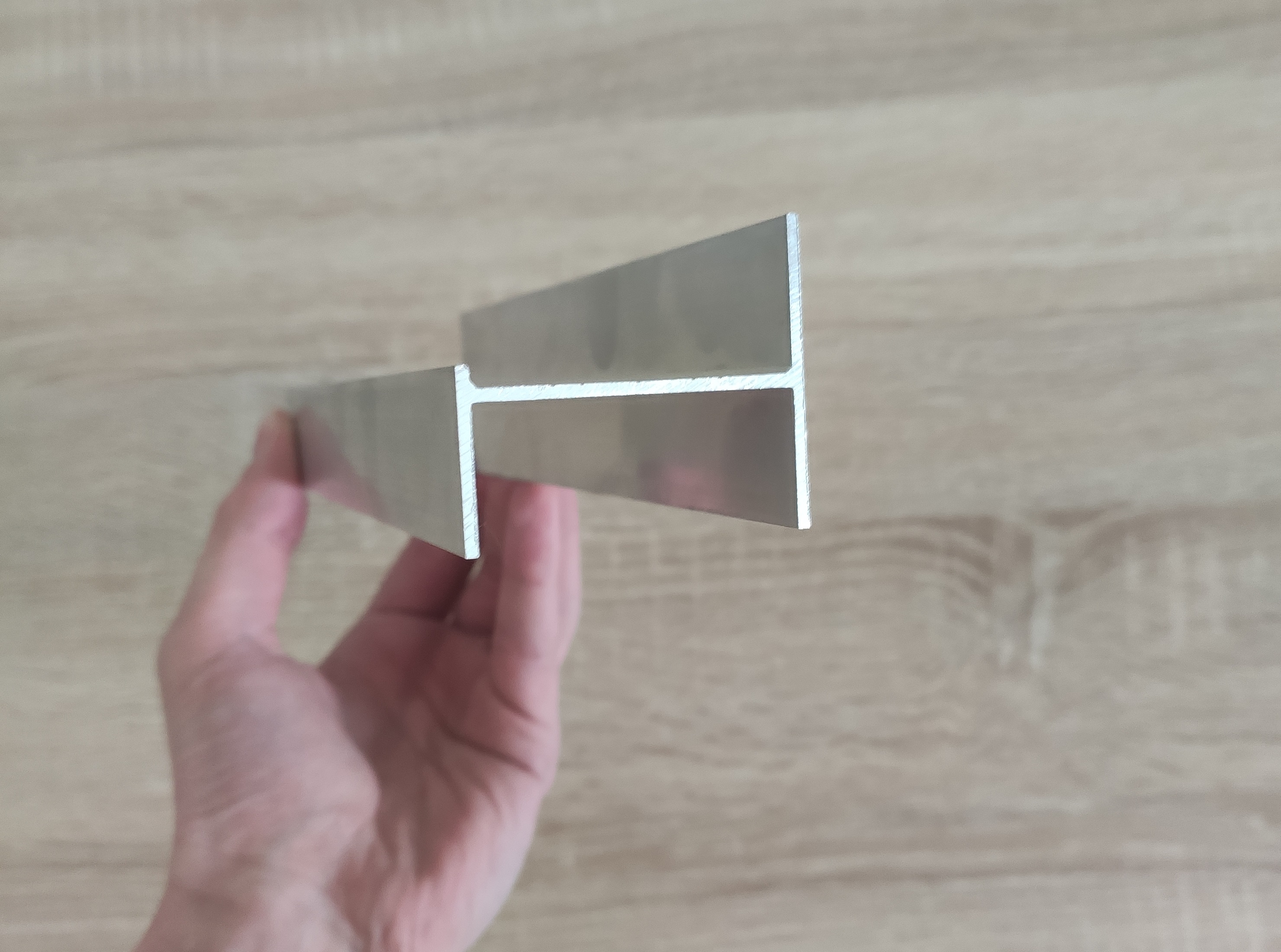

Realistic photos:
Technical specifications of the aluminium fixing profile for fence slats:
Material: natural aluminium (EN AW-6060 T66)
Surface finish: unfinished
Dimensions: 50 × 44 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.22 kg, 1.83 kg, 3.66 kg
