Aluminium fence slat, 100x16 mm, rectangular, anthracite RAL7016, smooth finish
NEW| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€88.07 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 5,31 kg |
in stock
€44.04 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 2,66 kg |
in stock
€29.36 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,77 kg |
Description of Aluminium fence slat, 100x16 mm, rectangular, anthracite RAL7016, smooth finish
Aluminium slat, with a finish in anthracite, can be used as infill for a fence, gate, or any other space. The slat has a rectangular shape with a height of 100 mm and a width of 16 mm, and is available in lengths of 2 m, 3 m, or 6 m.
EXAMPLE OF A GATE AND GATE DOOR MADE FROM ANTHRACITE ALUMINIUM SLATS:
The slat is hollow and has guide grooves on the inside of the sides for the fixing screws. The simplest installation method is to use mounting profiles with pre-machined grooves for accurate drilling and fastening with screws.
Patterns for the rectangular aluminium slat:
Combined with a mounting profile 20.5 mm wide you can create a vertical pattern:
 |
 |
Depending on the desired effect, you can also alternate aluminium slats of different heights. Our range also includes a 20 mm-high rectangular slat without a finish, or an anodised slat, both ideal for creating modern patterns.
Example of an opaque slatted infill pattern and a see-through pattern alternating aluminium slats of different heights:
Installation methods for rectangular aluminium fence slats:
How to attach the slats vertically in a U-profile (20.5 mm wide):
 |
 |
The slats can also be installed vertically using end caps, which are inserted into the slat from above.
Finish:
Aluminium is generally an excellent material with corrosion and weather resistance and a long service life. The slat is made from EN AW-6060 T66 aluminium and supplied with an anthracite RAL 7016 finish.
The profile is powder-coated to give it a smooth finish. After application, the powder coating is cured in an oven. This finish is characterised by a long service life and resistance to UV radiation and yellowing.. It is intended for use in construction, where shade and gloss durability are essential.
Note
The manufacturing process requires that at the ends of profiles with a powder-coated finish, approximately 1 cm of profile is left at each end for holding during coating. There is a small hole at the end of the profile, which should be taken into account. If necessary, the end can simply be cut off or hidden inside the mounting profile.

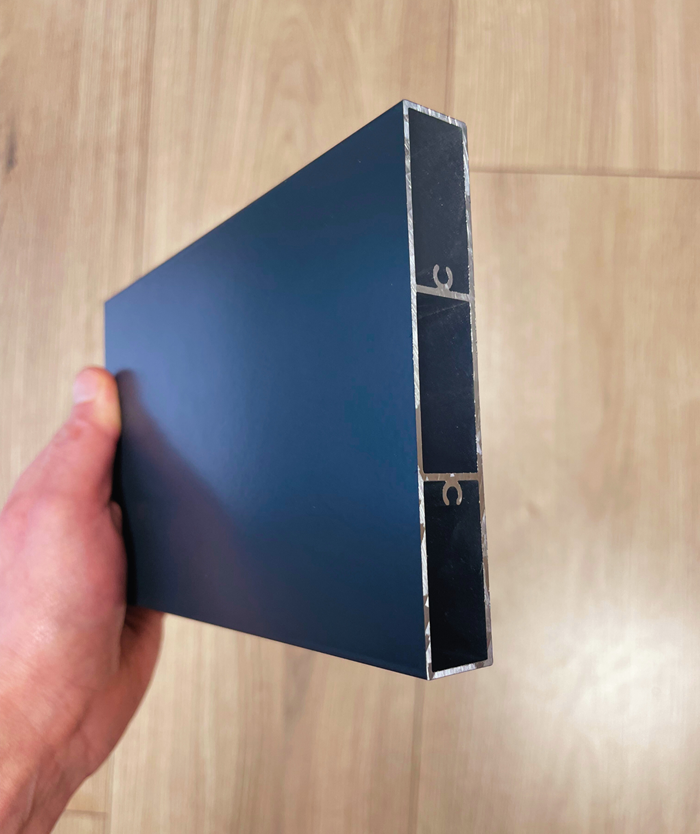

Photo of an anthracite slat:
Difference between a smooth finish and a textured finish:
Textured anthracite Smooth anthracite
Suitable mounting screws:
Screws with countersunk heads DIN 7982 3.5x19 mm
Technical specifications for aluminium slats used as gate and fence infill:
Material: natural aluminium (EN AW-6060 T66)
Finish: Anthracite – smooth finish
Dimensions: 100x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.673 kg, 2.510 kg, 5.022 kg
