Aluminium fence slat 108x16 mm, parallelogram shape, anthracite RAL7016, smooth finish
NEW| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€84.68 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 5,80 kg |
in stock
€42.34 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 2,90 kg |
in stock
€28.22 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,93 kg |
Description of Aluminium fence slat 108x16 mm, parallelogram shape, anthracite RAL7016, smooth finish

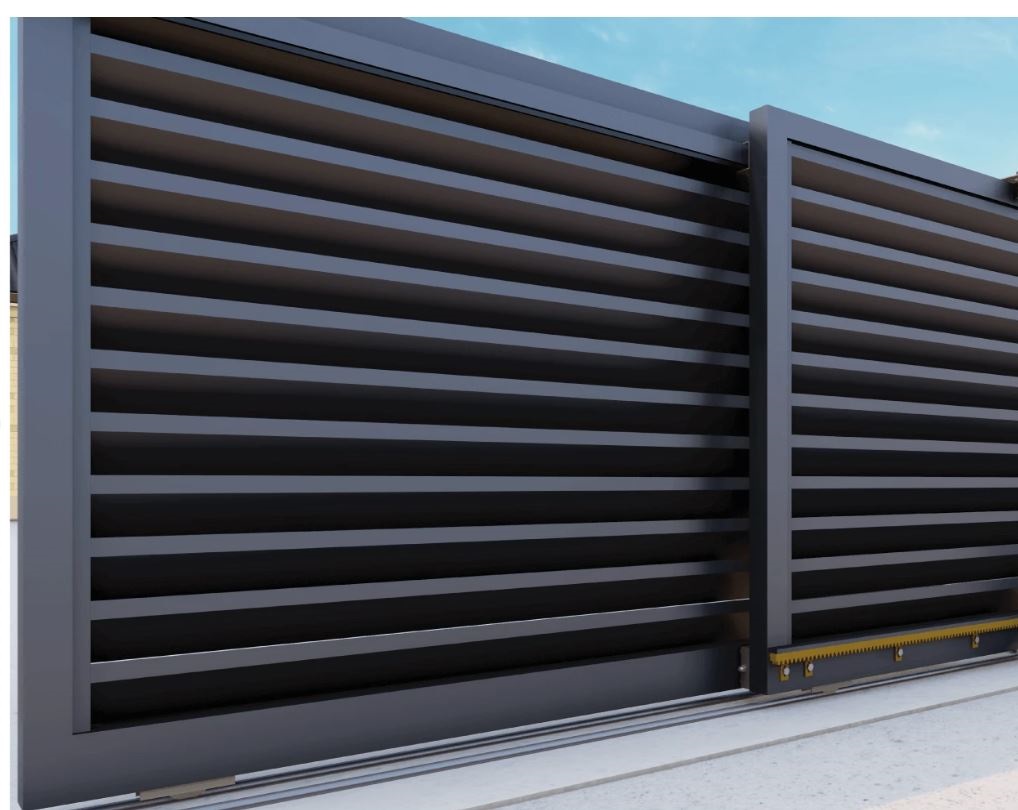

Aluminium slat, with a finish in anthracite, can be used as infill for a fence, gate, or any other area. The slat has a parallelogram shape with a height of 108 mm and a width of 16 mm and is available in lengths of 2 m, 3 m, or 6 m.
The slat is hollow and has guide grooves for fastening screws on both sides. The simplest installation method is to use mounting profiles with pre-cut grooves for accurate pre-drilling and screw fastening.
Patterns for the aluminium parallelogram-shaped slat:
Combined with mounting profiles, you can create two patterns:
- Vertical slats – with a 20.5 mm wide mounting profile
 |
 |
- Slanted slats – with a 50 mm wide mounting profile
 |
Installation methods for the aluminium parallelogram-shaped fence slat:
Mounting profiles are available in two versions:
- U-shaped profile – for mountingbetweenposts
- UT-shaped profile – for mountingin front ofposts

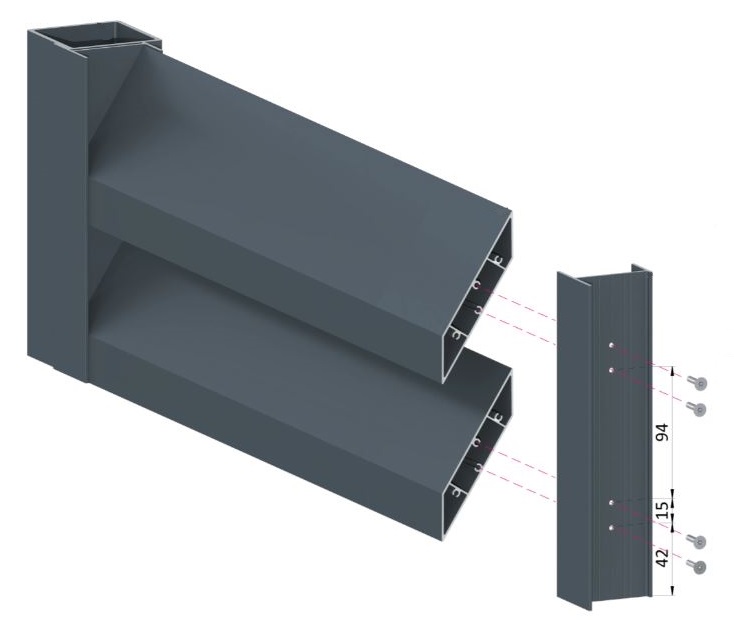

Method for attaching slats vertically in a U-profile (20.5 mm wide):
 |
 |
Method for attaching slats at an angle in a U-profile (50 mm wide):
 |
 |
Method for attaching slats at an angle in a UT-profile (50 mm wide):
 |
 |
Finish:
In general, aluminium is an excellent material with resistance to corrosion and weather, and a long service life. The slat is made from EN AW-6060 T66 aluminium and supplied with an anthracite RAL 7016 finish.
The profile is finished with a smooth powder coating. After application, the powder coating is cured in an oven. A matt thermosetting powder coating is used with Qualicoat certification, based on polyester resins, designed for outdoor use..
This finish offers a long service life and resistance to UV radiation and yellowing.. It is designed for use in construction, where shade and gloss durability are essential.
Note
The manufacturing process requires at the ends of profiles with a powder-coated finish approximately 1 cm of profile to be left at each end for holding during painting. There is a small hole at the end of the profile, which should be taken into account. If necessary, the end can easily be cut off or hidden inside the mounting profile.

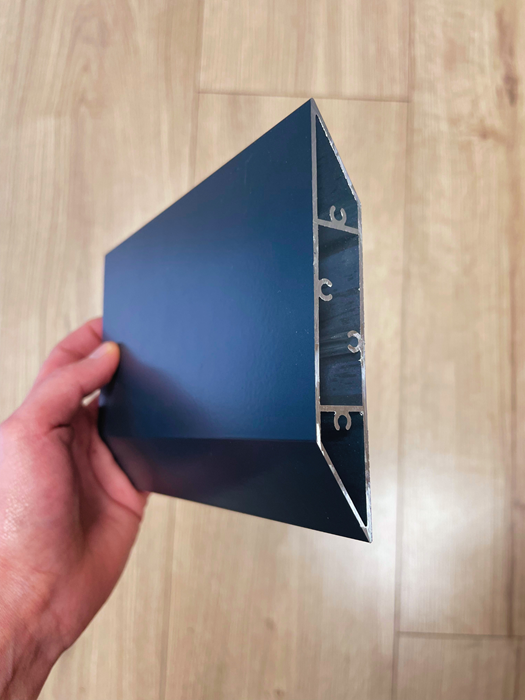

Realistic photo of the anthracite slat:
Textured anthracite Smooth anthracite
Suitable mounting screws:
for UT-profile screws with countersunk head, DIN 7982, 3.9x19 mm
for U-profile screws with countersunk head, DIN 7982, 3.9x19 mm
Technical specifications of the aluminium slat for gate and fence infill:
Material: natural aluminium (EN AW-6060 T66)
Finish: Anthracite – smooth finish
Dimensions: 108x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.92 kg, 2.84 kg, 5.68 kg
