Aluminium retaining profile for slats, U-shaped, 20.5 mm wide, with a wood-effect textured finish, walnut
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€51.46 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 2,29 kg |
in stock
€25.73 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 1,15 kg |
in stock
€17.16 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 0,76 kg |
Description of Aluminium retaining profile for slats, U-shaped, 20.5 mm wide, with a wood-effect textured finish, walnut
Aluminium fence slat fixing profile has a U-shaped cross-section,with a textured wood-effect finish, making it suitable for installation between posts on a gate, fence or other opening. The profile's overall width is 20,5 mm, the overhang is 22 mm and the length is 2 m, 3 m or 6 m.
- Fixing profile compatibility
- Installation method for parallelogram-shaped slats
- Installation method for rectangular aluminium slats
- Finish
- Technical specifications
On the outside of the profile are recessed grooves for precise horizontal positioning of the screws. The ideal screws are stainless steel self-tapping screws with countersunk heads, DIN 7982, 3,9x19 mm
FIXING PROFILE COMPATIBILITY:
The profile is suitable for vertical installation of the following slat models:
Aluminium slats without a finish -
- rectangular, 16mm wide, in the following heights: 60mm, 80mm, 100mm, 120mm, 160mm, 200mm,
- parallelogram-shaped, measuring 108x16mm,
- and slats for completing the pattern when alternating slat heights: 20x16mm and anodised slat, 20x16mm.
Aluminium slats in anthracite -
- with a smooth finish — rectangular, 16mm wide, in the following heights: 80mm, 100mm, 160mm,
- with a smooth finish — parallelogram-shaped, measuring 108x16mm,
- with a textured finish — rectangular, in the following sizes: 80mm, 100mm, 160mm,
- with a textured finish — parallelogram-shaped, measuring 108x16mm.
Aluminium slats with a wood-effect finish:
- measuring 80x16mm, textured, in walnut
- measuring 100x16mm, in walnut
- measuring 100x16mm, textured, in walnut
- measuring 100x16mm, textured, in beech
- measuring 100x16mm, in white oak
- measuring 120x16mm, textured, in walnut
- measuring 108x16mm, textured, in walnut
HOW TO INSTALL A PARALLELOGRAM-SHAPED ALUMINIUM SLAT:
The fixing U-profile has a recessed groove into which you can pre-drill holes for the screws. Inside the hollow slat, there are guide grooves along the sides where the screw engages.
An anthracite parallelogram-shaped fence slat with a smooth finish together with a fixing U-profile in the same colour and finish creates a uniform, modern look.
The parallelogram-shaped slat can also be installed at an angle to create a louvre pattern, but you will need to use a 50mm-wide fixing profile.
 |
 |
 |
 |
HOW TO INSTALL A RECTANGULAR ALUMINIUM SLAT:
As an example, consider a 80x16 mm anthracite rectangular aluminium fence slat with a smooth finish, matching the fixing profile in colour and finish. For vertical installation, slide the fixing profile onto the slat and screw it in place. A recessed groove runs down the centre of the fixing profile's outer face, where you can pre-drill screw holes at intervals to suit your desired pattern. Once the slat is slid into the fixing profile, the screw engages with the guide groove inside the slat. Once the slat is slid into the fixing profile, the screw engages with the guide groove inside the slat.
 |
 |
 |
 |
FINISH
Aluminium is an excellent material that resists corrosion and weathering and offers a long service life. The slat is made from EN AW-6060 T66 aluminium and supplied with a textured wood-effect finish.
The profile is powder-coated.. After application, the powder coating is cured in an oven.
This finish offers a long service life and resistance to UV radiation and yellowing.. It is designed for use in construction, where long-lasting colour and gloss are essential.
Please note
The manufacturing process requires at the ends of profiles with a powder-coated finish approximately 1 cm of profile to be left at each end for holding during painting. At the ends of the profile, there is a small hole, which you should take into account. This small hole does not interfere with installation, but the end can easily be cut off if needed.

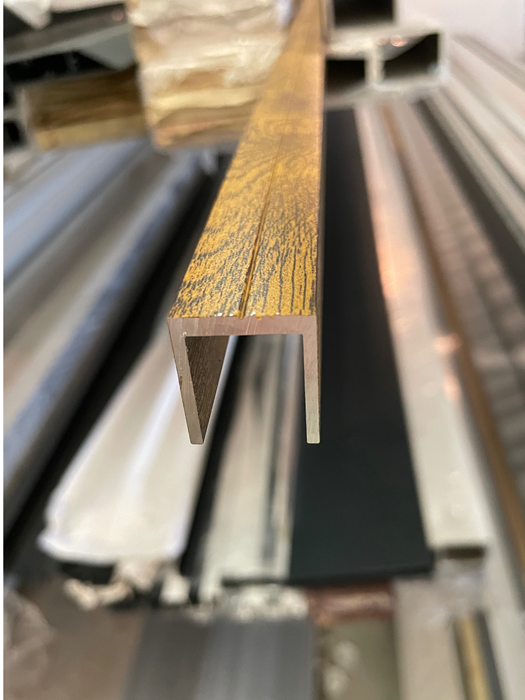

Photo of the fixing profile:
TECHNICAL SPECIFICATIONS OF THE ALUMINIUM FENCE SLAT FIXING PROFILE:
Material: natural aluminium (EN AW-6060 T66)
Finish: textured wood effect
Dimensions: 20,5x22 mm
Length: 2 000 mm, 3 000 mm, 6 000 mm
Weight: 0,64 kg, 0,96 kg, 1,92 kg
