Aluminium fence slat 80x16 mm, rectangular, with a wood-effect textured finish, walnut
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€91.14 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 4,41 kg |
in stock
€45.57 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 2,21 kg |
in stock
€30.38 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,46 kg |
Description of Aluminium fence slat 80x16 mm, rectangular, with a wood-effect textured finish, walnut
Aluminum slat, with a finish in a wood effect textured, can be used as infill for a fence, gate, or any other space. The slat has a rectangular shape with a height of 80 mm and a width of 16 mm and is available in lengths of 2 m, 3 m, or 6 m.
The slat is hollow and has guide grooves on the sides for fastening screws. The easiest installation method is to use mounting profiles with pre-machined grooves for accurate drilling and screw fastening.

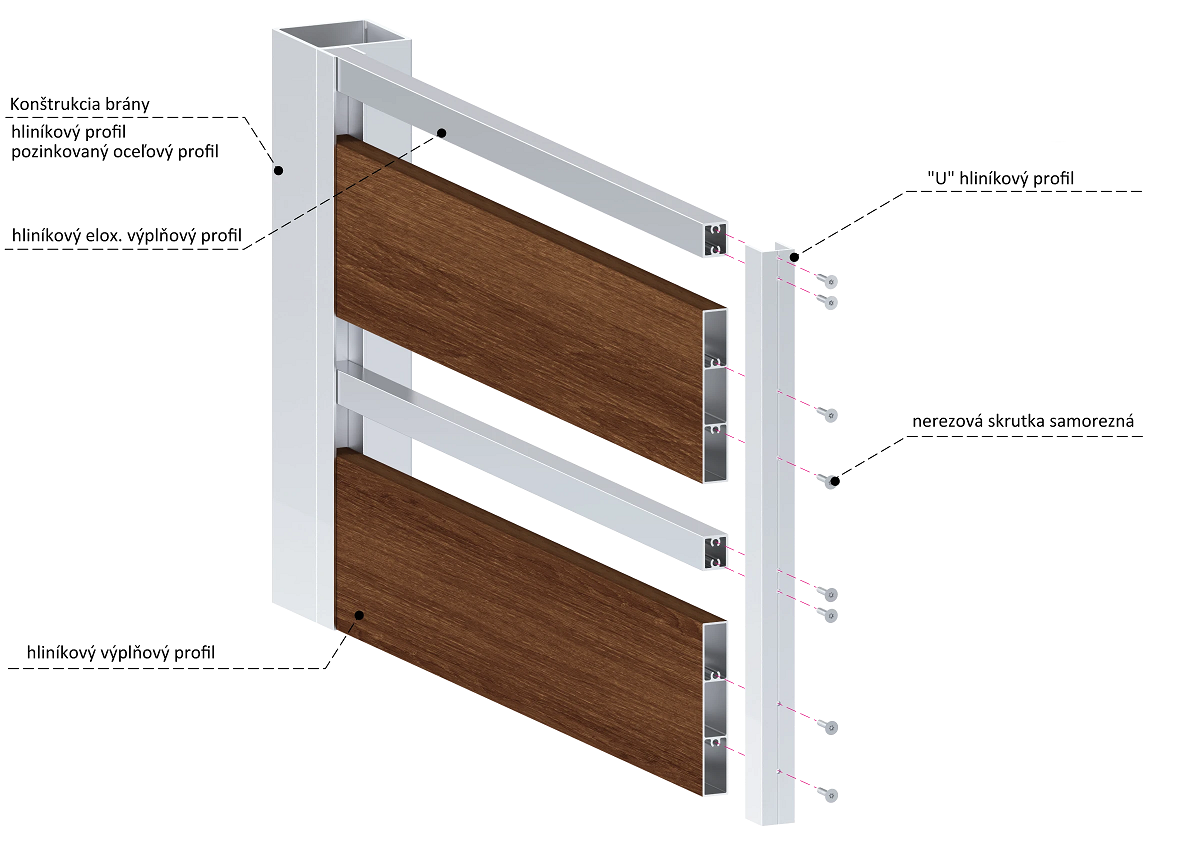

The slat is suitable for creating an opaque infill. To create an opaque infill, combine the slat with a narrow slat (Anodized version). This creates an elegant infill with a thin strip that you can highlight in a different color.

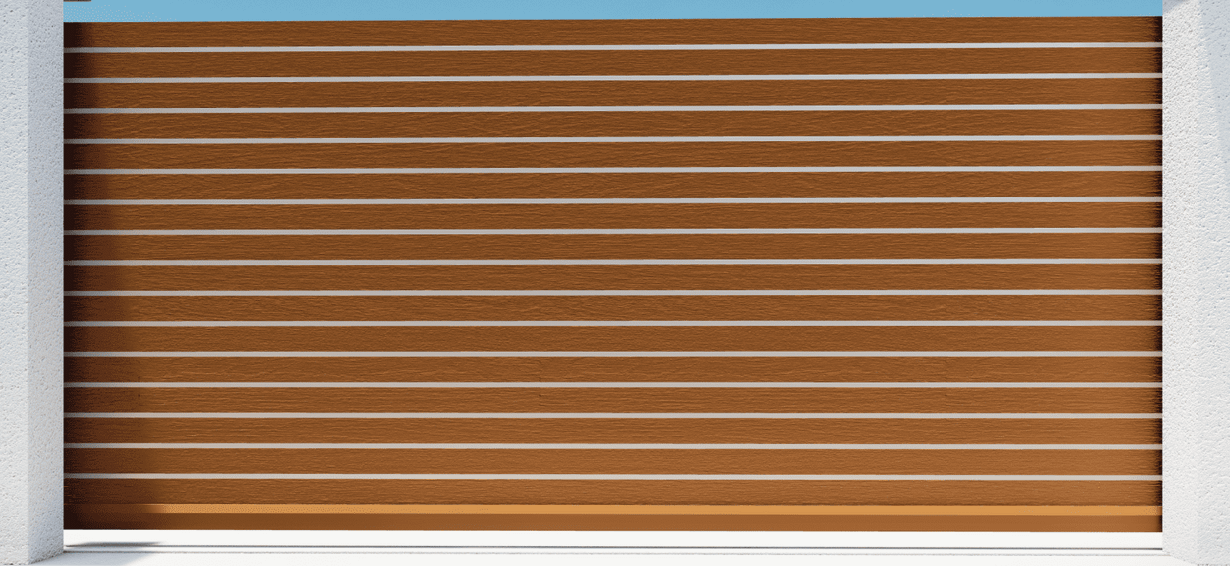

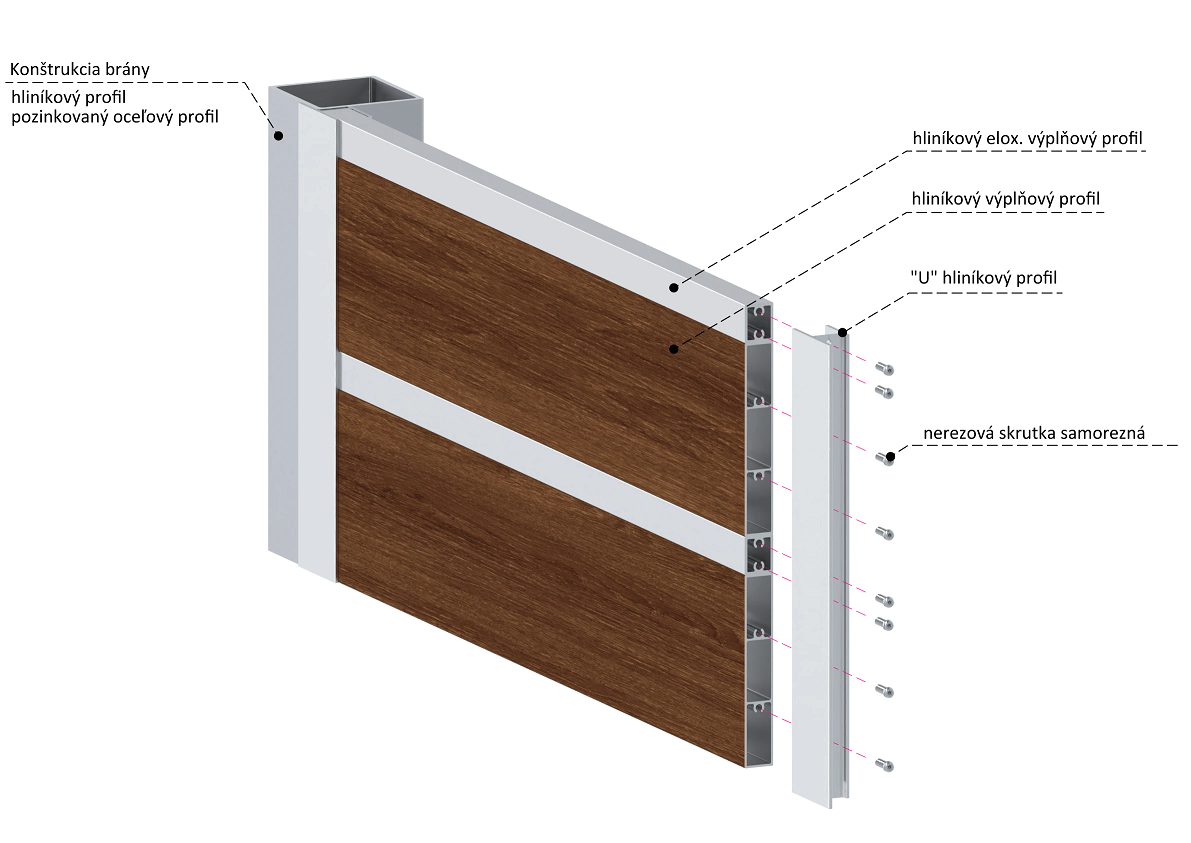

Example installation with a narrow slat:
RECTANGULAR ALUMINUM SLAT PATTERNS:

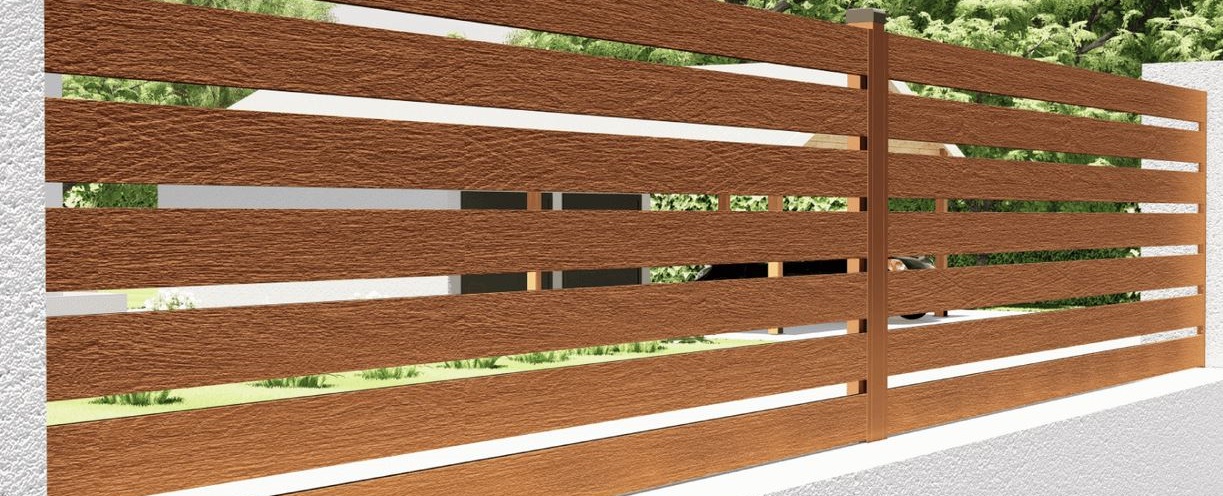

In combination with a mounting profile, you can create a vertical pattern:
- in combination with a mounting profile 20.5 mm wide
 |
 |
INSTALLATION METHODS FOR RECTANGULAR ALUMINUM FENCE SLATS:
Method for fastening slats in a vertical position in a U-profile (20.5 mm wide):
 |
 |

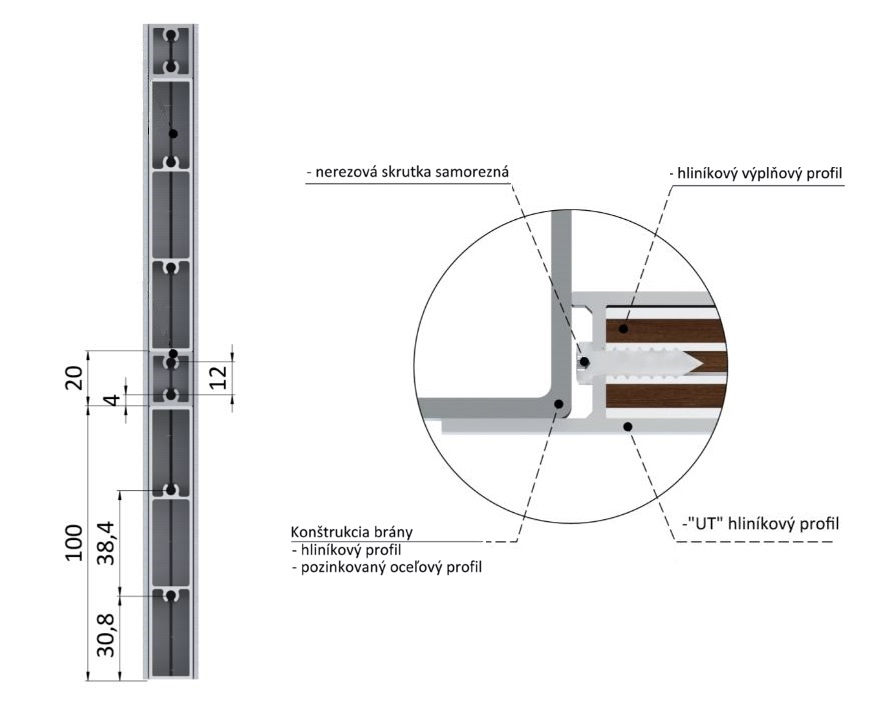

Method for fastening slats in a vertical position in a UT-profile (20.5 mm wide):
|
 |
The slats can also be installed vertically, using end caps, which are inserted into the slat from above.

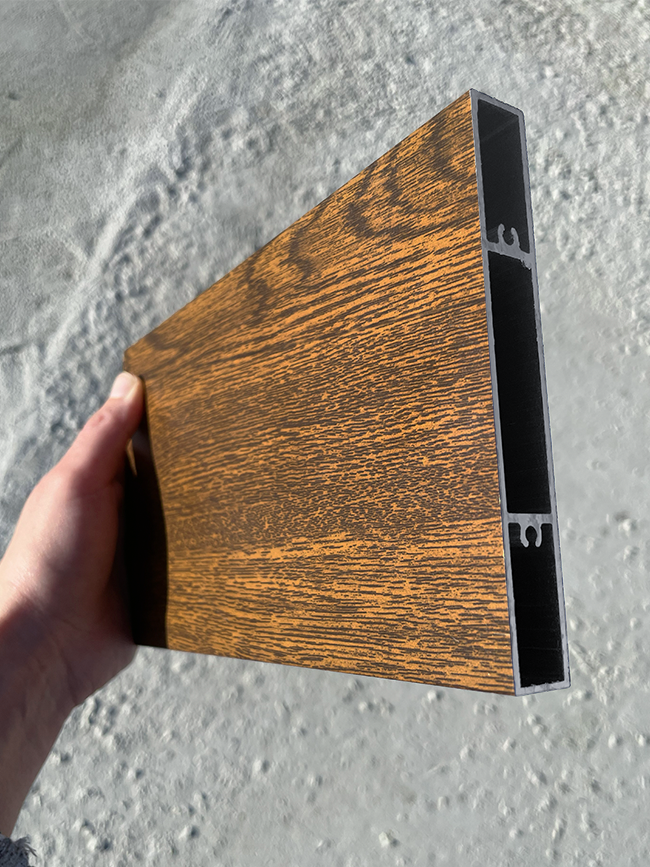

Photo of the slat:
FINISH:
Aluminum is generally an excellent material with resistance to corrosion and weather, and a long service life. The slat is made from aluminum to EN AW-6060 T66 and supplied with a wood-effect finish.
The profile is finished with textured powder coating. After application, the powder coating is cured in an oven.
This finish is characterized by a long service life and resistance to UV radiation and yellowing. It is intended for use in construction, where lasting color and gloss are essential.
Please note
The manufacturing process requires at the ends of profiles with a wood-effect finish approximately 1 cm of profile to be left at each end for fastening.
This means that for:
- vertical installation – There is protective tape at the profile ends; please take this into account. If necessary, the end can simply be cut off.
- horizontal installation – There is no issue, as the profile ends can be neatly concealed inside a U-profile.

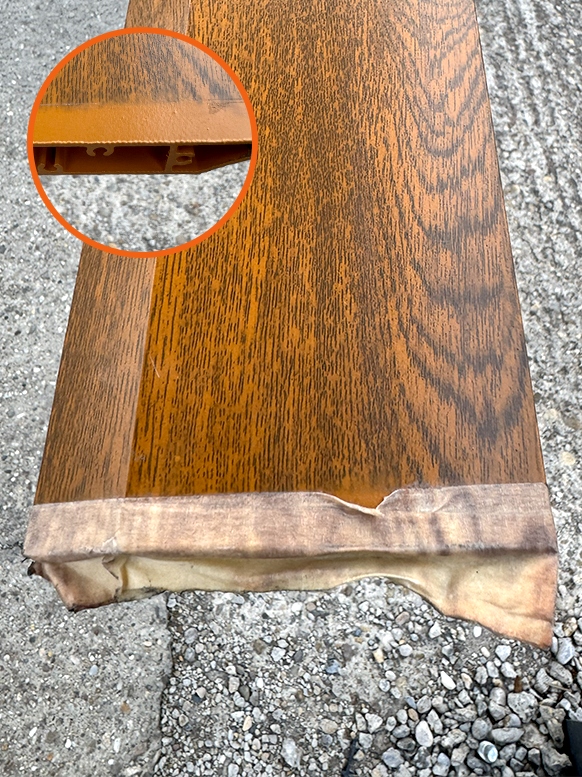

Shown on an angled aluminum slat with a wood-effect finish:
SUITABLE FASTENING SCREWS:
Screws with countersunk heads DIN 7982 3.5x19 mm
TECHNICAL SPECIFICATIONS OF THE ALUMINUM SLAT FOR GATE AND FENCE INFILL:
Material: natural aluminum (EN AW-6060 T66)
Finish: wood effect - textured
Dimensions: 80x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.46 kg, 2.20 kg, 4.41 kg
