Drive kit for a sliding gate up to 2500 kg/18 m – NICE Run RUN2500I (E)
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€1,272.90 including VAT
| Weight |
|---|
| 26 kg |
Description of Drive kit for a sliding gate up to 2500 kg/18 m – NICE Run RUN2500I (E)
NICE Run RUN2500I drive with a built-in inverter that converts 230 V to 400 V. Suitable for intensive use. It is designed for sliding gates weighing up to 2500kg and a passage width of up to 18 m. It has a mechanical stop switch. The drive is non-reversible. Detailed technical specifications ». Download the manual ».
Inverter allows a three-phase motor to be powered and activated by a single-phase 230 Vac supply, adjusting the frequency to control the drive speed from a minimum of 8.2 m/min to a maximum of 15.4 m/min. During the drive's deceleration phase, the inverter, which communicates with the control unit, increases the torque, thereby boosting performance and reducing the risk of the drive stopping as it decelerates at the end of the cycle. So, to put it in plainEnglish, if you want a two-and-a-half-ton gate to slow down at the end, the RUN2500 may act up, so use the RUN2500I.
| Set NICE-RUN2500I-E contains: | ||||
|---|---|---|---|---|
|
1 × | NICE Run RUN2500I drive | NICE-RUN2500I-A | |
|
NICE Run RUN2500I electromechanical gate operator with a built-in control unit, suitable for gates weighing up to 2500kg and with a leaf length of up to 18m.
|
Details
|
|||
|
1 × | NICE RUA2 control unit | NICE-RUA2 | |
|
Control unit for the NICE RUN2500I drive. |
Details
|
|||
|
1 × | NICE MYGO4 - four-channel remote control | NICE-MYGO4 | |
|
NICE MYGO4 - four-channel remote control, rolling code, 433.92 MHz |
Details
|
|||
|
1 × | NICE OXIBD remote control receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. Supports two-way communication with selected remote control models. Range of up to 200m with an antenna. |
Details
|
|||
|
1 × | NICE EPMB - Era Photocell Medium - photocells with BlueBUS connection | NICE-EPMB | |
|
Safety photocells are installed on either side of the opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the drive to stop the gate or prevent it from opening. |
Details
|
|||
|
4 m | Rack with metal reinforcement | LZ-1-1 | |
|
A sliding gate with a fixed rack is moved by the drive gear via a rack-and-pinion mechanism. |
Details
|
|||
|
1 × | Installation Manual |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
2 pcs. release keys
End stops
Drive features NICE RUN RUN2500I
The drive is compact, safe and practical, making it ideal for both residential and commercial use. Impact-resistant cover, with a body made of epoxy-coated aluminium alloy.
The drive is suitable for automating sliding gates weighing up to 2500kg, with a gate leaf length of 18 m. These values apply under the conditions specified by the manufacturer, such as weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Run RUN2500P drive ideally for gates at 80% of these values. See the Choosing a drive chapter for more information.
A very user-friendly technology BlueBUS allows you to power and control up to 7 pairs of photocells using a two-core cable.
The temperature sensor adjusts the drive's pulling force according to the climatic conditions. The drive also includes a thermal fuse.
Adjustable speed,, force and pause time for automatic drive closing, and many other features; see Programming.
Diagnostics using warning beacon.
The gear module 4 is compatible with the rack available in our range.
Run2500P drive features "The slave unit" ensures automatic synchronisation of two motors. This means you can automate two sliding gates that move towards each other.
The NICE Run RUN2500I is an electromechanical drive suited to the climate in Slovakia and complies with all European safety standards.
For a detailed wiring diagram and further technical information, visit the NICE Run RUN2500I drive page, or see the manual..
Drive specifications NICE RUN RUN2500I
| Power supply | 230 Vac / 50 Hz |
|---|---|
| Current draw | 3.7 A |
| Ingress protection rating | IP44 |
| Power | 650 W |
| Speed | 0.26 m/s |
| Force | 1660 N |
| Operating cycles | 56 cycles/hour |
| Max. gate weight | 2500 kg |
| Operating temperature | -20 to +50 °C |
| Gear module | 4 |
Accessories compatible with the NICE Run RUN2500I drive
We also recommend purchasing compatible optional accessories for the drive, or choosing one of our pre-assembled, discounted kits:
| What | Why | Type | Included in the kit? |
|---|---|---|---|
| Warning beacon | The beacon flashes to indicate gate movement—ideal for exits with limited visibility. It also has a built-in antenna for greater remote-control range. | - Lucy (LUCYB) - Moonlight (MLBT, ELB) |
No. |
| Photocells | When closing, they detect obstacles and stop the gate, preventing it from hitting cars or people. | - MoonBUS (MOFB,EPMB) | Yes, EPMB. |
| Transmitter |
For remote gate control. |
- MYGO4 - Era One (ON2E, ON4E) |
Yes, MYGO4. |
| Receiver | Required for remote control of the gate. | - OXI - SMXI |
Yes, OXIBD. |
| Antenna | For better remote-control range. | - integrated into the flashing light LUCYB, MLBT - ABFKIT antenna only |
No. |
| Keypad | If you forget your remote control, or if many vehicles or people visit and you don't want to give everyone a remote control or open the gate manually. | - MOTXR (wireless) | No. |
| Key switch | To operate the gate with a key using a switch connected to the drive by cable at any location. | - MOSE | No. |
| Rack | Required for the drive automation itself—the drive cannot move the gate without a rack. | - nylon LZ-1 with steel reinforcement - steel LZ-2 |
Yes. 4x LZ-1 |

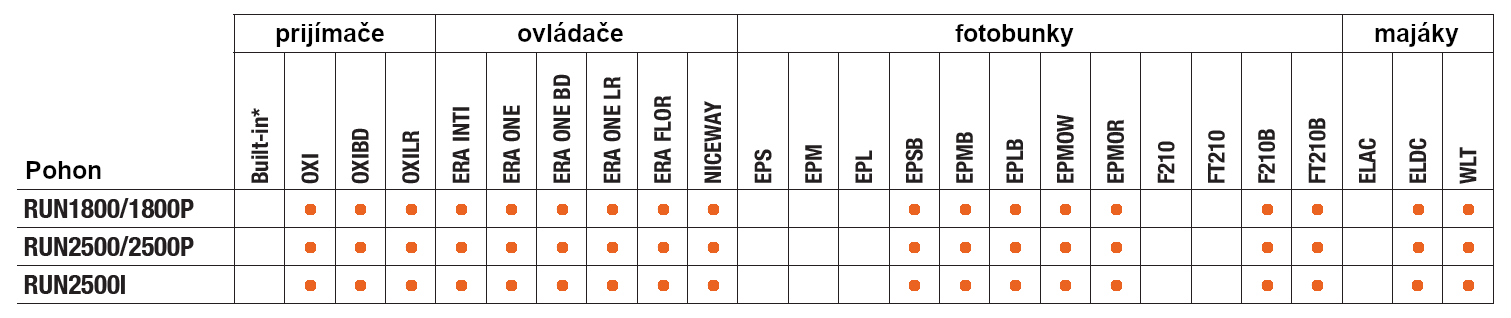

Compatibility table for NICE Run drives
