NICE Spinbus SN6021 - standalone drive for garage doors

Description of NICE Spinbus SN6021 - standalone drive for garage doors

Available replacement!
The Nice NICE Spinbus SN6021 drive has been replaced by a newer model NICE SPIDO 600.

NICE Spinbus SN6021 operator is designed for sectional garage doors with an area of up to 10.5m2, or up-and-over garage doors with protruding tracks with an area of up to 11.8m2, or up-and-over garage doors with non-protruding tracks up to 9.3m2. Which is which? It has a mechanical stop switch. The operator is notreversible. Detailed technical specifications ». Download the manual ».

(Is this operator right for me?)
Compare with other operators:

« Lower-powered operator Higher-powered operator »
No.

NICE Spinbus SN6031

NICE Spinbus SN6031 operator
Sectional door: up to 13.5m2
Protruding up-and-over door: up to 12.8m2
Non-protruding up-and-over door: up to 10.9m2
Plug-in radio receiver.
BlueBUS system.



This product—the standalone NICE Spinbus SN6021 garage door operator (our code NICE-SN6021)—includes:

  • electromechanical NICE Spinbus SN6021 operator with a control unit NICE SNA20R10 (formerly SNA2, or SNA20). The operator is supplied without a receiver. When replacing the operator, you can use your existing plug-in receiver, which has your remote controls programmed into it.
  • installation manual

Special-price kits that include the operator NICE Spinbus SN6021:

Operator kit with accessories »

NICE Spinbus SN6021 operator kit

Spinbus SN6021 operator, SNA2 control unit, SMXI receiver, FLO2RE remote control, SNA30 guide rail.
Details and price ».



The operator is compact, safe and practical, making it ideal for both residential and commercial use. Durable plastic housing with built-in lighting.

The operator is suitable for automating a garage door with a door leaf area of 10.5m2 for a sectional garage door, 11.8m2 for an up-and-over garage door with protruding tracks, or 9.3m2 for an up-and-over garage door with non-protruding tracks. Types of garage doors. These values apply under the conditions specified by the manufacturer, such as weather conditions, temperature differences, door rigidity and, above all, smooth door operation. These conditions cannot always be achieved or controlled, so we recommend using the NICE Spinbus SN6021 operator with garage doors at no more than 80% of these values for optimal performance. See the section Choosing an operator for more information.

Very user- friendly technology BlueBUS allows you to power and control up to 6 pairs of photocells using a two-core cable. The operator also has a thermal fuse.

Adjustable speed,, force and pause time for automatic closing and more; see Programming.

Diagnostics using a warning beacon.

In the event of a power outage, the operator can be disengaged so the door can be moved manually. It is also possible to connect to the operator a NICE PS124 backup battery, which allows several operating cycles in the event of a power outage.

The operator control unit has a programmable input, to which you can connect a warning light, an open-gate indicator, an electromechanical lock or an electromagnetic lock.

The NICE Spinbus SN6021 is an electromechanical operator suitable for Slovakia’s climate and compliant with all European safety standards.

Accessories compatible with the NICE Spinbus SN6021 operator

We also recommend purchasing compatible optional accessories for the operator, or choosing one of our pre-assembled discounted kits:

What Why Type
Warning light The warning light flashes to indicate gate movement—ideal for exits with limited visibility. It also has a built-in antenna for greater remote-control range.

- Lucy (LUCYB)
- Moonlight (MLBT)
- Wallyght (WLT)

Photocells They detect obstacles as the gate closes and stop its movement, preventing it from hitting cars or people. - MoonBUS (MOFB)
Transmitter

For remote gate control.

- FloR (Flo2R-s, Flo4R-s)
- Era One (ON2E, ON4E)
- Era Flor (Flo2RE, Flo4RE)
- Era Inti (INTI2)

Receiver Required for remote gate control. - OXI
- SMXI
Antenna For greater remote-control range. - built into the warning light LUCYB, MLBT
- ABFKIT antenna only, or ABF
Keypad If you forget your remote, if many vehicles or people visit you, or if you don’t want to give everyone a remote or have to open the gate yourself. - MOTXR

NICE Spinbus SN6021 operator manual

Download the NICE Spinbus SN6021 operator manual here:

NICE Spinbus SN6021 operator manual

Instructions for pairing, deleting and saving a remote control to or from the memory of the NICE operator receiver

NICE Spinbus at a glance

Robusd 600 operator control unitNICE Spinbus is a range of non-reversible electromechanical geared operators for garage doors.. They are supplied with an SNA2 control unit. Compatible control units include SNA2, or SNA20. The control units have an SM connector for receivers radio signal NICE SMXI, or NICE OXI. Electrical connections for external devices (photocells, warning light, etc.) in the NICE Spinbus range of garage door operators were simplified by using BlueBUS, which allows multiple devices to be connected to a shared terminal using just one two-core cable, with no need to observe polarity. Automatic operation depends on the power supply, but in the event of a power outage you can, of course, disengage the geared motor and operate the gate manually. You can also purchase an optional NICE PS124 backup battery, which allows the gate operator to continue operating during a power outage.

Choosing an operator—is the operator NICE Spinbus SN6021 suitable for my garage door?

Every garage door has its own design (sectional, up-and-over, ...) and surface area and every operator has its limits. The following types of garage doors are commonly available on the market:

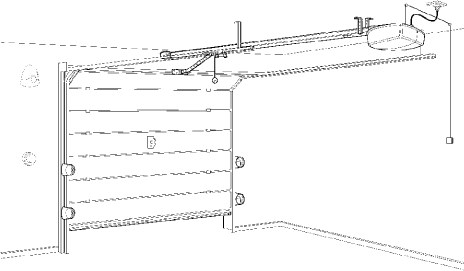

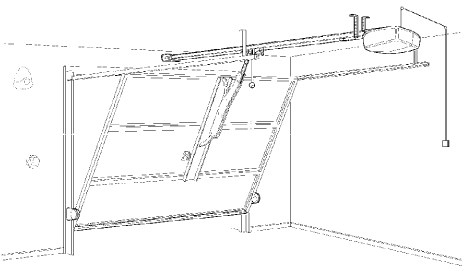

Sectional garage door Non-protruding up-and-over garage door *
Sectional garage door Non-protruding up-and-over garage door

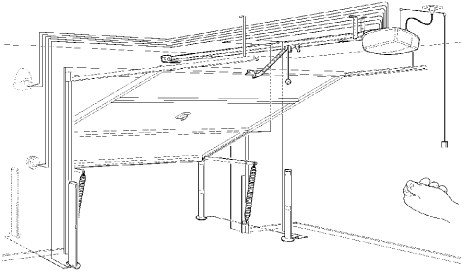

Protruding up-and-over garage door
without springs* with springs
Protruding up-and-over garage door Protruding up-and-over garage door with springs

* To automate a non-protruding up-and-over garage door or a protruding up-and-over garage door without springs, you must install on the door NICE SPA5 swing arm.

Operator NICE Spinbus SN6021 can be used with the appropriate accessories for the following areas and leaf dimensions of each type of garage door:

  Sectional Up-and-over
protruding
Up-and-over
non-protruding
max. 10.5m2 max. 11.8m2 max. 9.3m2
3m guide rail

2.4m × 4.4m

2.8m × 4.2m
2.2m × 4.2m
4m guide rail 3.4m × 3.1m 3.5m × 3.4m 3.2m × 2.9m



In principle, the door leaf dimensions determine the maximum number of cycles per hour and consecutive cycles, i.e. they indicate how long the operator can run. Greater force (weight) further reduces the number of these cycles as a percentage, due to the greater load on the operator, and also determines the maximum permitted speed under that load. The operator is equipped with a device (thermal cut-out) that measures both the motor temperature and the ambient temperature, and reduces the number of possible cycles accordingly:

Cycles per hour
Consecutive cycles

Force required to lift the door leaf*
Up to 250N 250–400N 400–500N

G
a
r
a
g


e
d
o
o
r

Up to 2m

20
10

14
7

5
3

2–2.5m 15
7
10
5
4
2
2.5–3m 12
5
8
4
3
1
3–3.5m 10
4
7
3
2
1

* 1Kg = 9.81N, i.e. the force required to lift the door leaf can also be expressed in kilograms by dividing by 9.81. For example, 500N is approximately 51Kg.

Installing the NICE Spinbus SN6021 operator

The installation method for the operator varies depending on the installation situation. For a door up to 2.5 m high, use a 3m guide rail; for a door up to 3.5m high, use a 4m guide rail. The guide rail can also be mounted on brackets fixed to the ceiling, or anchored directly to the ceiling using NICE SNA16 brackets.

Wiring

Typical (optionalTypical (optional) wiring for the operator and accessories is arranged as follows for the different types of gates as follows:

Sectional garage door

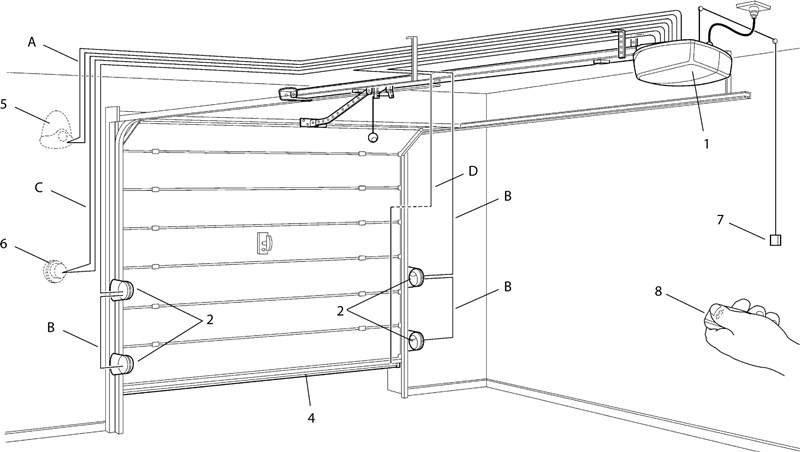

Sectional garage door wiring setup

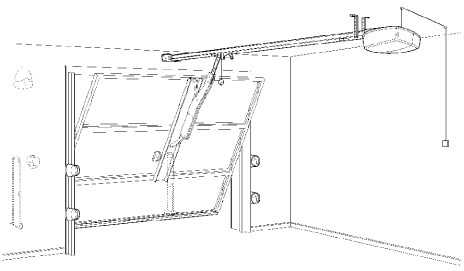

Projecting up-and-over garage door* Non-projecting up-and-over garage door*

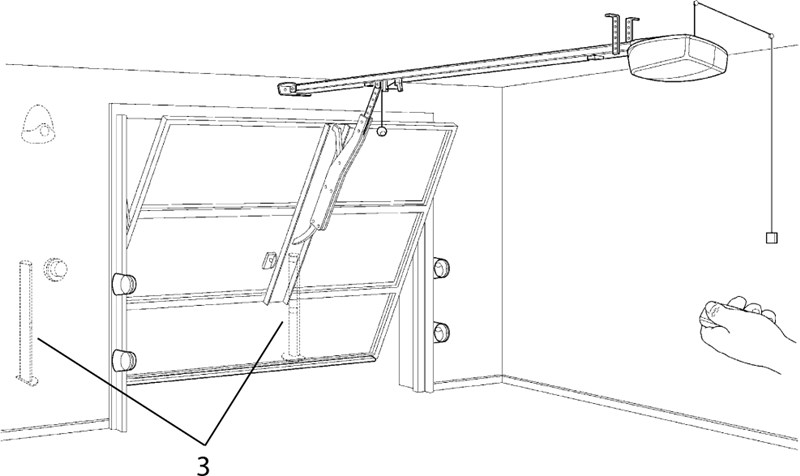

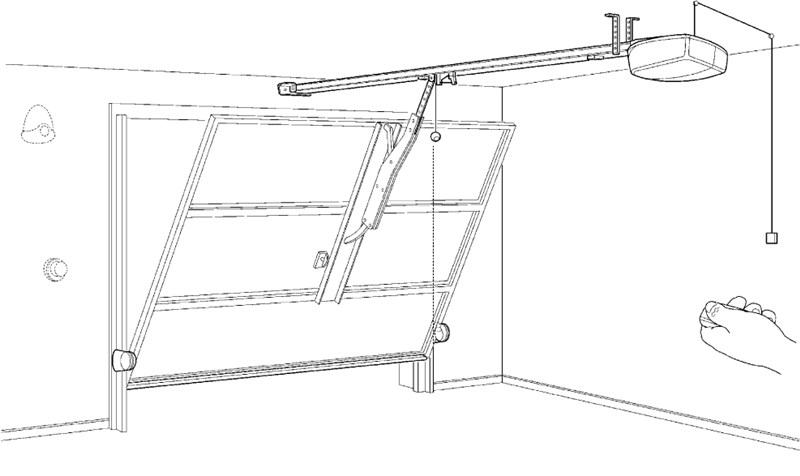

Projecting up-and-over garage door wiring setup Non-projecting up-and-over garage door wiring setup

* To automate a non-projecting up-and-over garage door or a projecting up-and-over door without springs, you must install on the door NICE SPA5 pivot arm.

Accessories list

  1. Spinbus drive
  2. Photocells
  3. Photocells on a post
  4. Safety edge
  1. Warning light with built-in antenna
  2. Key switch
  3. STEP-BY-STEP button
  4. Remote control



Wiring list

Purpose Type Max. length
A. Warning light with antenna

2×0.5mm2
1×Coaxial cable

20m
20m (recommended: less than 5m)
B. Photocells 2×0.5mm2 30m; over 30m, 2×1mm2
C. Key switch 4×0.5mm2 50m (or 2 pcs. 2×0.5mm2)
D. Safety edge 2×0.5mm2 30m

Installing the NICE Spinbus SN6021 drive

The mechanical installation of the drive consists of three steps:

  1. Pre-installation requirements
  2. Assembling the guide rail
  3. Attaching the drive to the assembled rail
  4. Attaching the rail and drive to the ceiling

0. Pre-installation requirements

I. The drive requires a certain amount of clearance for installation, particularly for the guide rail. You will need:

  • sufficient garage length (C+D) to accommodate the drive (approx. 3.5m for a 3m rail, approx. 4.5m for a 4m rail),
  • at least 4cm and no more than 40cm clearance between the top point of the door and the ceiling (A)
  • and the maximum distance between the guide rail and the ceiling (B) should be 40cm (a smaller distance is fine; the rail can even be installed directly on the ceiling).

See the illustration for a clearer idea:

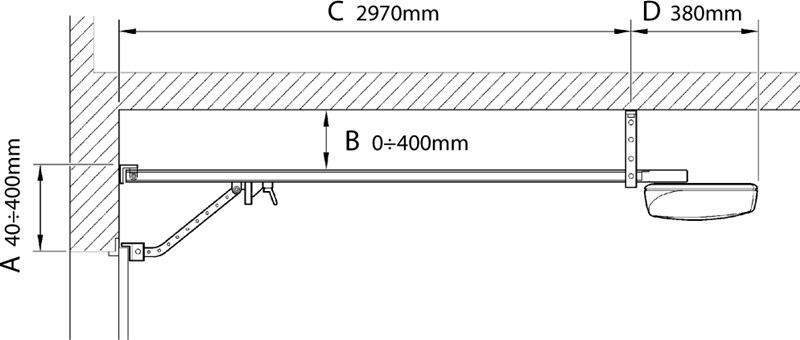

NICE Spinbus pre-installation requirements 1/3

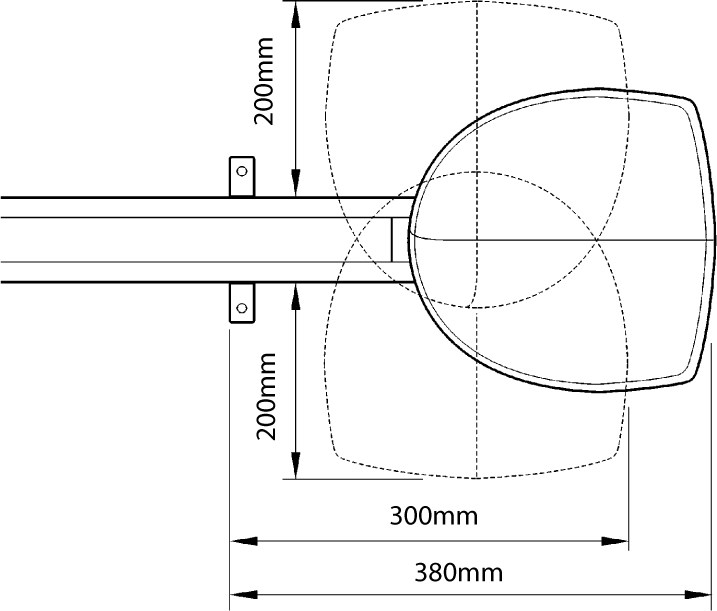

II. You also need to allow space for the drive unit itself: III. For an up-and-over garage door, the clearance between the underside of the guide rail and the highest point of the moving door leaf (E) must be at least 6.5cm and no more than 30cm while the door is opening:
NICE Spinbus pre-installation requirements 2/3 NICE Spinbus pre-installation requirements 3/3



Warning: If the above requirements are not met, the NICE Spinbus SN6021 drive cannot be installed, or an alternative mounting solution will need to be devised.

1. Assembling the guide rail

Follow the instructions for the rail you have:

NICE SNA3X
(3x1m)
NICE SNA30
(3m)

NICE SNA3X 3x1m guide rail

Details >

NICE SNA30 3m guide rail

Details >

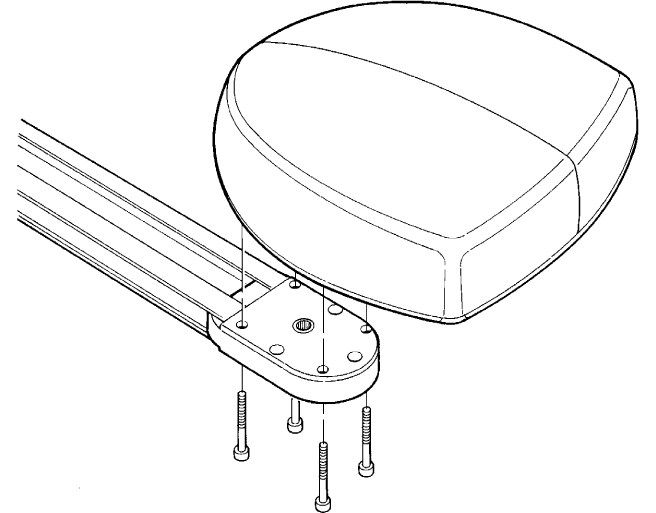

2. Attaching the drive to the assembled rail

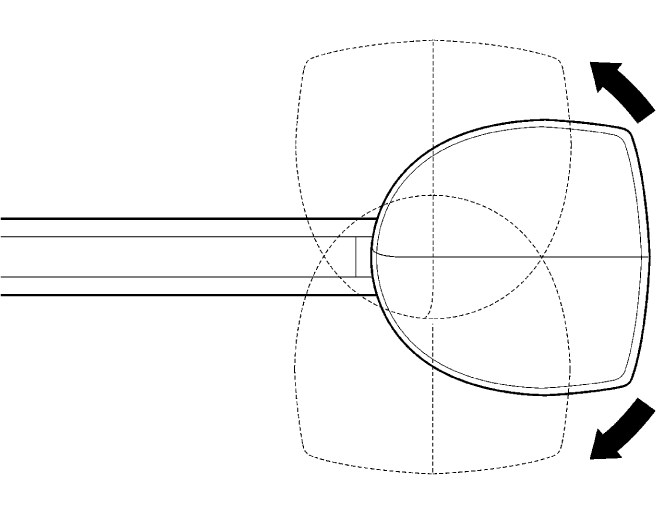

1. You can attach the drive in one of three ways, depending on which position best suits your available space. 2. Attach the drive to the drive shaft coupling using the four supplied 6,3x38 screws.
1. You can attach the drive in one of three ways, depending on which position best suits your available space. 2. Attach the drive to the drive shaft coupling using the four supplied 6,3x38 screws.

3. Attaching the rail and drive to the ceiling

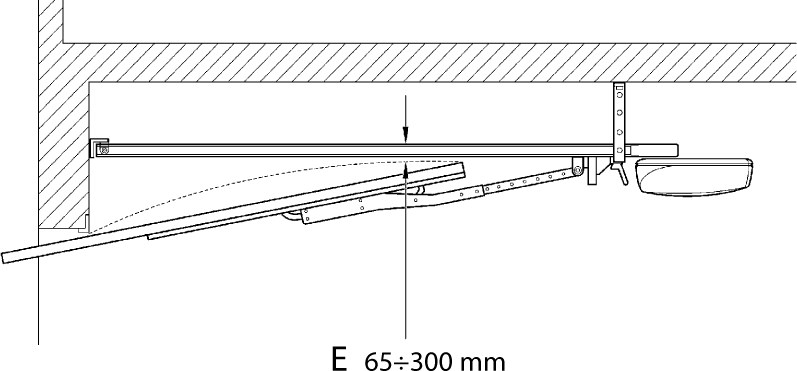

Based on the measured values for the clearance between the rail and the ceiling and the top of the door, mark two mounting holes exactly in the center of the door. Depending on the type, you can attach the front bracket:

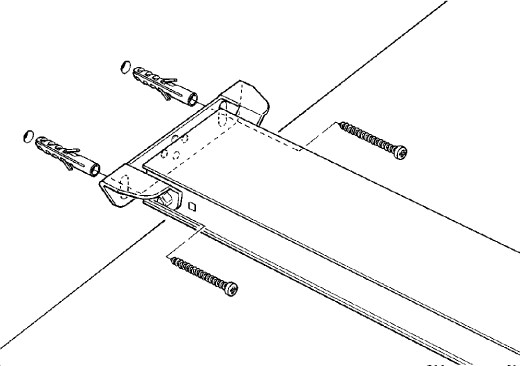

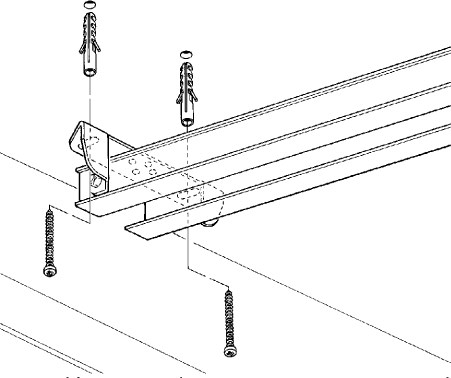

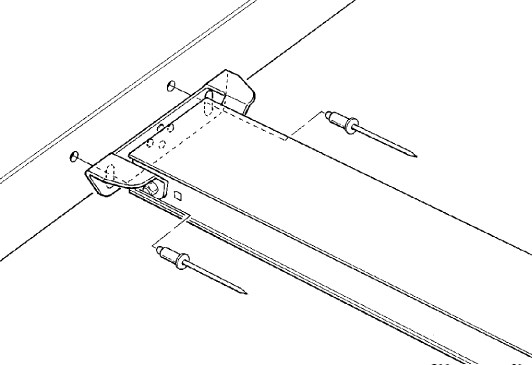

Rivets can be used to attach it to the profile. Wall plugs and screws can be used to attach it to the wall. Alternatively, if the conditions allow, you can attach the rail directly to the ceiling.
Rivets can be used to attach it to the profile. Wall plugs and screws can be used to attach it to the wall. Alternatively, if the conditions allow, you can attach the rail directly to the ceiling.



After drilling the mounting holes, secure the front bracket, leaving the other end of the rail with the motor on the ground, then continue as follows:

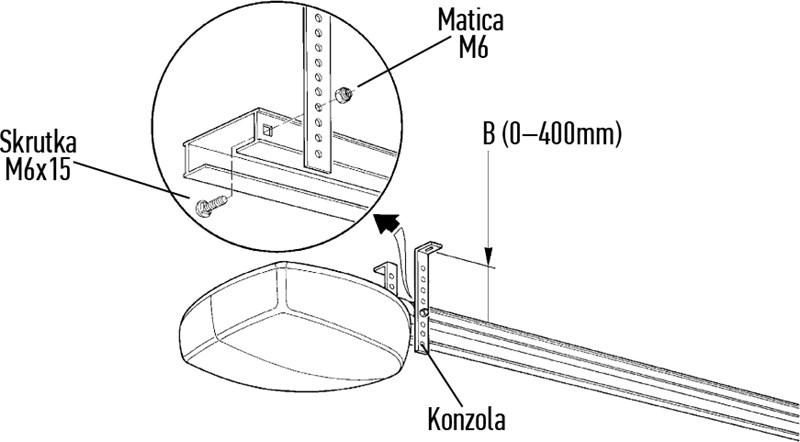

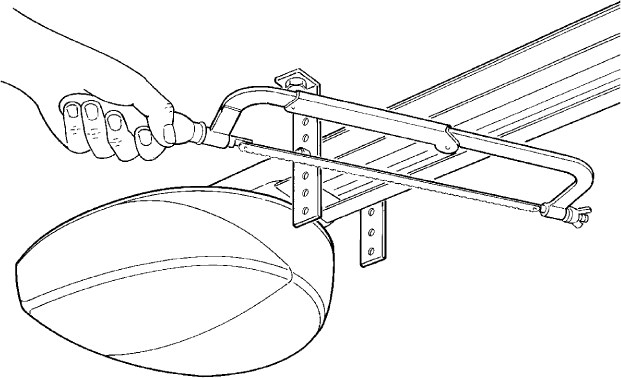

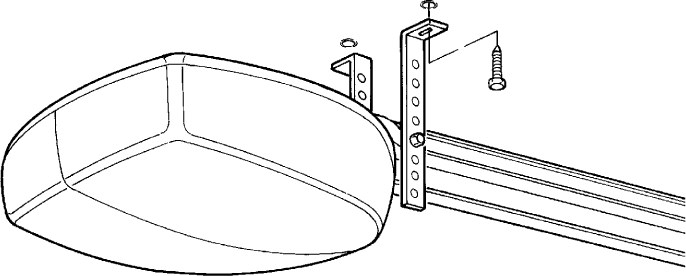

1. Attach the mounting brackets using screws and nuts. Choose the holes in the brackets that best suit dimension B. 2. Using a ladder, lift the other end of the rail up to the ceiling and mark the holes in the brackets. Then place the rail back on the ground.
1. Attach the mounting brackets using screws and nuts. Choose the holes in the brackets that best suit dimension B. 2. Using a ladder, lift the other end of the rail up to the ceiling and mark the holes in the brackets. Then place the rail back on the ground.

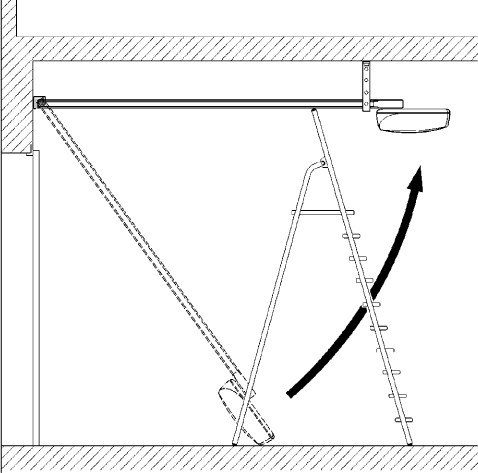

3. Drill holes at the marked positions, then use the ladder again to lift the rail with the opener into place and attach the brackets to the ceiling. 4. Make sure the rail is level, adjust it if necessary, and cut off the excess bracket material.
3. Drill holes at the marked positions, then use the ladder again to lift the rail with the opener into place and attach the brackets to the ceiling. 4. Make sure the rail is level, adjust it if necessary, and cut off the excess bracket material.
5. Close the garage door. Pull the trolley release lever. 6. Move the trolley until the door bracket is perpendicular to the guide rail. Then attach the bracket to the door using a method suitable for the door material.
5. Close the garage door. Pull the trolley release lever. 6. Move the trolley until the door bracket is perpendicular to the guide rail. Then attach the bracket to the door using a method suitable for the door material.

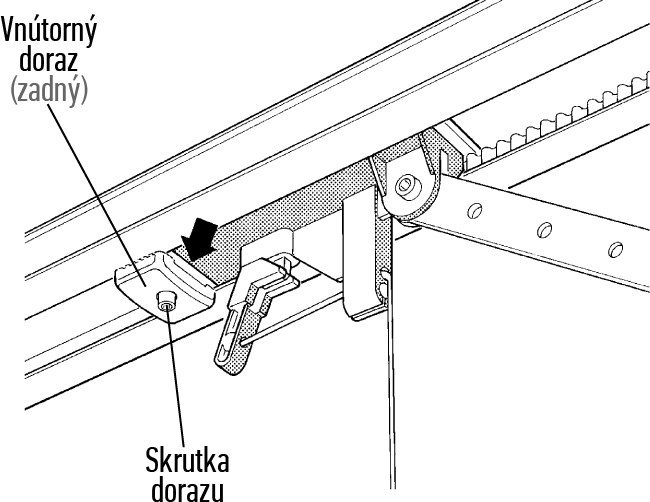

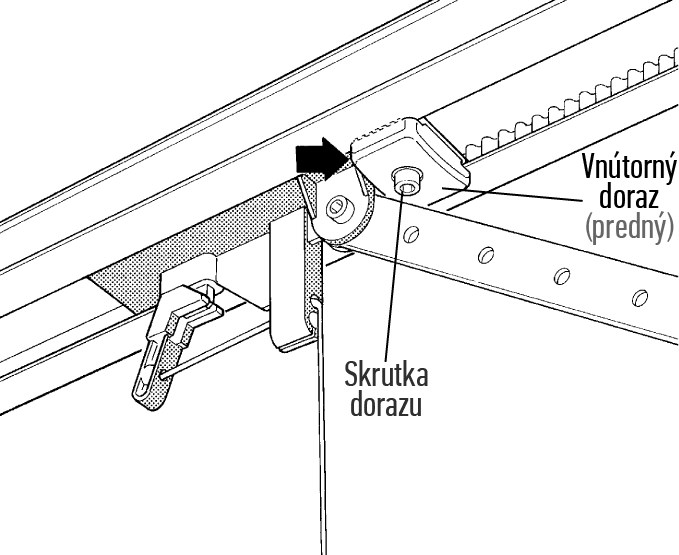

7. Loosen both mechanical end stops. Move the front stop towards the trolley, then push the trolley in the closing direction and tighten the stop. 8. Open the garage door. Move the rear stop towards the trolley and tighten it.
7. Loosen both mechanical end stops. Move the front stop towards the trolley, then push the trolley in the closing direction and tighten the stop. 8. Open the garage door. Move the rear stop towards the trolley and tighten it.
9. Move the door by hand to check that it moves freely, the trolley does not bind anywhere, and no excessive force is needed. 10. If necessary, move the opener's release cord to a suitable location in the garage. You can use eye bolts for this, for example.
9. Move the door by hand to check that it moves freely, the trolley does not bind anywhere, and no excessive force is needed. 10. If necessary, move the opener's release cord to a suitable location in the garage. You can use eye bolts for this, for example.



Programming the opener

The opener programming procedure depends on the control unit supplied. The following control units are compatible with the NICE Spinbus SN6021 opener:

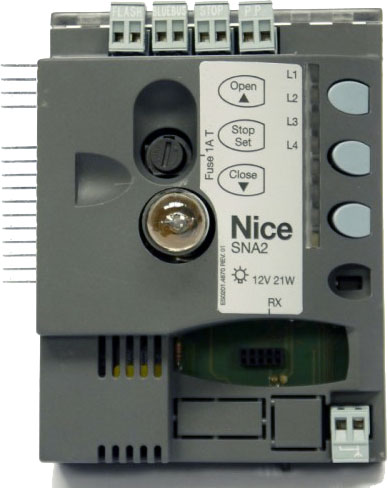

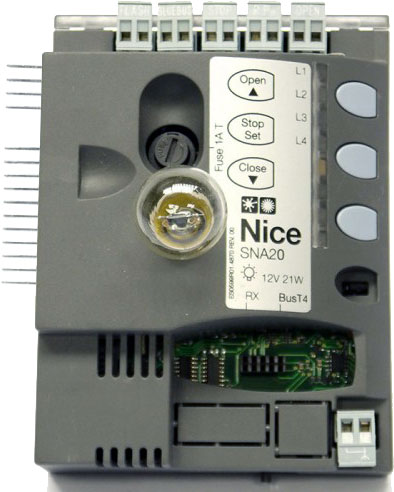

SNA2 SNA20

Details...

Programming...

Details...

Programming...



Same as the SNA2, except that you can:

  • connect the PS124 backup battery
  • connect Opera control devices (O-View)
  • connect the Solemyo solar system
  • connect devices to the OPEN input, i.e. devices that only open the door

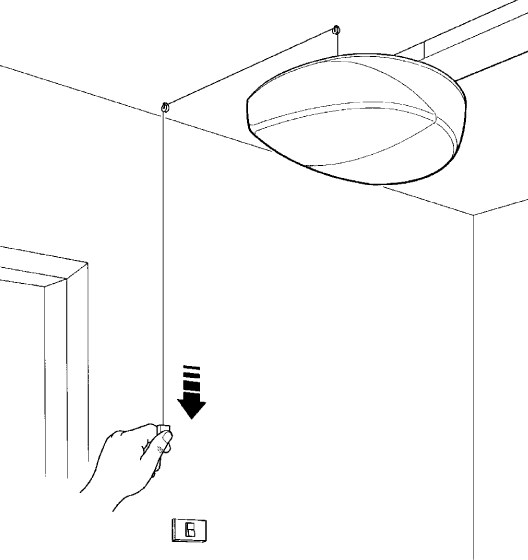

Releasing the NICE Spinbus SN6021 opener

In the event of a power failure, you will not be able to operate the door using the remote control. Therefore, the opener can be released using the release lever and the door can be moved manually:

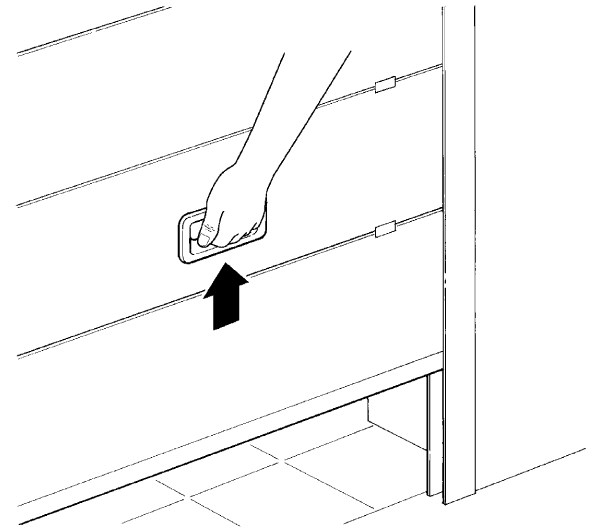

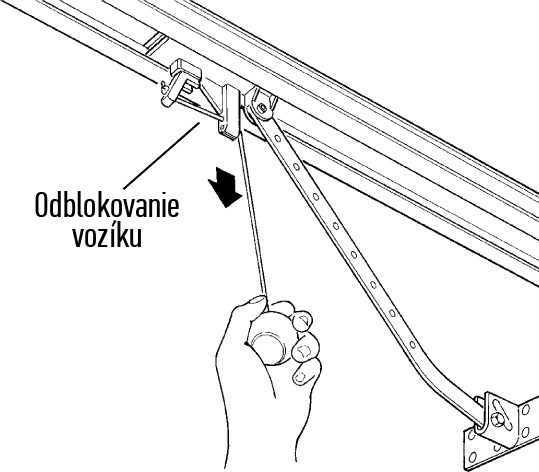

1. Pull the trolley release lever. 2. Move the door.
Pull the trolley release lever. Move the door.



Replacing the bulb in the NICE Spinbus SN6021 opener

Before replacing the bulb, disconnect the opener from the power supply and follow these steps:

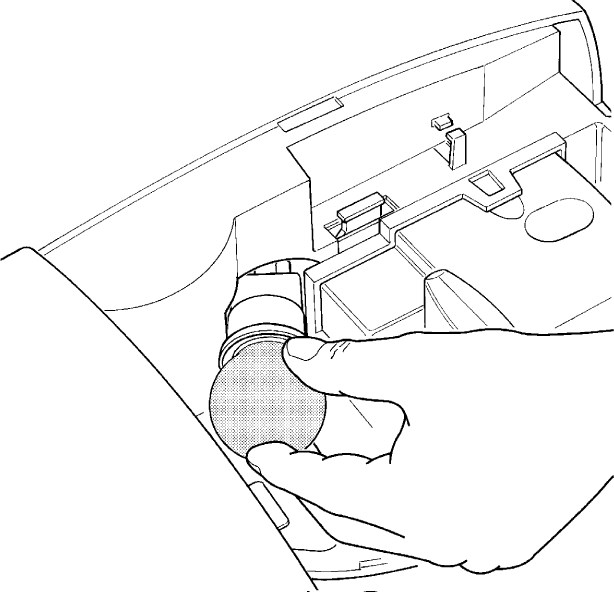

1. Press the white cover in and turn it. 2. Unscrew the old bulb. Then screw in a new 230V 60W bulb with an E27 base.
1. Press the white cover in and turn it. 2. Unscrew the old bulb. Then screw in a new 230V 60W bulb with an E27 base.

Technical specifications of the NICE Spinbus SN6021 opener

Model NICE Spinbus SN6021
Type description Electromechanical gear motor for automatic operation of garage doors in private settings. Supplied with the SNA2 control unit. The suitable control unit is either SNA2, or SNA20.
Gear wheel Diameter: 9.5mm
Number of teeth: 28
Compatible with rails: SNA3X, SNA30, SNA6
Torque
[Force]
11.7Nm
[650N] - required to start the gate leaf moving
Rated torque
[Rated force]
5.85Nm
[345N] - required to keep the gate leaf moving
Speed 0,20 m/s
Rated speed 0,08 m/s
Maximum number of consecutive cycles 50 cycles/day (the control unit limits the number based on the restrictions; see Choosing a drive)
Operating time limit 3 minutes (the control unit limits the operating time based on the restrictions; see Choosing a drive)
Power supply 230V (+10% -15%) 50/60Hz

Power consumption

270W
Insulation class 1 - must be earthed
Backup power supply available as an optional extra for installation NICE PS124 backup battery
Lighting 12V 21W bulb, BA15 connector
Output for warning light

Depending on the programmed output:

Output type Voltage
open gate indicator 24V max. 5W
warning light 12V max. 21W
electric lock 24V max. 10W
electromagnetic lock 24V max. 10W
BlueBUS output one output for 2 BlueBUS devices
STOP input for normally open, normally closed, and constant-resistance 8,2KΩ devices
STEP-BY-STEP input (P.P., step-by-step) normally open (closing the contact issues the “Step-by-step")
Radio receiver without receiver, “SM” connector for receivers NICE SMXI, NICE OXI etc.
Antenna input 52Ω for RG-58 coaxial cable (or similar)
Programming functions 4 on/off functions (Level I programming.)
4 adjustable functions (Level II programming.)
Self-assessment functions



Operating temperature -20°C to +50°C
Use in saline, acidic, and potentially explosive environments no
Protection rating IP40 - indoor use or a well-sheltered outdoor location
Dimensions 311×327×105 (W×L×H)
Weight 3.6kg
