NICE SNA2 - replacement control unit for NICE Spinbus SN6021 drives
| Product availability: | replaced | This product is no longer manufactured, but fortunately it has been replaced by a newer model. |
|---|
Description of NICE SNA2 - replacement control unit for NICE Spinbus SN6021 drives
The control unit has been replaced. Its fully compatible successor is NICE-SNA20.
It is more cost-effective to buy a separate control unit than to purchase the complete NICE Spinbus operator.
NICE SNA2 control unit is compatible with garage door operators NICE Spinbus SN6021. Includes a connector of type SM for connecting radio signal receiver (SMXI, OXI, ...) from remote controls (Flor, Era Flor, Era One, Era Inti, ...).
Supports BlueBus, which allows accessories to be connected easily (photocells, warning light, card readers, key switches, etc.) using just a two-core cable, with no need to observe polarity.
Thanks to 24V in standby mode, the control unit consumes just 2 W when connected to a control signal receiver .
Diagnostics using warning light.
The acceleration and deceleration intervals for opening and closing are set automatically based on the gate leaf length. You can also adjust the force, speed etc. See programming the operator control unit. Obstacle detection throughout the gate leaf's movement ensures safe operation of the motors.
NICE SNA2 control unit is suitable for climatic conditions in Slovakia and meets all European safety standards.
Accessories compatible with the NICE SNA2 control unit
We recommend purchasing these compatible optional accessories for the control unit:
| What | Why | Type |
|---|---|---|
| Warning light | The warning light flashes to indicate that the gate is moving—ideal for exits with poor visibility. It also has a built-in antenna for a longer remote-control range. | |
| Photocells | When the gate is closing, they detect obstacles and stop its movement, preventing it from hitting cars or people. | - MoonBUS (MOFB) |
| Transmitter |
For remote control of the gate. |
- FloR (Flo2R-s, Flo4R-s) |
| Receiver | Required for remote control of the gate. | - OXI - SMXI |
| Antenna | For better remote-control range. | - built into the warning light LUCYB, MLBT - ABFKIT antenna only, or ABF |
| Keypad | If you forget your remote control, or if many vehicles or people visit and you don't want to give everyone a remote or open the gate manually. | - MOTXR |
Manual for the NICE SNA2 control unit and NICE Spinbus SN6021 gate operator
Download the manual for the NICE SNA2 control unit and NICE Spinbus SN6021 gate operator here:
Manual for the NICE SNA2 control unit and NICE Spinbus SN6021 gate operator
Wiring the NICE SNA2 control unit for the NICE Spinbus SN6021 gate operator
...to the mains
Simply plug the gate operator into a socket.
...accessories
Warning: Before connecting, disconnecting or changing the wiring of accessories, remember to disconnect the power supply, either at the circuit breaker, by removing the power supply fuse, or by disconnecting the backup battery.
NICE SNA2 control unit for the gate operator NICE Spinbus SN6021 provides the following inputs and outputs for accessories:
| Input/output | Description | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A programmable output whose behavior can be set by programming Level II, L4. See Level II programming, L4 – Indicator output. You can program it for the following devices:
|
|||||||||||||
| Input for connecting compatible devices in parallel that use BlueBUS using a two-core cable that carries both the power supply and the communication signal. | |||||||||||||
| STOP (Stop) |
Input for devices that stop gate movement. The following devices can be connected:
|
||||||||||||
| Input for devices that step through gate movements (see Step-by-step gate movement). Normally open devices (NO) can be connected. | |||||||||||||
| AERIAL (Antenna) |
input for the radio receiver antenna. The antenna is usually built into the warning light, e.g. NICE LUCYB, NICE MLBT, or a separate external antenna can be used NICE ABFKIT. |
Gate operator fuses
 |
In the drive there are two fuses:
|
Standard wiring diagram:
Wiring connections
Route the cables to the control unit and connect them as follows:
| 1. Press the white cover in and turn it | 2. Thread the cables through the opening, pass the antenna cable through the side eyelet, and connect all the cables. |
|---|---|
 |
 |
Drive photocells
The user-friendly BlueBUS technology allows powering and controlling 2 pairs of photocells using a two-core cable.
WIRING MULTIPLE PAIRS OF PHOTOCELLS NICE MOFB TO THE DATA NETWORK NICE BLUEBUS
Position the photocells around the gate or door according to the example configurations for complete wiring, and set the jumpers according to the jumper table for the NICE MOFB gate operator. To prevent interference between pairs positioned close together, be sure to follow these example configurations, and maintain the orientation of the transmitters TX and receivers RX. Connect the photocells in parallel as shown (polarity does not need to be observed):
Example photocell installation
| Sectional garage door | Up-and-over garage door |
|---|---|
 |
 |
If you need the photocells to function as gate openers (see FA1 and FA2 in the diagram), i.e. when a vehicle passes between their optical axes, they open the gate, you need to break connection A on both the transmitter TX and the receiver RX, see diagram:
NICE MOFB gate operator photocell jumper table
 |
Connecting multiple pairs of photocells to the BlueBUS system is done by setting different jumper combinations, with each connected pair requiring a unique jumper combination. Make sure that no two pairs in the same BlueBUS data network have the same combination. For each pair of photocells, set the same jumper configuration on both the TX transmitter and the RX receiver. If the jumper configuration uses only one jumper, always store the second one in the unused compartment, as shown in the diagram on the left. |
| Photocell pair designation | Jumper configuration |
|---|---|
| FOTO |  |
| FOTO II |  |
| FOTO 1 |  |
| FOTO 1 II |  |
| FOTO 2 |  |
| FOTO 2 II |  |
|
FOTO 3 WARNING: UNAUTHORIZED CONFIGURATION! |
 |
|
FA1 |
 |
|
FA2 |
 |
If the photocell needs to be replaced for any reason, simply set it to the same jumper as the original one; there is no need to perform the device recognition procedure.
Radio signal receiver for drives
 |
SNA2 control unit NICE Spinbus SN6021 drive has an SM connector for connecting an external radio receiver (e.g. NICE OXI, NICE SMXI). This receiver is essential for picking up commands transmitted by remote controls, and is therefore required to operate the sliding gate remotely with a remote control. |
Pairing the remote controls with the drive
Visit our guide to pairing a remote control with the drive, or click:
Recognition of connected drive devices
Whenever an accessory device is connected, disconnected or rewired at the BlueBUS inputs and STOP the accessory device recognition procedure. The drive will alert you that this procedure is required by flashing LEDs L1 and L2.
 |
|
Recognising the gate leaf length
For the gate to operate correctly (in particular, to calculate acceleration and deceleration distances and partial opening), the drive must determine the length of the gate leaf itself. During this procedure, the drive moves the gate from one stop to the other and determines its length.
 |
|
Drive programming
The SNA2 control unit for the Spinbus SN6021 drive lets you program several functions, either by switching a function on or off using Level I programming., or by setting a default parameter using Level II programming..
The SNA2 control unit has three buttons for operating and programming the drive:
 |
Button | Function |
|---|---|---|
| Open | This button commands the drive to open the gate. It is also used during programming to increase the value of the parameter being programmed. | |
| Stop/Set | This button commands the drive to stop the gate. Press and hold it for 5 seconds to enter Level I programming. Press and hold it again to enter Level II programming. for the current LED. | |
| Close | This button commands the drive to close the gate. It is also used during programming to decrease the value of the parameter being programmed. |
Level I programming.
At Level I, programming is performed by switching this function. When a function is enabled, the corresponding LED on the control unit lights up. All functions are disabled by default.
Enter Level I programming by holding down the “Stop/Set” button for approx. 5 seconds, until LED L1 starts flashing. Then use the “Open” and “Close” buttons to move the current LED up or down. You have 10 seconds for each operation; otherwise, the drive will exit programming mode. When the flashing LED is above the LED for the function you want to enable or disable, press the “Stop/Set” button once to make the flashing faster (function enabled) or slower (function disabled), then leave it as it is and allow the drive to exit programming mode within 10 seconds. If everything has worked correctly, the corresponding LED for the function being enabled will remain lit.
List of programmable functions that can be enabled:
| LED | Function | Description |
|---|---|---|
| L1 | Automatic closing |
After a certain amount of time (set under “Level II programming – Pause duration”), the gate starts closing automatically after it has opened. If this function is disabled, the gate can only be operated by a command from the gate remote control and similar devices. |
| L2 | Close after photocells are interrupted |
This function allows the gate to remain open only for the minimum time needed for a vehicle to pass through. When the photocell beam is restored (the vehicle has passed through), the gate starts closing automatically after 5 seconds. This function operates in one of two ways, depending on whether automatic closing is enabled (see the previous function). Automatic closing enabled – the gate stops when the photocell beam is restored and starts closing after 5 seconds. This means it may not open all the way. |
| L3 | Motor force |
This function affects the motor's sensitivity to obstacles. If this function is disabled, the drive is less sensitive, which is suitable for larger and heavier gates.. If your gate is small and lightweight, you can enable. |
| L4 | Standby mode |
This function allows power consumption to be reduced to a minimum. When this function is active, one minute after the gate's last movement, the control unit switches off the BlueBUS input (and therefore all devices connected to it), as well as all LEDs except the BlueBUS LED, which will flash slowly. In this state, if a command is received, the control unit first restarts and only then executes the command. |
Level II programming
In Level II programming, values are set for specific functions (these functions differ from those in Level I).).
Forget about Level I programming. Enter Level II programming by holding down the “Stop/Set” button for approx. 5 seconds, until LED L1. Then use the “Open” and “Close” buttons to move the current LED up or down. You have 10 seconds for each operation; otherwise, the drive will exit programming mode. When the flashing LED is above the LED for the function whose parameter you want to set, press and hold the “Stop/Set” button to enter the settings for that LED. The LED that remains lit (while you continue to hold “Stop/Set”) indicates the current parameter value. You can change this value up or down using the “Open” or "Close” button (while continuing to hold “Stop/Set”), then release “Stop/Set” and leave it as it is, allowing the drive to exit programming mode within 10 seconds. To check that everything has worked correctly, repeat the procedure without changing the parameter value.
List of programmable functions with adjustable settings:
|
Input LED — Name |
Setting LED — Value |
|---|---|
| L1 — Pause duration If the “Automatic closing” value is enabled in Level I programming, |
L1 — 10 seconds L2 — 20 seconds L3 — 40 seconds L4 — 80 seconds |
|
Sets the gate movement sequence triggered by repeatedly pressing, for example, a button on the gate remote control, or by activating the STEP-BY-STEP input (also known as P.P., or Step-by-step). |
L1 — Open/Stop/Close/Stop L2 — Open/Stop/Close/Open L3 — Condominium L4 — Hold-to-run |
|
Sets the gate speed during normal operation (excluding the gate’s acceleration and deceleration phases). |
L1 — Very slow (55%) L2 — Slow (70%) L3 — Medium (85%) L4 — Fast (100%) |
|
Sets when a signal should be sent to the FLASH output 。 |
L1 — Gate open indicator L2 — Warning beacon L3 — Electromechanical lock L4 — Electromagnetic lock |
Connecting additional external devices to the operator
 |
If you need to connect additional devices to the operator that require an external power supply (e.g. indicator lighting, key switch, magnetic cards, etc.), connect the device as shown in the diagram. The supplied voltage is 24Vdc -30% to +50%, with a maximum current of 100mA. |
Special operator functions
Gate held open
If the command to the STEP-BY-STEP input (also labelled P.P. or Step-by-step) lasts longer than 3 seconds, the control unit will keep the gate open for as long as the command is active. This function is useful when used with a timer.
Forced operation
If a safety device fails or, for example, an obstruction that cannot be removed enters the beam of the photocells and the gate cannot move for safety reasons, you can activate the “Hold-to-run” mode, either permanently in Level II programming. under the setting L2 - Step-by-step mode to the value L4 - Hold-to-run, or temporarily:
- Send a command to the gate (using theremote control, key switch or similar).
- If there is a problem, the gate will not move and the beacon will probably signal an error.
- Within 3 seconds of the previous command, send the command again and hold it.
- The gate will move while you hold the command and stop when you release it.
Troubleshooting the operator
If anything is unclear or you have any other problem, feel free to contact our technical support team for NICE operators.
Depending on the nature of the problem
During installation (or if the operator malfunctions), you may encounter one of the following problems:
|
Problem |
Possible solution |
|---|---|
|
The gate does not respond to the remote control, and the LED on the remote control does not light up. |
Check whether the batteries in the operator remote control are working properly; if not, replace them. Refer to the manual for the specific remote control for instructions. |
|
The gate does not respond to the remote control, but the LED on the remote control lights up. |
Check whether the remote control has been paired receiver is working properly, or try remote control pairing it again. |
|
The gate does not move and the BlueBUS LED does not flash.
|
Check whether the operator is receiving 230V power. If so, test both fuses and replace them with new fuses of the same rating if necessary. |
|
The gate does not move and the beacon does not flash. |
Check whether the operator has registered the command. When a command is sent using the remote control the BlueBUS LED should flash rapidly twice. If the command is sent by another device via the STEP-BY-STEP input (P.P.), the corresponding STEP-BY-STEP LED. |
|
The gate does not move and the beacon flashes several times. |
Count the flashes and refer to Diagnostics using beacon flashes. |
|
The gate starts moving, but stops immediately and begins moving in the opposite direction. |
The programmed motor force is probably too low for your gate. Check that nothing is obstructing the gate and increase the operator force if necessary. |
|
The gate starts moving, but the beacon does not work. |
Check whether there is voltage at the FLASH output during gate operation (the voltage level is not important, approx. 10-30Vdc). If there is voltage at the output, the problem is likely with the beacon (or another device); try replacing it with a similar device to see if it works. If there is no voltage at the output, the FLASH output may be overloaded. Check whether the wiring has short-circuited. |
Diagnostics using the beacon's flashing
While the gate is moving beacon flashes regularly once per second. If a problem occurs, the beacon signals an error with two consecutive, faster series of flashes.
|
Flash sequence |
Error |
Solution |
|---|---|---|
|
1 flash 1-second pause 1 flash |
BlueBUS error
|
The devices connected to the BlueBUS input do not match those detected during the device detection phase.. Run the detection phase again. If that doesn't help, try once more; otherwise, use a process of elimination to find the faulty device and replace it (purchase a replacement, make a warranty claim, or have it repaired). |
|
2 flashes 1-second pause 2 flashes |
Photocell activation |
The photocells, which is normal if their beam is interrupted while the gate is closing. If the beam was not interrupted, the photocells may be dirty, dazzled by bright light, or faulty. |
|
3 flashes 1-second pause 3 flashes |
Motor force limiter activated
|
While the gate is moving, increased friction may be detected. The gate may be poorly adjusted; try moving it manually and readjusting it. Otherwise, it usually helps to increase the motor force.. |
|
4 flashes 1-second pause 4 flashes |
STOP input activated
|
A command was sent to the STOP input,so if this was unexpected, check the devices connected to it. |
|
5 flashes 1-second pause 5 flashes |
Internal control unit error |
Wait 30 seconds and try again. If the problem persists, try to reset it.. Otherwise, the control unit will probably need to be repaired or replaced. |
|
6 flashes 1-second pause 6 flashes |
The hourly maneuver limit has been reached. |
Wait a few minutes for the cycle limiter to drop below its limit. |
|
7 flashes 1-second pause 7 flashes |
Internal electronic circuit error. |
Disconnect the entire drive for a few seconds, then try again. If the problem persists, try to reset it.. Otherwise, the control unit will probably need to be repaired or replaced. |
Diagnostics using LED flashes
On the SNA2 control unit of the NICE Spinbus SN6021 drive, there are two sets of LEDs. Each set uses flashing or steady illumination to indicate normal operation of the control unit or to diagnose errors, as shown in the tables below.
Horizontal LEDs: BLUEBUS, STOP, PP, OPEN
|
Indication |
Status |
Solution |
|---|---|---|
|
BlueBUS LED |
||
|
Off |
Error
|
Check the mains power connection. If it is OK, check fuses F1 and F2 and, if necessary, replace them with new fuses of the same rating. |
|
On |
Serious error
|
Try disconnecting the control unit, or all inputs.. If that doesn't help, reset the control unit, and if that still doesn't help, the control unit will probably need to be replaced. |
|
Flashing at one-second intervals |
Everything is OK |
The control unit is operating normally. |
|
2 quick flashes |
An input status has changed |
Normal operation — the status of an input has changed STEP-BY-STEP, STOP, the photocells, or the drive received a command from the remote control. |
|
Flash sequences separated by a one-second pause |
More options |
The number of flashes in the sequence corresponds to the error diagnostics indicated by the beacon.. |
|
STOP LED (Stop) |
||
|
Off |
The STOP input has been activated |
Check the devices connected to the STOP input.. |
|
On |
Everything is OK |
The STOP input is not active. |
|
STEP-BY-STEP LED (also labeled P.P. or Step-by-Step) |
||
|
Off |
Everything is OK |
The STEP-BY-STEP input is not active. |
|
On |
The STEP-BY-STEP input was activated |
Normal operation of the control unit when an active device is connected to the STEP-BY-STEP input. |
Vertical LEDs L1–L4
|
Indication |
Solution |
|---|---|
|
LED 1 |
|
|
Off |
During normal operation, indicates that the Automatic closing function is disabled. |
|
On |
During normal operation, indicates that the Automatic closing function is enabled. |
|
Flashing |
|
|
LED 2 |
|
|
Off |
During normal operation, indicates that the Close after photocell interruption function is disabled. |
|
On |
During normal operation, indicates that the Close after photocell interruption function is enabled. |
|
Flashing |
|
|
LED 3 |
|
|
Off |
During normal operation, indicates that the Motor force function is disabled. |
|
On |
During normal operation, indicates that the Motor force function is enabled. |
|
Flashing |
|
|
LED 4 |
|
|
Off |
During normal operation, indicates that the Standby mode function is disabled. |
|
On |
During normal operation, indicates that the Standby mode function is enabled. |
|
Flashing |
|
Replacing the bulb in the NICE SNA2 control unit for the NICE Spinbus SN6021 operator
Before replacing the bulb, disconnect the operator from the power supply and follow these steps:

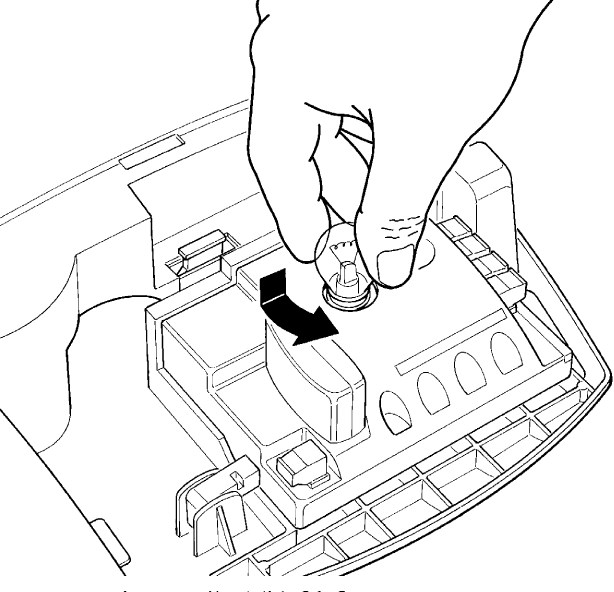

| 1. Press the white cover and turn it | 2. Push the old bulb in slightly and turn it a little. Then fit a new 12V 21W bulb with a BA15 base. |
|---|---|
| |
 |
Resetting the control unit
1. Press and hold the first (Open) and the third (Close) button.
2. When all the LEDs light up, release the buttons.
3. Wait for the control unit to reset.
Technical specifications of the NICE SNA2 control unit for the NICE Spinbus SN6021 operator
| Model | NICE SNA2 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type description | Control unit for a geared motor NICE Spinbus SN6021 for automatic operation of garage doors in private settings. | ||||||||||
| Backup power supply | Not available. | ||||||||||
| Lighting | 12V 21W bulb, BA15 connector | ||||||||||
| Output for warning light |
Depending on the programmed output:
|
||||||||||
| BlueBUS output | one output for 2 BlueBUS devices | ||||||||||
| STOP input | for normally open, normally closed and constant-resistance 8.2KΩ devices | ||||||||||
| STEP-BY-STEP input (P.P., step-by-step) | normally open (closing the contact triggers the “Step-by-step") | ||||||||||
| Radio receiver | no receiver; “SM” connector for receivers NICE SMXI, NICE OXI etc. | ||||||||||
| Antenna input | 52Ω for RG-58 coaxial cable (or similar) | ||||||||||
| Programming functions | 4 on/off functions (Level I programming) 4 adjustable functions (Level II programming) |
||||||||||
| Self-diagnostic functions |
|
||||||||||
| Operating temperature | -20°C to +50°C | ||||||||||
| Use in saline, acidic and potentially explosive environments | no | ||||||||||
| Protection rating | IP00 |
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
