Gate operator kit for gates up to 500 kg/7 m NICE Robus Hi-Speed RB500 HS (D)
| Product availability: | replaced | This product is no longer manufactured, but fortunately it has been replaced by a newer model. |
|---|
Description of Gate operator kit for gates up to 500 kg/7 m NICE Robus Hi-Speed RB500 HS (D)
Replacement available!
The kit with a high-speed drive for NICE Robus Hi-Speed RB500 HS (D) sliding gates has been replaced with a kit featuring a newer drive model, NICE Robus Hi-Speed RBS600 HS (D).

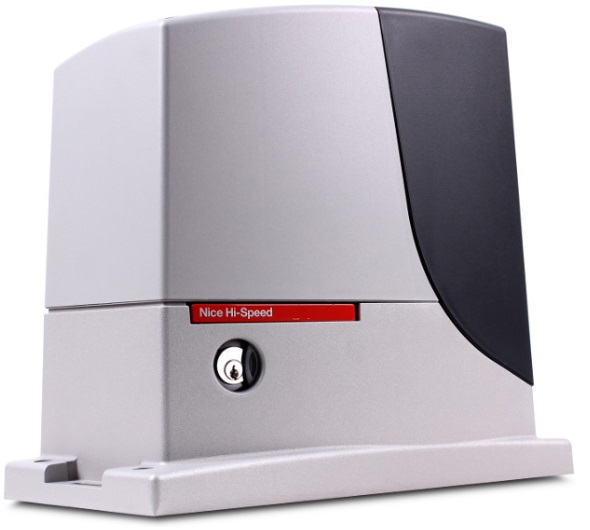

The NICE Robus Hi-Speed RB500 HS gate operator is designed for fast operation of sliding gates up to 500 kg and a clear opening width up to 7 m. Gate speed up to 26.4 m/min.
It has an electromechanical stop switch. The operator is non-reversible.
| The set includes: | NICE-RB500-HS-D | |||
|---|---|---|---|---|
 |
1 × | NICE Robus Hi-Speed RB500 HS | NICE-RB500-HS | |
|
The NICE Robus RB500-HS electromechanical gate operator, with an integrated RBA3/HS control unit, is designed for fast gate opening and can handle a gate weighing up to 400 kg with a leaf length of up to 7 m. |
Detail  |
|||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for operating an automatic gate. Use it to control four devices or send four different commands to one device. Compatible with all NICE operators using O-Code rolling code (the 72-bit code allows 4.7 quadrillion combinations, making it practically impossible to misuse) and an LED indicator for the transmitted signal. |
Detail |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the gate opening. They create an infrared beam. If it is interrupted, for example by a car or pedestrian, a signal is sent to the operator to stop the gate or prevent it from opening. |
Detail |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE LED flashing ELDC warning light made of impact-resistant polycarbonate, with a built-in antenna for greater remote-control range (up to 150 m). |
Detail |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. |
Detail |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it releases the operator's drive gear so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robus RB500-HS installation manual | ||
|
Installation manual for a successful setup, with wiring diagrams and instructions for programming and pairing remote controls. |
|
|||
 |
2 × | Limit stop (left + right) | ||
|
The operator limit stops are mounted on the toothed rack and define the gate's travel distance. |
||||
| 1 × | Installation accessories | |||
|
Operator installation components, height adjustment screws, mounting plate, anchor caps and limit stops for the operator sensor. |
||||
Operator features NICE ROBUS RB500-HS
The operator is compact, safe and practical, and ideal for residential and commercial use. Impact-resistant cover, body made of epoxy-coated aluminium alloy.
The operator is suitable for automating sliding gates weighing up to 500 kg, with a leaf length of up to 7 m. These values apply under the conditions specified by the manufacturer, including weather conditions, temperature variations, gate rigidity and, above all, ease of gate movement. Since these conditions cannot always be achieved or controlled, we recommend using the NICE Robus RB500 operator ideally with gates rated at 80% of these values. See the Choosing an Operator section for more information.
Highly user- friendly technology BlueBUS lets you power and control up to 7 pairs of photocells using a two-core cable.
Temperature sensor adjusts the operator's pulling force according to the weather conditions. The operator also includes a thermal fuse.
Adjustable operator speed, force and automatic-closing pause time, plus much more; see Programming.
Diagnostics using warning light.
The drive gear module 4 is compatible with the toothed rack available in our range.
Robus 500HS operator functions “Slave unit” ensures automatic synchronisation of two motors. This means two sliding gates moving towards each other can be automated.
The NICE Robus RB500HS is an electromechanical operator suited to the climate conditions in Slovakia and complies with all European safety standards.
Operator technical specifications NICE ROBUS RB-500-HS
| Power supply | (Vac 50 Hz) | 230 |
| Power consumption | (VA) | 450 |
| Protection rating | (IP) | 44 |
| Duty cycles | (cycles/hour) | 20 |
| Speed | (m/s) | 0.4 |
| Max. torque | (Nm) | 18 |
| Max. gate weight | (kg) | 500 |
| Operating temperature | (°C) | -20 to +50 |
| Insulation class | 1 | |
| Gear module | 4 |
Accessories compatible with the NICE Robus RB-500-HS operator
| What | Why | Type | Included? |
|---|---|---|---|
| Flashing beacon | The beacon flashes to indicate gate movement—ideal for exits with limited visibility. It also has a built-in antenna for greater remote-control range. | - Lucy (LUCYB) - Moonlight (MLBT) - Era Light (ELB) |
Yes, ELB. |
| Photocells | They detect obstacles while the gate is closing and stop its movement, preventing it from hitting cars or people. | - MoonBUS (MOFB) - Era Photocell (EPMB) |
Yes, EPMB. |
| Transmitter |
For remote operation of the gate. |
- Era One (ON2E, ON4E) |
Yes, ON2E. |
| Receiver | Required for remote operation of the gate. | - OXI - SMXI |
Yes, OXI. |
| Antenna | For better remote-control range. | - built into the beacon LUCYB, MLBT - ABFKIT antenna only |
Built into the beacon. |
| Keypad | Useful if you forget your remote, or if many vehicles or people visit and you don't want to give everyone a remote or open the gate manually. | - MOTXR (wireless) | No. |
| Key switch | Operate the gate with a key using a switch connected to the operator by cable and installed wherever you choose. | - MOSE | No. |
| Rack | Essential for the operator to automate the gate—without a rack, the operator has nothing to move the gate with. | - nylon LZ-1 with steel reinforcement - steel LZ-2 |
No. |
For more information about the operator, visit the product page for the standalone operator NICE ROBUS 500HS.
