Drive kit for sliding gates up to 2500 kg/18 m - NICE Run RUN2500P (E)
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,298.93 including VAT
| Weight |
|---|
| 26 kg |
Description of Drive kit for sliding gates up to 2500 kg/18 m - NICE Run RUN2500P (E)
NICE Run RUN2500P drive, with an inductive limit switch, is designed for sliding gates weighing up to 2500 kg and a passage width up to 18 m. It has an inductive stop switch. The drive is non-reversible. Detailed technical specifications ». Download the manual ».
| Set NICE-RUN2500P-E contains: | ||||
|---|---|---|---|---|
|
1 × | NICE Run RUN2500P operator | NICE-RUN2500P-A | |
|
NICE Run RUN2500P electromechanical gate operator with a built-in control unit, suitable for gates weighing up to 2500 kg and with a leaf length of up to 18 m. |
Details
|
|||
|
1 × | NICE RUA1 control unit | NICE-RUA1 | |
|
Control unit for the NICE RUN drive |
Details
|
|||
|
1 × | NICE RBA1 inductive limit switch | NICE-RBA1 | |
|
A magnetic switch for more precise and smoother stopping than an electromechanical switch. |
Details
|
|||
|
1 × | NICE MYGO4 - four-channel remote control | NICE-MYGO4 | |
|
NICE MYGO4 - four-channel remote control, rolling code, 433.92 MHz |
Details
|
|||
|
1 × | NICE OXIBD remote control receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. Supports two-way communication with selected remote control models. Range of up to 200m with an antenna. |
Details
|
|||
|
1 × | NICE EPMB - Era Photocell Medium - photocells with BlueBUS connection | NICE-EPMB | |
|
Safety photocells are installed on either side of the opening. They create an infrared beam which, when interrupted by a car or pedestrian, for example, sends a signal to the drive to stop the gate or prevent it from opening. |
Details
|
|||
|
4 m | Rack with metal reinforcement | LZ-1-1 | |
|
A sliding gate with a fixed rack is moved by the drive gear via a rack-and-pinion mechanism. |
Details
|
|||
|
1 × | Installation Manual |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Drive features NICE RUN RUN2500P
The drive is compact, safe and practical, making it ideal for both residential and commercial use. Impact-resistant cover, aluminium alloy body with an epoxy coating.
The drive is suitable for automating sliding gates weighing up to 2500 kg, with a gate leaf length of up to 18 m. These ratings apply under the conditions specified by the manufacturer, such as weather conditions, temperature variations, gate rigidity and, above all, smooth gate movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Run RUN2500P drive ideally with gates operating at 80% of these values. See the chapter Choosing a drive for more information.
Highly user-friendly BlueBUS allows you to power and control up to 7 pairs of photocells using a two-core cable.
The temperature sensor adjusts the drive's pulling force according to the climatic conditions. The drive also includes a thermal fuse.
Adjustable speed,, force and pause time for the drive's automatic closing function, and much more; see Programming.
Diagnostics using a warning light.
The gear module 4 is compatible with the rack in our range.
Run2500P drive functions "The slave unit" ensures automatic synchronisation of two motors. This means that two sliding gates moving towards each other can be automated.
The drive NICE Run RUN2500P is an electromechanical drive suitable for the climate in Slovakia and complies with all European safety standards.
Drive RUN RUN2500P in pictures

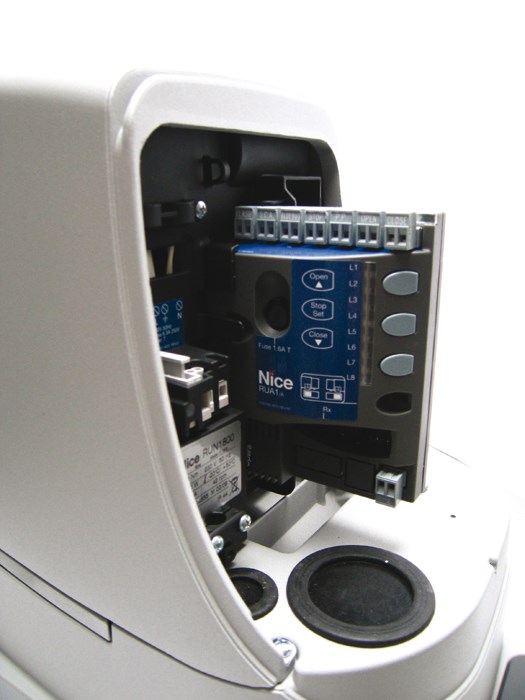

| Manual release | Control unit | Wiring diagram |
|---|---|---|
 |
 |
 |
| Instructions for manual release > |
Programming the drive > |
Detailed wiring diagram > |
You can find the detailed wiring diagram and more technical information on the NICE Run RUN2500P drive product page, or in the manual..
Drive technical specifications NICE RUN RUN2500P
| Power supply | (Vac 50 Hz) | 230 |
| Current consumption | (A) | 3.8 |
| Protection rating | (IP) | 44 |
| Power | (W) | 870 |
| Speed | (m/s) | 0.17 |
| Force | (N) | 1390 |
| Max. gate weight | (kg) | 2500 |
| Operating temperature | (°C) | -20 to +50 |
| Insulation class | 1 | |
| Gear module | 4 |
Accessories compatible with the NICE Run RUN2500P drive
We also recommend purchasing compatible optional accessories for the drive, or choosing one of our pre-assembled at a special price:
| What | Why | Type | Included in the kit? |
|---|---|---|---|
| Warning light | The warning light flashes to indicate gate movement—ideal for exits with limited visibility. It also has a built-in antenna for a longer remote-control range. | - Lucy (LUCYB) - Moonlight (MLBT, ELB) |
No. |
| Photocells | When closing, they detect an obstacle and stop the gate, preventing it from hitting a car or anyone. | - MoonBUS (MOFB,EPMB) | Yes, EPMB. |
| Transmitter |
For remote gate control. |
- Era One (ON2E, ON4E) |
Yes, MYGO4. |
| Receiver | Required for remote gate control. | - OXI - SMXI |
Yes, OXIBD. |
| Antenna | For better remote control range. | - integrated into the warning light LUCYB, MLBT - ABFKIT antenna only |
No. |
| Keypad | If you forget your remote control, or if many vehicles or people visit and you don't want to give everyone a remote or open the gate manually. | - MOTXR (wireless) | No. |
| Key switch | For operating the gate with a key using a switch connected to the drive by cable from any location. | - MOSE | No. |
| Rack | Required for the drive automation itself—the drive cannot move the gate without a rack. | - nylon LZ-1 with steel reinforcement - steel LZ-2 |
Yes, 4x LZ-1 |
Compatibility chart for NICE Run drives
