Description of Drive kit for sliding gates up to 400 kg/6 m NICE NKSL400 (F)

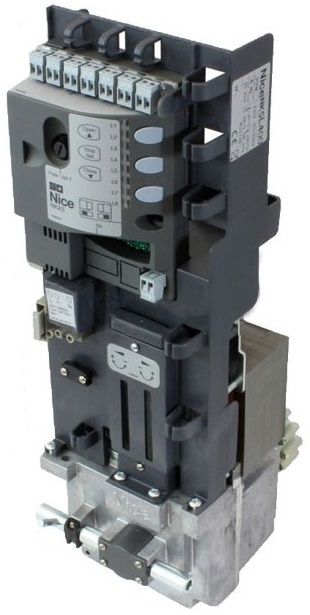

The compact Nice NKSL400 electromechanical gate operator is suitable for sliding gates weighing up to 400 kg or with a passage width of 6 m. The operator is supplied without covers, and is suitable for installation directly inside the gate post.
With dimensions of 131x135x405mm it is suitable for concealed installation inside a post measuring 150x150x4mm or larger (see drawing).
Thanks to the built-in internal limit stops there is no need to install limit stops on the rack. The stops are very quick to set; just make one run with the gate unlocked.
The operator can be released from either side of the post, or remotely using the accessories NICE KIO and NICE KA1 as well.
The operator also includes a temperature sensor, and automatically adjusts the force applied to compensate for temperature changes—for example, it automatically increases the force at low temperatures.
The operator is supplied with the control unit NKA3R10 installed inside the operator. Popular practical features of the control unit:
- control using remote controls via a radio receiver
- option to set automatic closing after a specified time or after a vehicle passes through the photocells
- inputs for wired open, close and step-by-step commands
- 24 V DC output for accessories
- programmable partial opening width for pedestrian access
- adjustable force and speed
- operator release in the event of a power failure
- option to connect two operators with automatic synchronisation to automate opposing sliding gates.
A backup power supply can be connected to the operator as an optional accessory NICE PS124, allowing several operating cycles even during a power outage. There is enough space inside the operator to house the backup power supply.
In principle, the control unit NKA3R10 is technologically very similar to the operator NICE Robus RB400..
The operator's drive gear has a module 4 rack.
| The set includes: | NICE-NKSL400-F | |||
|---|---|---|---|---|
 |
1 × | NICE Slight NKSL400 operator | NICE-NKSL400 | |
|
NICE Slight NKSL400 electromechanical operator with NKA3R10 control unit, for gates weighing up to 400 kg and with a leaf length of up to 6 m. |
Details  |
|||
 |
1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-button remote control for opening your gate automatically from a distance. Use it to control four devices or send four different commands to one device. Compatible with all NICE operators using O-Code rolling-code technology (the 72-bit code allows 4.7 quadrillion combinations, making it virtually impossible to misuse) and an LED indicator for the transmitted signal. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the passageway. They create an infrared beam which, when interrupted by a car or pedestrian, for example, signals the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE LED flashing ELDC warning light made of impact-resistant polycarbonate, with a built-in antenna to extend the remote control range (up to 150 m). |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Radio receiver for remote-control signals. |
Details |
|||
 |
1 × | NICE Slight NKSL400 installation manual | ||
|
Installation manual for a successful installation, with wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
| 1 × | Installation accessories | |||
|
Operator installation components |
||||
 |
4 × | Rack with metal reinforcement | LZ-1-1 | |
|
A sliding gate with a rack fixed in place is moved by the operator's drive gear through a rack-and-pinion mechanism. |
Details |
|||
Recommended accessories:
- NICE Era Photocell photoelectric sensors EPMB or EPSB (slim version)
- NICE remote controls ideally the MYGO, Era One, or Era Inti ranges
- Nylon rack with steel reinforcement

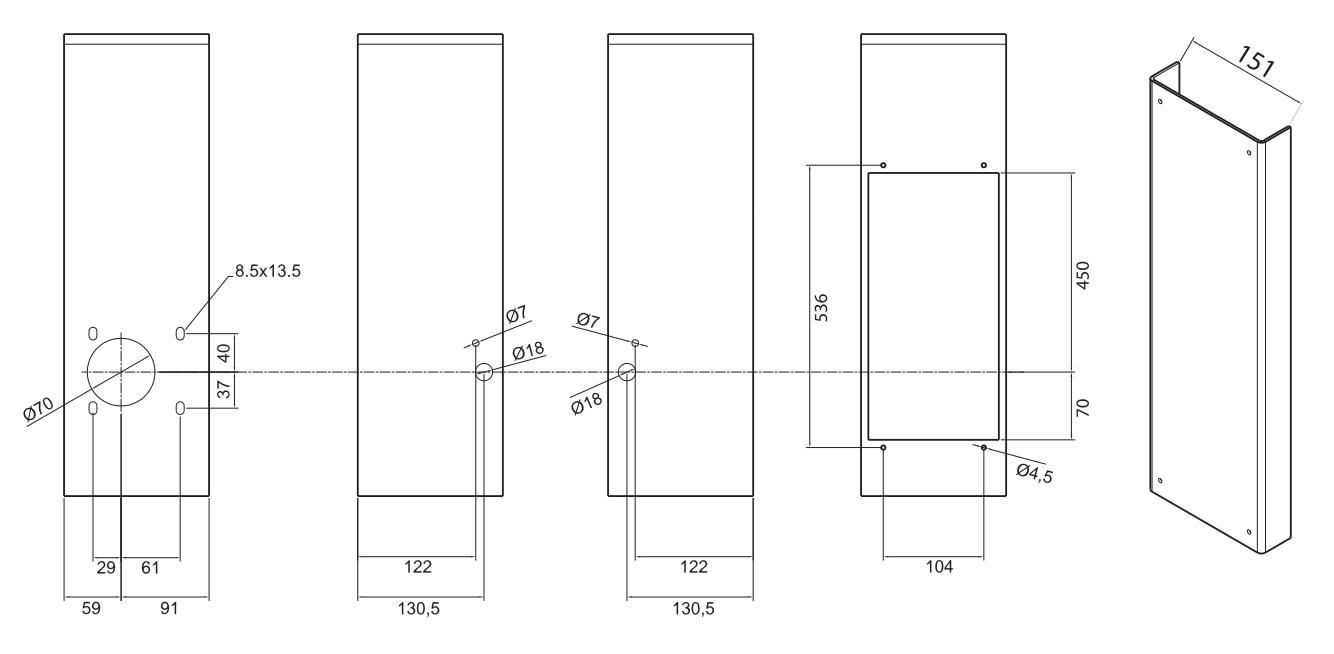

Post cutout diagram:
Although it may look complicated at first, it’s not that difficult: on the front of the 150x150 box section, cut a 7 cm diameter hole for the toothed wheel and four more holes for mounting the drive. Cut a square opening in the back to provide access to the drive, and, optionally, small holes on the sides to release the drive. Cover the opening cut into the back with a bent sheet-metal plate cut to size. See the diagrams showing the box section:
360°:
Manual for the NICE Naked Sliding NKSL400 gate operator
| Manual for the NICE Naked Sliding NKSL400 gate operator |
