Description of Drive kit for a garage door up to 9.3/10.5/11.8 m2 NICE Spinbus SN6021
Replacement available!
The garage door kit for up to 9.3/10.5/11.8m2 with the NICE Spinbus SN6021 operator has been replaced by the garage door operator kit for up to 9.6/10.5m2 with the NICE SPIDO600 operator.
NICE Spinbus SN6021 operator kit is designed for garage doors:
- sectional garage doors up to a height of 2.4m and an area of 10.5m2,
- up-and-over garage doors with protruding panels up to a height of 2.8m and an area of 11.8m2,
- up-and-over garage doors with non-protruding panels up to a height of 2.2m and an area of 9.3m2.
Features a mechanical stop switch. The operator is non-reversible. Detailed technical specifications ». Download the manual ».
| Set NICE-SPINBUS21-KIT3 contains: | ||||
|---|---|---|---|---|
|
1 × | NICE Spinbus SN6021 Garage Door Opener | NICE-SPINBUS21 | |
|
NICE Spinbus SN6021 electromechanical operator for sectional garage doors with an area of up to 10.5 m², protruding up-and-over garage doors with an area of up to 11.8 m², or non-protruding up-and-over garage doors with an area of up to 9.3 m².
|
Details
|
|||
|
1 × | NICE SNA20R10 control unit | NICE-SNA20R10 | |
|
Control unit for the NICE Spinbus 6021 gate operator. |
Details
|
|||
|
1 × | NICE OXIBD remote control receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. Supports two-way communication with selected remote control models. Range of up to 200m with an antenna. |
Details
|
|||
|
1 × | NICE MYGO4 - four-channel remote control | NICE-MYGO4 | |
|
NICE MYGO4 - four-channel remote control, rolling code, 433.92 MHz |
Details
|
|||
|
1 × | NICE SNA30 pre-assembled guide rail, 3 m long | NICE-SNA30 | |
|
Pre-assembled belt guide rail for moving the carriage that opens the garage door. For sectional garage doors up to 2.4 m high, projecting up-and-over garage doors up to 2.8 m high, or non-projecting up-and-over garage doors up to 2.2 m high. |
Details
|
|||
|
1 × | Installation manual for NICE Spinbus operators |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Mounting accessories
Note: If you need to automate a garage door up to a height of 3.5 m, you will need to purchase NICE SNA31 guide rail extension.
Drive features NICE Spinbus SN6023
The drive is compact, safe and practical, making it ideal for both residential and commercial use. Durable plastic housing with integrated lighting.
The drive is suitable for automating garage doors with a door area of 10.5 m2 for sectional garage doors, 11.8 m2 for up-and-over garage doors with an outward-swinging panel, or 9.3 m2 for up-and-over garage doors with a non-protruding panel. Types of garage doors. These values apply under the conditions specified by the manufacturer, such as weather conditions, temperature variations, door rigidity and, above all, smooth door movement. These conditions cannot always be achieved or controlled, so we recommend using the NICE Spinbus SN6021 drive for garage doors at 80% 80% of these values. See the Choosing a drive section for more information.
A very user- friendly technology BlueBUS allows you to power and control up to 6 pairs of photocells using a two-core cable. The drive also includes a thermal fuse.
Adjustable speed,, force and pause time for automatic closing of the drive and more; see Programming.
Diagnostics using a warning light.
If the power fails, the drive can be disengaged so the door can be operated manually. You can also connect a NICE PS124 backup battery, which enables the door to complete several operating cycles in the event of a power failure.
The drive control unit has a programmable input, to which you can connect a warning light, open-door indicator, electromechanical lock or electromagnetic lock.
The NICE Spinbus SN6023 is an electromechanical drive suited to the climate in Slovakia and complies with all European safety standards.
NICE Spinbus SN6023 drive photo gallery

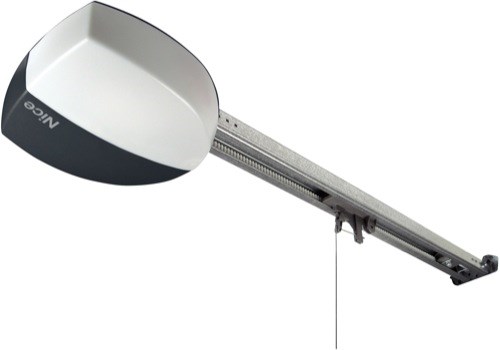

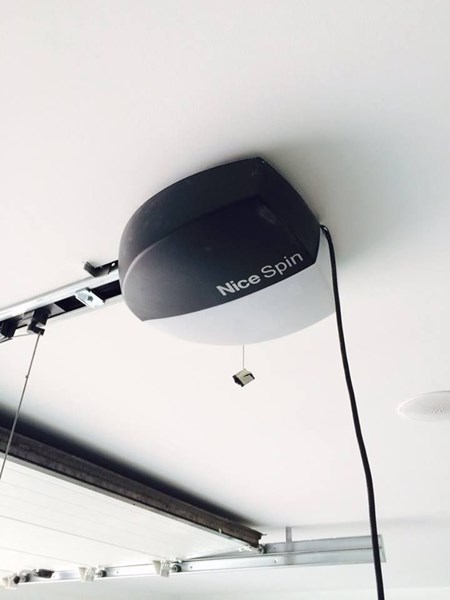

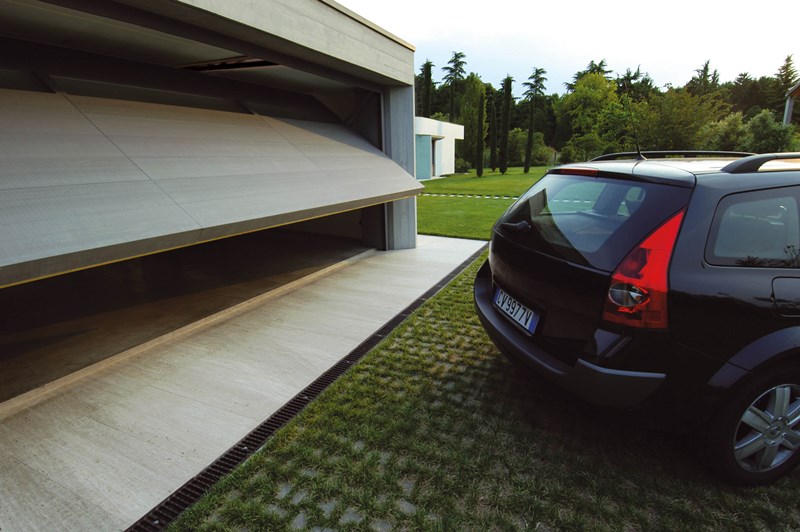

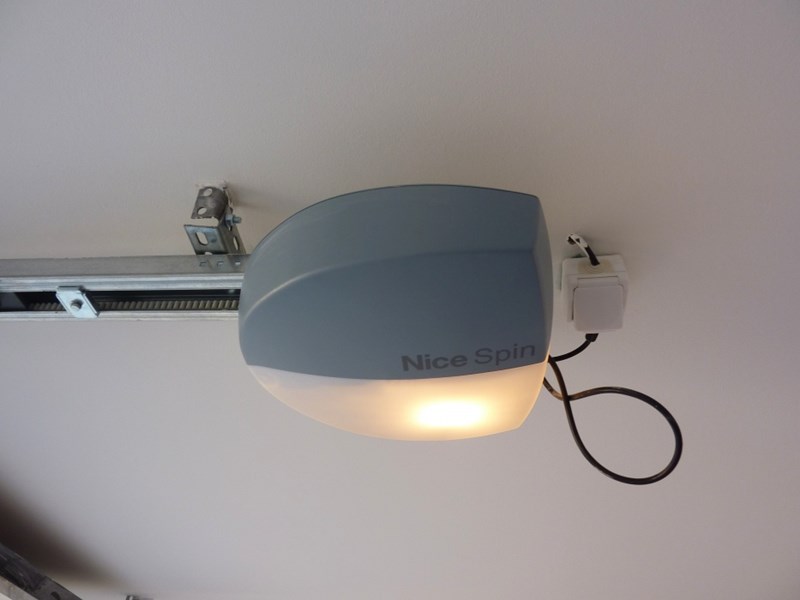

| Drive installed on the ceiling | Drive with guide rail | Outward-swinging up-and-over garage door |
|---|---|---|
 |
 |
 |

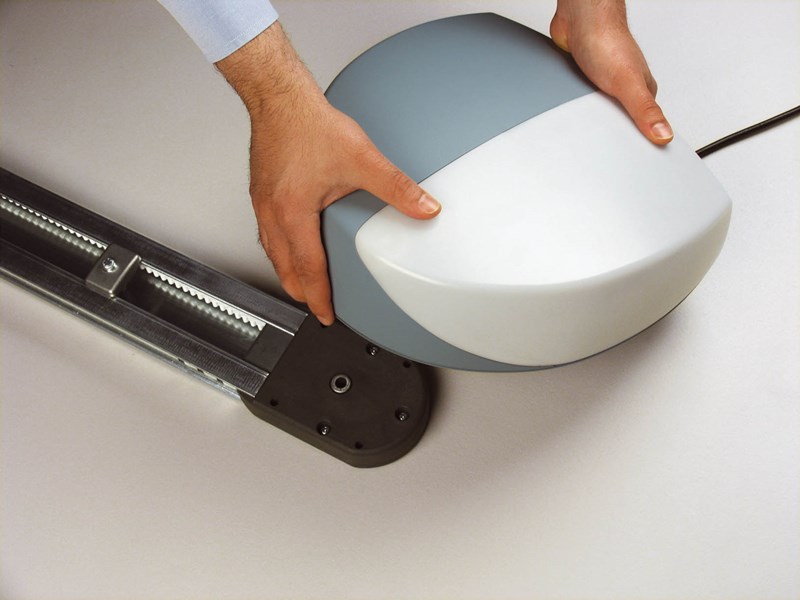

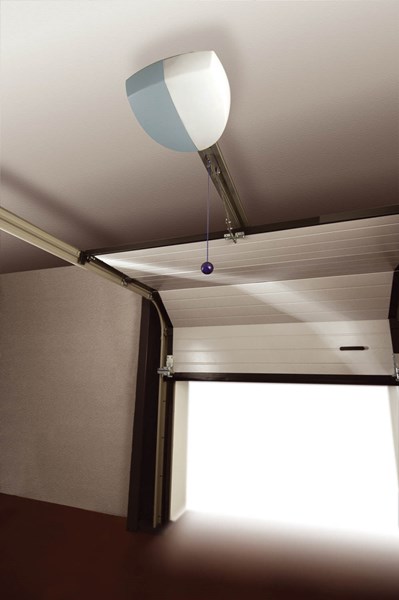

| Drive lighting | Drive with a sectional garage door | Attaching the drive to the rail |
 |
 |
 |

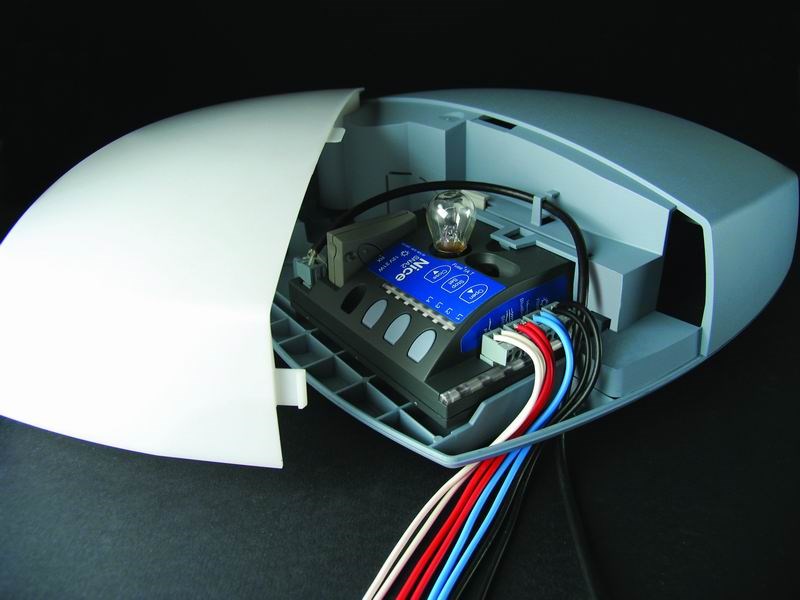

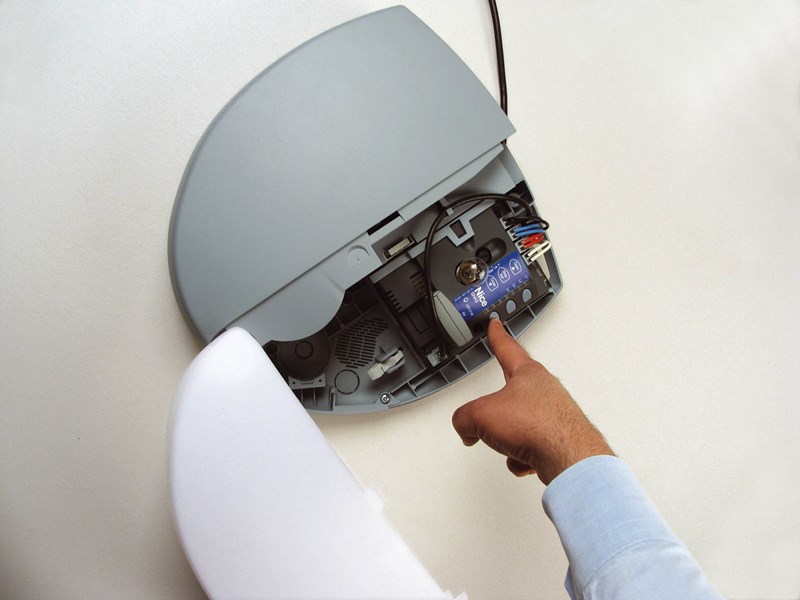

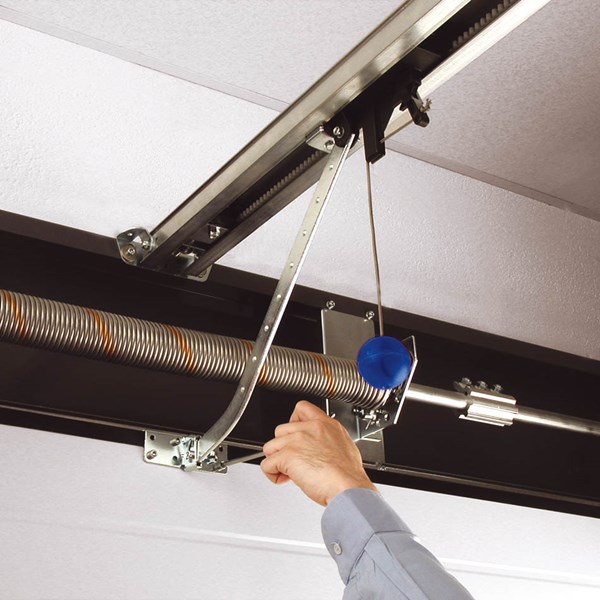

| Mounting the arm to the garage door panel | Programming the drive | Drive wiring |
 |
 |
 |
Installation and programming
- Installing the drive and mounting the guide rail
- Connecting and programming the NICE SNA2 control unit
Accessories compatible with the NICE Spinbus SN6023 drive
We also recommend purchasing compatible optional accessories for the drive, or choosing one of our pre-assembled discounted set:
| What | Why | Type | Included in the set? |
|---|---|---|---|
| Warning light | The warning light flashes to indicate that the door is moving—ideal for entrances with limited visibility. It also has a built-in antenna for increased remote-control range. | No. | |
| Photocells | They detect an obstacle while the gate is closing and stop its movement, preventing it from hitting a car or anyone. | - MoonBUS (MOFB) | No. |
| Transmitter |
For remote gate operation. |
- FloR (Flo2R-s, Flo4R-s) |
Yes, Flo2RE. |
| Receiver | Required for remote gate operation. | - OXI - SMXI |
Yes, OXIBD. |
| Antenna | For improved remote-control range. | - built into the flashing light LUCYB, MLBT - ABFKIT antenna only, or ABF |
No. |
| Keypad | If you forget your remote control, or if many vehicles or people need access and you don't want to give everyone a remote or open the gate manually. | - MOTXR | No. |
NICE Spinbus SN6023 drive manual
Download the NICE Spinbus SN6023 drive manual here:
NICE Spinbus SN6023 drive manual
Technical specifications
The drive's technical specifications are available on a separate page NICE Spinbus SN6023 drive.

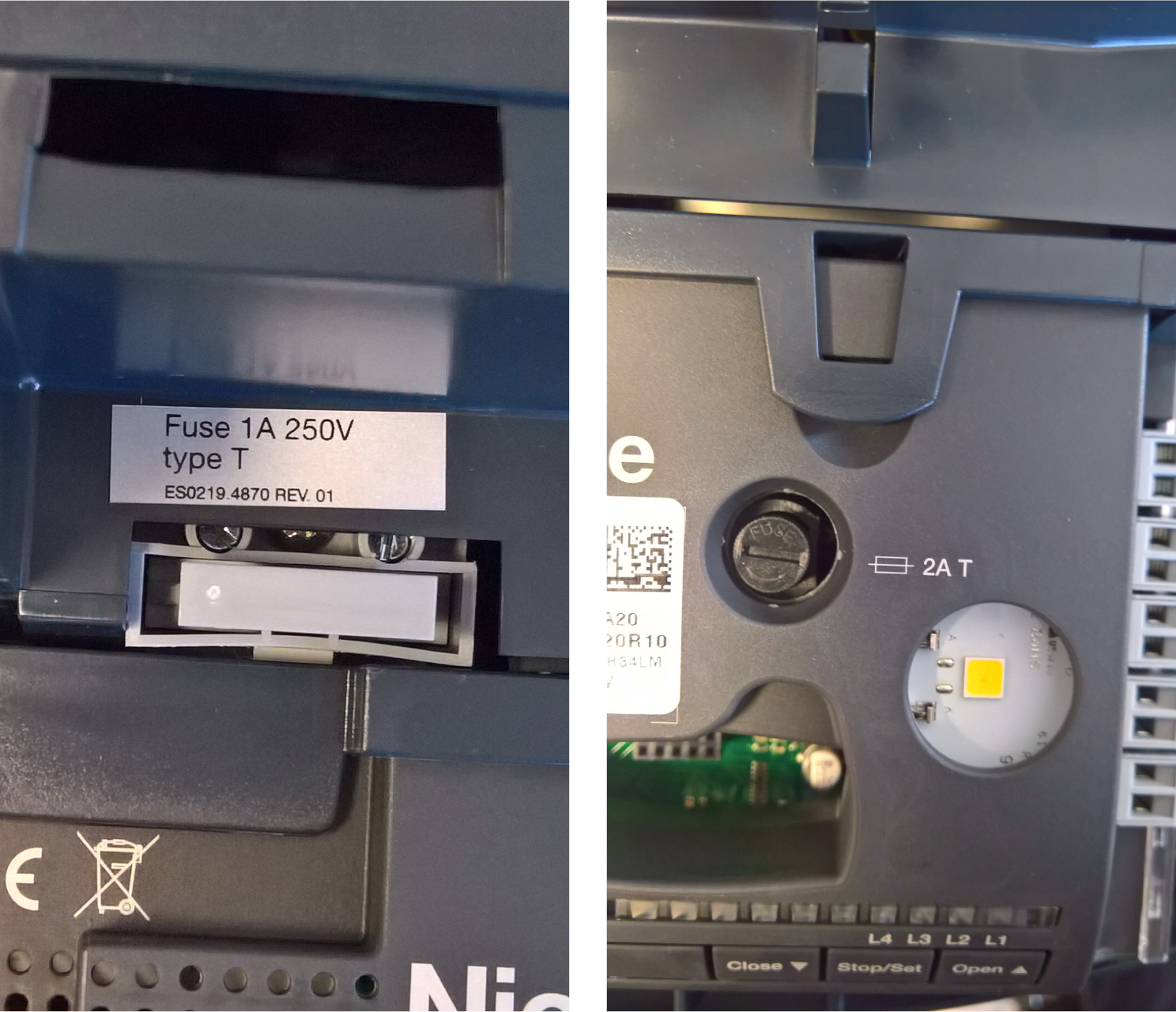

Fuses in the Spinbus SN6023 drive
The drive contains two fuses: one for the power supply (type: T 1A 250V) and one for the control unit (type: T 2A).
