NICE Robo RO500 drive kit (RO1070) – drive for gates up to 500 kg with ROA37 control unit
| Product availability: | Unavailable | We’ll be happy to help you choose a replacement. Feel free to contact us. |
|---|
Description of NICE Robo RO500 drive kit (RO1070) – drive for gates up to 500 kg with ROA37 control unit
The NICE Robo RO500 drive is no longer manufactured. It has been replaced by newer, more powerful drives NICE Rox ROX600 and NICE Rox ROX1000 . These are ideal alternatives if you need to replace an older NICE Robo drive. There is no need to change the wiring, and compatibility is retained with photocells, warning lights and remote controls. The mounting dimensions are slightly different. We’ll be happy to help you choose. Contact us.
NICE Robo RO500 (RO1070) is a drive for sliding gates up to 500 kg, compatible with the control unit NICE ROA37.
Most spare parts can be ordered for this drive.
| The set includes: | ROBOKCE | |||
|---|---|---|---|---|
 |
1 × | NICE Robo RO500 drive (RO1070) | ||
|
NICE electromechanical drive with a control unit and built-in receiver, for gates weighing up to 500 kg. |
||||
 |
2 × | NICE Flo2R-s remote control | NICE-FLO2R-S | |
|
Two-button remote control for operating an automatic gate remotely. Use it to control two devices or send two different commands to one device. |
Detail  |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it releases the drive’s gear so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE Robo 500 installation manual | ||
|
Installation manual for easy setup, with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
Download |
|||
| 1 × | Mounting accessories | |||
|
Components for installing the drive: height-adjustment screws, mounting plate, anchor caps and drive sensor stops. |
||||
Features of the NICE ROBO 500 drive
- The set includes a 230 V RO 1070 drive for gates weighing up to 500 kg, with a control unit and built-in radio receiver, plus 2 Flo2R-S transmitters (remote control frequency: 433.92 MHz).
- The RO 1070 drive is designed for private use and for gates with a maximum leaf length of 7 m and a maximum weight of 500 kg.
- Metal motor – long service life and quiet operation.
- Removable electronics board for easy servicing.
- Easy installation thanks to the heavy-duty base plate and adjustable, easily accessible screws.
- Mounting holes.
- Key-operated release.
- The ROBO 500 is an electromechanical drive suited to the climatic conditions in Slovakia and meets all European safety standards.
ROBO 500 drive in pictures

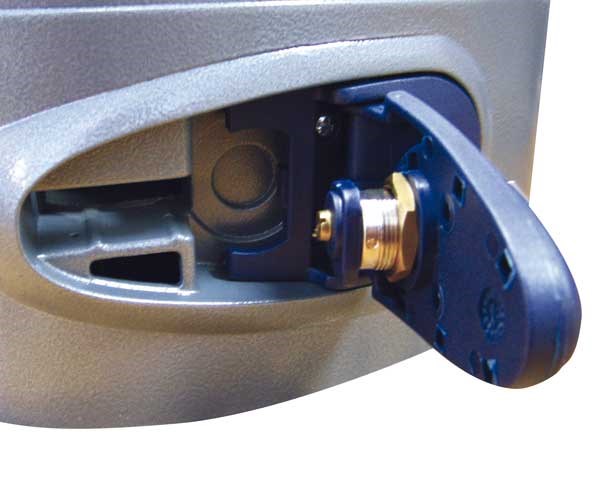

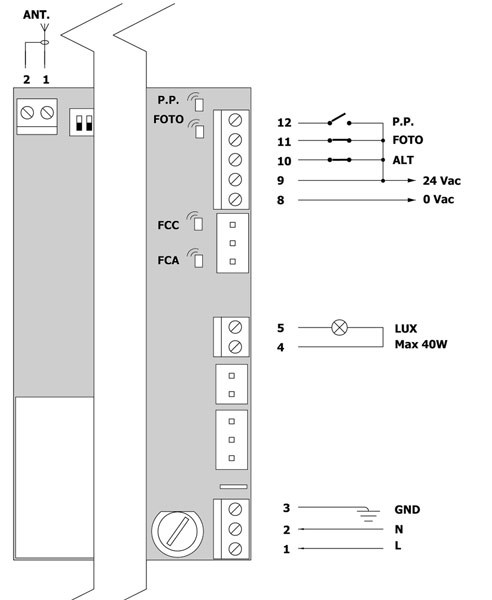

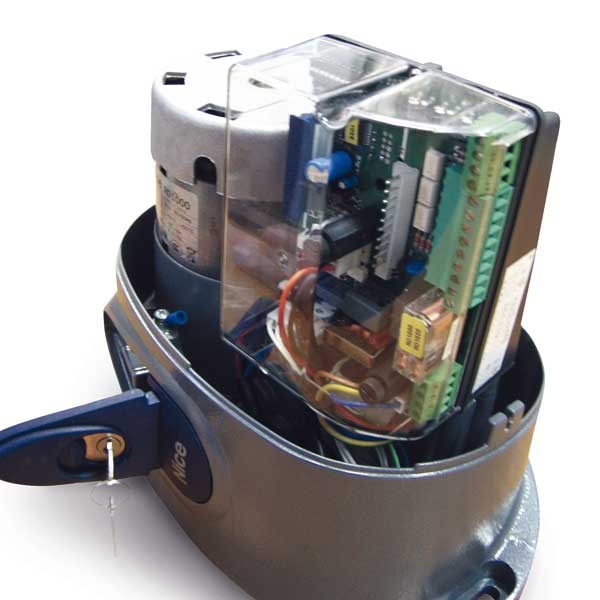

| release | control unit | wiring diagram |
|---|---|---|
 |
 |
 |
For a detailed wiring diagram and more technical information, see the manual.
Technical specifications of the NICE ROBO 500 drive
| Power supply | (Vac 50 Hz) | 230 |
|---|---|---|
| Power consumption | (VA) | 400 |
| Protection rating | (IP) | 44 |
| Current | (A) | 1.7 |
| Speed | (ms-1) | 0.18 |
| Max. torque | (Nm) | 15 |
| Max. gate weight | (kg) | 700 |
| Operating temperature | (°C) | -20 to +50 |
| Capacitor | (µF) | 12 |
| Gear module | 4 |
Accessories compatible with the ROB0 500 drive
| Warning light | LUCY, MLT, EL |
|---|---|
| Photocells | BF |
| Transmitter | ERA ONE, ON, Flor, INTI |
| Antenna | ABF, ABFKIT |
| Keypad | MOTXR |
| Toothed rack | LZ-1, LZ-2 |
NICE Robo 500 drive manual
Download the NICE ROBO 500 drive manual here: NICE ROBO 500 drive manual.
